DIY Mini Split
Systems
Built to Last.
Professional-grade ductless heating and cooling — engineered for self-installation. No vacuum pump. No contractor. No compromise.
-22 Ducted • Flareless line sets — cut to length • Ducted Air Handler

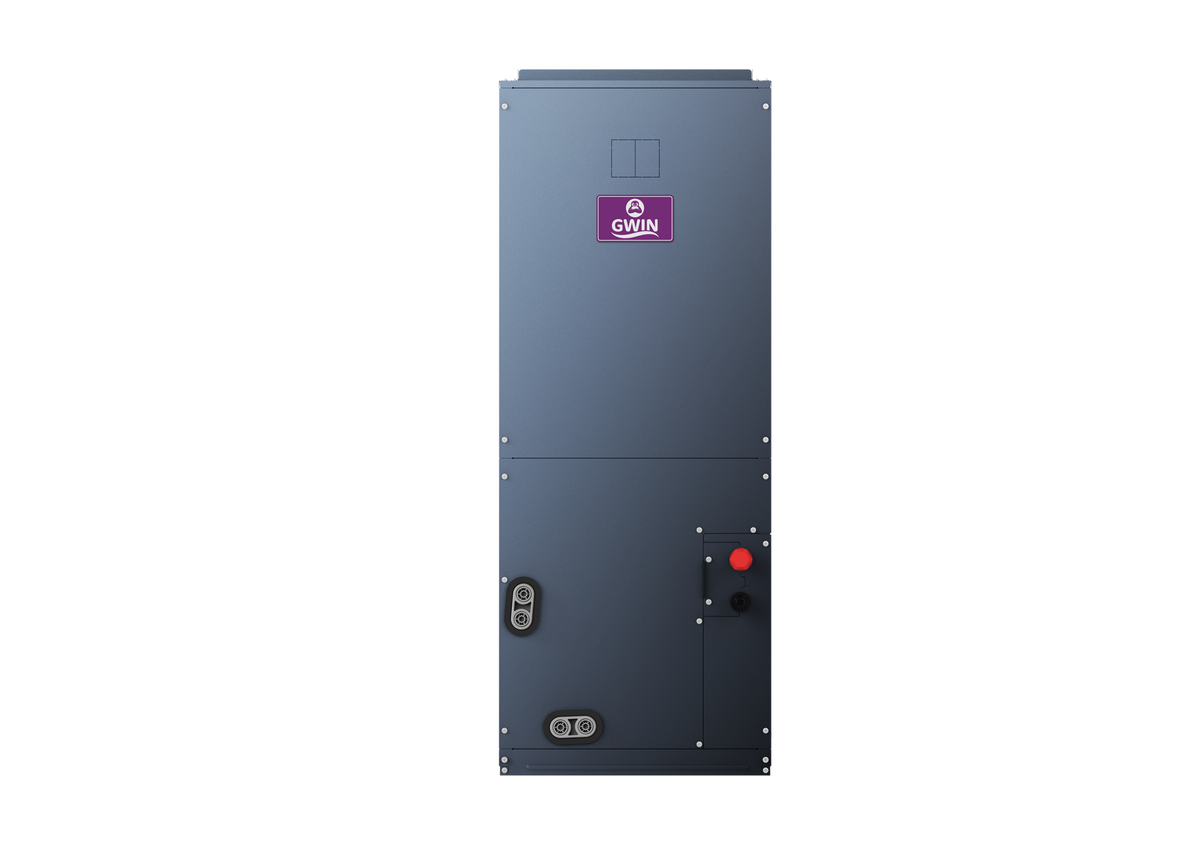

GWIN Ducted Air Handler
- All GWIN™ guarantees
No description available.
GWIN Ducted Inverter Condenser
- Heating to −22°F
- All GWIN™ guarantees
GWIN Inverter Ducted System – Reliable, Efficient, Flexible The GWIN Inverter Ducted HVAC system offers high-performance climate control for year-round comfort, even in extreme conditions. Designed with intelligent f...
GWIN Inverter Ducted System – Reliable, Efficient, Flexible
The GWIN Inverter Ducted HVAC system offers high-performance climate control for year-round comfort, even in extreme conditions. Designed with intelligent features and flexible installation options, this system is ideal for both residential and light commercial applications.
- Extreme Climate Performance: Operates in temperatures from -22°F to 125°F for dependable comfort in any season.
- Wide Voltage Compatibility: Runs between 170V–253V to protect components from power surges and voltage fluctuations.
- Flexible Installation: Vertical, horizontal, or inverted installation for easier retrofitting into existing spaces — only 21” wide.
- Long Piping Range: Up to 164 ft total line length and 98 ft vertical rise allows for installs in large or multi-level homes.
- Refrigerant Cooling Technology: Reduces PCB temperature, extending life and reducing service issues.
- Auto-Restart: Recovers previous settings automatically after a power outage — no user input required.
- ESP Capability: Rated up to 0.5 in.W.C, max up to 1.0 in.W.C for enhanced duct performance.
- Easy Maintenance: Quick disassembly of fan motor and PCB with no special tools required. Filter is easy to remove and clean.
- Dual Communication Support: Compatible with both 24V and RS-485 control systems for easier integration.
Warranty: 12-Year Parts & Compressor | 5-Year Labor & Refrigerant
Flareless 3/8 x 5/8 GWIN Line Set for 18k, 24k, 30k, & 36k BTU Ducted Mini Split Air Handlers
Flareless 3/8 x 5/8 GWIN Line Set for 18k, 24k, 30k, & 36k BTU Ducted Mini Split Air Handlers **Will not work on the ductless mini splits** **FOR CUSTOMERS DOING A SELF INSTALL** For contractors the Flared line se...
Flareless 3/8 x 5/8 GWIN Line Set for 18k, 24k, 30k, & 36k BTU Ducted Mini Split Air Handlers
**Will not work on the ductless mini splits**
**FOR CUSTOMERS DOING A SELF INSTALL**
For contractors the Flared line set click this link: FLARED LINE SET
Flareless 3/8 x 3/4 GWIN Line Set for 48k & 60k BTU Ducted Mini Split Air Handlers
Flareless 3/8 x 3/4 GWIN Line Set for 48k & 60k BTU Ducted Mini Split Air Handlers **Will not work on the ductless mini splits** **FOR CUSTOMERS DOING A SELF INSTALL** For contractors the Flared line set click th...
Flareless 3/8 x 3/4 GWIN Line Set for 48k & 60k BTU Ducted Mini Split Air Handlers
**Will not work on the ductless mini splits**
**FOR CUSTOMERS DOING A SELF INSTALL**
For contractors the Flared line set click this link: FLARED LINE SET
Condenser Ground Stand Brackets
Specifications and dimensions: Length 35" x Width 18" x Height 11" Loading capacity 264 lbs
Condensers Wall Mounting Bracket 18k-36k
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers. Specifications and dimensions: 31x16x20 in. 300 lbs loading capacity Suitable for 9,000-36,000 BTU condensers Equipped with security...
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers.
Specifications and dimensions:
- 31x16x20 in.
- 300 lbs loading capacity
- Suitable for 9,000-36,000 BTU condensers
- Equipped with security clip
- Preassembled set
PVC Line Covers
Line set covers Specifications and dimensions: 13 ft length 3 inches width 2 head wall covers Extra white covers Cold resistance: -40°F Heat resistance: 140°F Lifespan exceeding 10 years
GWIN Line Covers
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Des...
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection
Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Designed to conceal and protect refrigerant tubing, electrical wiring, and drain lines, this durable cover system enhances curb appeal while helping extend the life of your HVAC components. Ideal for residential or light commercial installations, both indoors and outdoors.
Key Features & Benefits
- Complete Installation Kit: Includes straight line-set channels, couplers, wall cover, end cap, and an adjustable elbow for a streamlined, finished look.
- Generous 4" x 14 ft. Coverage: Fits most standard mini-split line sets, electrical cables, and drain hoses with ample interior space for easy routing.
- Durable & Weather-Resistant Construction: Built from high-quality, UV-resistant material to help protect HVAC lines from sun exposure, moisture, debris, and environmental wear.
- Paintable for a Seamless Look: Clean white finish can be painted to match siding, brick, stucco, or interior walls for a custom appearance.
- Easy, Modular Installation: Snap-together design supports quick installation with minimal tools—great for HVAC professionals and DIY homeowners.
Why Choose GWIN?
GWIN accessories are designed to deliver professional-grade performance with clean aesthetics. This line set cover kit not only protects vital HVAC components, but also elevates the overall appearance of your installation so it blends seamlessly into any space.
Product Specifications
- Brand: GWIN
- Application: Mini-split systems, heat pumps, air conditioners
- Coverage Length: 14 ft
- Width: 4 inches
- Color: White (paintable)
- Material: Weather- and UV-resistant PVC
- Indoor / Outdoor Use: Yes
- Installation Type: Surface-mounted, modular snap-fit
Included in This Kit
- Straight line-set cover sections
- Couplers
- Adjustable elbow (90°–120°)
- Wall penetration cover
- End cap
Note: Paint before installation for best results. Verify measurements and routing requirements prior to mounting.
GWIN 10 kW Heat Kits for Ducted Systems
Need an emergency heat? Introducing our 10 kW Heat Kit for our GWIN Ducted systems!
GWIN 15 kW Heat Kits for Ducted Systems
Need an emergency heat? Introducing our 15 kW Heat Kit for our GWIN Ducted systems!
Condenser Pad
This condenser pad will fit all of the GWIN Condensers available. Why purchase an Condenser Pad? 1. Protects the unit from pest, insects and critters that may cause damage to the condenser. 2. Reduce vibration from t...
This condenser pad will fit all of the GWIN Condensers available.
Why purchase an Condenser Pad?
1. Protects the unit from pest, insects and critters that may cause damage to the condenser.
2. Reduce vibration from the AC against this pad so it does not hit against the ground. If a condenser is not placed on a support system like a pad, you risk damage being done each time the condenser vibrates against the ground.
Pros
- Unaffected by UV or weather
- Uniform rubbing transfers load evenly
- Lightweight, yet incredibly rugged
Material Type: Polypropylene
Disconnect Switch and Electrical Whip with #10 AWG
No description available.
Disconnect Switch and Electrical Whip with #8 AWG
No description available.
