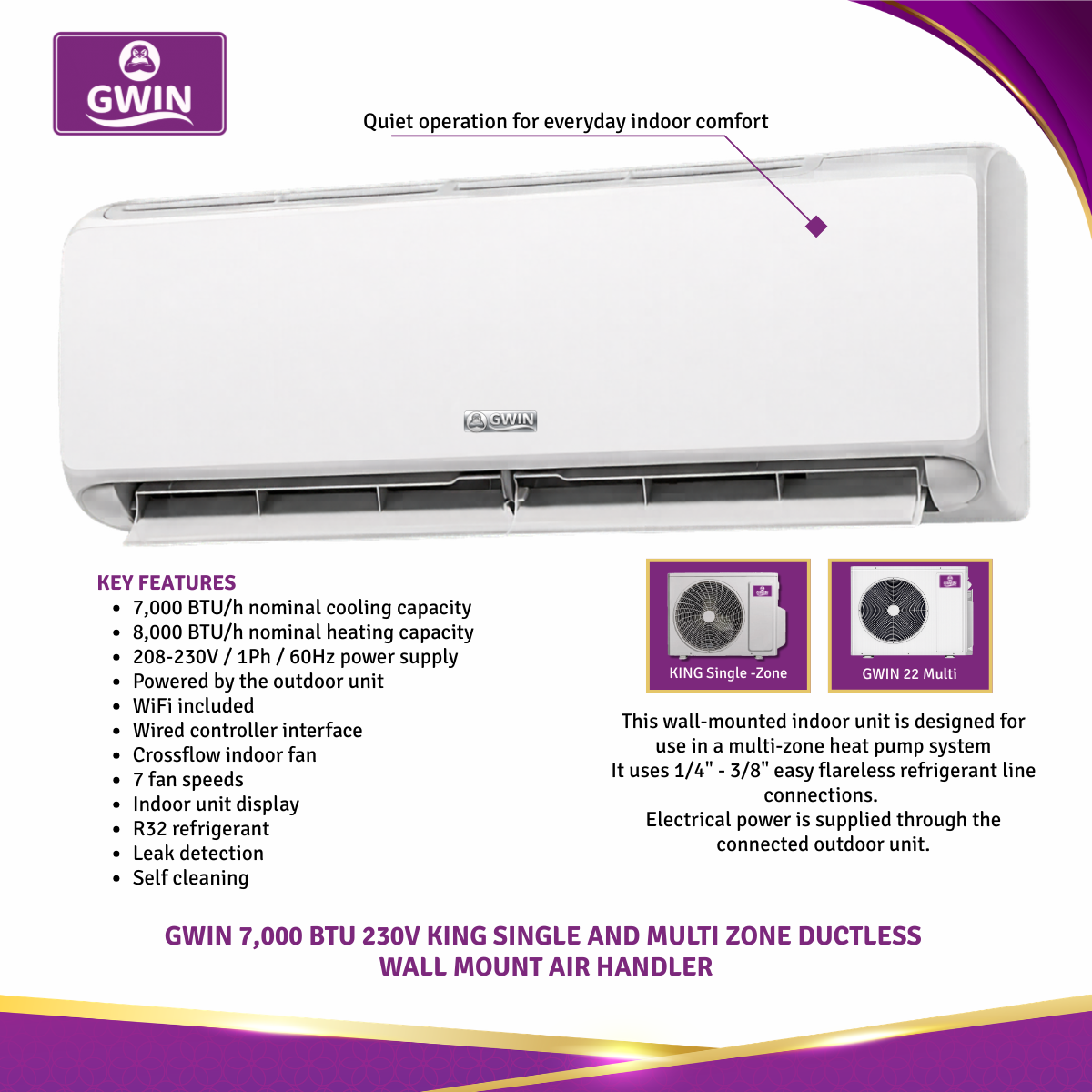

GWIN 7,000 BTU 230V King Multi-Zone Ductless Wall Mount Air Handler
GWIN 7,000 BTU 230V King Multi-Zone Ductless Wall Mount Air Handler
Available in stock (500)
GWIN 7,000 BTU 230V King Multi-Zone Ductless Wall Mount Air Handler
The GWIN 7,000 BTU 230V King Multi-Zone Ductless Wall Mount Air Handler is an indoor wall-mounted unit designed for multi-zone heat pump applications. It delivers 7,000 BTU/h nominal cooling and 8,000 BTU/h nominal heating and is powered by the connected outdoor unit.
This unit is built for quiet, efficient indoor comfort and includes WiFi, a wired controller interface, a crossflow fan, and multiple fan speed options for flexible day-to-day operation. System performance values such as SEER2, EER2, HSPF2, COP, and temperature range depend on the connected outdoor unit.
Comfort & Control
This indoor air handler includes a full range of remote controller functions for customizable operation and everyday convenience.
- Auto Mode
- Auto Fan
- Horizontal Auto Swing
- Vertical Auto Swing
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Key Features
- 7,000 BTU/h nominal cooling capacity
- 8,000 BTU/h nominal heating capacity
- 208-230V / 1Ph / 60Hz power supply
- Powered by the outdoor unit
- WiFi included
- Wired controller interface
- Crossflow indoor fan
- 7 fan speeds
- Indoor unit display
- R32 refrigerant
Installation & Compatibility
This wall-mounted indoor unit is designed for use in a multi-zone heat pump system and uses 1/4" - 3/8" flared refrigerant line connections. Electrical power is supplied through the connected outdoor unit.
Technical Specifications
| System Type | Heat Pump |
| Indoor Model | KING07HP230V1R32AH |
| Cooling Capacity | 7,000 BTU/h (Nominal) |
| Heating Capacity | 8,000 BTU/h (Nominal) |
| Refrigerant Type | R32 |
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Air Flow (Min - Max) | 135 - 259 CFM |
| Sound Pressure Level (Min - Max) | 23 - 38 dB(A) |
| Dehumidification | 1.27 pt/hr |
| External Dimensions (W x H x D) | 27-7/8 x 10-15/64 x 7-18/64 in. |
| Package Dimensions (W x H x D) | 29-41/64 x 13-5/64 x 10-10/64 in. |
| Net Weight | 15.4 lbs |
| Gross Weight | 18.7 lbs |
| Line Set Size (Liquid - Gas) | 1/4" - 3/8" |
| Wired Controller Interface | Yes |
| WiFi Included | Yes |
| Indoor Fan Type | Crossflow |
| Multi Fan Speeds | 7 Speeds |
| Indoor Unit Display | Yes |
| Auxiliary Electrical Heater | No |
| Ventilation (Outdoor Air) | No |
| Performance Note | System performance is based on the connected outdoor unit performance. |
