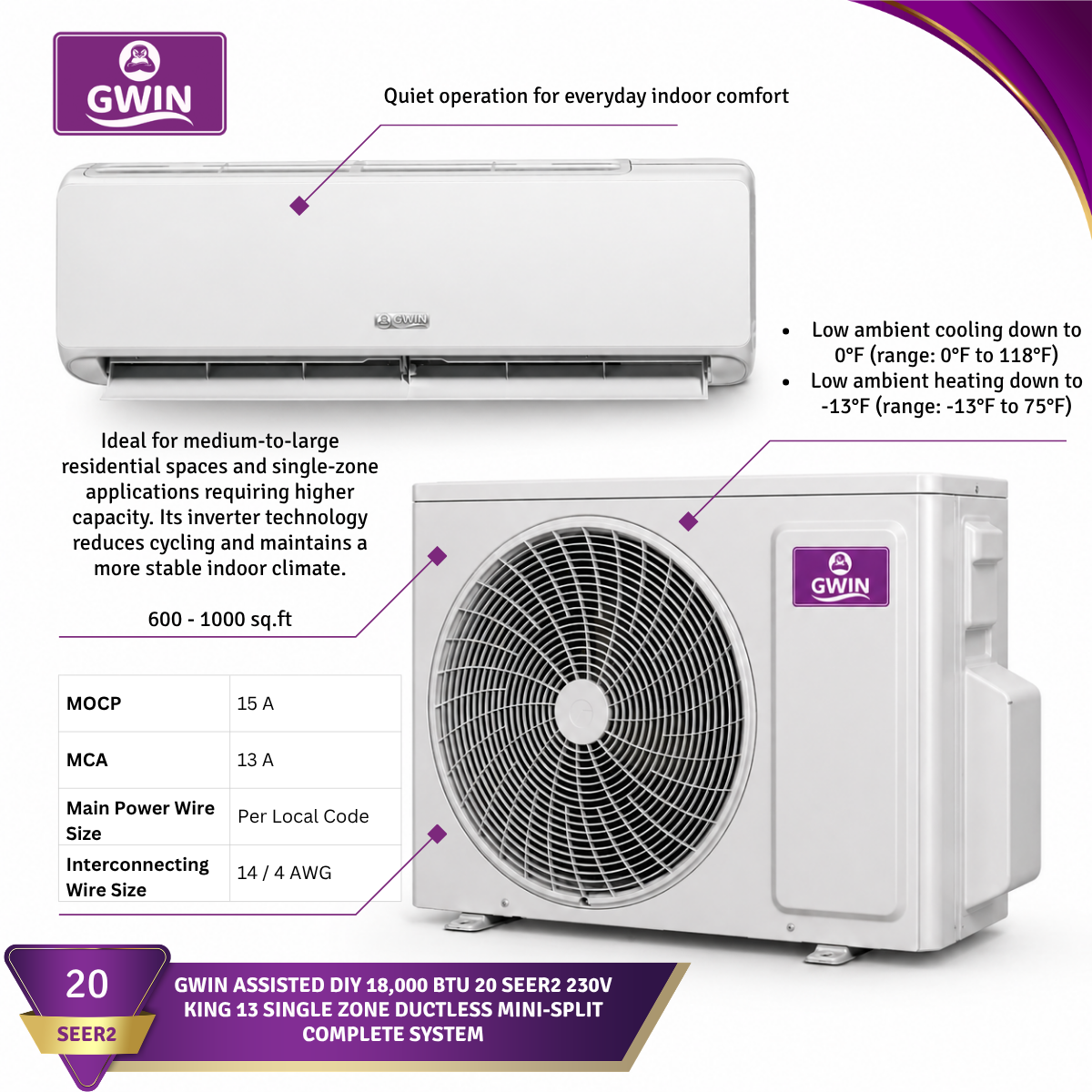

GWIN Assisted DIY 18,000 BTU 20 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 18,000 BTU 20 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a powerful and efficient heating and cooling solution for larger bedrooms, living areas, offices, and open spaces. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system delivers inverter-driven performance in a sleek wall-mounted design.
With a 20 SEER2 rating, this 18,000 BTU mini-split heat pump helps reduce energy consumption while maintaining consistent indoor temperatures. It uses R32 refrigerant for enhanced efficiency and reduced environmental impact, and includes a 15 foot line set and communication wire for installation convenience.
Efficient Comfort for Larger Rooms
This King Series system is ideal for medium-to-large residential spaces and single-zone applications requiring higher capacity. Its inverter technology reduces cycling and maintains a more stable indoor climate.
Key Features
- 18,000 BTU single zone ductless mini-split for larger spaces
- 20 SEER2 efficiency
- 230V operation
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue Colored Fin - 500 Hrs Salt Spray Tested
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Force defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds
- Indoor unit display
- A2L leak detection sensor (indoor) factory installed
- Quiet operation
Reliable Cold Weather Performance
The King Single Zone series is designed for dependable operation in colder climates, with heating performance down to -13°F and up to 75°F.
Assisted DIY Installation Advantage
GWIN provides the flexibility of a full Assisted DIY install with full warranty while including GWIN Tech support for commissioning.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 18,000 BTU King indoor air handler
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort functions
Ideal Applications
This 18,000 BTU 230V ductless mini-split complete system is ideal for living rooms, garages, open spaces, offices, and similar areas.
System Information
| System Type | Heat Pump |
| Indoor Model | KING18HP230V1R32AH |
| Outdoor Model | KING18HP230V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 3,753 - 20,300 BTU/h |
| Rated Cooling Capacity @ 95°F | 18,000 BTU/h |
| Heating Capacity (Min - Max) | 2,730 - 22,500 BTU/h |
| Rated Heating Capacity @ 47°F | 19,100 BTU/h |
| Rated Heating Capacity @ 17°F | 15,300 BTU/h |
| Rated Heating Capacity @ 5°F | 12,100 BTU/h |
| SEER2 | 20.0 |
| EER2 | 12.35 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.75 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING18HP230V1R32AH |
| Air Flow (Min - Max) | 282 - 618 CFM |
| Sound Pressure Level (Min - Max) | 34 - 53 dB(A) |
| Dehumidification | 3.80 pt/hr |
| Unit Dimensions (W x H x D) | 37-1/8 x 13-7/64 x 9-11/16 in. |
| Package Dimensions (W x H x D) | 39-13/32 x 15-15/16 x 12-43/64 in. |
| Net Weight | 28.7 lbs |
| Gross Weight | 34.2 lbs |
Outdoor Unit Specifications
| Model | KING18HP230V1R32AO |
| Compressor Type | GWIN G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 57 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 70.6 lbs |
| Gross Weight | 76.1 lbs |
Refrigerant Piping
| Refrigerant Charge | 32.5 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 1/2 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 82 ft |
| Max Pipe Elevation | 33 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 9.5 A |
| Rated Current - Heating | 9.5 A |
| MOCP | 15 A |
| MCA | 13 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 37 1/8
- H: 13 7/64
- D: 9 11/16
Package Dimensions
- W: 39 13/32
- H: 15 15/16
- D: 12 43/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions, clearance to the wall on the back can be reduced to 3 inches.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 18,000 BTU 20 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
