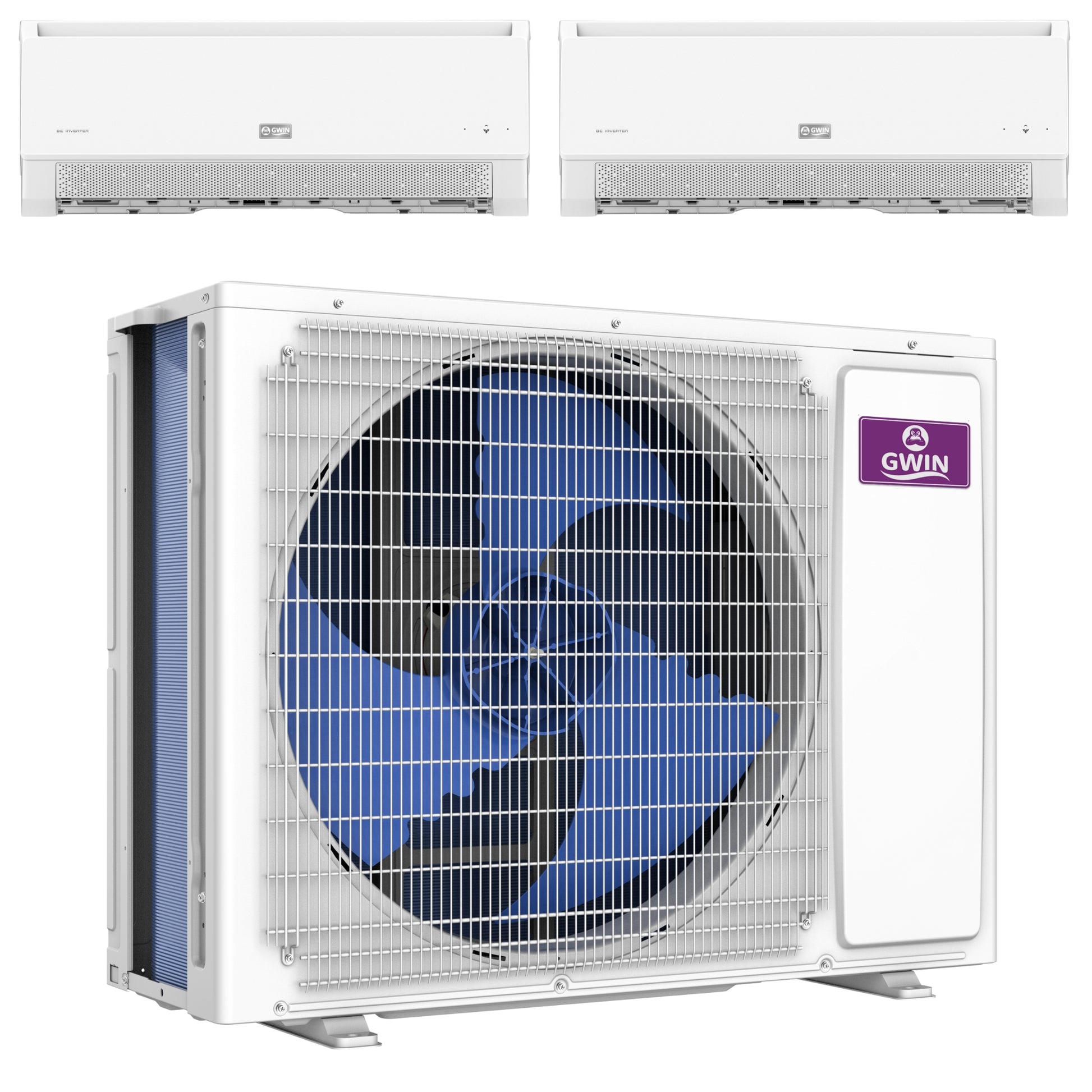

GWIN 24,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (18k condenser,12K + 12K Wall Mount) with 15 foot line set and communication wire
GWIN 24,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (18k condenser,12K + 12K Wall Mount) with 15 foot line set and communication wire
Regular price
$4,071.83
Sale price
$4,071.83
Regular price
$4,886.20
Available in stock (100)
GWIN 24,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (18k condenser,12K + 12K Wall Mount) with 15 foot line set and communication wire
System Features:
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 165V–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB “Three-Proof” design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
Warranty
- 12 Year Parts and Compressor
- 7 Year Labor and Refrigerant
Indoor Units
12,000 BTU Wall-Mount Indoor Unit (Model: GAFEB12HP230V1EH)
*Indoor unit output may vary depending on multi-zone configuration. Air handlers and condensers may affect the output of the individual air handlers.
- Cooling: 12,000 BTU/h • Heating: 12,000 BTU/h
- Power Supply: 208–230V 1Ph 60Hz • Input: 0.20A
- Air Flow (CFM) — Cool: 353 / 312 / 282 / 253 • Heat: 353 / 324 / 288 / 253
- Sound: 41 dB(A)

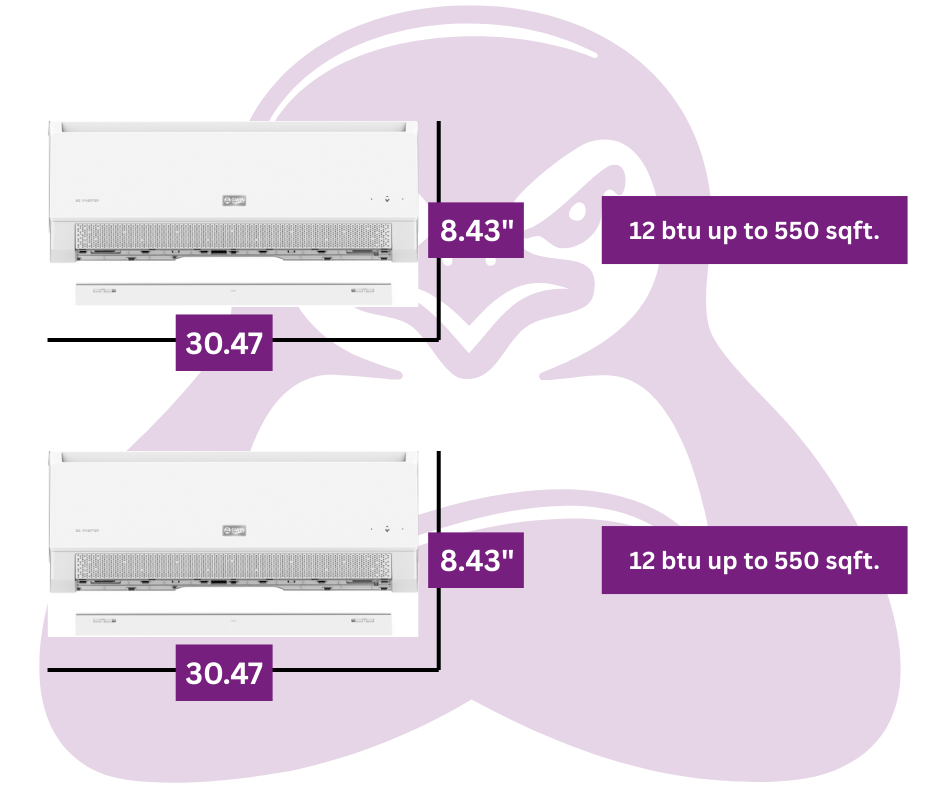

- Net Dimensions (in): 30.47 × 11.81 × 8.43 • Weight: 20.94 lb
- Packing Dimensions (Panel) (in): 32.87 × 14.61 × 11.81 • Weight: 20.94 lb
- Net/Gross (lbs): 17.64/22.05
- Piping: Liquid 1/4″ • Gas 3/8″ • Drain 0.6654″
Outdoor Condenser

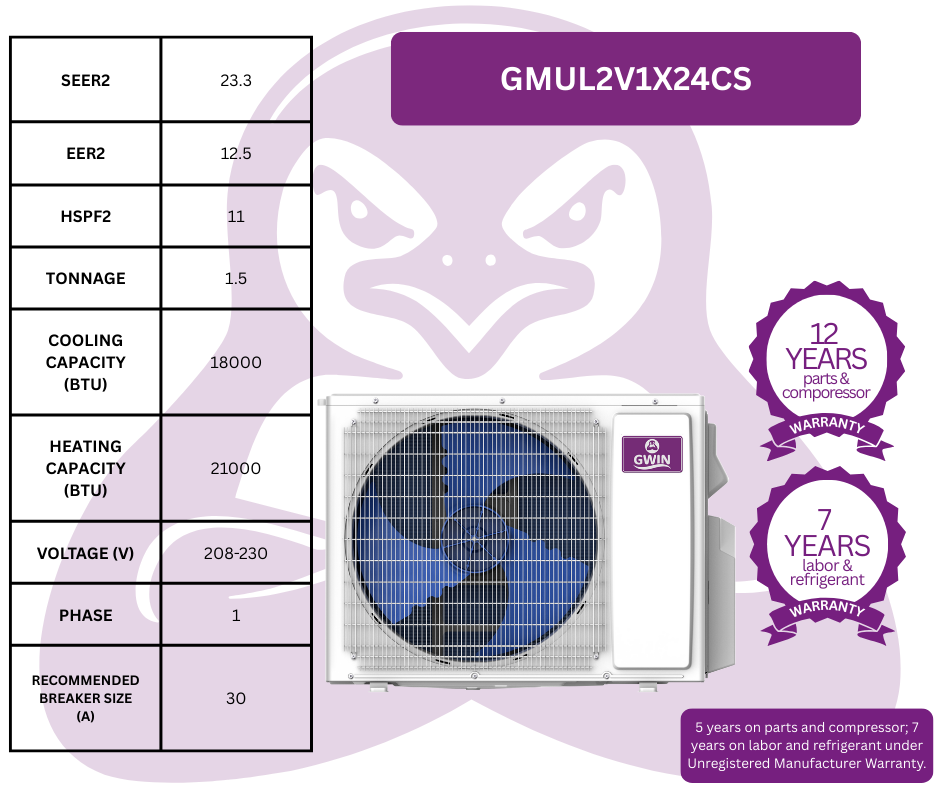

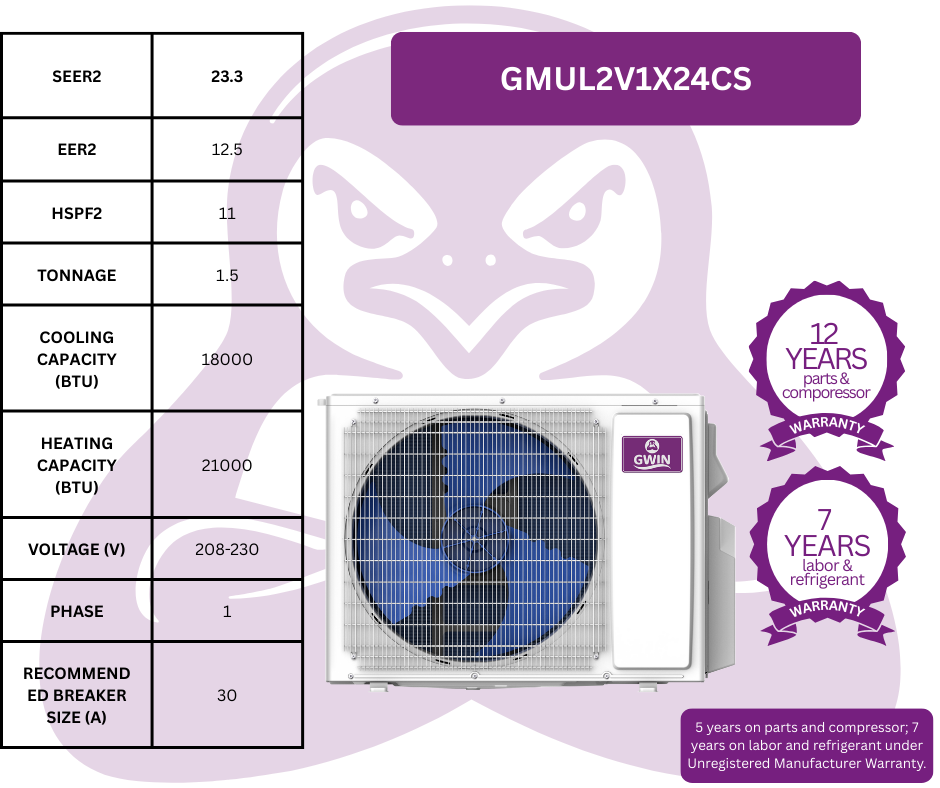

18,000 BTU Outdoor Condenser – GWIN (Model: GASUM18HPMULO)
Cooling Performance (Non-Ducted Indoor Units)
- Rated Capacity: 18,000 BTU/h
- Capacity Range: 4,800 – 25,000 BTU/h
- Rated Power Input: 1,440 W (non-ducted)
- Moisture Removal: 3 kg/h
Cooling Performance (Ducted Indoor Units)
- Rated Capacity: 18,000 BTU/h
- Capacity Range: 4,800 – 25,000 BTU/h
- Rated Power Input: 1,463 W
- Moisture Removal: 3 kg/h
Cooling Performance (Mixed Ducted and Non-Ducted Indoor Units)
- Rated Capacity: 18,000 BTU/h
- Capacity Range: 4,800 – 25,000 BTU/h
- Rated Power Input: 1,452 W
- Moisture Removal: 3 kg/h
Heating Performance (Non-Ducted Indoor Units)
- Rated Capacity @ 47°F: 21,000 BTU/h)
- Capacity Range: 5,000 – 26,000 BTU/h
- Rated Power Input @ 47°F: 1,620 W
- Capacity at 17°F: 18,100 BTU/h
- Capacity at 5°F: 21,800 BTU/h
Heating Performance (Ducted Indoor Units)
- Rated Capacity @ 47°F: 21,000 BTU/h)
- Capacity Range: 5,000 – 26,000 BTU/h
- Rated Power Input @ 47°F: 1,620 W
- Capacity at 17°F: 19,000 BTU/h
- Capacity at 5°F: 19,000 BTU/h
Heating Performance (Mixed Ducted and Non-Ducted Indoor Units)
- Rated Capacity @ 47°F: 21,000 BTU/h)
- Capacity Range: 5,000 – 26,000 BTU/h
- Rated Power Input @ 47°F: 1,620 W
- Capacity at 17°F: 18,500 BTU/h
- Capacity at 5°F: 20,400 BTU/h
Efficiency
- Non-Ducted: SEER2 23.3 • HSPF2 11.0 • EER2 12.5 • COP 3.8
- Ducted: SEER2 20.5 • HSPF2 9.8 • EER2 12.3 • COP 3.8
- Mixed: SEER2 21.9 • HSPF2 10.4 • EER2 12.4 • COP 3.8
Electrical & Operating
- Power Supply: 208–230V, 1Ph, 60Hz
- Recommended breaker: 30 A
- Operating Range (Cooling): −13°F to 125°F (−25°C to 52°C)
- Operating Range (Heating): −22°F to 75°F (−30°C to 24°C)
- Airflow: 2,235 CFM
- Sound Pressure: 58 dB(A) (cooling/heating)
Refrigerant Piping
- Liquid Line (O.D.): 1/4″ (6.35 mm)
- Gas Line (O.D.): 3/8″ (9.52 mm)
- Indoor Drain: 5/8″ (15.88 mm)
- Line Lengths: Max 131 ft (40 m) • Min 10 ft (3 m) • Max Height Difference 49 ft (15 m)
Dimensions & Weight
- Net Dimensions (H × W × D): 27.56″ × 38.58″ × 15.28″ (700 × 980 × 388 mm)
- Package Dimensions (H × W × D): 30.00″ × 39.96″ × 16.74″ (762 × 1,015 × 425 mm)
- Net Weight: 104.7 lb (47.5 kg)
Notes: Specifications and data are subject to change without notice. Actual results may vary with installation and ambient conditions.
Included in This System
- (1) 18,000 BTU Multi-Zone Outdoor Condenser (GASUM18HPMULO)
- (2) 12 BTU Wall-Mount Indoor Air Handler (GAFEB12HP230V1EH)
- (2) Wireless Remote Controller
- (2) Installation and User Manual
- (2) 15’ line set
- (2) 15’ communication wire
Note: Whips, disconnects, pads, and other accessories sold separately. Always follow local codes and unit nameplate. Must be installed by someone over the age of 18 and only to their allowed limit that is determined by the license held by the installer. If no license, you must not attempt to charge or commission system. Only qualified personnel are allowed to charge or commission start up.
