GWIN 3 Ton – 36,000 BTU – 18.2 SEER2 Inverter Ducted Complete HVAC System With 16 Foot Line Set And Communication Wire

Enjoy reliable, whole-home comfort with the GWIN 3 Ton (36,000 BTU) Inverter Ducted HVAC System. Engineered for energy efficiency and durability, this complete system delivers 18.2 SEER2 performance, stable operation in extreme temperatures, and flexible installation options for new construction or retrofit projects.

Key Comfort & Performance Features

• High Performance: Consistent indoor comfort, even during extreme outdoor temperatures.
• Wide Voltage Range: Operates from 170V–253V to handle power fluctuations and protect the PCB.
• Long Piping Design: Supports up to 98 ft horizontally and 49 ft vertically for flexible installation layouts.
• Auto-Restart: Automatically resumes previous settings after a power outage for uninterrupted comfort.
• Refrigerant Cooling Technology: Helps prevent PCB overheating to extend system lifespan.
• Dual Communication: Compatible with 24V and 485 control systems for easy integration.
• Flexible Mounting Options: Supports vertical, horizontal, or inverted installation to fit different spaces.
• ESP Range: Rated at 0.5 in.W.C. with a maximum of 1.0 in.W.C. for optimized air pressure control.

Complete System Includes

• Indoor Air Handler: Model GAHU36HPV1BI
• Outdoor Condenser: Model GAHU36HPV1BO
• AHRI Certified System Number: 216032395

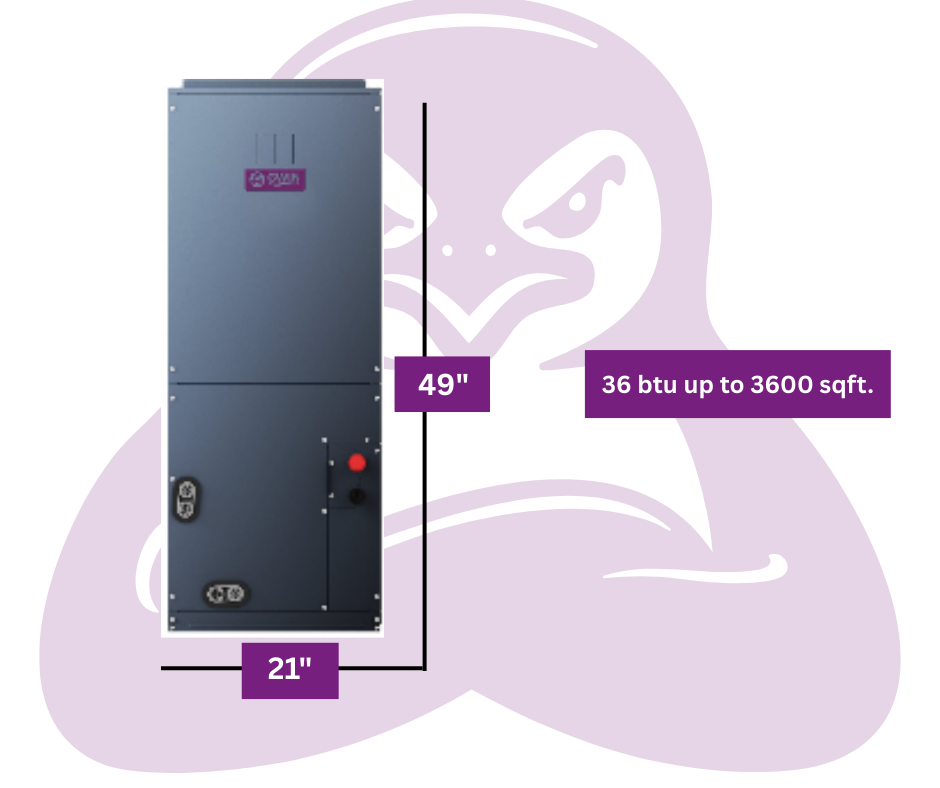

Indoor Air Handler Specifications (GAHU36HPV1BI)

• Cooling Capacity: 36,000 BTU (Range: 8,500–39,500 BTU)
• Heating Capacity @ 47°F: 38,000 BTU (Range: 7,600–39,500 BTU)
• Power Input (Rated): Cooling 3,600 W; Heating @ 47°F 3,375 W
• Power Supply: 208/230V, 60Hz, 1-Phase
• Rated Current: Cooling 15.97 A; Heating 14.97 A
• MCA / Max Fuse (Indoor): 5.7 A / 10 A
• Efficiency: SEER2 18.20 | EER2 10.00 | HSPF2 (Region IV) 10.00 | COP 3.30
• Airflow (CFM): 1200 / 950 / 790 (Hi/Mi/Lo)
• Sound Pressure (dB[A]): 53 / 51 / 49 (Hi/Mi/Lo)
• External Static Pressure: 0–1.0 in. w.g (Rated 0.5)
• Dimensions (W × D × H): 21" × 21" × 55.5" (Net)
• Packaging (W × D × H): 24.63" × 27.75" × 55.5"
• Weight (Net/Gross): 132.9 / 152.1 lbs
• Line Set Sizes: Liquid 3/8" | Gas 5/8"
• Max Line Length / Lift: 164 ft / 98 ft
• Indoor Operating Temp: 61–90°F (16–32°C)
• Wiring: Power (Indoor) AWG 18 | Signal AWG 22

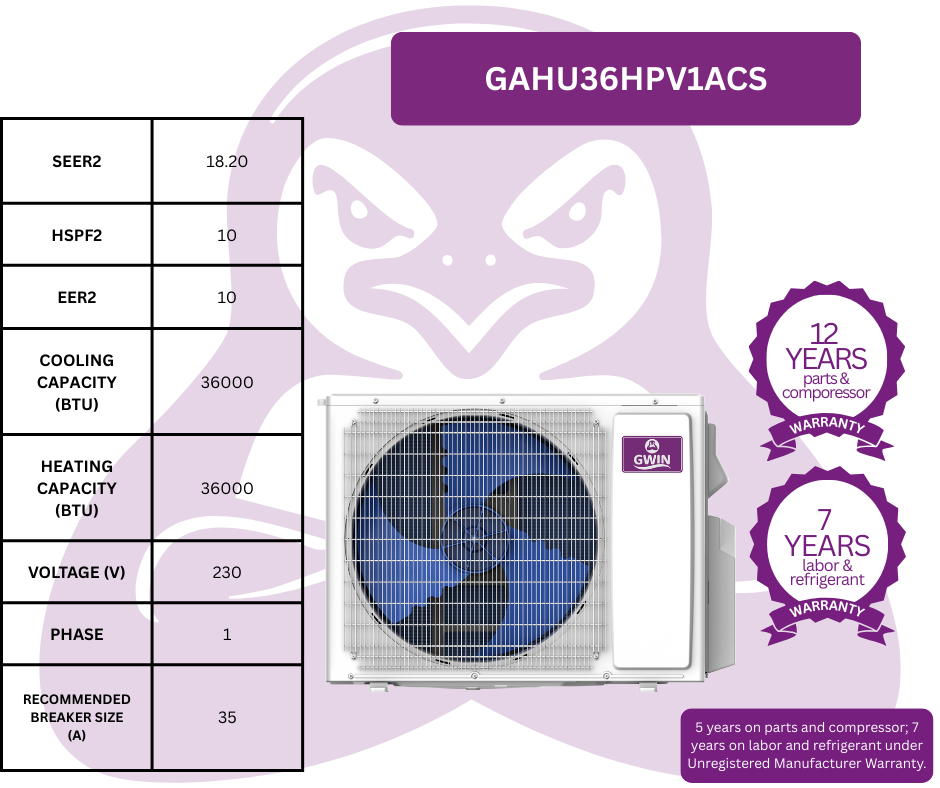

Outdoor Condenser Specifications (GAHU36HPV1BO)

• Power Supply: 208/230V, 60Hz, 1-Phase
• Max Input / Max Current: 5,900 W / 26 A
• MCA / Max Fuse (Outdoor): 28 A / 40 A
• Recommended Breaker: 35 A
• Air Flow Volume: 4,000 CFM
• Sound Pressure: 58 dB(A)
• Dimensions (W × D × H): 39.81" × 15.75" × 51.94" (Net)
• Packaging (W × D × H): 42.5" × 16.94" × 56.69"
• Weight (Net/Gross): 196.16 / 216.10 lbs
• Refrigerant Charge: 119.93 oz
• Line Set Sizes: Liquid 3/8" | Gas 5/8"
• Max Line Length / Lift: 164 ft / 98 ft
• Ambient Operating Range – Cooling: 5–125°F (-15–52°C)
• Ambient Operating Range – Heating: -22–75°F (-30–24°C)
• Wiring: Power (Outdoor) AWG 10 | Signal AWG 22

Why Choose the GWIN 3 Ton Inverter Ducted System?

• Energy-efficient inverter technology helps lower utility costs while keeping temperatures consistent.
• Generous line length and ESP capability support complex duct designs and longer runs.
• Designed to perform across wide outdoor temperature ranges for dependable, all-season comfort.
• Integrates with common 24V thermostats and 485 control platforms for versatile control.
• AHRI-certified performance under system number 216032395.

Notes: Specifications and data are based on laboratory testing and may vary with installation conditions. © 2025 GWIN LLC (USA) Inc.
