GWIN 4 Ton – 48,000 BTU – 17 SEER2 Inverter Ducted Complete HVAC System With 16 Foot Line Set And Communication Wire

Maximize comfort and efficiency with the GWIN 4 Ton (48,000 BTU) Inverter Ducted HVAC System. Designed for high performance in extreme temperatures, this AHRI-certified system delivers 17 SEER2 efficiency, a robust wide-voltage design, and versatile installation options for residential and light commercial applications.

Key Comfort & Performance Features

• High Performance: Consistent indoor comfort, even during extreme outdoor temperatures.
• Wide Voltage Range: Operates from 170V–253V to handle power fluctuations and protect the PCB.
• Long Piping Design: Supports up to 98 ft horizontally and 49 ft vertically for flexible installation layouts.
• Auto-Restart: Automatically resumes previous settings after a power outage for uninterrupted comfort.
• Refrigerant Cooling Technology: Helps prevent PCB overheating to extend system lifespan.
• Dual Communication: Compatible with 24V and 485 control systems for easy integration.
• Flexible Mounting Options: Supports vertical, horizontal, or inverted installation to fit different spaces.
• ESP Range: Rated at 0.5 in.W.C. with a maximum of 1.0 in.W.C. for optimized air pressure control.

Complete System Includes

• Indoor Air Handler: Model GAHU48HPV1BI
• Outdoor Condenser: Model GAHU48HPV1BO
• AHRI Certified System Number: 216032396

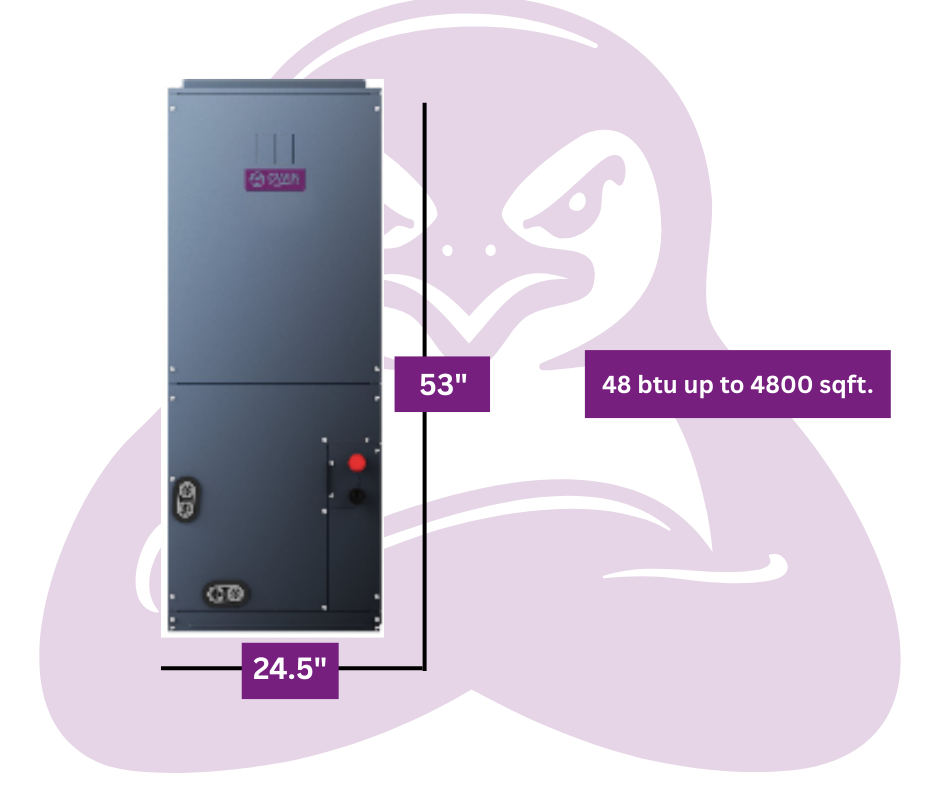

Indoor Air Handler Specifications (GAHU48HPV1BI)

• Cooling Capacity: 48,000 BTU (Range: 9,000–55,000 BTU)
• Heating Capacity @ 47°F: 49,000 BTU (Range: 8,000–56,000 BTU)
• Power Input (Rated): Cooling 4,800 W; Heating @ 47°F 4,224 W
• Power Supply: 208/230V, 60Hz, 1-Phase
• Rated Current: Cooling 21.30 A; Heating 18.74 A
• MCA / Max Fuse (Indoor): 8.5 A / 15 A
• Efficiency: SEER2 17.00 | EER2 10.00 | HSPF2 (Region IV) 9.50 | COP 3.40
• Airflow (CFM): 1550 / 1300 / 1050 (Hi/Mi/Lo)
• Sound Pressure (dB[A]): 53 / 51 / 49 (Hi/Mi/Lo)
• External Static Pressure: 0–1.0 in. w.g (Rated 0.5)
• Dimensions (W × D × H): 24.5" × 21" × 59.44" (Net)
• Packaging (W × D × H): 27.94" × 27.94" × 59.44"
• Weight (Net/Gross): 154.3 / 177.5 lbs
• Line Set Sizes: Liquid 3/8" | Gas 3/4"
• Max Line Length / Lift: 164 ft / 98 ft
• Indoor Operating Temp: 61–90°F (16–32°C)
• Wiring: Power (Indoor) AWG 18 | Signal AWG 22

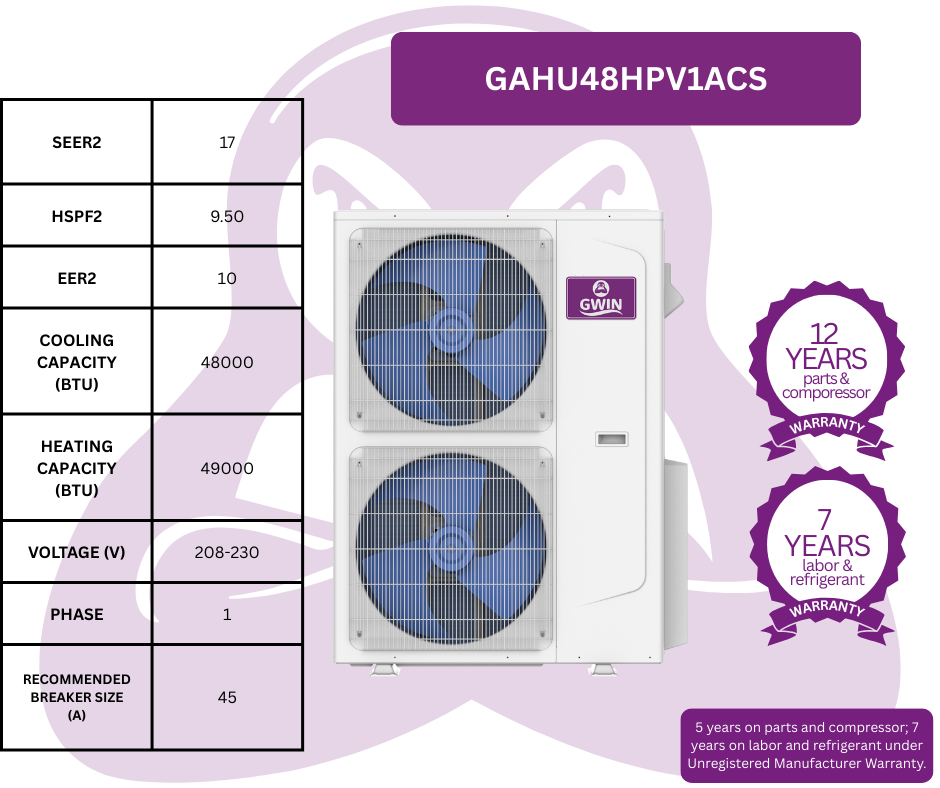

Outdoor Condenser Specifications (GAHU48HPV1BO)

• Power Supply: 208/230V, 60Hz, 1-Phase
• Max Input / Max Current: 6,500 W / 30 A
• MCA / Max Fuse (Outdoor): 34 A / 50 A
• Recommended Breaker: 45 A
• Air Flow Volume: 4,000 CFM
• Sound Pressure: 60 dB(A)
• Dimensions (W × D × H): 39.81" × 15.75" × 51.94" (Net)
• Packaging (W × D × H): 42.5" × 16.94" × 56.69"
• Weight (Net/Gross): 209.38 / 229.3 lbs
• Refrigerant Charge: 144.62 oz
• Line Set Sizes: Liquid 3/8" | Gas 3/4"
• Max Line Length / Lift: 164 ft / 98 ft
• Ambient Operating Range – Cooling: 5–125°F (-15–52°C)
• Ambient Operating Range – Heating: -22–75°F (-30–24°C)
• Wiring: Power (Outdoor) AWG 8 | Signal AWG 22

Why Choose the GWIN 4 Ton Inverter Ducted System?

• Efficient inverter technology for energy savings and consistent comfort.
• Long piping capability for challenging layouts and retrofits.
• Built for dependable operation in a wide range of climates.
• Compatible with multiple control systems for easy integration.
• AHRI-certified system number 216032396 for verified performance.

Notes: Specifications and data are based on laboratory testing and may vary with installation conditions. © 2025 GWIN LLC (USA) Inc.
