GWIN Assisted DIY 5 Ton - 60,000 BTU - 16.5 SEER2 - Ducted Complete System

Description GAHU60HPV1ACS

Experience superior climate control with the GWIN Assisted DIY 60,000 BTU 16.5 SEER2 5 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flexible installation for large whole-home conditioning in residential and light commercial applications.

• Whole Home Comfort: Heat or cool your entire home up to 6,000 sq. ft. with centralized temperature control and consistent comfort throughout all ducted spaces, supported by extended piping design for flexible layouts and complex duct configurations in new construction or retrofit projects.

• Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.

• Advanced Inverter Technology: Inverter compressor automatically adjusts output to match demand, delivering consistent comfort while minimizing energy consumption and reducing utility bills. High-capacity airflow up to 1,800 CFM provides even distribution throughout large homes and commercial spaces with multiple zones and long duct runs.

• Exceptional Reliability: Advanced refrigerant cooling technology prevents PCB overheating to extend system lifespan. Wide voltage range (170V–253V) protects against power fluctuations and grid instability for dependable operation in challenging environments.

• All-Season Performance: Reliable operation from -13°F to 125°F for year-round comfort in extreme climates. Auto-restart function automatically resumes previous settings after power outages for uninterrupted service and minimal downtime.

• Smart Connectivity: Dual communication compatibility with 24V and 485 control systems for seamless integration with smart home platforms and commercial building management systems.

• Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.

The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, advanced PCB protection, and intelligent features for consistent whole-home comfort and lower energy bills. Extended piping allowances, flexible mounting options, and generous ESP capability simplify professional installation in large residential and light commercial applications.

System Features

• Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.

• Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
• Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 170–253V.
• Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
• Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
• Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.

• ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
• Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.

Built for Reliability

• Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
• Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.

COVERAGE & CAPACITY GUIDE Optimal conditions: proper ductwork design and balanced airflow distribution

60K Ducted: 6,000 sq ft

SPECIFICATIONS & DIMENSIONS

SYSTEM OVERVIEW

| System Type | Ducted Air Conditioner & Heat Pump | | Zones | Whole Home | | Capacity | 55,000 BTU (Rated); Range: 9,500–57,000 BTU (Cooling); 9,000–58,000 BTU (Heating) | | SEER2 Rating | 16.50 | | EER2 Rating | 9.50 | | HSPF2 Rating | 9.50 (Region IV) | | Voltage | 208–230V, 1-Phase, 60 Hz | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |

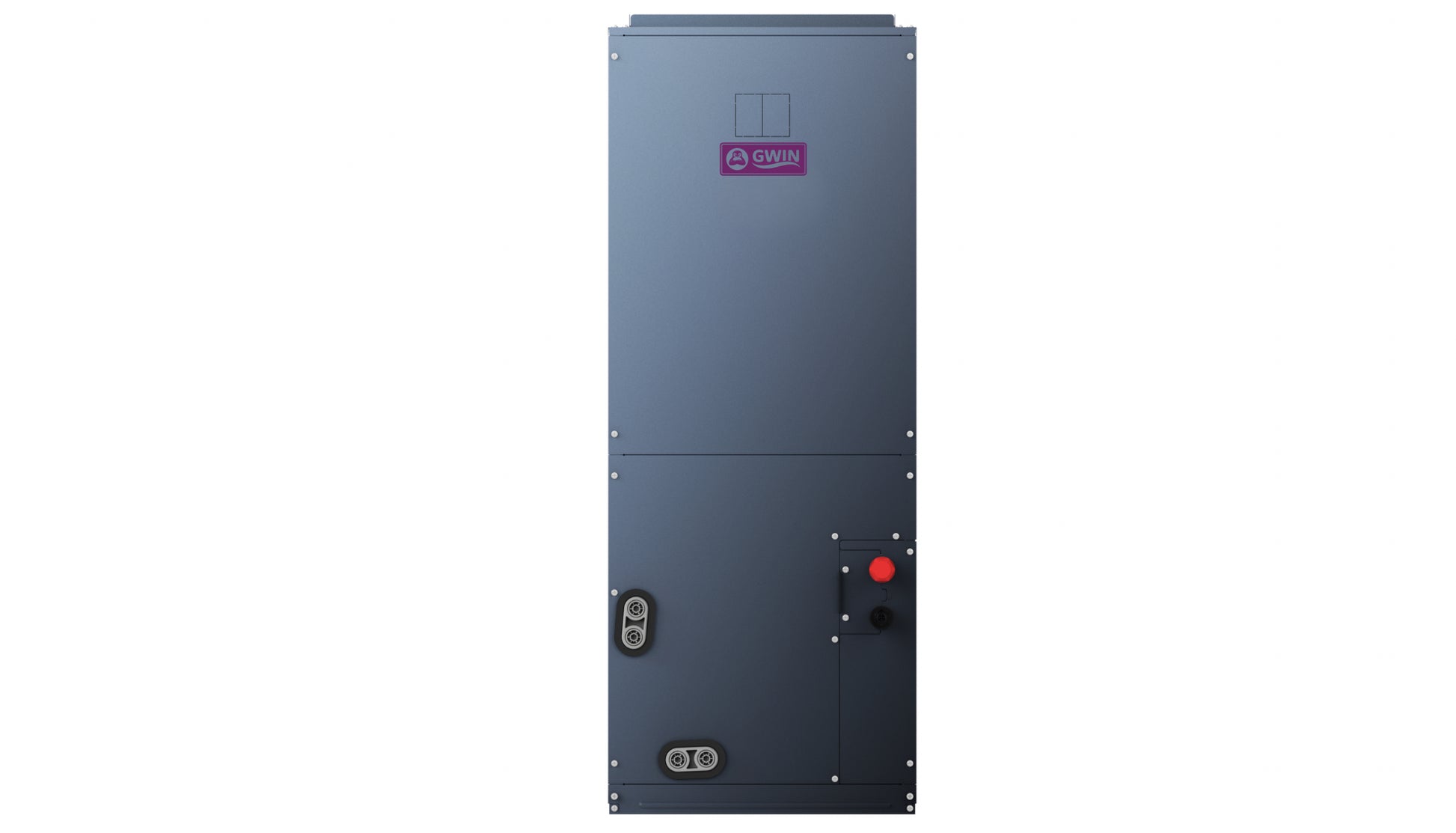

INDOOR UNIT (60K) x 1

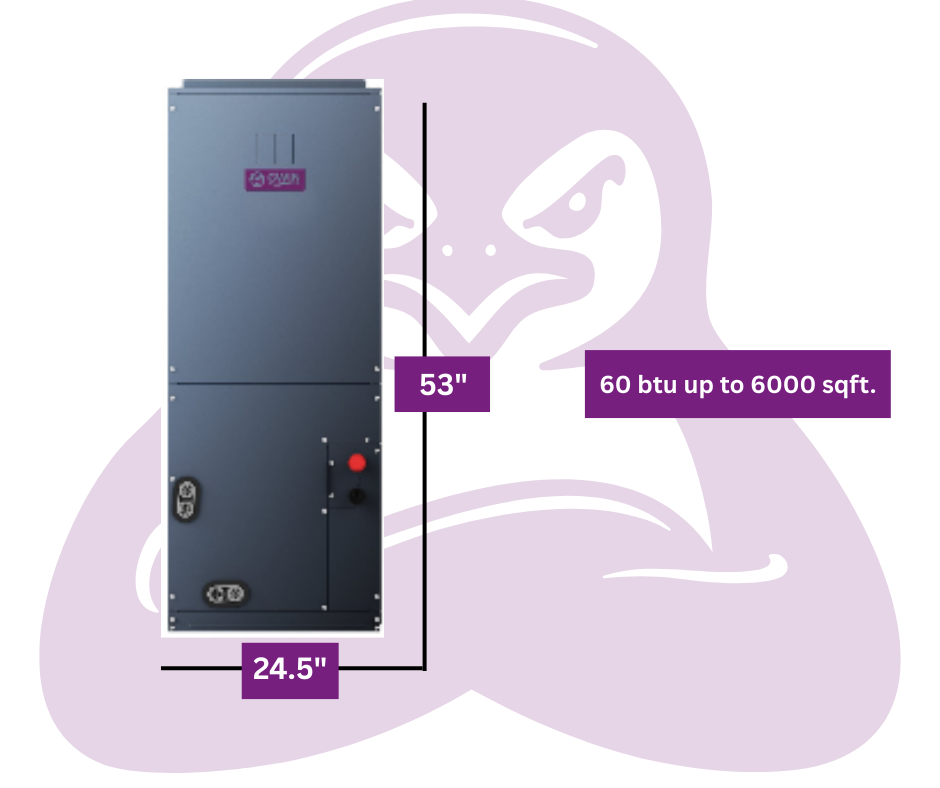

| Model | GAHU60HPV1BI | | Dimensions | 24.5"W x 21"D x 53"H | | Type | Ducted Air Handler | | Cooling Capacity | 55,000 BTU/h | | Heating Capacity | 55,000 BTU/h @ 47°F | | Airflow (CFM) | 1,800 / 1,490 / 1,180 | | Sound Level | 54 / 52 / 50 dB(A) | | ESP Range | 0–1.0 in.w.g (Rated at 0.5) | | Operating Temperature | 61–90°F | | Power Input | 5,789 W (Cooling); 4,885 W (Heating @ 47°F) | | Rated Current | 25.69 A (Cooling); 21.67 A (Heating) | | Liquid Line | 3/8"; Gas Line: 3/4" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Weight | 154.3 lbs |

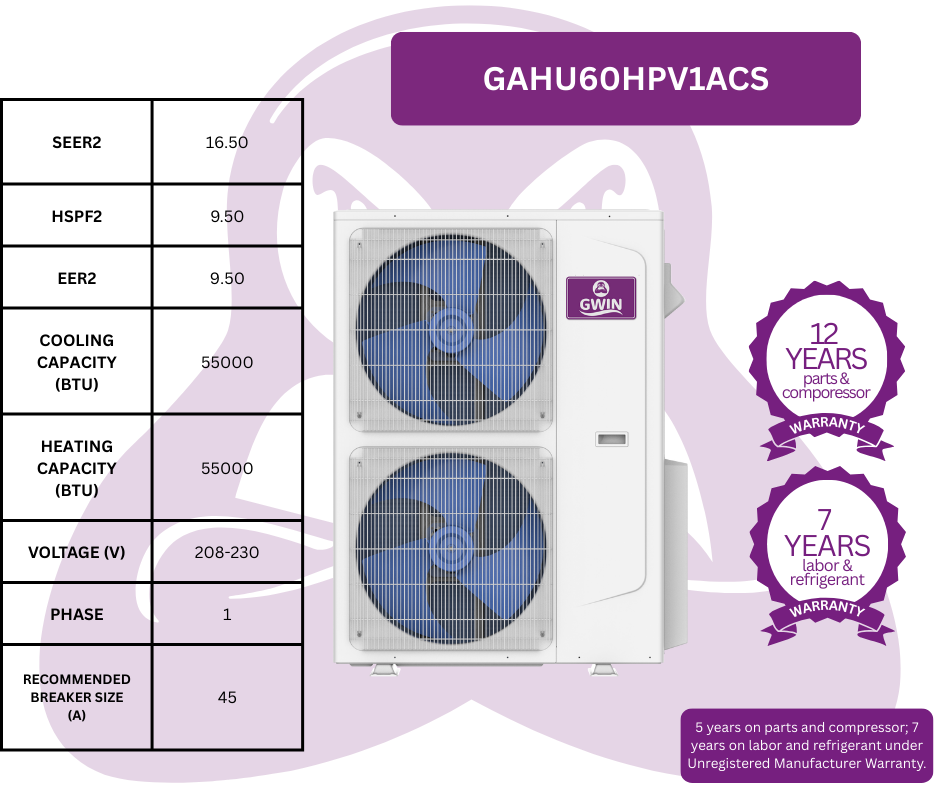

OUTDOOR UNIT (60K) x 1

| Model | GAHU60HPV1BO | | Dimensions | 39.81"W x 51.94"H x 15.75"D | | Cooling Capacity | 55,000 BTU/h | | Heating Capacity | 55,000 BTU/h @ 47°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Air Flow Volume | 4,000 CFM | | Power Input | 7,000 W (Max) | | Breaker/MCA/Max Fuse | 45A / 36A / 50A | | Refrigerant | R32 (Pre-charge 144.62 oz) | | Liquid Line | 3/8"; Gas Line: 3/4" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Outdoor Sound | 60 dB(A) | | Weight | 209.38 lbs | | Certifications | AHRI #216032397; Tested for voltage range 170V–253V |
