GWIN Assisted DIY 41,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 9K + 9K + 9K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X41CS Experience superior climate control with the GWIN Assisted DIY 41,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X41CS
Experience superior climate control with the GWIN Assisted DIY 41,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 350 sq. ft., 400 sq. ft., 400 sq. ft., and 400 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 41,000 BTU; Zone 1: 7,000 BTU; Zone 2: 7,000 BTU; Zone 3: 9,000 BTU; Zone 4: 9,000 BTU; Zone 5: 9,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 2
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (9K) x 3
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 41,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 9K + 9K + 9K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 46,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 9K + 9K + 9K + 12K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X46CS Experience superior climate control with the GWIN Assisted DIY 46,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X46CS
Experience superior climate control with the GWIN Assisted DIY 46,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 400 sq. ft., 400 sq. ft., 400 sq. ft., and 550 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 46,000 BTU; Zone 1: 7,000 BTU; Zone 2: 9,000 BTU; Zone 3: 9,000 BTU; Zone 4: 9,000 BTU; Zone 5: 12,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 1
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (9K) x 3
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
INDOOR UNIT (12K) x 1
| Model | GAFEB12HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.81"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 46,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 9K + 9K + 9K + 12K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 43,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 9K + 9K + 9K + 9K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X43CS Experience superior climate control with the GWIN Assisted DIY 43,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X43CS
Experience superior climate control with the GWIN Assisted DIY 43,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 400 sq. ft., 400 sq. ft., 400 sq. ft., and 400 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 43,000 BTU; Zone 1: 7,000 BTU; Zone 2: 9,000 BTU; Zone 3: 9,000 BTU; Zone 4: 9,000 BTU; Zone 5: 9,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 1
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (9K) x 4
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 43,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 9K + 9K + 9K + 9K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.

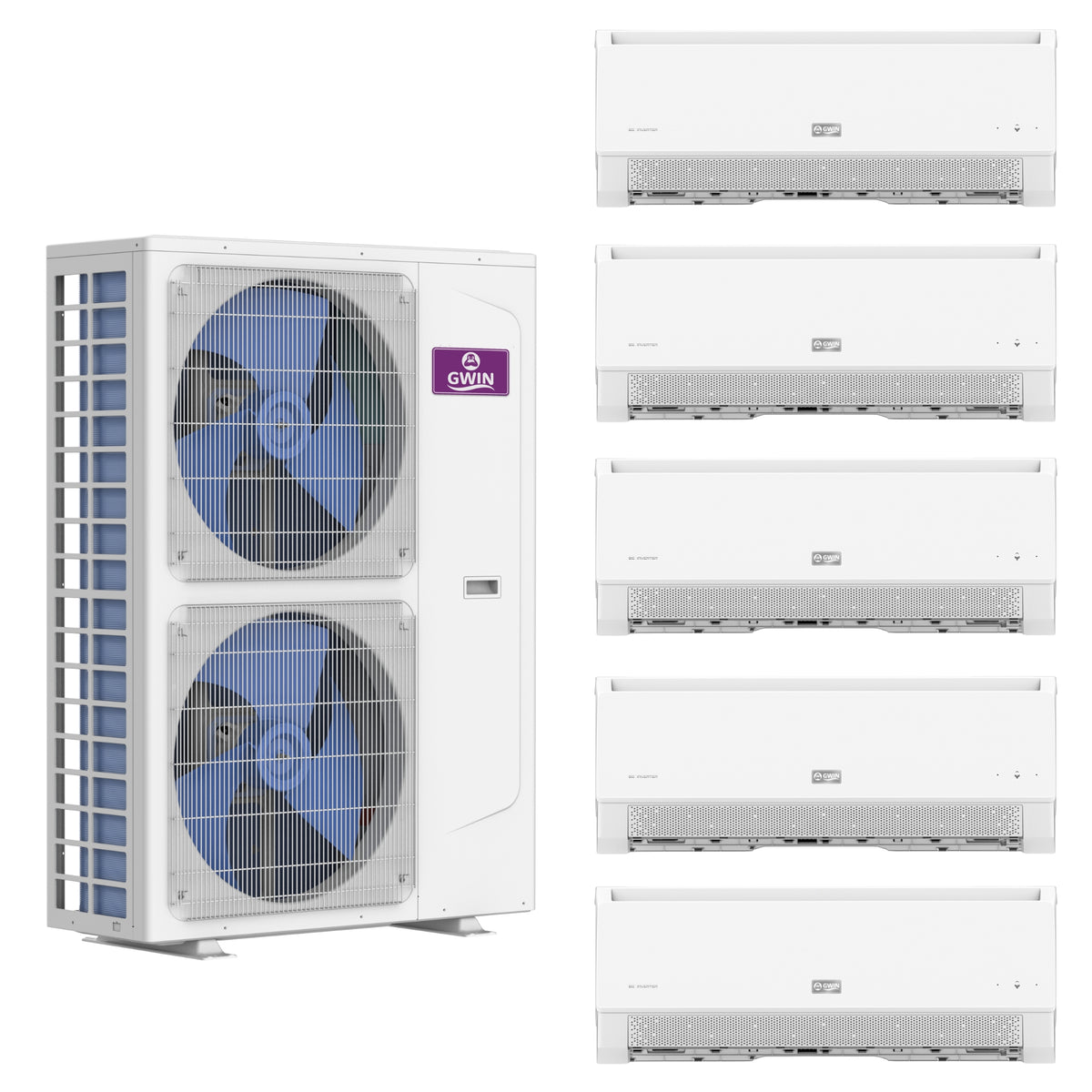

GWIN Assisted DIY 48,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,9K + 9K + 9K + 9K + 12K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X48CS Experience superior climate control with the GWIN Assisted DIY 48,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X48CS
Experience superior climate control with the GWIN Assisted DIY 48,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 400 sq. ft., 400 sq. ft., 400 sq. ft., 400 sq. ft., and 550 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 48,000 BTU; Zone 1: 9,000 BTU; Zone 2: 9,000 BTU; Zone 3: 9,000 BTU; Zone 4: 9,000 BTU; Zone 5: 12,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (9K) x 4
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
INDOOR UNIT (12K) x 1
| Model | GAFEB12HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.81"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 48,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,9K + 9K + 9K + 9K + 12K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 45,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,9K + 9K + 9K + 9K + 9K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X45CS Experience superior climate control with the GWIN Assisted DIY 45,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X45CS
Experience superior climate control with the GWIN Assisted DIY 45,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 400 sq. ft., 400 sq. ft., 400 sq. ft., 400 sq. ft., and 400 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 45,000 BTU; Zone 1: 9,000 BTU; Zone 2: 9,000 BTU; Zone 3: 9,000 BTU; Zone 4: 9,000 BTU; Zone 5: 9,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (9K) x 5
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 45,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,9K + 9K + 9K + 9K + 9K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 45,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 12K + 12K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X45CS Experience superior climate control with the GWIN Assisted DIY 45,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X45CS
Experience superior climate control with the GWIN Assisted DIY 45,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 350 sq. ft., 350 sq. ft., 550 sq. ft., and 550 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 45,000 BTU; Zone 1: 7,000 BTU; Zone 2: 7,000 BTU; Zone 3: 7,000 BTU; Zone 4: 12,000 BTU; Zone 5: 12,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 3
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (12K) x 2
| Model | GAFEB12HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.81"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 45,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 12K + 12K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 40,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 7K + 12K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X40CS Experience superior climate control with the GWIN Assisted DIY 40,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X40CS
Experience superior climate control with the GWIN Assisted DIY 40,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 350 sq. ft., 350 sq. ft., 350 sq. ft., and 550 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 40,000 BTU; Zone 1: 7,000 BTU; Zone 2: 7,000 BTU; Zone 3: 7,000 BTU; Zone 4: 7,000 BTU; Zone 5: 12,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 4
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (12K) x 1
| Model | GAFEB12HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.81"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 40,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 7K + 12K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 37,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 7K + 9K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X37CS Experience superior climate control with the GWIN Assisted DIY 37,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X37CS
Experience superior climate control with the GWIN Assisted DIY 37,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 350 sq. ft., 350 sq. ft., 350 sq. ft., and 400 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 37,000 BTU; Zone 1: 7,000 BTU; Zone 2: 7,000 BTU; Zone 3: 7,000 BTU; Zone 4: 7,000 BTU; Zone 5: 9,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 4
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (9K) x 1
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 37,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 7K + 9K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 42,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 9K + 12K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X42CS Experience superior climate control with the GWIN Assisted DIY 42,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X42CS
Experience superior climate control with the GWIN Assisted DIY 42,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 350 sq. ft., 350 sq. ft., 400 sq. ft., and 550 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 42,000 BTU; Zone 1: 7,000 BTU; Zone 2: 7,000 BTU; Zone 3: 7,000 BTU; Zone 4: 9,000 BTU; Zone 5: 12,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 3
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (9K) x 1
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
INDOOR UNIT (12K) x 1
| Model | GAFEB12HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.81"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 42,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 9K + 12K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 39,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 9K + 9K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X39CS Experience superior climate control with the GWIN Assisted DIY 39,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X39CS
Experience superior climate control with the GWIN Assisted DIY 39,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 350 sq. ft., 350 sq. ft., 400 sq. ft., and 400 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 39,000 BTU; Zone 1: 7,000 BTU; Zone 2: 7,000 BTU; Zone 3: 7,000 BTU; Zone 4: 9,000 BTU; Zone 5: 9,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 3
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (9K) x 2
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 39,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 7K + 9K + 9K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 47,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 9K + 12K + 12K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X47CS Experience superior climate control with the GWIN Assisted DIY 47,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X47CS
Experience superior climate control with the GWIN Assisted DIY 47,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 350 sq. ft., 400 sq. ft., 550 sq. ft., and 550 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 47,000 BTU; Zone 1: 7,000 BTU; Zone 2: 7,000 BTU; Zone 3: 9,000 BTU; Zone 4: 12,000 BTU; Zone 5: 12,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 2
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (9K) x 1
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
INDOOR UNIT (12K) x 2
| Model | GAFEB12HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.81"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 47,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 9K + 12K + 12K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 44,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 9K + 9K + 12K Wall Mount) with 15 foot line set and communication wire
- 230V single phase
- Heating to −13°F
- Complete system
- All GWIN™ guarantees
Description GMUL5V1X44CS Experience superior climate control with the GWIN Assisted DIY 44,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features. F...
Description GMUL5V1X44CS
Experience superior climate control with the GWIN Assisted DIY 44,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
-
Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 350 sq. ft., 400 sq. ft., 400 sq. ft., and 550 sq. ft. with independent temperature control for personalized comfort in each room.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
-
Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 44,000 BTU; Zone 1: 7,000 BTU; Zone 2: 7,000 BTU; Zone 3: 9,000 BTU; Zone 4: 9,000 BTU; Zone 5: 12,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (7K) x 2
| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |
INDOOR UNIT (9K) x 2
| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
INDOOR UNIT (12K) x 1
| Model | GAFEB12HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.81"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |
OUTDOOR UNIT (42K) x 1
| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 44,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 7K + 9K + 9K + 12K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
Condenser Ground Stand Brackets
Specifications and dimensions: Length 35" x Width 18" x Height 11" Loading capacity 264 lbs
PVC Line Covers
Line set covers Specifications and dimensions: 13 ft length 3 inches width 2 head wall covers Extra white covers Cold resistance: -40°F Heat resistance: 140°F Lifespan exceeding 10 years
Condensers Wall Mounting Bracket 18k-36k
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers. Specifications and dimensions: 31x16x20 in. 300 lbs loading capacity Suitable for 9,000-36,000 BTU condensers Equipped with security...
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers.
Specifications and dimensions:
- 31x16x20 in.
- 300 lbs loading capacity
- Suitable for 9,000-36,000 BTU condensers
- Equipped with security clip
- Preassembled set
GWIN Line Covers
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Des...
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection
Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Designed to conceal and protect refrigerant tubing, electrical wiring, and drain lines, this durable cover system enhances curb appeal while helping extend the life of your HVAC components. Ideal for residential or light commercial installations, both indoors and outdoors.
Key Features & Benefits
- Complete Installation Kit: Includes straight line-set channels, couplers, wall cover, end cap, and an adjustable elbow for a streamlined, finished look.
- Generous 4" x 14 ft. Coverage: Fits most standard mini-split line sets, electrical cables, and drain hoses with ample interior space for easy routing.
- Durable & Weather-Resistant Construction: Built from high-quality, UV-resistant material to help protect HVAC lines from sun exposure, moisture, debris, and environmental wear.
- Paintable for a Seamless Look: Clean white finish can be painted to match siding, brick, stucco, or interior walls for a custom appearance.
- Easy, Modular Installation: Snap-together design supports quick installation with minimal tools—great for HVAC professionals and DIY homeowners.
Why Choose GWIN?
GWIN accessories are designed to deliver professional-grade performance with clean aesthetics. This line set cover kit not only protects vital HVAC components, but also elevates the overall appearance of your installation so it blends seamlessly into any space.
Product Specifications
- Brand: GWIN
- Application: Mini-split systems, heat pumps, air conditioners
- Coverage Length: 14 ft
- Width: 4 inches
- Color: White (paintable)
- Material: Weather- and UV-resistant PVC
- Indoor / Outdoor Use: Yes
- Installation Type: Surface-mounted, modular snap-fit
Included in This Kit
- Straight line-set cover sections
- Couplers
- Adjustable elbow (90°–120°)
- Wall penetration cover
- End cap
Note: Paint before installation for best results. Verify measurements and routing requirements prior to mounting.
Condenser Pad
This condenser pad will fit all of the GWIN Condensers available. Why purchase an Condenser Pad? 1. Protects the unit from pest, insects and critters that may cause damage to the condenser. 2. Reduce vibration from t...
This condenser pad will fit all of the GWIN Condensers available.
Why purchase an Condenser Pad?
1. Protects the unit from pest, insects and critters that may cause damage to the condenser.
2. Reduce vibration from the AC against this pad so it does not hit against the ground. If a condenser is not placed on a support system like a pad, you risk damage being done each time the condenser vibrates against the ground.
Pros
- Unaffected by UV or weather
- Uniform rubbing transfers load evenly
- Lightweight, yet incredibly rugged
Material Type: Polypropylene
Disconnect Switch and Electrical Whip with #10 AWG
No description available.
Disconnect Switch and Electrical Whip with #8 AWG
No description available.
