GWIN 14,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (18k condenser,7K + 7K Wall Mount) with 16 foot line set and communication wire

GWIN 14,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (18k condenser,7K + 7K Wall Mount) with 16 foot line set and communication wire

System Features:

• Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
• Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
• Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
• Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 165V–265V.
• Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
• Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
• Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
• Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
• ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
• Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.

Built for Reliability

• Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
• Outdoor PCB “Three-Proof” design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.

Warranty

• 12 Year Parts and Compressor
• 7 Year Labor and Refrigerant

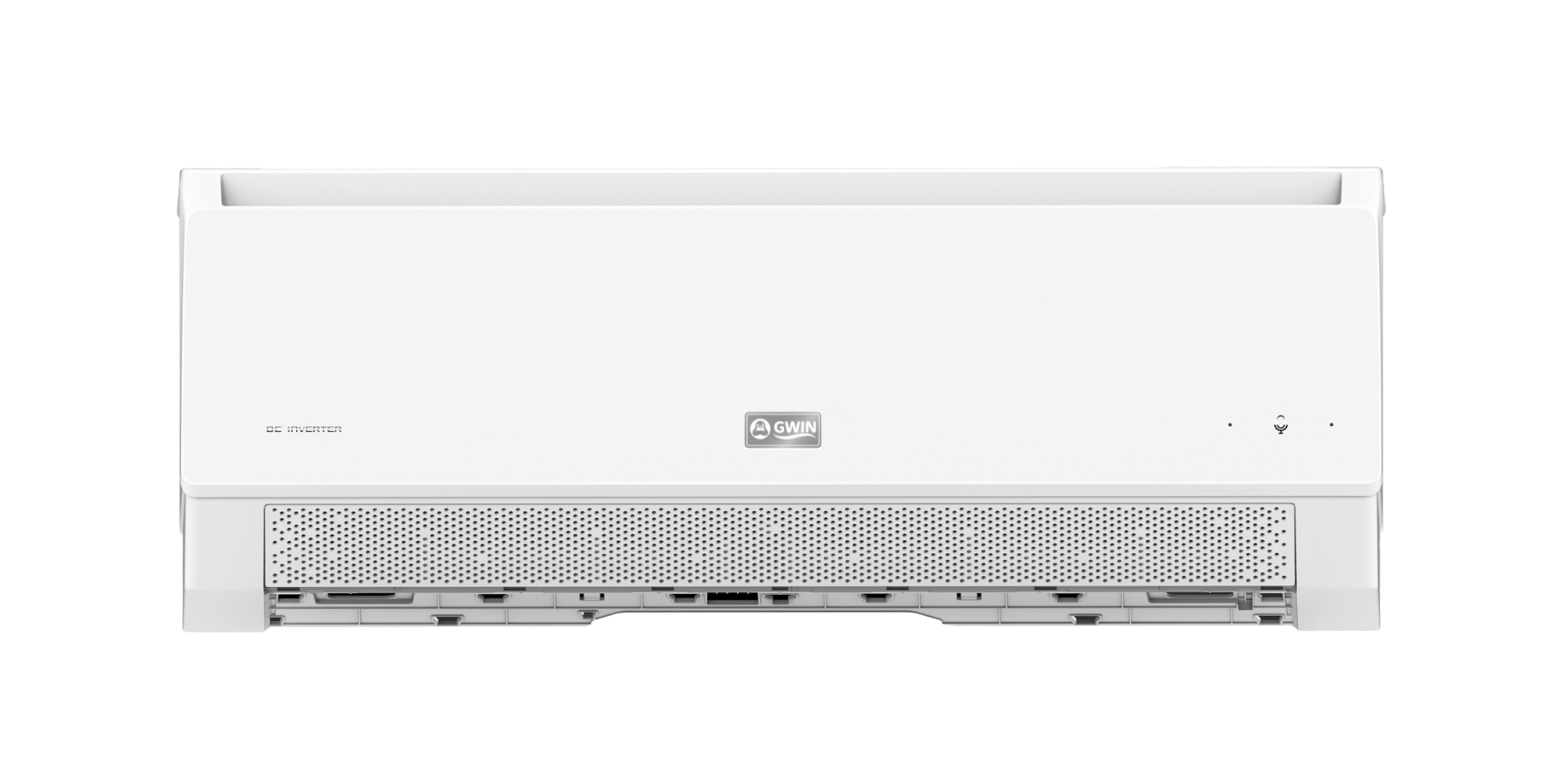

Indoor Units

7 BTU Wall-Mount Indoor Unit (Model: GAFEB07HP230V1EH)

• Cooling: 7,000 BTU/h • Heating: 7,500 BTU/h
• Power Supply: 208–230V 1Ph 60Hz • Input: 0.18A
• Air Flow (CFM) — Cool: 353 / 306 / 265 / 224 • Heat: 353 / 324 / 283 / 236
• Sound: 42 dB(A)
• Dimensions (in): 28.43 × 11.42 × 7.87 • Weight: 17.64 lb
• Piping: Liquid 1/4″ • Gas 3/8″ • Drain 0.665″

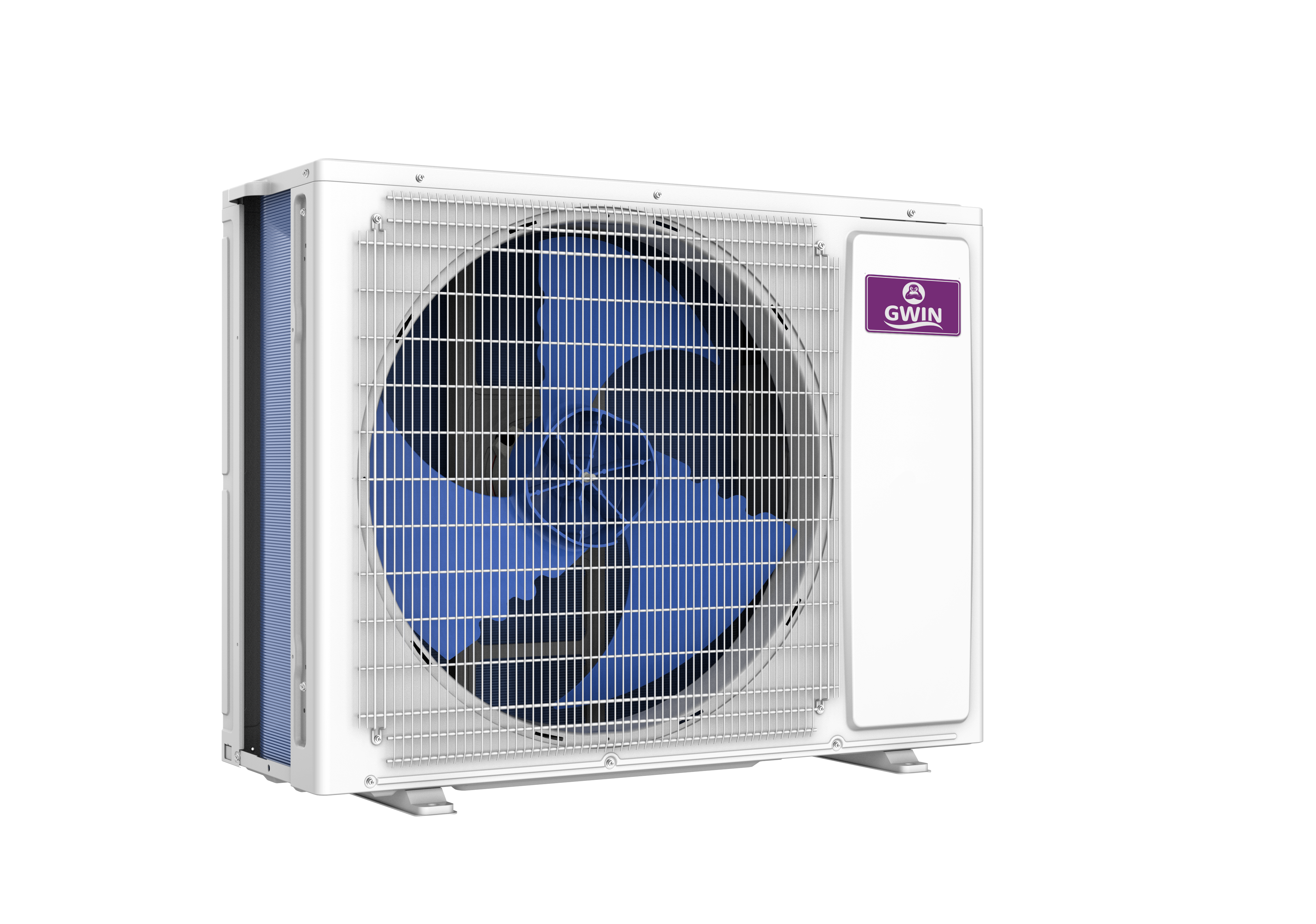

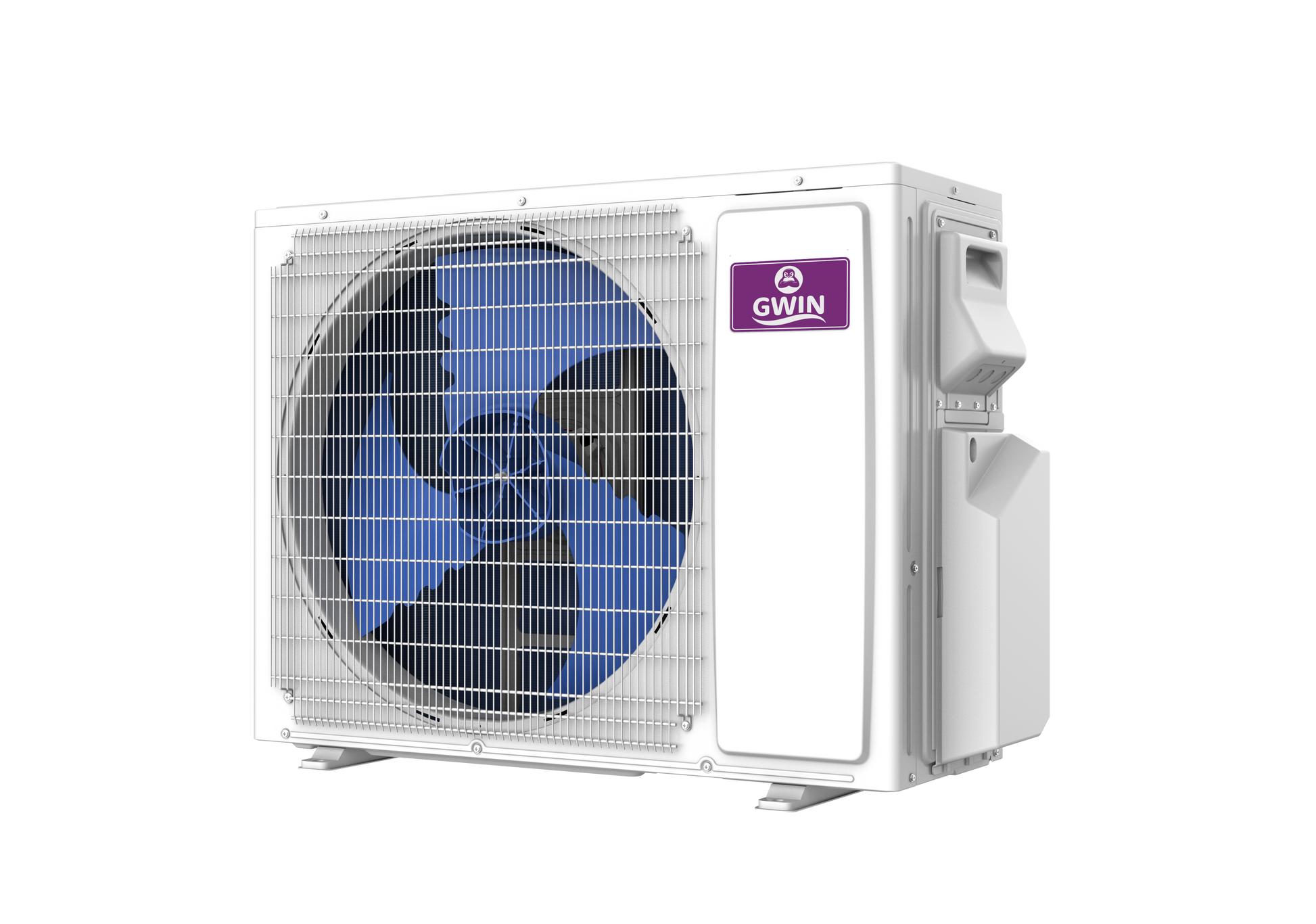

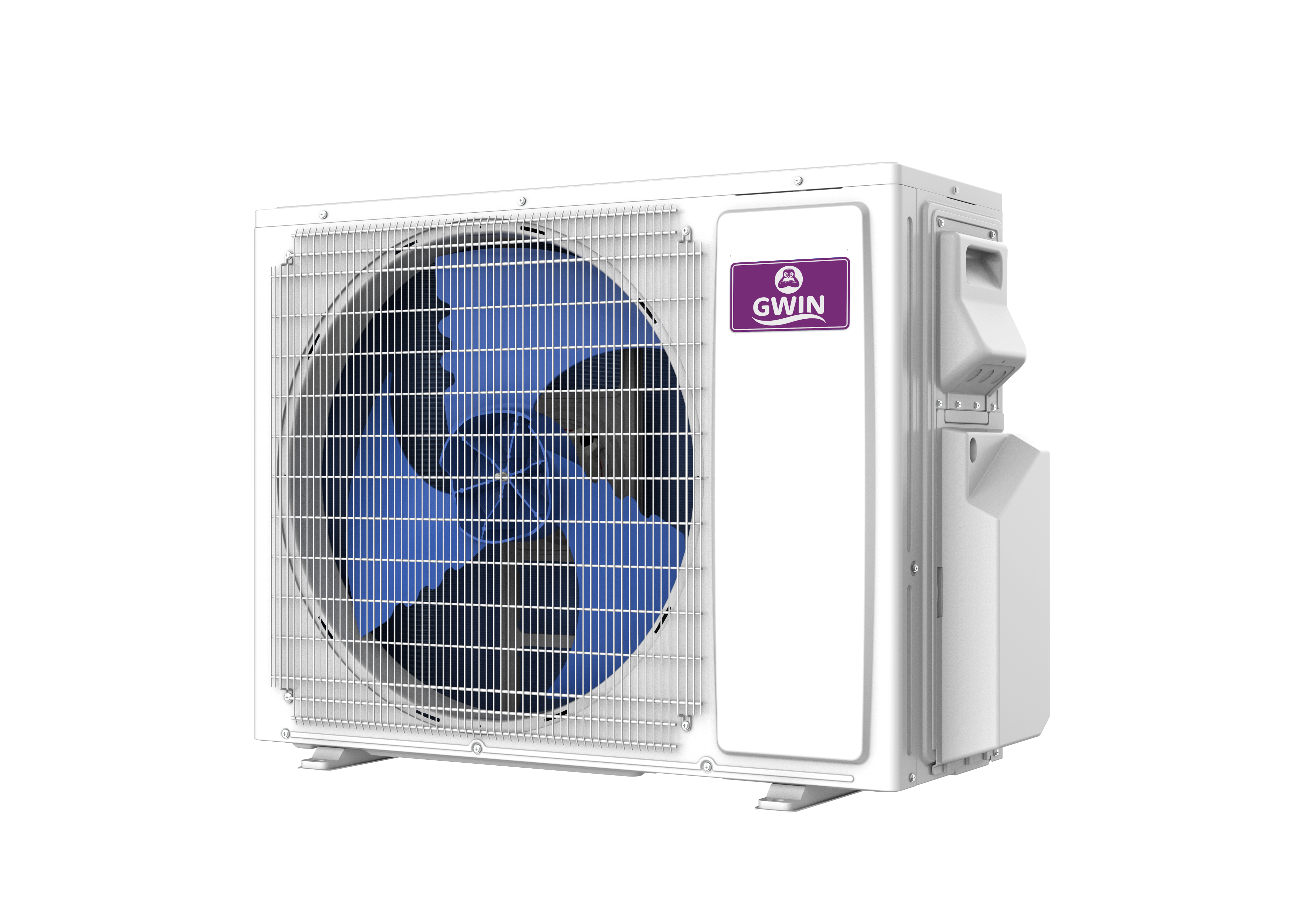

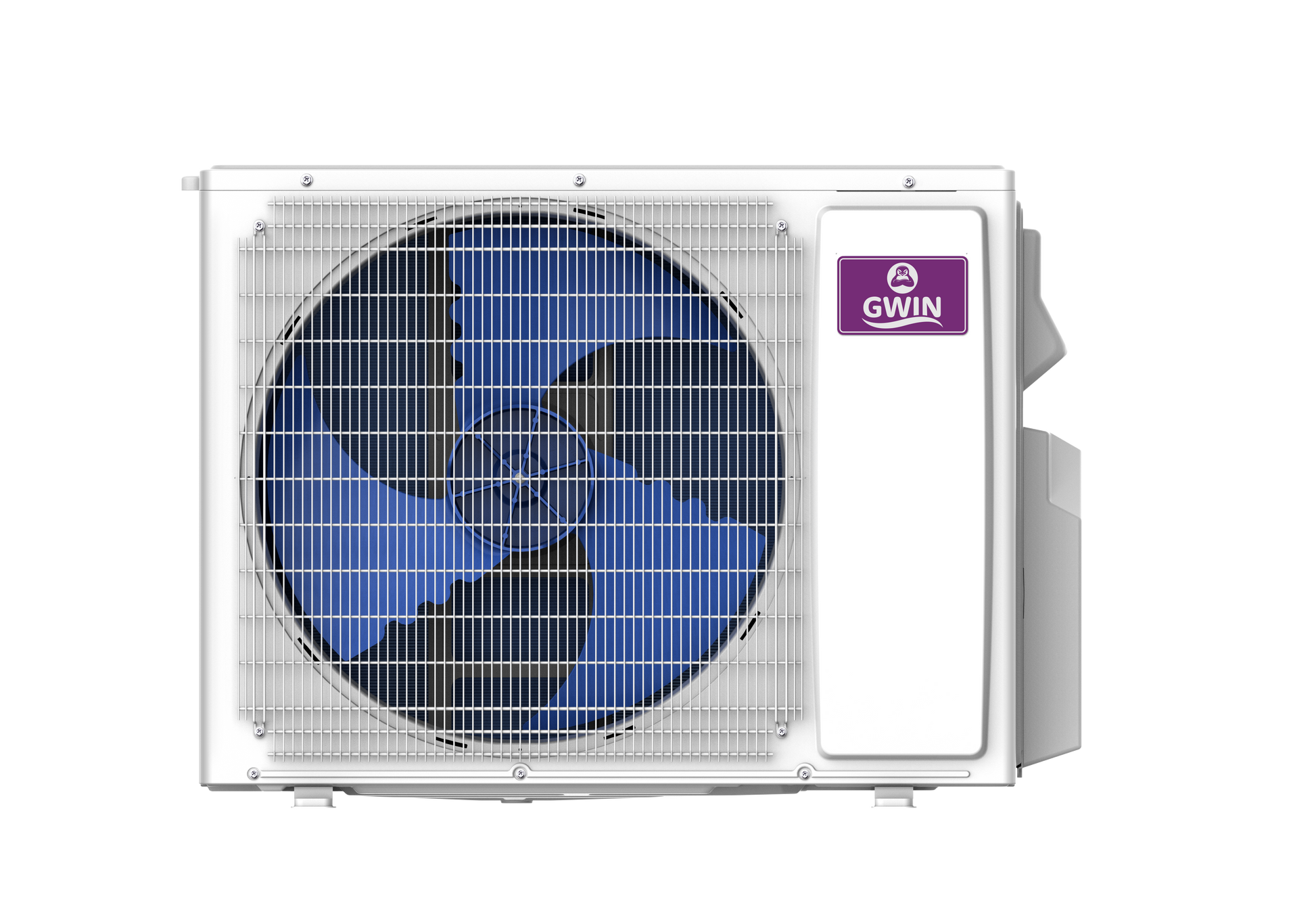

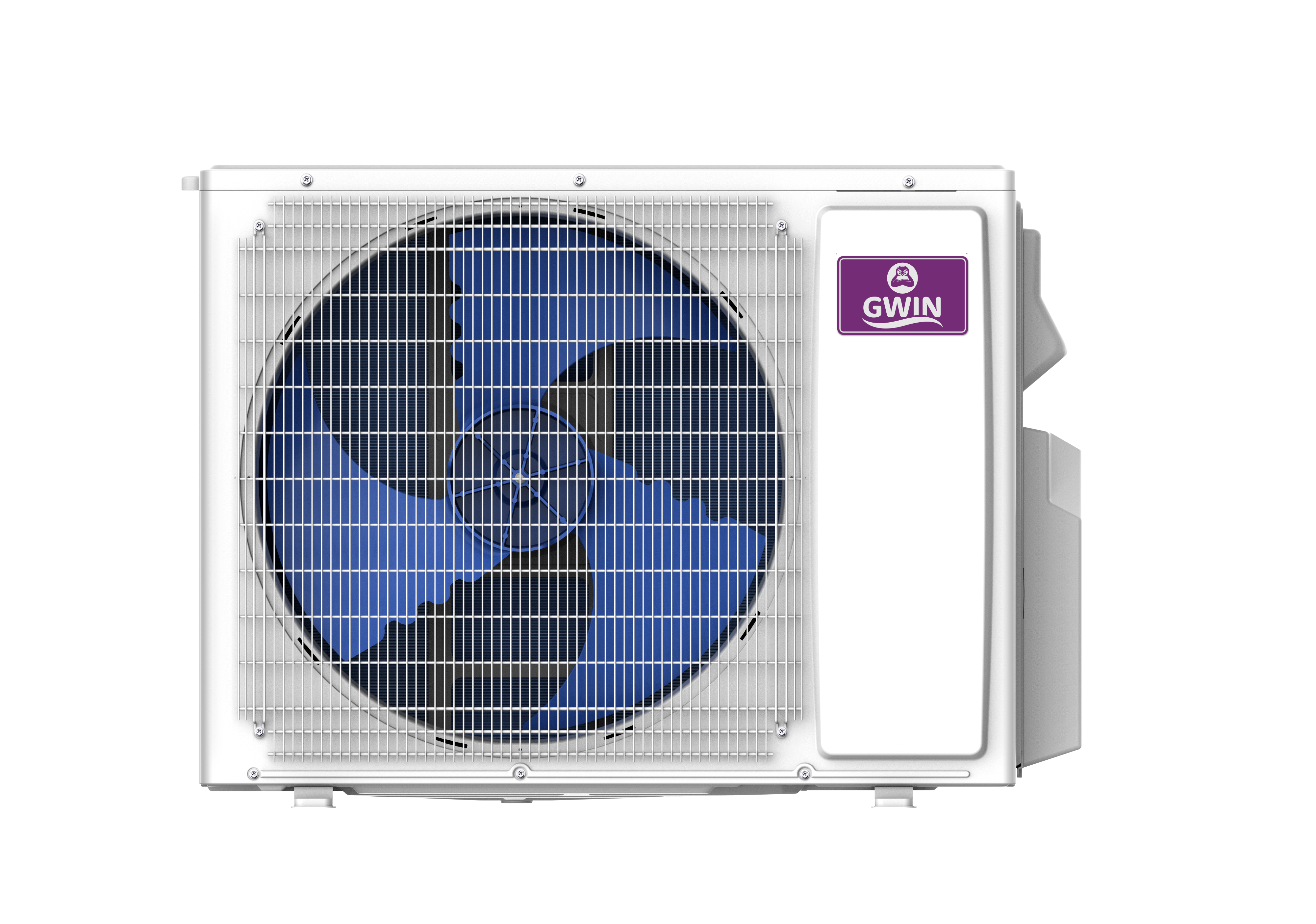

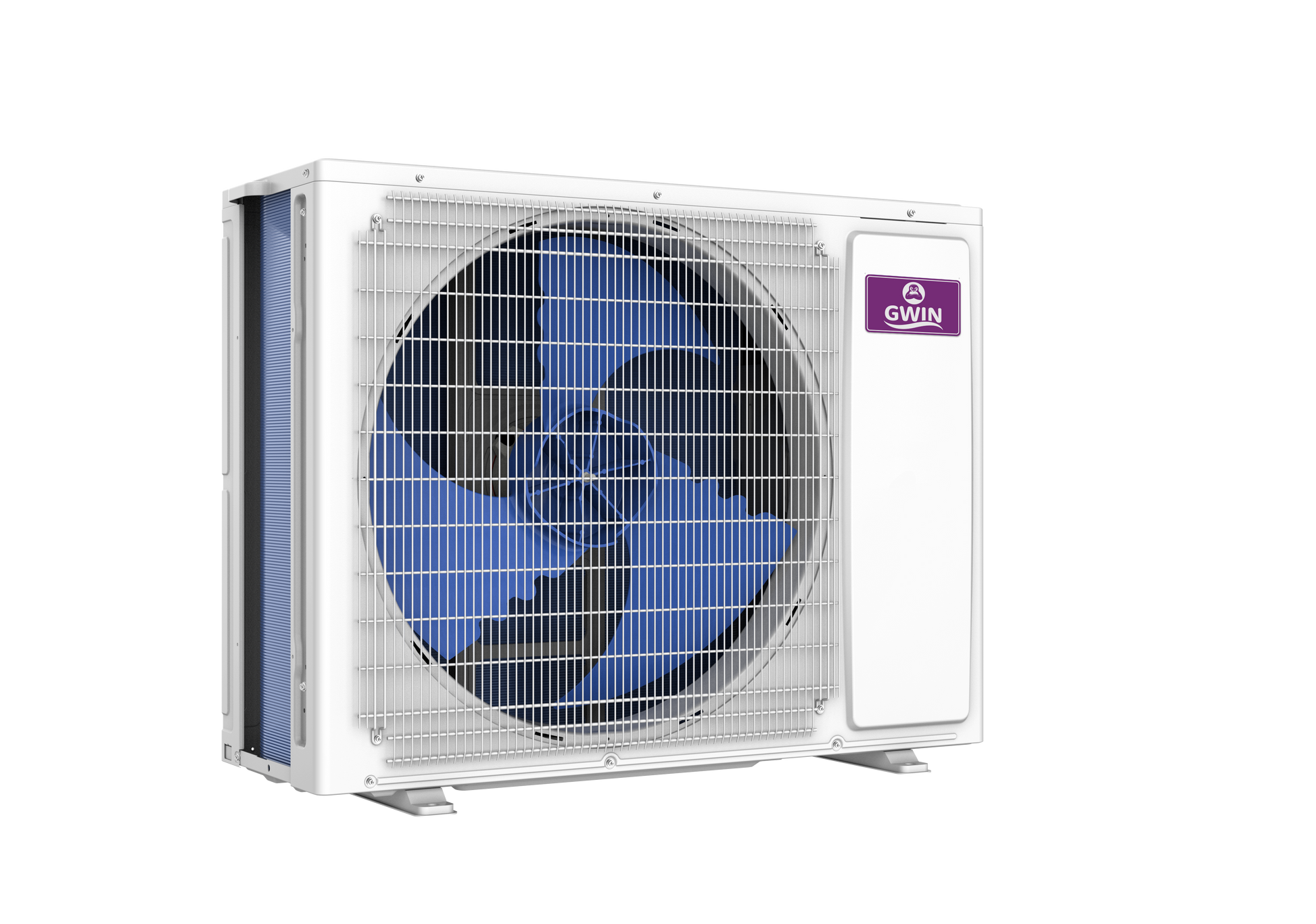

Outdoor Condenser

18,000 BTU Multi-Zone (Model: GASUM18HPMULO)

• Efficiency (Non-Ducted): SEER2 23.3 • HSPF2 11.0 • EER2 12.5 • COP 3.8
• Cooling (Non-Ducted):
  • Rated Capacity: 18,000 BTU/h
  • Capacity Range: 4,800–25,000 BTU/h
  • Rated Power Input: 1,440 W
  • Moisture Removal: 3 kg/h (≈ 6.6 lb/hr)
• Heating (Non-Ducted):
  • Capacity @ 47°F (Rated): 21,000 BTU/h
  • Capacity Range: 5,000–26,000 BTU/h
  • Power Input @ 47°F (Rated): 1,620 W
  • Capacity @ 17°F: 18,100 BTU/h
  • Capacity @ 5°F (Max): 21,800 BTU/h
• Electrical: 208–230V, 1Ph, 60Hz • MCA 20A • MOCP 30A • Breaker 30A
• Airflow and Sound: 2235 CFM • 58 dB(A)
• Operating Range: Cooling −13~125°F • Heating −22~75°F
• Dimensions (Net): 27.6″ H × 38.6″ W × 15.3″ D • 104.7 lb
• Dimensions (Packaged): 30″ H × 40″ W × 16.7″ D
• Piping: Liquid 1/4″ • Gas 3/8″ • Drain 5/8″ • Max line length 131 ft • Min 10 ft • Max height diff 49 ft
• Refrigerant and Certification: R-32 • AHRI Certified (Non-Ducted 214291428 | Ducted 216032437 | Mixed 216050939)

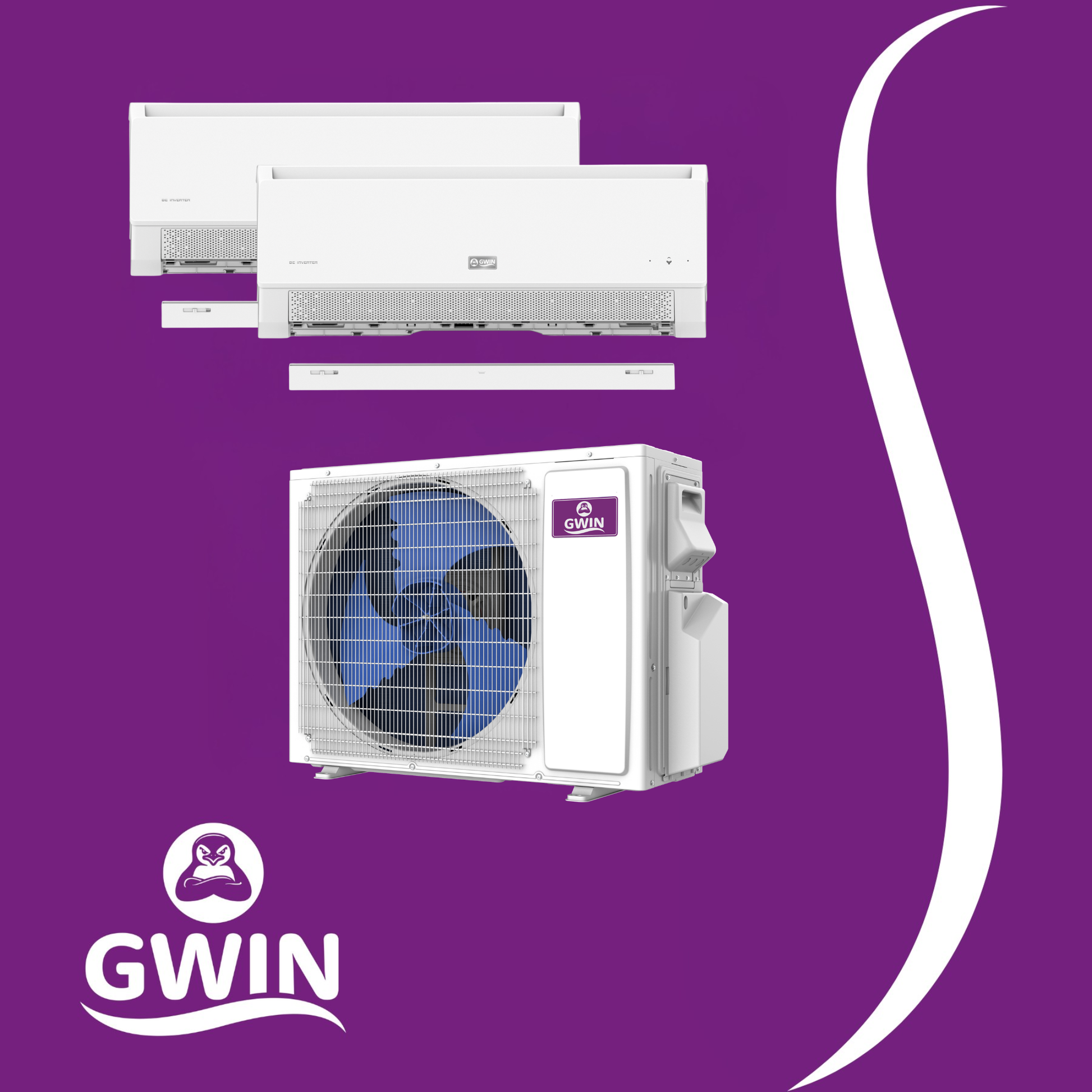

Included in This System

• (1) 18,000 BTU Multi-Zone Outdoor Condenser (GASUM18HPMULO)
• (2) 7 BTU Wall-Mount Indoor Air Handler (GAFEB07HP230V1EH)
• (1) Wireless Remote Controller
• (1) Installation and User Manual
• (1) 16’ line set
• (1) 16’ communication wire

Note: Whips, disconnects, pads, and other accessories sold separately. Always follow local codes and unit nameplate. Must be installed by someone over the age of 18 and only to their allowed limit that is determined by the license held by the installer. If no license, you must not attempt to charge or commission system. Only qualified personnel are allowed to charge or commission start up.
