GWIN 21,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (9K + 12K Wall Mount)

GWIN 21,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (9K + 12K Wall Mount)

System Features:

• Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
• Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
• Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
• Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 165V–265V.
• Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
• Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
• Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
• Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
• ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
• Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.

Built for Reliability

• Golden Fin Coils (indoor & outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
• Outdoor PCB “Three-Proof” design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.

Indoor Units

9,000 BTU Wall-Mount Indoor Unit (Model: GAFEB09HP230V1EH)

• Cooling: 9,000 BTU/h • Heating: 9,800 BTU/h
• Power Supply: 208–230V 1Ph 60Hz • Input: 0.19A
• Air Flow (CFM) — Cool: 406 / 347 / 306 / 265 • Heat: 406 / 365 / 324 / 283
• Sound: 44 dB(A)
• Dimensions (in): 31.50 × 11.42 × 8.86 • Weight: 20.94 lb
• Piping: Liquid 1/4″ • Gas 3/8″ • Drain 0.665″

12,000 BTU Wall-Mount Indoor Unit (Model: GAFEB12HP230V1EH)

• Cooling: 12,000 BTU/h • Heating: 12,300 BTU/h
• Power Supply: 208–230V 1Ph 60Hz • Input: 0.22A
• Air Flow (CFM) — Cool: 530 / 482 / 424 / 365 • Heat: 530 / 500 / 436 / 377
• Sound: 47 dB(A)
• Dimensions (in): 36.22 × 12.13 × 8.86 • Weight: 25.35 lb
• Piping: Liquid 1/4″ • Gas 1/2″ • Drain 0.665″

Outdoor Condenser

18,000 BTU Multi-Zone (Model: GASUM18HPMULO)

• Efficiency (Non-Ducted): SEER2 23.3 • HSPF2 11.0 • EER2 12.5 • COP 3.8
• Cooling (Non-Ducted):
  • Rated Capacity: 18,000 BTU/h
  • Capacity Range: 4,800–25,000 BTU/h
  • Rated Power Input: 1,440 W
  • Moisture Removal: 3 kg/h (≈ 6.6 lb/hr)
• Heating (Non-Ducted):
  • Capacity @ 47°F (Rated): 21,000 BTU/h
  • Capacity Range: 5,000–26,000 BTU/h
  • Power Input @ 47°F (Rated): 1,620 W
  • Capacity @ 17°F: 18,100 BTU/h
  • Capacity @ 5°F (Max): 21,800 BTU/h
• Electrical: 208–230V, 1Ph, 60Hz • MCA 20A • MOCP 30A • Breaker 30A
• Airflow & Sound: 2235 CFM • 58 dB(A)
• Operating Range: Cooling −13~125°F • Heating −22~75°F
• Dimensions (Net): 27.6″ H × 38.6″ W × 15.3″ D • 104.7 lb
• Dimensions (Packaged): 30″ H × 40″ W × 16.7″ D
• Piping: Liquid 1/4″ • Gas 3/8″ • Drain 5/8″ • Max line length 131 ft • Min 10 ft • Max height diff 49 ft
• Refrigerant & Certification: R-32 • AHRI Certified (Non-Ducted 214291428 | Ducted 216032437 | Mixed 216050939)

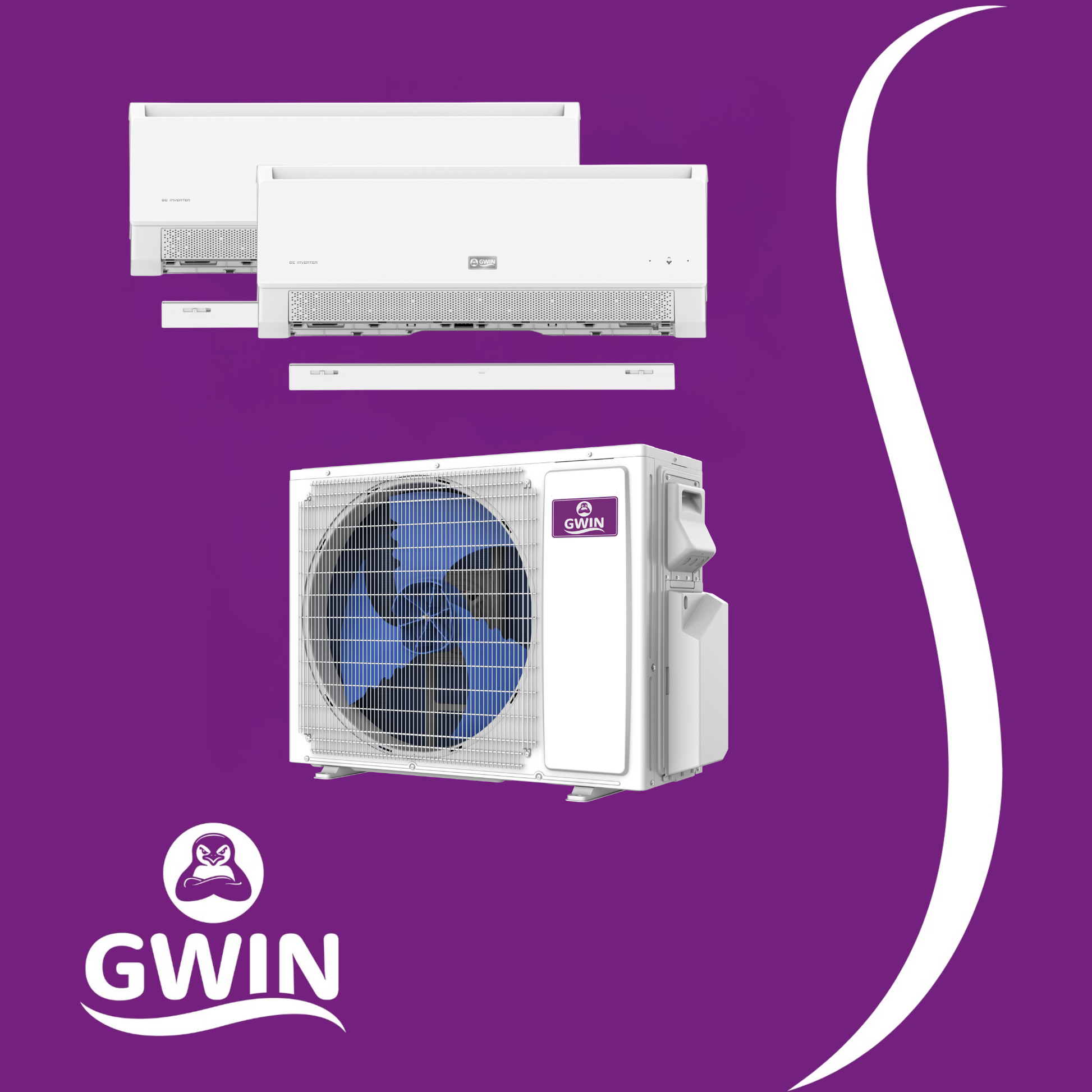

Included in This System

• (1) 18,000 BTU Multi-Zone Outdoor Condenser (GASUM18HPMULO)
• (1) 9,000 BTU Wall-Mount Indoor Air Handler (GAFEB09HP230V1EH)
• (1) 12,000 BTU Wall-Mount Indoor Air Handler (GAFEB12HP230V1EH)
• (1) Wireless Remote Controller
• (1) Installation and User Manual

Note: Line sets, communication wire, whips, disconnects, pads, and other accessories sold separately. Always follow local codes and unit nameplate.
