GWIN 9,000 BTU 230V Compact Console Air Handler

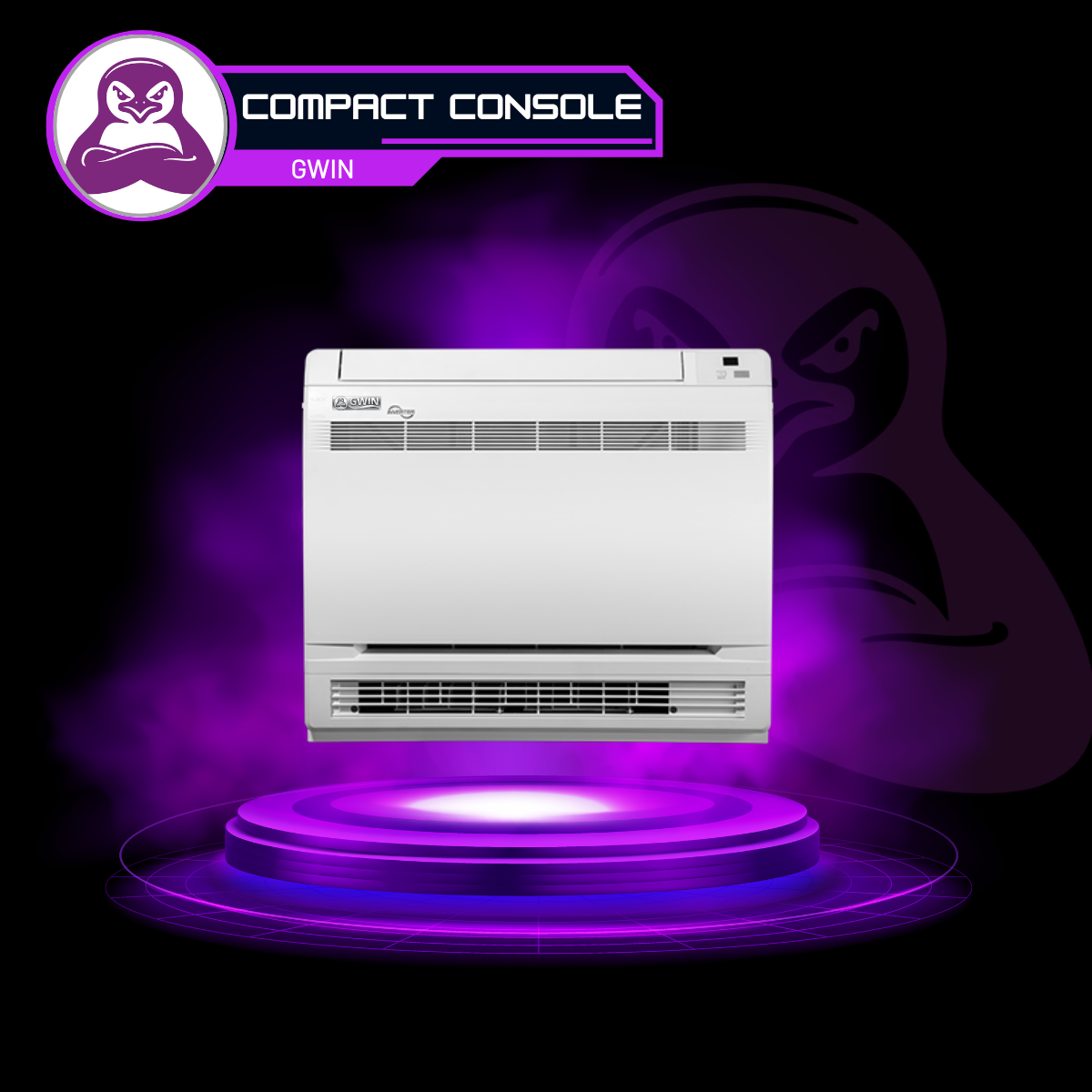

The GWIN 9,000 BTU 230V Compact Console Air Handler is a compact indoor air handler designed for floor-level or low-wall installation where a traditional high-wall unit is not preferred. It is a 9,000 BTU-class indoor unit for use with compatible GWIN Emperor single-zone and GWIN multi-zone outdoor systems.
Its two-way discharge and multi-directional airflow help distribute conditioned air throughout the occupied space. The indoor unit provides an airflow range of 188 - 383 CFM, sound pressure levels from 26 - 42 dB(A), and dehumidification performance of 1.69 pt/hr.
Comfort & Control
- Compact floor or low-wall console design
- Two-way discharge air
- Multi-directional airflow
- Swing louver control
- Wireless remote control included
- Optional wired controller interface
- Seven indoor fan speeds
- Vertical auto swing
- Quiet Mode and room-temperature display
- Auto, Dry, X-Fan, Energy Saving, Sleep, Timer, and Turbo modes
- I Feel, Privacy Lock, Freeze Guard, and Power Failure modes
Installation & Compatibility
This indoor unit uses R32 refrigerant, is powered by the connected outdoor unit, and requires 1/4" - 3/8" flared refrigerant connections. Actual capacity and efficiency depend on the connected outdoor unit and the final system configuration.
Technical Specifications
| System Type | Indoor Heat Pump Air Handler |
| Indoor Model | CON09HP230V1R32AH |
| Capacity Class | 9,000 BTU |
| Reference Rated Cooling Capacity @95°F | 9,100 BTU/h |
| Reference Rated Heating Capacity @47°F | 10,500 BTU/h |
| Refrigerant Type | R32 |
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Interconnecting Wire Size | 14 / 4 AWG |
| Line Set Size (Liquid - Gas) | 1/4" - 3/8" |
| Dehumidification | 1.69 pt/hr |
| Air Flow (Min - Max) | 188 - 383 CFM |
| Sound Pressure Level (Min - Max) | 26 - 42 dB(A) |
| External Dimensions (L x D x H) | 27-9/16 x 8-15/32 x 23-5/8 in. |
| Package Dimensions (L x W x H) | 31-1/32 x 11-9/64 x 27-7/16 in. |
| Net Weight | 33.1 lbs. |
| Gross Weight | 39.7 lbs. |
| Performance Note | Efficiency, operating range, and delivered capacity depend on the connected outdoor unit and system configuration. |
