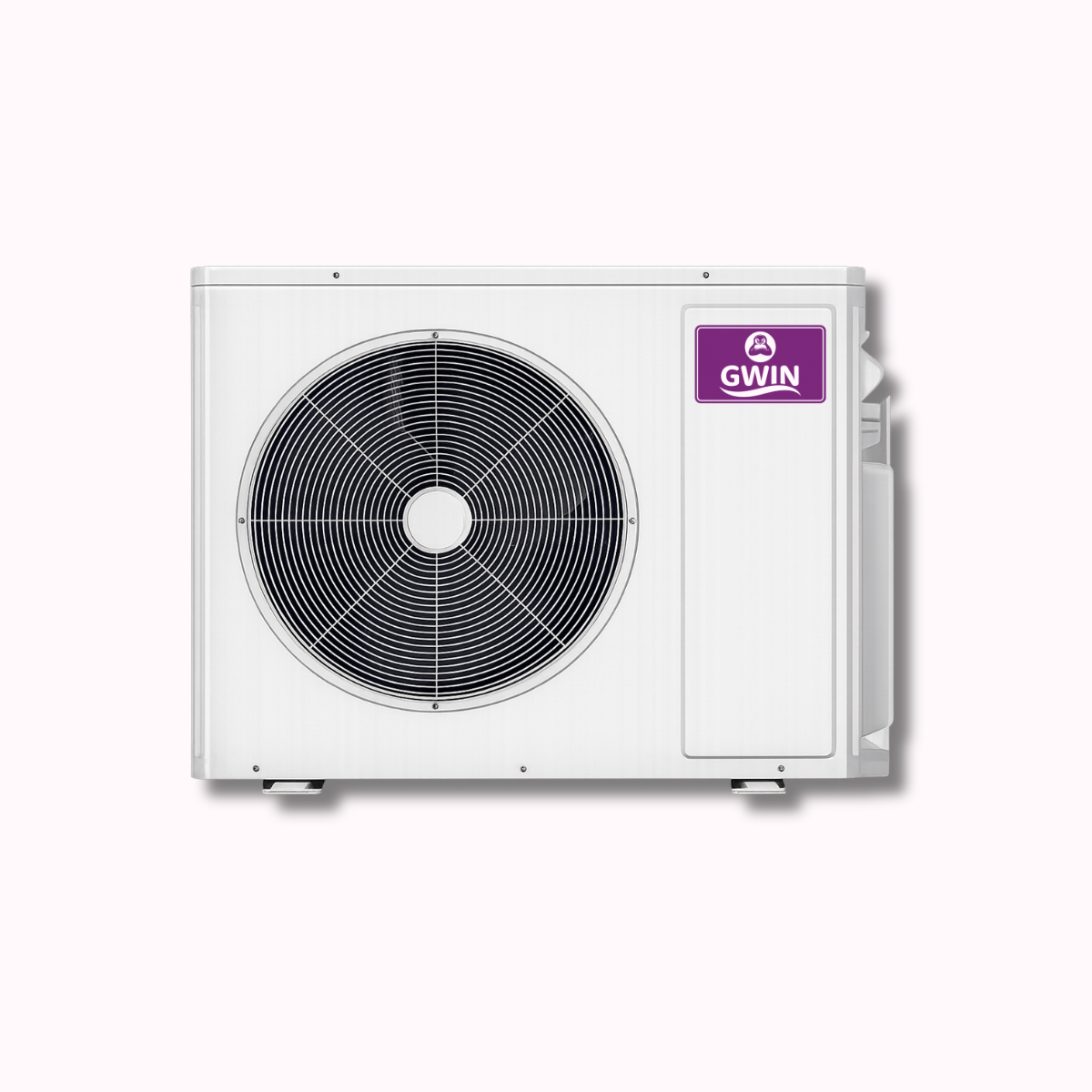

GWIN 12,000 BTU 230V Emperor Single Zone Ductless Condenser
GWIN 12,000 BTU 230V Emperor Single Zone Ductless Condenser
Hurry up, only 10 items left in stock.
GWIN 12,000 BTU 230V King Single Zone Ductless Condenser
The GWIN 12,000 BTU 230V King Single Zone Ductless Condenser is a compact and efficient outdoor heat pump designed to power a single indoor air handler with precision and reliability. Built for performance and durability, this single-zone ductless condenser delivers consistent comfort while maintaining energy efficiency.
Utilizing advanced inverter technology and R32 refrigerant, this system provides improved performance with reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Efficient Single-Zone Comfort
This system is designed to support one indoor unit, making it ideal for targeted applications such as bedrooms, offices, garages, and small living areas.
Key Features
- 12,000 BTU single-zone condenser
- 208-230V operation
- R32 refrigerant
- Inverter-driven compressor
- Low ambient cooling to 0°F
- Low ambient heating to -13°F
- Quiet outdoor operation
- Compact footprint
- GWIN Tech included
Features & Functions Summary
- Inverter Type: G20
- Ultra Low Frequency Torque Control: Yes
- Power Factor Correction: Yes
- Basepan With Electric Heater: Yes
- Compressor With Electric Heater: Yes
- Outdoor Fin Coating: Acrylic-Resin / Anti-Corrosive
- Intelligent Defrosting: Yes
- Force Defrosting: Yes
- Intelligent Preheating: Yes
- Low Voltage Startup: Yes
- Memory / Power Failure Recovery: Yes
- Self Diagnosis: Yes
- Wired Controller Interface: Yes
- WiFi Included: Yes
- Indoor Fan Type: Crossflow
- Multi Fan Speeds: 6 Speeds
- Indoor Unit Display: Yes
- Auxiliary Electrical Heater: No
- Ventilation (Outdoor Air): No
- A2L Leak Detection Sensor (Indoor): Factory Installed
Reliable Performance
This condenser is engineered for dependable operation across a wide range of outdoor conditions, helping provide year-round comfort.
Ideal Applications
This single-zone ductless mini-split condenser is ideal for residential and light commercial applications where efficient, targeted climate control is required.
Technical Specifications
| Model Number | EMPR12HP230V1R32AO |
| System Type | Single-Zone Heat Pump |
| Cooling Capacity | 12,000 BTU/h |
| Heating Capacity | 12,000 BTU/h |
| Cooling Capacity Min-Max | 3,070 - 13,300 BTU/h |
| Cooling Capacity Rated at 95°F | 12,000 BTU/h |
| Heating Capacity Min-Max | 3,070 - 14,600 BTU/h |
| Heating Capacity Rated at 47°F | 12,000 BTU/h |
| Heating Capacity Rated at 17°F | 9,700 BTU/h |
| Heating Capacity Rated at 5°F | 9,100 BTU/h |
| SEER2 | 19.0 |
| EER2 | 9.75 |
| HSPF2 | 8.5 |
| Cooling Range Temp | 0 - 118 °F |
| Heating Range Temp | -13 - 75 °F |
| Sound Pressure Level | 52 dB(A) |
| External Dimensions (W x H x D) | 28-13/16 x 21-7/8 x 12-63/64 in. |
| Package Dimension (W x H x D) | 31-17/64 x 24-7/32 x 14-51/64 in. |
| Net Weight | 56.2 lbs. |
| Gross Weight | 61.7 lbs. |
| Refrigerant Type | R32 |
| Refrigerant Charge - R32 | 17.6 oz |
| Additional Refrigerant | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4" - 3/8" |
| Pre-Charge Length | 25 ft. |
| Pipe Length (Min - Max) | 10 - 66 ft. |
| Max Pipe Elevation | 40 ft. |
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range (Min - Max) | 187 - 253 VAC |
| Rated Current - Cooling | 7.02 A |
| Rated Current - Heating | 7.47 A |
| MOCP | 15 A |
| MCA | 12 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
