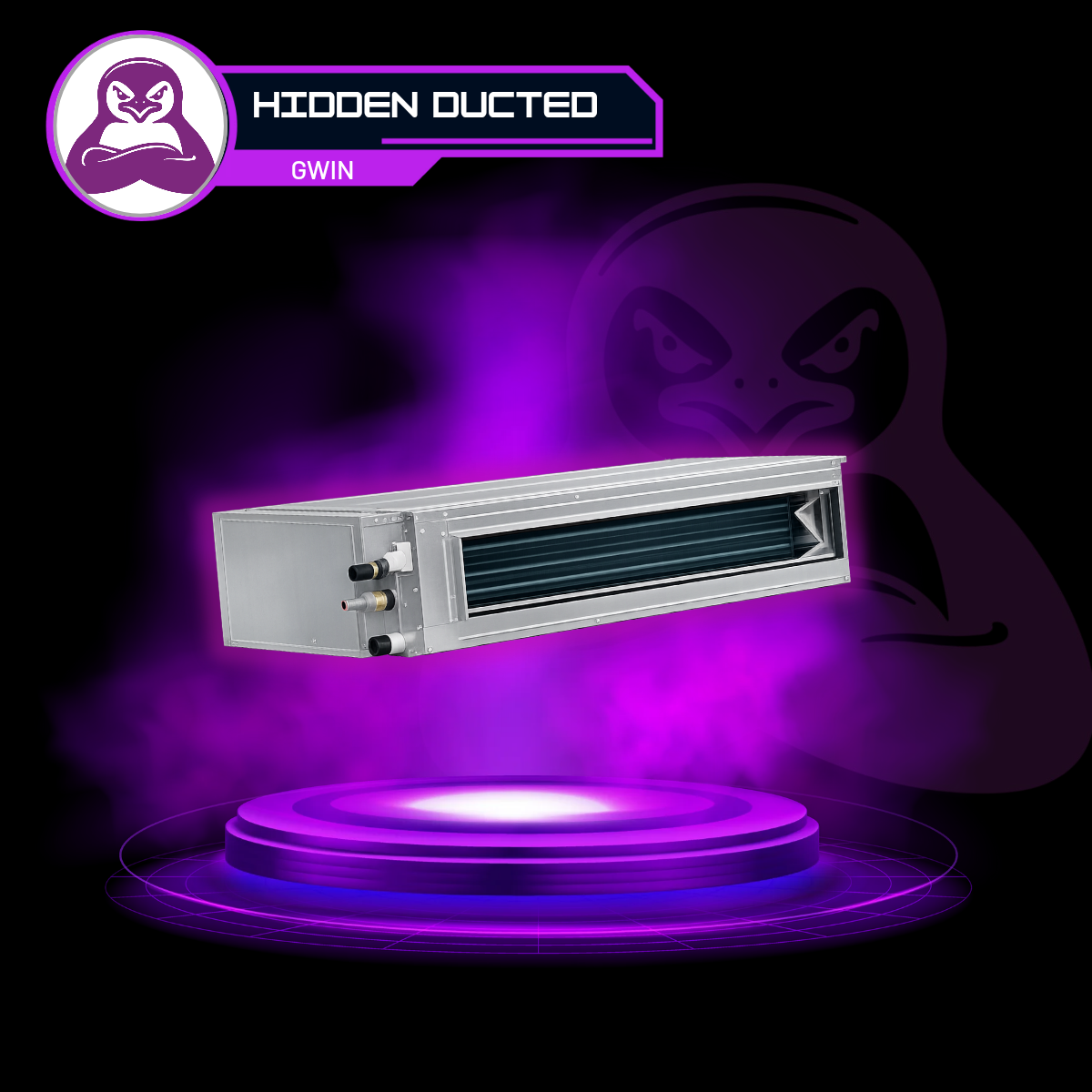

GWIN 12,000 BTU 230V Hidden Ducted Air Handler

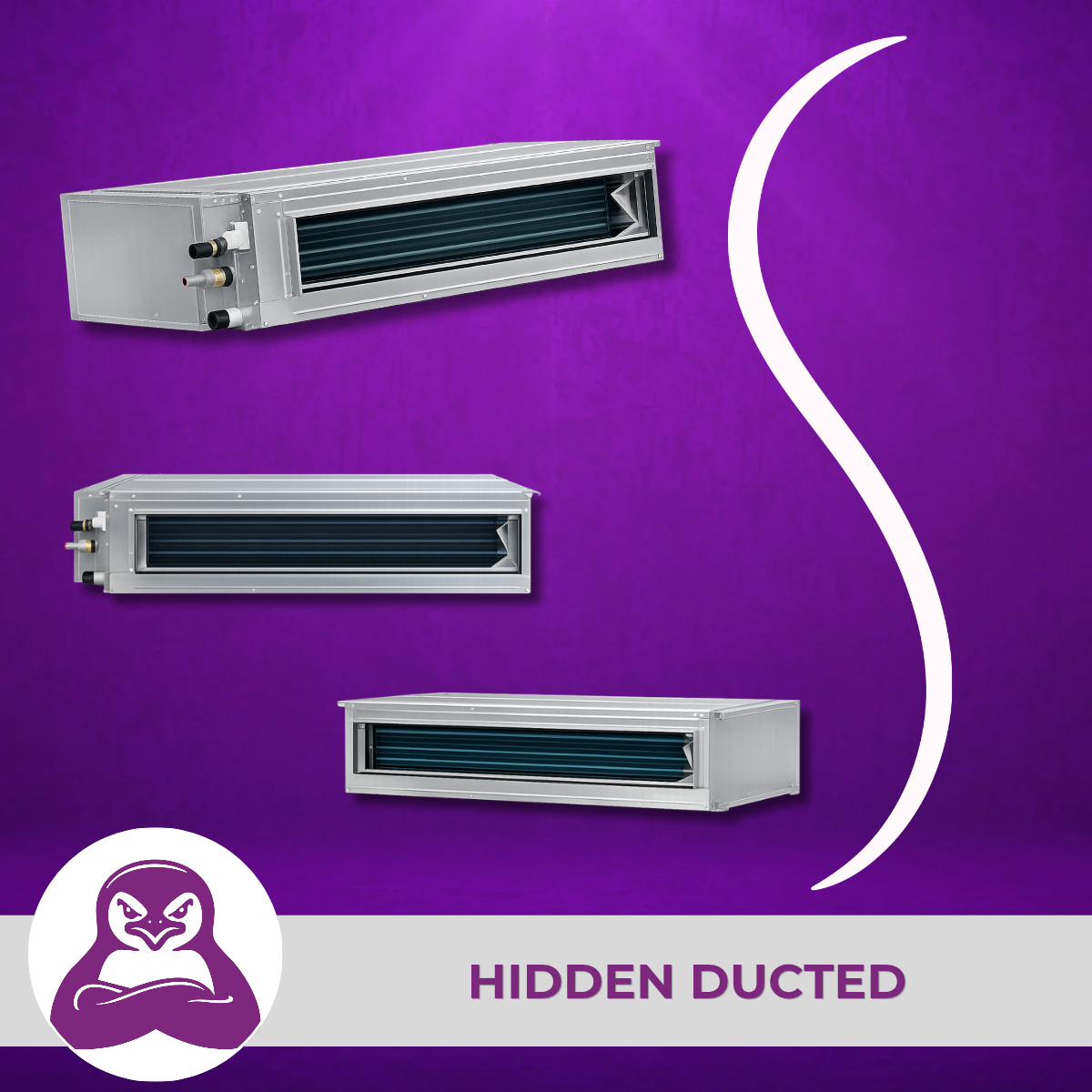

The GWIN 12,000 BTU 230V Hidden Ducted Air Handler is a concealed indoor air handler designed to distribute conditioned air through short duct runs while keeping the equipment out of sight. It is a 12,000 BTU-class indoor unit for use with compatible GWIN Emperor single-zone and GWIN multi-zone outdoor systems.
Its adjustable external static pressure, internal condensate pump, and bottom-or-rear return-air options support flexible installation. The indoor unit provides an airflow range of 212 - 353 CFM, sound pressure levels from 25 - 39 dB(A), and dehumidification performance of 2.96 pt/hr.
Comfort & Control
- Slim concealed-duct construction
- Adjustable external static pressure
- Internal condensate drain pump
- Flexible return air from the bottom or rear
- Wireless remote control included
- Wired controller included
- Centrifugal indoor fan
- Four indoor fan speeds
- Auto Mode and Auto Fan
- Dry and X-Fan modes
- Energy Saving, Sleep, Timer, and Turbo modes
- I Feel, Privacy Lock, Freeze Guard, and Power Failure modes
Installation & Compatibility
This indoor unit uses R32 refrigerant, is powered by the connected outdoor unit, and requires 1/4" - 3/8" flared refrigerant connections. Actual capacity and efficiency depend on the connected outdoor unit and the final system configuration.
Technical Specifications
| System Type | Indoor Heat Pump Air Handler |
| Indoor Model | GWIN12HP230V1R32AD |
| Capacity Class | 12,000 BTU |
| Reference Rated Cooling Capacity @95°F | 12,000 BTU/h |
| Reference Rated Heating Capacity @47°F | 12,000 BTU/h |
| Refrigerant Type | R32 |
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Interconnecting Wire Size | 14 / 4 AWG |
| Line Set Size (Liquid - Gas) | 1/4" - 3/8" |
| Dehumidification | 2.96 pt/hr |
| Maximum External Static Pressure | 0.6 in. W.C. |
| Air Flow (Min - Max) | 212 - 353 CFM |
| Sound Pressure Level (Min - Max) | 25 - 39 dB(A) |
| External Dimensions (L x D x H) | 32-43/64 x 29-11/16 x 11-13/16 in. |
| Package Dimensions (L x W x H) | 35-5/16 x 31-13/16 x 14-11/16 in. |
| Net Weight | 70.6 lbs. |
| Gross Weight | 83.8 lbs. |
| Performance Note | Efficiency, operating range, and delivered capacity depend on the connected outdoor unit and system configuration. |
