GWIN 18,000 BTU 230V Max Central Ducted Air Handler

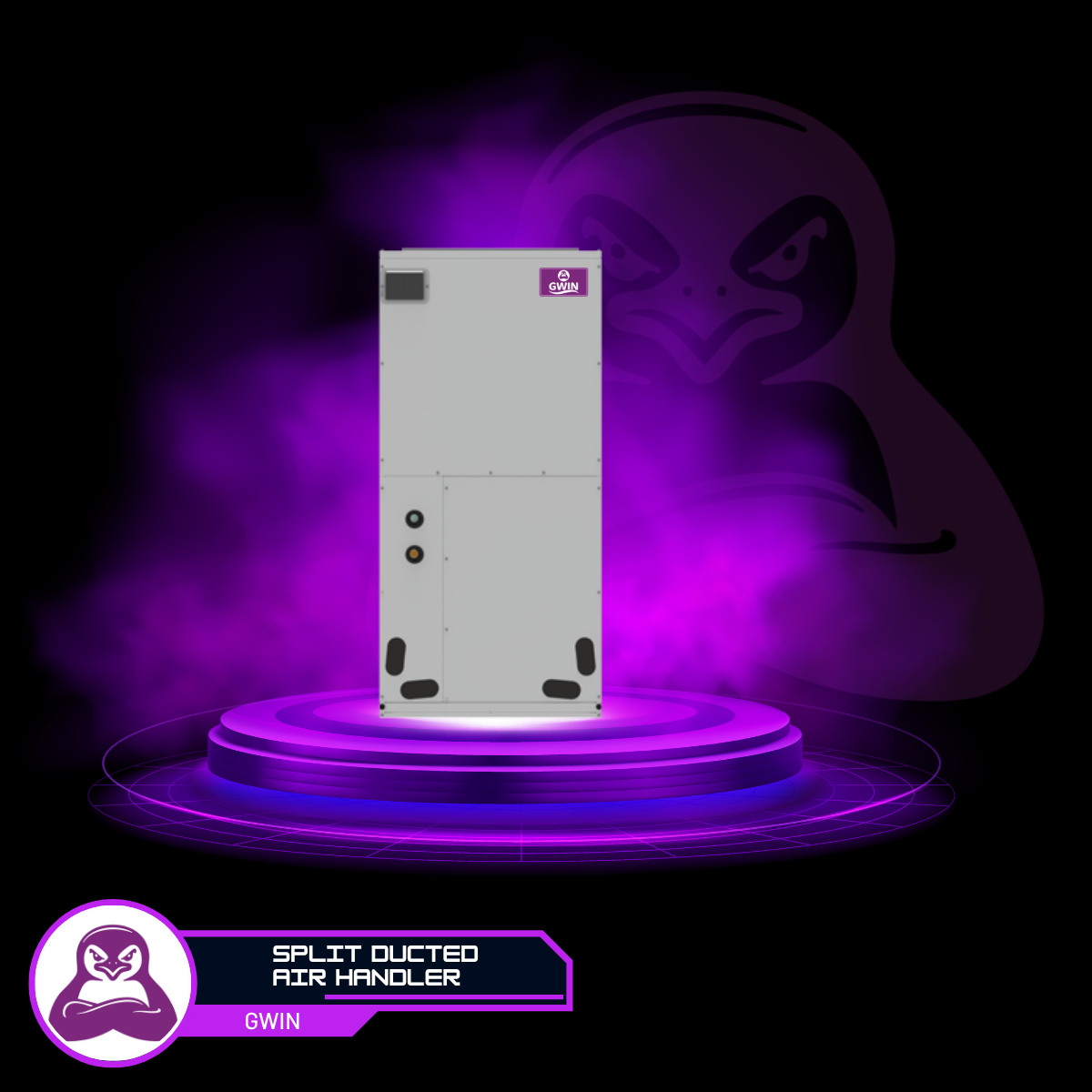

The GWIN 18,000 BTU 230V Max Central Ducted Air Handler is a Max Central Ducted indoor air handler designed for central ducted heating and cooling applications. This individual listing contains indoor-unit information only and does not include outdoor condenser specifications.
Indoor Air Handler Specifications
| Indoor model | GMAX18HP230V1R32AH |
| Power supply voltage | 208-230V |
| Power supply phase | 1Ph |
| Power supply frequency | 60 Hz |
| Control voltage | 24VAC |
| Sound pressure level | 50 dB(A) |
| MOCP | 15 A |
| MCA | 4.6 A |
| Optional electric heat size 1 | 5 kW |
| Optional electric heat size 2 |
10 kW |
| Rated airflow | 650 CFM |
| External static pressure | Up to 1.0 in. w.c. |
| Dehumidification | 3.19 pt/hr |
| External width | 18-1/8 in. |
| External height | 43-1/2 in. |
| External depth | 21-1/4 in. |
| Package width | 20-5/8 in. |
| Package height | 45-5/8 in. |
| Package depth | 26 in. |
| Net weight | 135.6 lb |
| Gross weight | 144.4 lb |
Indoor Air Handler Features
- 24VAC thermostat compatible
- G-TMAX001 programmable central ducted thermostat/controller included
- Centrifugal indoor fan
- Five fan speeds
- Indoor TXV control
- Factory-installed indoor A2L leak-detection sensor
- Optional auxiliary electric heat compatibility
- Indoor copper-tube/aluminum-fin coil with blue anti-corrosion coil coating
- Memory / power-failure recovery
- Self-diagnosis
Fan Performance
| Fan speed | 0 in. w.c. | 0.1 in. w.c. | 0.15 in. w.c. | 0.2 in. w.c. | 0.3 in. w.c. | 0.4 in. w.c. | 0.5 in. w.c. | 0.6 in. w.c. | 0.7 in. w.c. | 0.8 in. w.c. | 0.9 in. w.c. | 1.0 in. w.c. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed 1 | 1090 | 940 | 900 | 810 | — | — | — | — | — | — | — | — |
| Speed 2 | 1200 | 1100 | 1040 | 990 | 800 | — | — | — | — | — | — | — |
| Speed 3 | 1340 | 1230 | 1110 | 1040 | 910 | 760 | 650 | — | — | — | — | — |
| Speed 4 | 1680 | 1610 | 1560 | 1510 | 1430 | 1380 | 1350 | 1220 | 1130 | 970 | 770 | — |
| Speed 5 | 1730 | 1680 | 1630 | 1580 | 1480 | 1480 | 1400 | 1310 | 1180 | 1050 | 950 | 830 |
Fan-performance values are CFM and are based on a dry coil with the factory filter installed. For wet-coil airflow, multiply the listed CFM by 0.96.
Indoor Dimension Letter Reference
| Dimension letter | Inches |
|---|---|
| A | 11-5/8 |
| B | 16-3/4 |
| H | 43-1/2 |
| W | 18-1/8 |
| D | 21-1/4 |
Air Handler Component Breakdown
- Centrifugal fan
- Secondary drain pan
- Refrigerant leakage sensor
- Primary drain pan
- Evaporator assembly
- Fan motor
- Electric box assembly
Compatible Electric Heat Kits
| Part number | Heat-kit model | Electric heat at 208V (kW) | Electric heat at 230V (kW) | Minimum circuit ampacity at 208V (A) | Minimum circuit ampacity at 230V (A) | Maximum fuse or breaker at 208V (A) | Maximum fuse or breaker at 230V (A) |
|---|---|---|---|---|---|---|---|
| 320004060249 | FLEXA2LHTR05KWD | 3.74 | 4.6 | 28 | 29.9 | 30 | 35 |
| 320004060250 | FLEXA2LHTR10KWD | 7.49 | 9.2 | 50 | 55 | 60 | 60 |
Installation Notes
- Indoor unit may be installed vertically or horizontally.
- Horizontal-left configuration requires no drain-pan modification.
- Horizontal-right configuration requires relocation of the drain pan.
- Allow at least 24 inches in front of the air handler for service access.
- When installed above a finished ceiling, place an emergency drain pan directly below the unit as required by local and state codes.
- Elevate the air handler on sturdy, non-porous material where it may become wet.
- Use a protective barrier where the air handler may be exposed to physical damage.
- Designed for a complete supply-and-return ductwork system.
Important: This is an individual indoor air-handler listing. A compatible outdoor condenser, refrigerant piping, electrical work and commissioning are required for a complete system.
