GWIN 24,000 BTU 230V 4 Way Cassette Air Handler

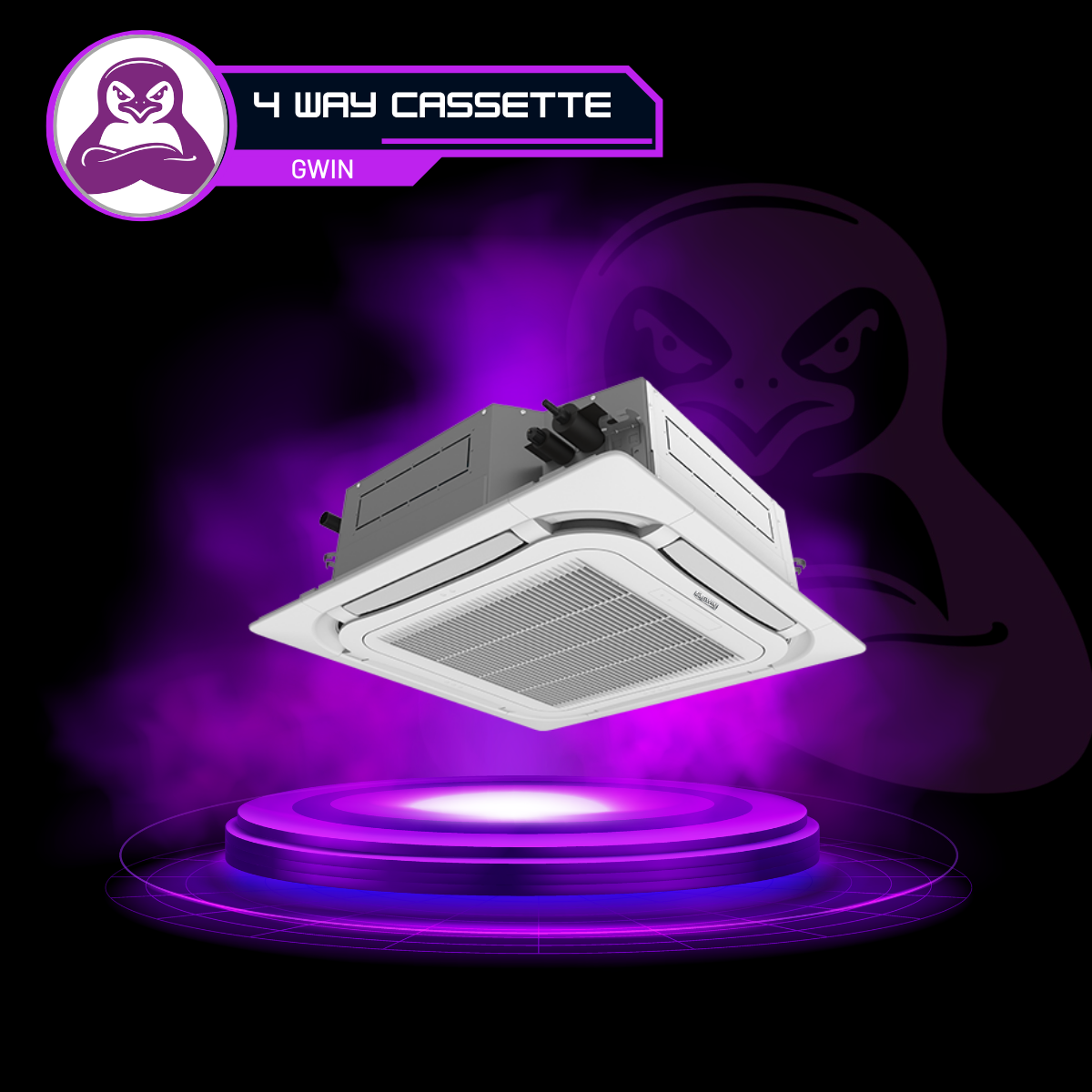

The GWIN 24,000 BTU 230V 4 Way Cassette Air Handler is a ceiling-mounted indoor air handler that delivers conditioned air in four directions for broad, even room coverage. It is a 24,000 BTU-class indoor unit for use with compatible GWIN Emperor single-zone and GWIN multi-zone outdoor systems.
Its swing louvers, internal condensate pump, and low-profile ceiling installation make it suitable for open residential and light-commercial spaces. The indoor unit provides an airflow range of 488 - 647 CFM, sound pressure levels from 38 - 44 dB(A), and dehumidification performance of 4.23 pt/hr.
Comfort & Control
- Four-way ceiling discharge
- Swing louver control
- Internal condensate drain pump
- Wireless remote control included
- Wired controller included
- Seven indoor fan speeds
- Indoor unit display
- Vertical auto swing
- Quiet Mode
- Auto, Dry, X-Fan, Energy Saving, Sleep, Timer, and Turbo modes
- I Feel, Privacy Lock, Freeze Guard, and Power Failure modes
Installation & Compatibility
This indoor unit uses R32 refrigerant, is powered by the connected outdoor unit, and requires 1/4" - 5/8" flared refrigerant connections. Actual capacity and efficiency depend on the connected outdoor unit and the final system configuration.
Important: A compatible cassette grille is required to complete installation.
Technical Specifications
| System Type | Indoor Heat Pump Air Handler |
| Indoor Model | CAS24HP230V1R32AH |
| Capacity Class | 24,000 BTU |
| Reference Rated Cooling Capacity @95°F | 22,000 BTU/h |
| Reference Rated Heating Capacity @47°F | 24,000 BTU/h |
| Refrigerant Type | R32 |
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Interconnecting Wire Size | 14 / 4 AWG |
| Line Set Size (Liquid - Gas) | 1/4" - 5/8" |
| Dehumidification | 4.23 pt/hr |
| Air Flow (Min - Max) | 488 - 647 CFM |
| Sound Pressure Level (Min - Max) | 38 - 44 dB(A) |
| External Dimensions (L x D x H) | 33-5/64 x 33-5/64 x 9-29/64 in. |
| Package Dimensions (L x W x H) | 37-29/32 x 37-29/32 x 12-51/64 in. |
| Net Weight | 63.9 lbs. |
| Gross Weight | 83.8 lbs. |
| Required Cassette Grille | Required; grille sold separately unless included in the selected package |
| Grille Dimensions (L x D x H) | 37-13/32 x 37-13/32 x 2-3/64 in. |
| Grille Package Dimensions (L x W x H) | 40-43/64 x 40-55/64 x 4-13/32 in. |
| Grille Weight (Net / Gross) | 13.23 / 20.948 lbs. |
| Performance Note | Efficiency, operating range, and delivered capacity depend on the connected outdoor unit and system configuration. |
