GWIN 24,000 BTU – 230V – 25 SEER2 Single-Zone Ductless Mini-Split (Complete System) With 16 Foot Line Set And Communication Wire

High efficiency, quiet comfort, and reliable low-temperature heating. The GWIN 24,000 BTU (class) single-zone mini-split is engineered for year-round performance with a premium 25 SEER2 rating and clear installation specs that streamline professional installs for larger bedrooms, living rooms, studios, and offices.

Key Comfort & Performance Features

• Self Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for cleaner air.
• Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
• Outdoor Unit Operation: Reliable performance from -22°F to 125°F for year-round comfort.
• Wide Voltage Fluctuation: Operates within 165V–265V to tolerate unstable environments.
• Wi-Fi Control: Built-in Wi-Fi module for convenient operation from anywhere.
• Fast Heating & Cooling Technology: Inverter compressor quickly achieves your desired room temperature.
• ECO Energy-Saving Mode: Designed to save power and reduce energy consumption.
• Easy Installation: Comes with an installation guide, mounting plate, and built-in level for faster setup.
• Gold Fin: Both indoor and outdoor units feature gold fin coating to reduce corrosion and oxidation compared to blue fin models.
• Vertical Placement PCB: Prevents displacement and deformation to reduce damage rates. UV adhesive cover lowers corrosion risk, failure rates, and maintenance needs.
• Base Pan Heating: Automatically activates in low outdoor temperatures to improve efficiency and reduce freezing in the outdoor unit base.

What’s Included

• Complete System Model: GAMAR24HP230V1E
• Indoor Unit (Wall-Mounted): GAMAR24HP230V1EH

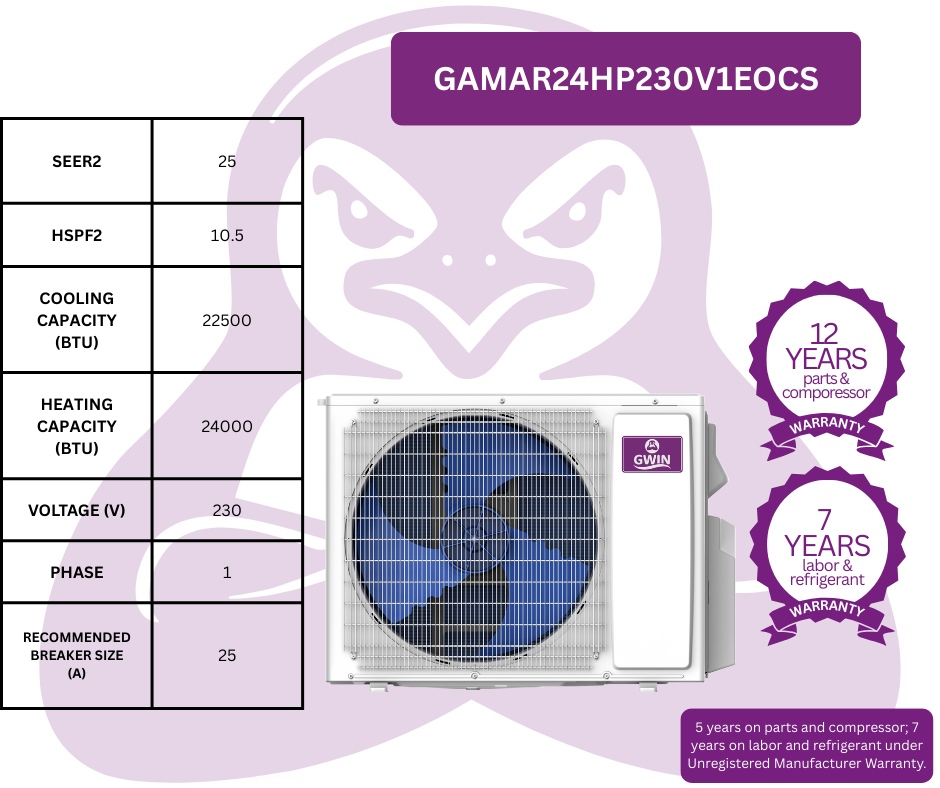

• Outdoor Unit (Heat Pump): GAMAR24HP230V1EO
• AHRI Certified Reference: 214290024

Efficiency & Capacity

• SEER2: 25
• HSPF2: 10.5
• Cooling Capacity (Rated): 22,500 BTU (Range: 4,300–28,500 BTU)
• Heating Capacity @ 47°F (Rated): 24,000 BTU (Range: 5,300–31,000 BTU)
• Heating Capacity @ 17°F (Rated): 22,400 BTU
• Max Heating: 21,500 BTU @ 5°F; 14,300 BTU @ −5°F
• Cooling Power Input (Rated): 1,610 W
• Heating Power Input @ 47°F (Rated): 1,750 W

Airflow & Sound

• Indoor Airflow (CFM): 940 / 833 / 742 / 636 (S / H / M / L)
• Indoor Sound Pressure dB(A) – Cooling: 51 / 48 / 44 / 39 / 34 (S / H / M / L / Quiet)
• Indoor Sound Pressure dB(A) – Heating: 50 / 48 / 43 / 39 (S / H / M / L)
• Outdoor Sound Pressure dB(A): 59 (Cooling / Heating)

Dimensions & Weights

Indoor Unit (GAMAR24HP230V1EH)

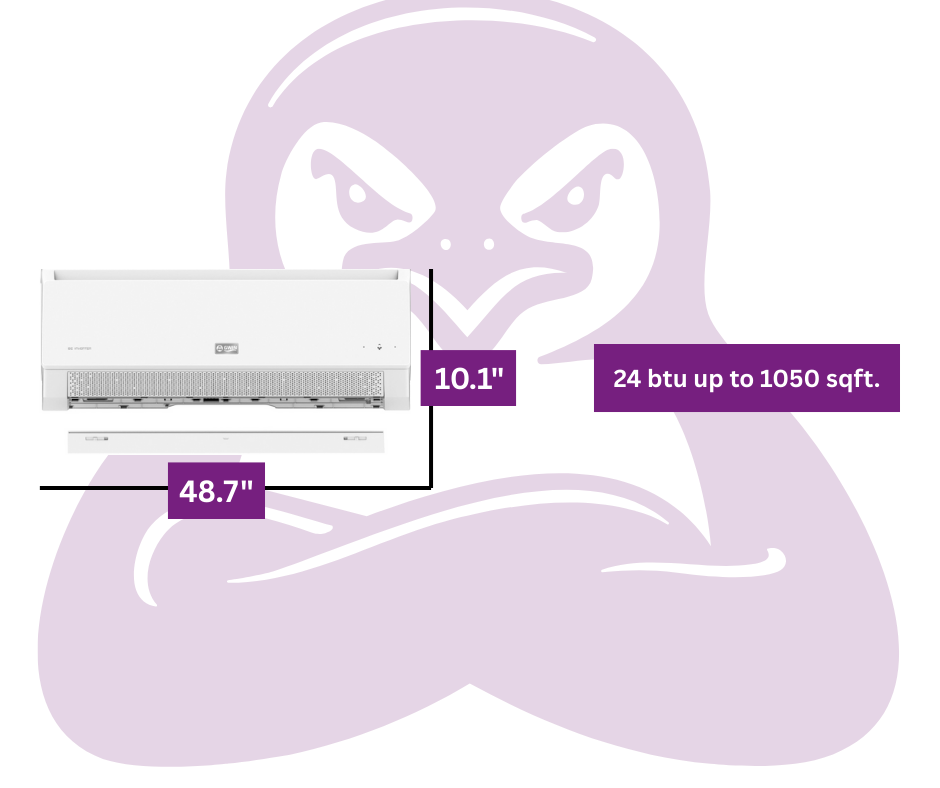

• Net Dimensions (W × D × H): 48-21/32" × 14-1/16" × 10-1/8" (1,236 × 357 × 257 mm)
• Package Dimensions (W × D × H): 52-3/4" × 17-33/64" × 13-31/32" (1,340 × 445 × 355 mm)
• Net Weight: 35.3 lb (16 kg)

Outdoor Unit (GAMAR24HP230V1EO)

• Net Dimensions (W × D × H): 38-37/64" × 15-9/32" × 27-9/16" (980 × 388 × 700 mm)
• Package Dimensions (W × D × H): 39-61/64" × 16-47/64" × 30" (1,015 × 425 × 762 mm)
• Net Weight: 101.4 lb (46 kg)

Line Set & Installation

• Liquid Line: 1/4" (6.35 mm)
• Gas Line: 5/8" (15.88 mm)
• Indoor Drain: 5/8" (15.88 mm)
• Minimum Line Length: 9 ft (2.74 m)
• Maximum Line Length: 100 ft (30 m)
• Maximum Height Difference: 65 ft (20 m)
• Refrigerant: R32 (Pre-charge 47.6 oz)
• Additional Charge: 0.258 oz/ft over 25 ft

Electrical

• Power Supply: 208/230V, 1-Phase, 60 Hz
• Recommended Breaker Size: 25 A
• MCA: 15 A
• MOCP: 25 A

Why Choose This 24,000 BTU 230V Mini-Split?

• Top-tier 25 SEER2 efficiency for energy savings.
• Low-ambient heating performance to −13°F for true four-season comfort.
• Quiet indoor operation with multiple fan speeds.
• Generous line-set allowances simplify challenging layouts.
• AHRI-listed performance under reference 214290024.

Note: Specifications are subject to change without notice. Actual performance may vary based on installation conditions. Always follow local codes and the unit nameplate.
