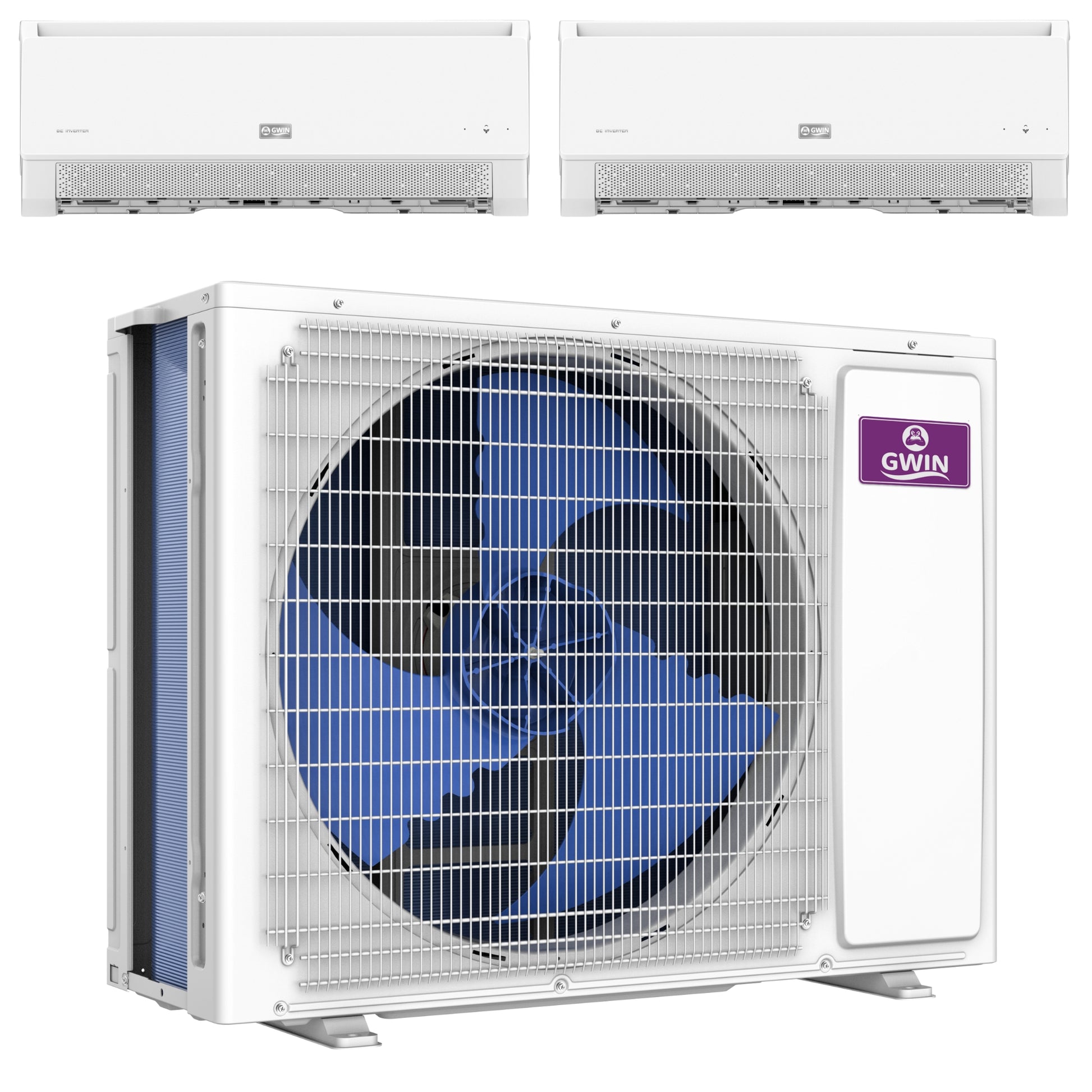

GWIN Assisted DIY 27,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (24k condenser,9K + 18K Wall Mount) with 15 foot line set and communication wire
GWIN Assisted DIY 27,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (24k condenser,9K + 18K Wall Mount) with 15 foot line set and communication wire
Available in stock (100)
Description GMUL3V1X27CS
Experience superior climate control with the GWIN Assisted DIY 27,000 BTU 22 SEER2 Two-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.
- Two Rooms, Perfect Comfort: Heat or cool two spaces up to 400 sq. ft. and 800 sq. ft. with independent temperature control for personalized comfort in each room.
- Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
- Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.
- Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.
- All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.
- Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
- Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation 7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW System Type | Ductless Mini Split Air Conditioner & Heat Pump Zones | 2 Capacity | Total: 27,000 BTU; Zone 1: 9,000 BTU; Zone 2: 18,000 BTU SEER2 Rating | 22 Line Sets Included | 2 x 15ft Line Sets + Communication Wire Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor

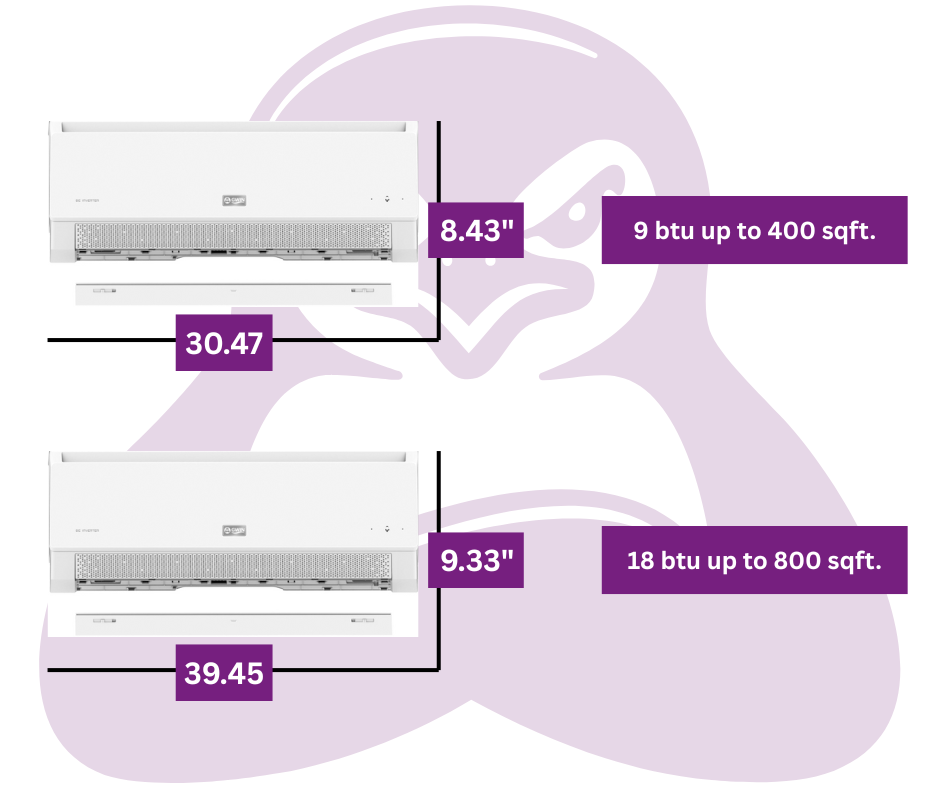

INDOOR UNIT (9K) x 1 Model | GAFEB09HP230V1EH Dimensions | 30.47"W x 8.43"H x 11.81"D Mounting Type | Wall Cooling Capacity | 9,100 BTU/h Heating Capacity | 10,000 BTU/h Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 Sound Level | 41 dB(A) Liquid Line | 1/4"; Gas Line: 3/8" Weight | 20.94 lbs
INDOOR UNIT (18K) x 1 Model | GAFEB18HP230V2EH Dimensions | 39.45"W x 9.33"H x 12.52"D Mounting Type | Wall Cooling Capacity | 18,000 BTU/h Heating Capacity | 18,000 BTU/h Airflow (CFM) | Cool: 618/559/500/441; Heat: 618/571/506/441 Sound Level | 50 dB(A) Liquid Line | 1/4"; Gas Line: 1/2" Weight | 25.35 lbs
OUTDOOR UNIT (24K) x 1 Model | GASUM24HPMULO Dimensions | 41-3/16"W x 31-13/16"H x 17-59/64"D Cooling Capacity | 24,000 BTU (SEER2 24 non-ducted) Heating Capacity | 26,000 BTU @ 47°F Voltage | 208–230V, 1Ph, 60Hz Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F Outdoor Noise | 60 dB(A) Weight | 152.1 lbs Certifications | Tested for wide voltage fluctuation (125–265V)
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 27,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (24k condenser,9K + 18K Wall Mount) with 15 foot line set and communication wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
