GWIN 36,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (42k condenser,18K + 18K Wall Mount) with 15 foot line set and communication wire

GWIN 36,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (42k condenser,18K + 18K Wall Mount) with 15 foot line set and communication wire

System Features:

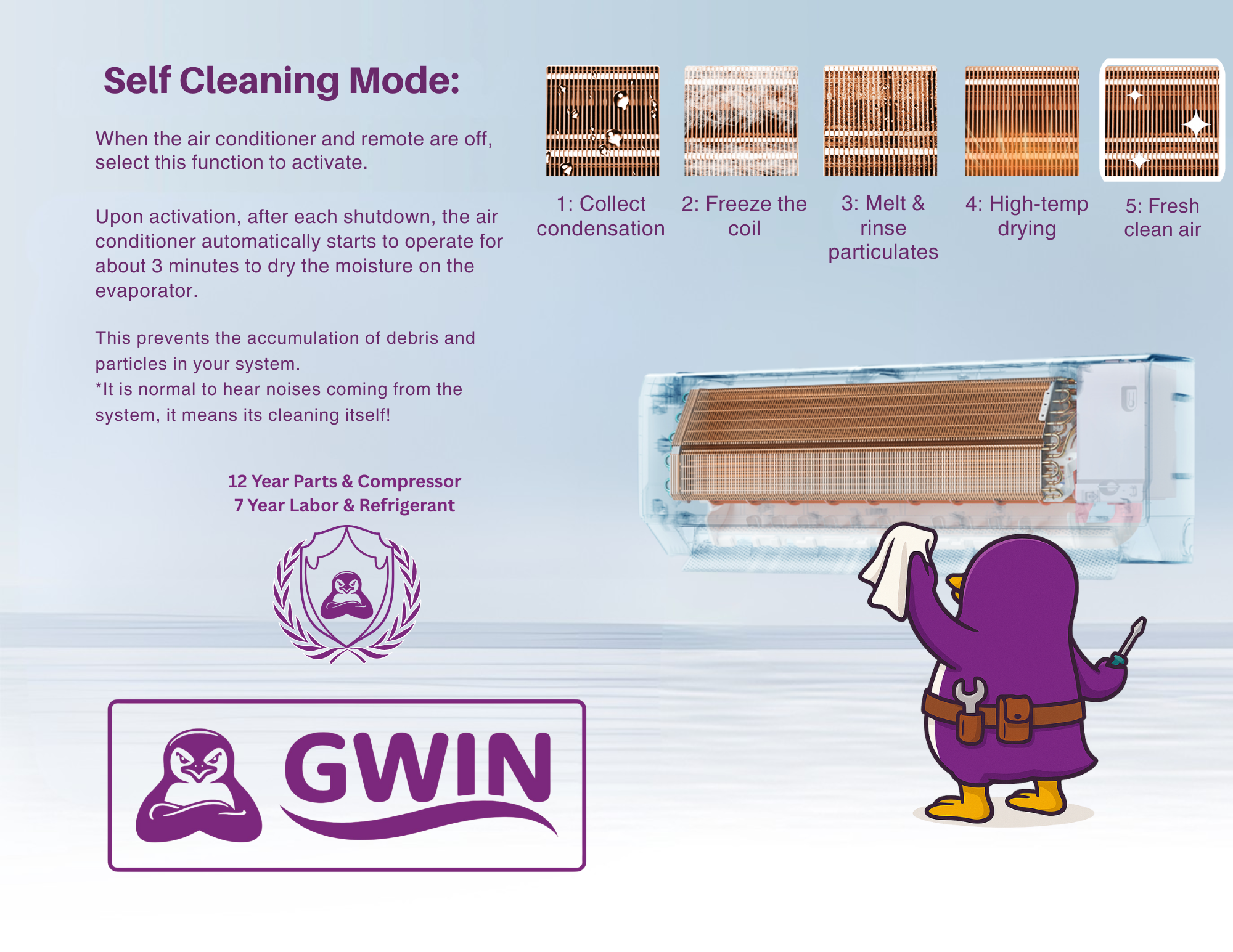

• Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization reaches 134°F for clean coils.
• Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
• Outdoor Operation: Reliable performance from -22°F to 125°F.

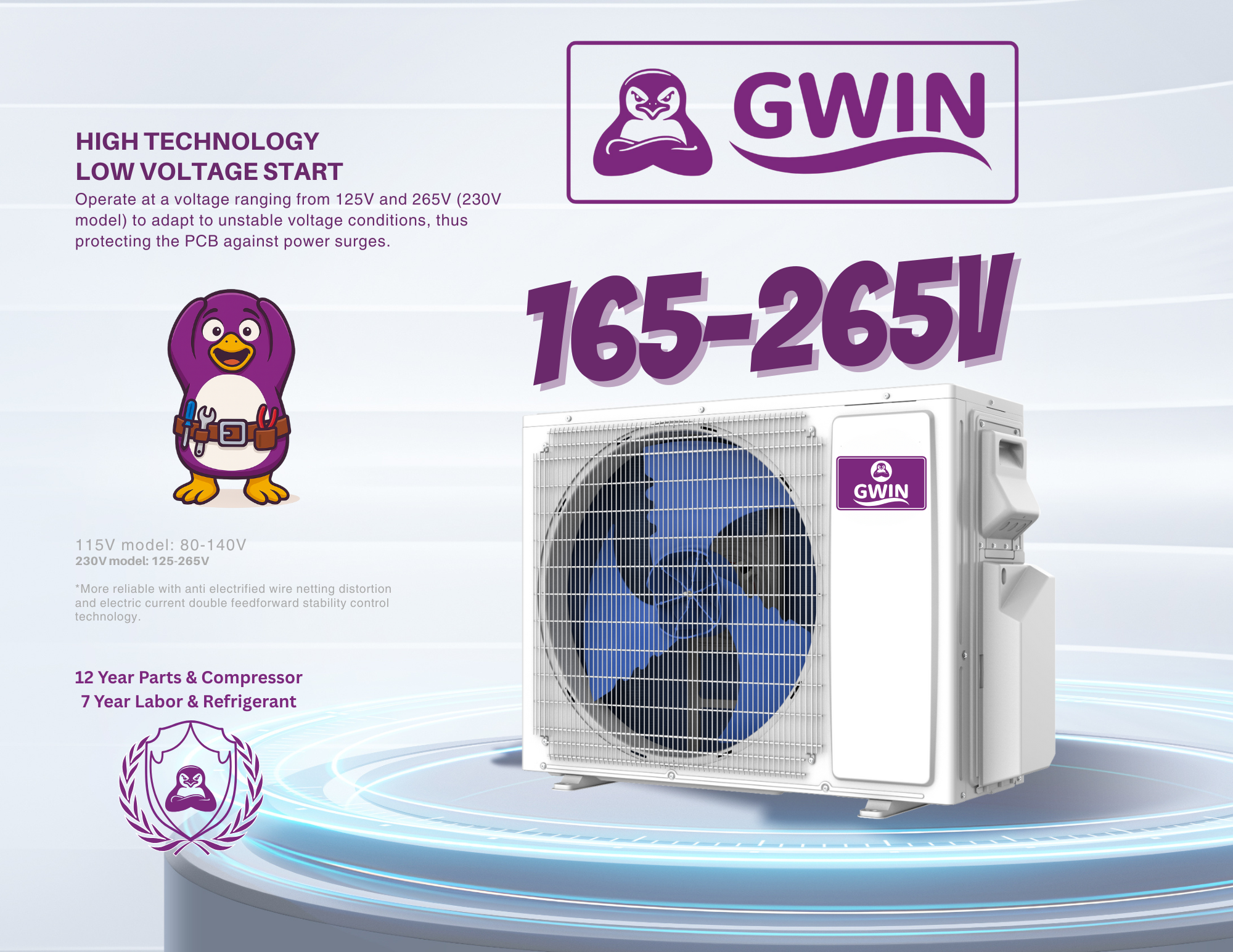

• Wide Voltage Fluctuation: 165V–265V.

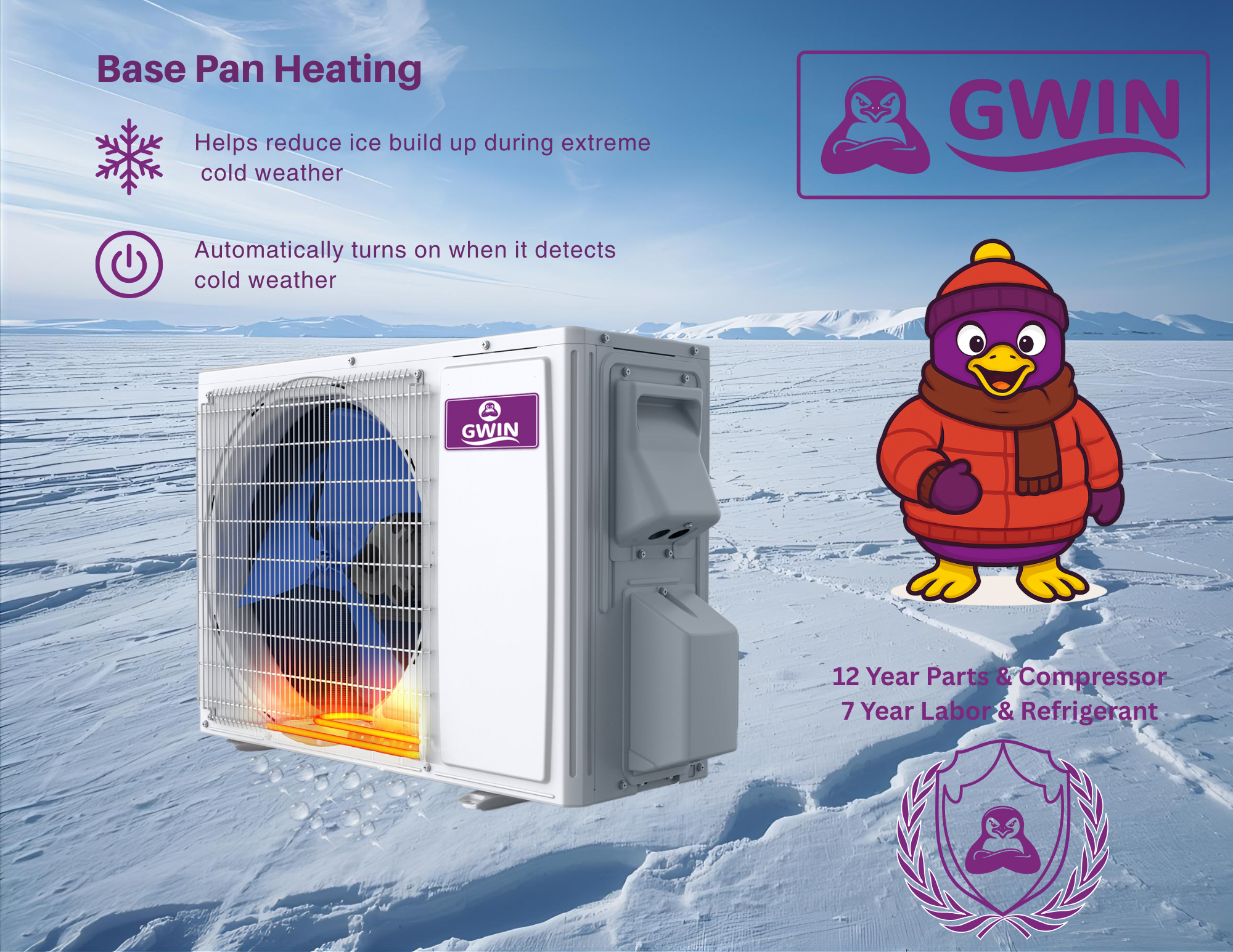

• Base Pan Heater: Reduces ice build-up and improves heating efficiency.
• Wi-Fi Control: Built-in module for remote control.
• Fast Heating and Cooling: Inverter compressor.
• Offline Voice Control: Same-room commands—no app required.
• ECO Energy-Saving Mode
• Easy Installation: Mounting plate and built-in level included.

Built for Reliability

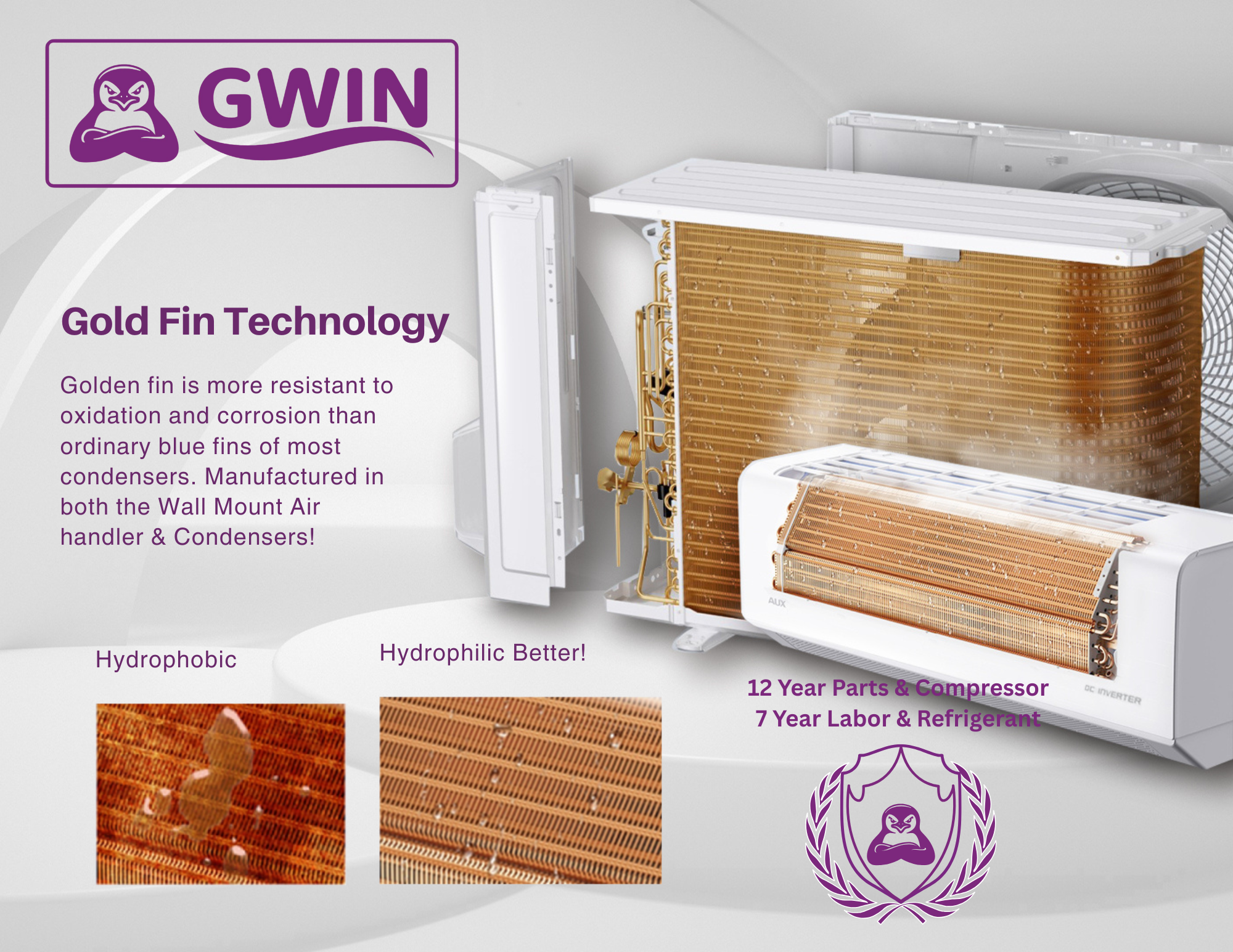

• Golden Fin Coils (indoor/outdoor): Enhanced resistance to corrosion and oxidation.
• Outdoor PCB “Three-Proof” design: UV-adhesive cover and vertical placement help reduce corrosion and deformation.

Warranty

• 12 Year Parts and Compressor (Registered)
• 7 Year Parts and Compressor (Unregistered)
• 7 Year Labor and Refrigerant


Indoor Units

18,000 BTU Wall-Mount Indoor Unit (Model: GAFEB12HP230V1EH)

*Indoor unit output may vary depending on multi-zone configuration. Air handlers and condensers may affect the output of the individual air handlers.

• Cooling: 18,000 BTU/h • Heating: 18,000 BTU/h
• Power Supply: 208–230V 1Ph 60Hz • Input: 0.25A
• Air Flow (CFM) — Cool: 618 / 559 / 500 / 441 • Heat: 618 / 571 / 506 / 441
• Sound: 50 dB(A)

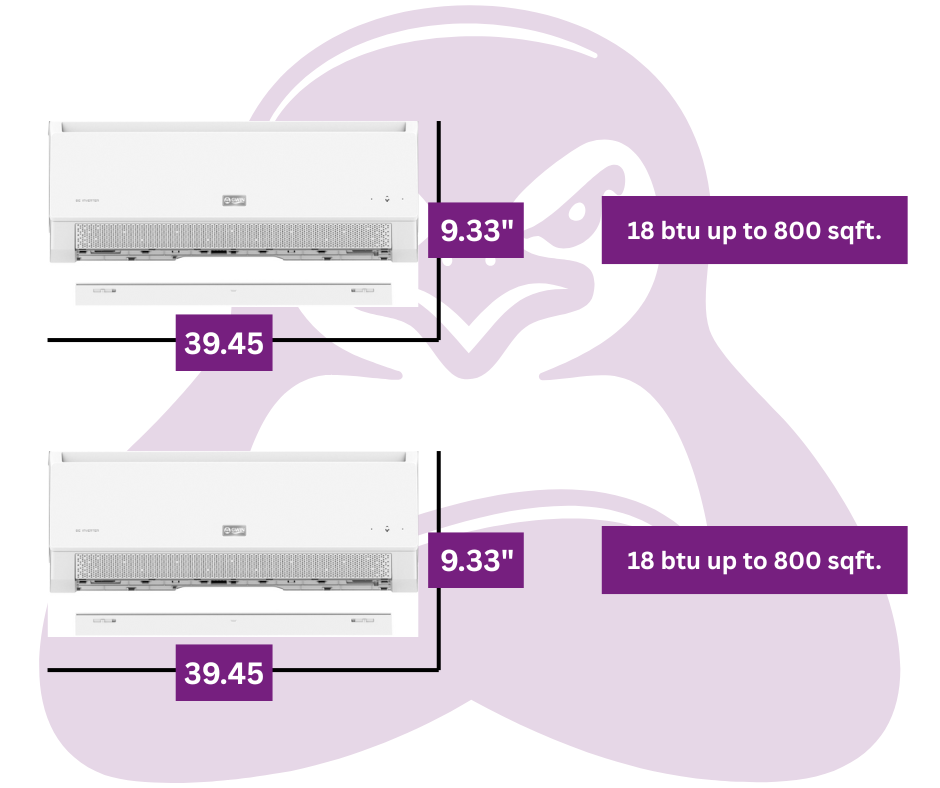

• Net Dimensions (in): 39.45 × 12.52 × 9.33
• Packing Dimensions (Panel) (in): 42.04 × 15.43 × 12.87
• Net/Gross (lbs): 25.35/33.06
• Piping: Liquid 1/4″ • Gas 1/2″ • Drain 0.6654″

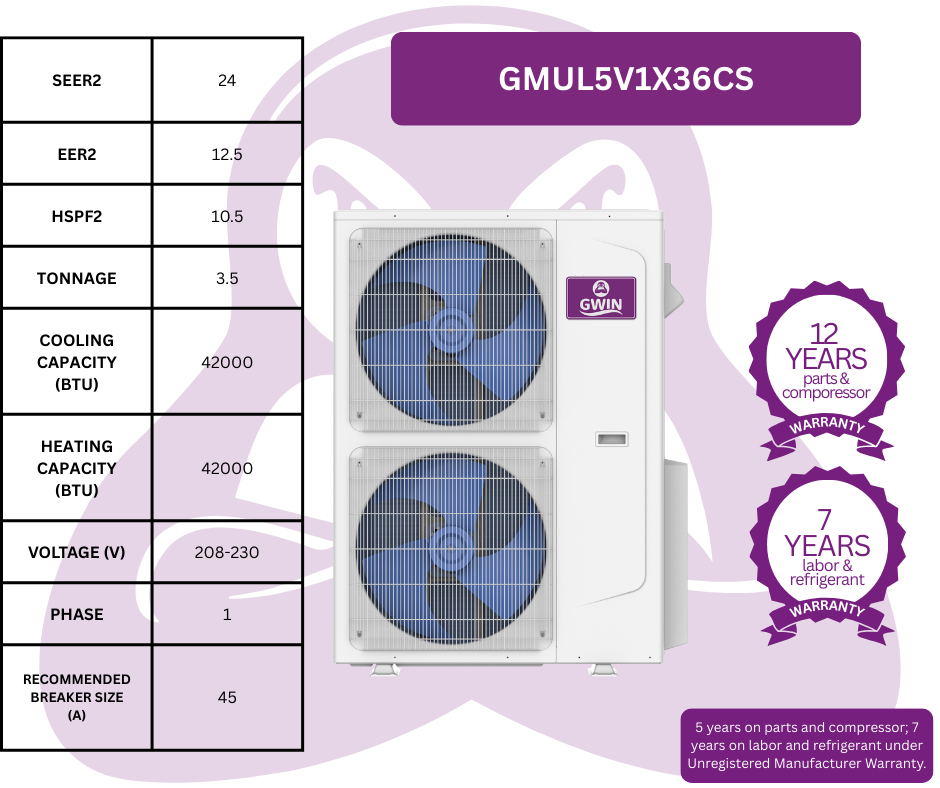

Outdoor Condenser

42,000 BTU Multi-Zone (Model: GASUM42HPMULO)

• System Format: 1 condenser up to 5 zones
• Electrical: 208–230V, 1Ph, 60Hz
• Operating Range: Cooling −13~125°F • Heating −22~75°F
• Refrigerant: R-32 • AHRI Certified

Included in This System

• (1) 42,000 BTU Multi-Zone Outdoor Condenser (GASUM42HPMULO)
• (2) 18,000 BTU Wall-Mount Indoor Air Handler (GAFEB18HP230V2EH)
• (2) Wireless Remote Controller
• (2) Installation and User Manual
• (2) 15’ line set
• (2) 15’ communication wire

Note: Whips, disconnects, pads, and other accessories sold separately. Always follow local codes and unit nameplate. Must be installed by someone over the age of 18 and only to their allowed limit that is determined by the license held by the installer. If no license, you must not attempt to charge or commission system. Only qualified personnel are allowed to charge or commission start up.
