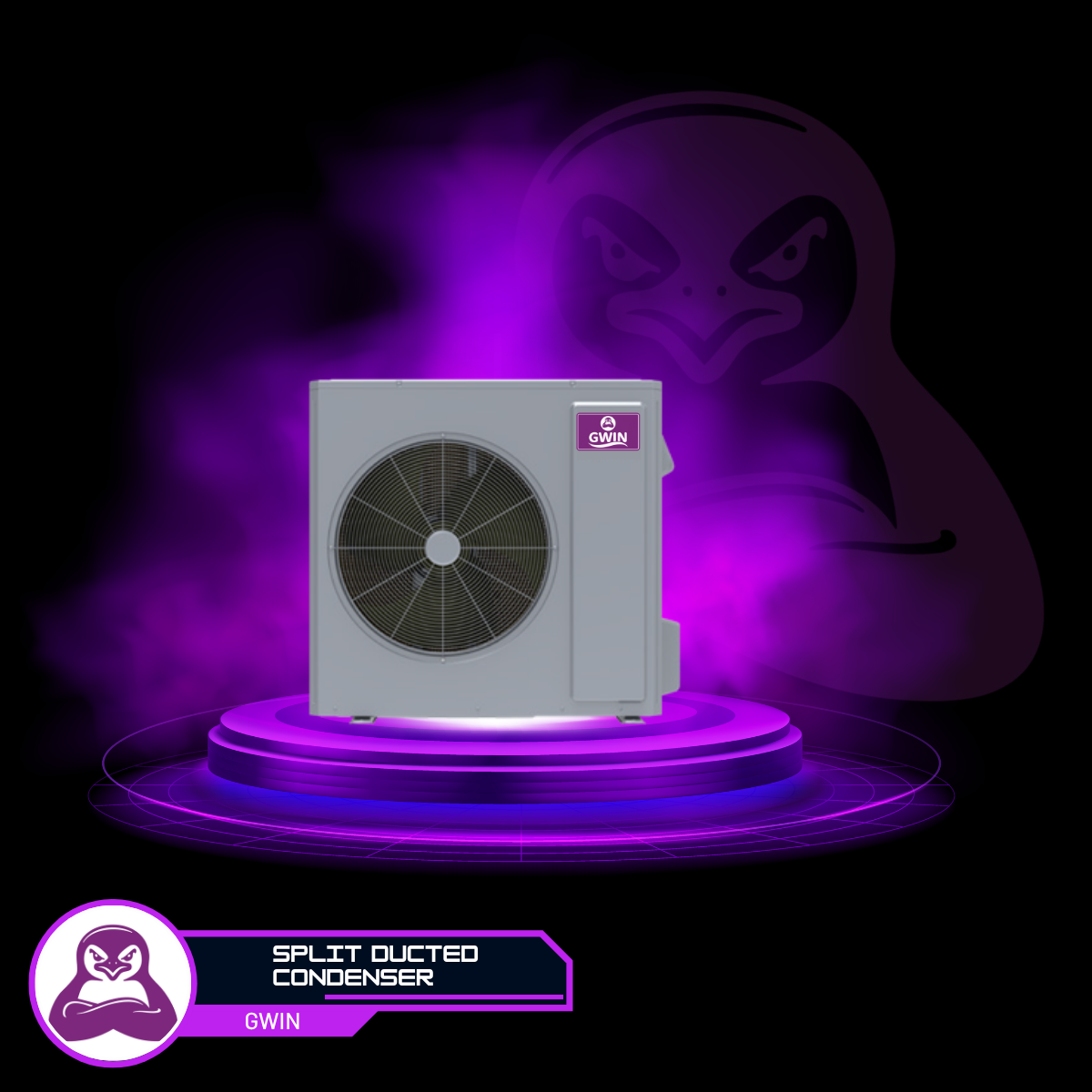

GWIN 36,000 BTU 230V Max Central Ducted Condenser
The GWIN 36,000 BTU 230V Max Central Ducted Condenser is a Max Central Ducted outdoor condenser for compatible central ducted heat pump applications. This individual listing contains outdoor-condenser information only and does not include indoor air-handler specifications.
Outdoor Condenser Specifications
| Outdoor model | GMAX36HP230V1R32AO |
| Power supply voltage | 208-230V |
| Power supply phase | 1Ph |
| Power supply frequency | 60 Hz |
| Control voltage | 24VAC |
| Sound pressure level | 61 dB(A) |
| Rated current cooling | 22 A |
| Rated current heating | 25.6 A |
| MOCP | 30 A |
| MCA | 27.7 A |
| Compressor model | G20 |
| Compressor cylinder type | Double cylinder |
| Compressor inverter stage | 2-stage inverter |
| External width | 39 in. |
| External height | 37-13/16 in. |
| External depth | 14-9/16 in. |
| Package width | 45-3/8 in. |
| Package height | 43-11/16 in. |
| Package depth | 18-13/16 in. |
| Net weight | 187.4 lb |
| Gross weight | 211.6 lb |
| Factory R32 refrigerant charge | 102.3 oz |
| Additional refrigerant charge | 0.323 oz/ft |
Outdoor Condenser Features
- High-efficiency DC inverter technology
- R32 refrigerant
- Zero-lot-line outdoor-unit design
- Low-ambient cooling operation down to 5°F
- Low-ambient heating operation down to -22°F
- Outdoor electronic expansion valve (EEV)
- Basepan electric heater
- Compressor electric heater
- Intelligent defrosting
- Intelligent preheating
- Outdoor copper-tube/aluminum-fin coil with gold anti-corrosion coil coating
Refrigerant Piping
| Liquid line size | 3/8 in. |
| Gas line size | 3/4 in. |
| Pre-charge length | 31 ft |
| Minimum pipe length | 10 ft |
| Maximum pipe length | 164 ft |
| Maximum pipe elevation | 49 ft |
Outdoor Dimension Letter Reference
| Dimension letter | Inches |
|---|---|
| A | 39 |
| B | 16-13/16 |
| C | 37-13/16 |
| D | 29-3/4 |
| E | 15-9/16 |
| F | 14-9/16 |
Outdoor Installation Notes
- Install the outdoor condenser at least 2 inches above the expected snow line.
- Follow the minimum clearance tables and installation manual for single-unit, side-by-side, row and stacked layouts.
- Final refrigerant charging, electrical work and commissioning must be completed in accordance with applicable codes and the current installation manual.
Important: This is an individual outdoor condenser listing. A compatible indoor air handler, refrigerant piping, electrical work and commissioning are required for a complete system.
