GWIN 36,000 BTU – 230V – 20 SEER Single-Zone Ductless Mini-Split (Complete System) With 16 Foot Line Set And Communication Wire

Key Comfort & Performance Features

• Outdoor Unit Operation: Reliable performance from -22°F to 125°F for year-round comfort.
• Wide Voltage Fluctuation: Operates within 165V–265V to tolerate unstable environments.
• Wi-Fi Control: Built-in Wi-Fi module for convenient operation from anywhere.
• Fast Heating & Cooling Technology: Inverter compressor quickly achieves your desired room temperature.
• ECO Energy-Saving Mode: Designed to save power and reduce energy consumption.
• Easy Installation: Comes with an installation guide, mounting plate, and built-in level for faster setup.
• Gold Fin: Both indoor and outdoor units feature gold fin coating to reduce corrosion and oxidation compared to blue fin models.
• Vertical Placement PCB: Prevents displacement and deformation to reduce damage rates. UV adhesive cover lowers corrosion risk, failure rates, and maintenance needs.
• Base Pan Heating: Automatically activates in low outdoor temperatures to improve efficiency and reduce freezing in the outdoor unit base.

Faster, Cleaner Installation

• Built-in level, plate support, and detachable under-jaw simplify mounting, allowing single-technician installation.
• Includes illustrated installation guide and mounting plate.

Built for Longevity

• Golden Fin Coils: Enhanced corrosion and oxidation resistance on both indoor and outdoor units compared to conventional blue-fin designs.
• Three-Proof Outdoor PCB: UV-adhesive cover reduces corrosion; vertical orientation helps prevent debris build-up and deformation.
• Base-Pan Heating: Integrated heater activates in low temperatures to reduce ice build-up and maintain peak performance.

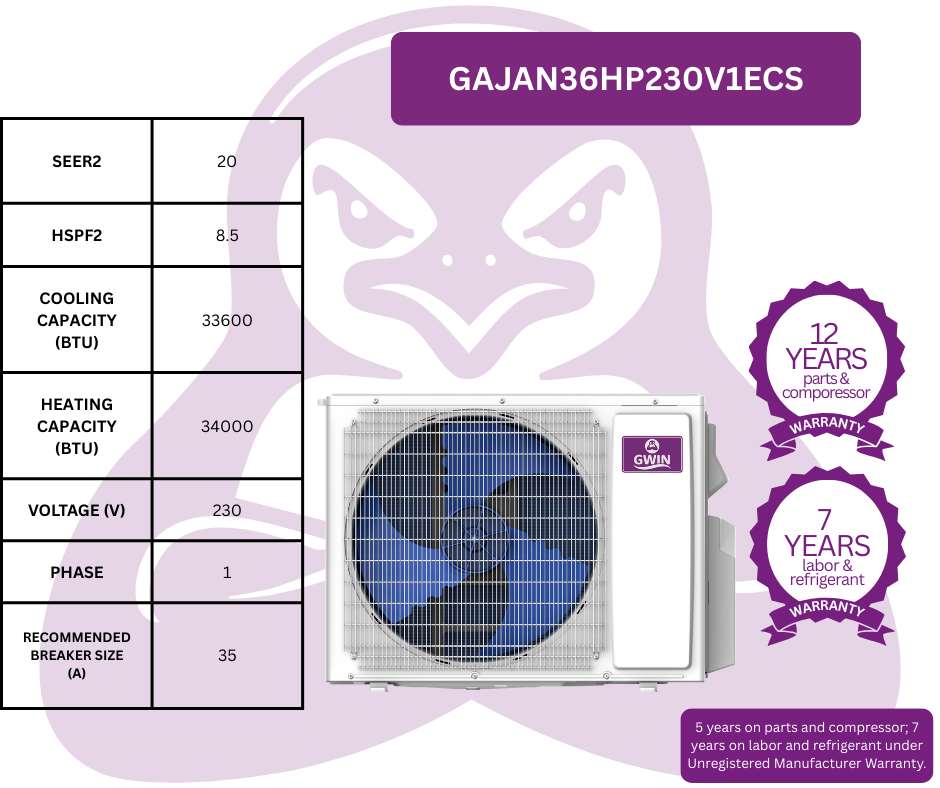

Model & Specifications — GAJAN36HP230V1E (3 Ton, 230V)

• AHRI No.: 214290030
• Indoor Unit: GAJAN36HP230V1EH
• Outdoor Unit: GAJAN36HP230V1EO

Performance

• Cooling Capacity (rated): 33,600 BTU/h
• Cooling Capacity Range (min–max): 7,500 – 35,500 BTU/h
• Cooling Power Input (rated): 3,320 W
• Cooling Operating Range: 5°F – 125°F
• Heating Capacity @ 47°F (rated): 34,000 BTU/h
• Heating Capacity Range (min–max): 8,300 – 42,000 BTU/h
• Heating Power Input @ 47°F (rated): 3,000 W
• Heating Capacity @ 17°F (rated): 24,400 BTU/h
• Heating Capacity @ 5°F (max): 23,800 BTU/h
• Heating Capacity @ −5°F (max): 17,000 BTU/h
• Heating Operating Range (outdoor ambient): −13°F to 75°F
• SEER2: 20
• HSPF2 (Region IV): 8.5

Airflow & Sound

• Airflow (SH/H/M/L): 940 / 833 / 742 / 636 CFM
• Indoor Sound (Cooling SH/H/M/L/Q): 51 / 48 / 44 / 39 / 34 dB(A)
• Indoor Sound (Heating H/M/L/Q): 50 / 48 / 43 / 39 dB(A)
• Outdoor Sound (Cooling/Heating): 59 dB(A) / 59 dB(A)

Dimensions & Weights

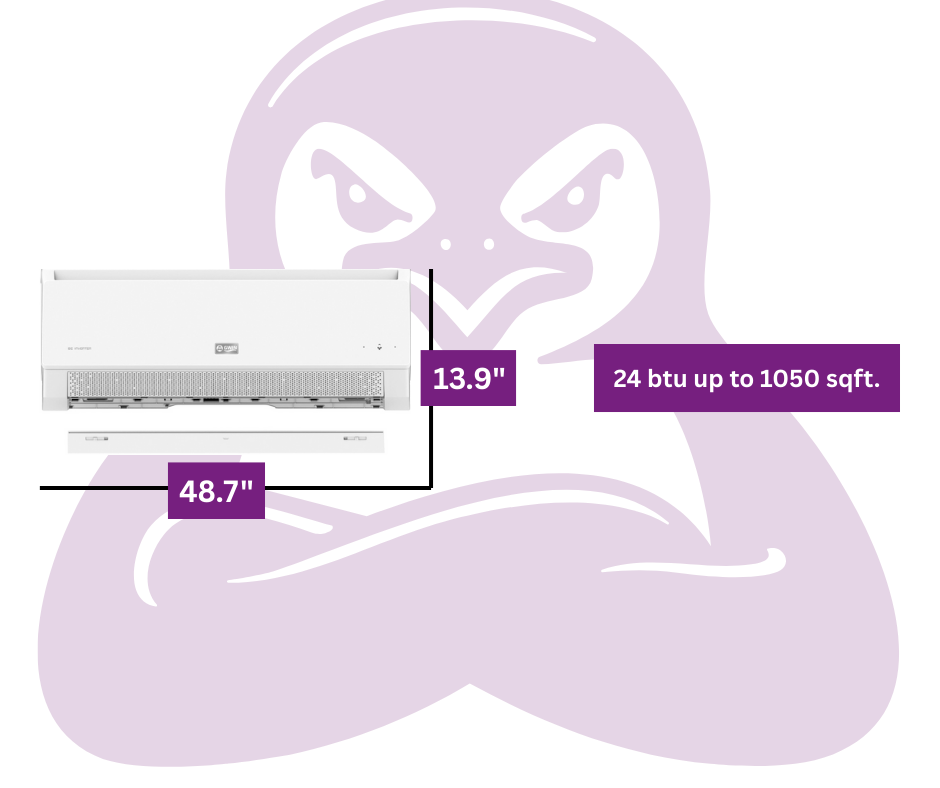

• Indoor Unit (W×H×D): 48-21/64 in × 13-31/32 in × 14-1/16 in (1236 × 355 × 357 mm)
• Indoor Net Weight: 35.3 lb (16 kg)
• Outdoor Unit (W×H×D): 38-37/64 in × 30 in × 15-9/32 in (980 × 762 × 388 mm)
• Outdoor Net Weight: 105.8 lb (48 kg)

Piping & Line Set

• Liquid Line (O.D.): 1/4 in (6.35 mm)
• Gas Line (O.D.): 5/8 in (15.88 mm)
• Indoor Drain: 5/8 in (15.88 mm)
• Min/Max Line Length: 9 ft / 100 ft (2.74 m / 30 m)
• Max Height Difference: 65 ft (20 m)

Electrical

• Power Supply: 208/230V, 1-phase, 60 Hz
• Recommended Breaker: 35 A
• MCA: 20 A
• MOCP: 35 A

Refrigerant

• Type: R32
• Factory Pre-Charge: 72.3 oz
• Additional Charge: 0.258 oz/ft over 25 ft

What’s in the Box

• Indoor unit, outdoor unit, installation plate, hardware, and user/installation guide.

Professional installation by a licensed HVAC technician is required. Specifications are subject to change without notice; verify exact model capabilities before purchase.
