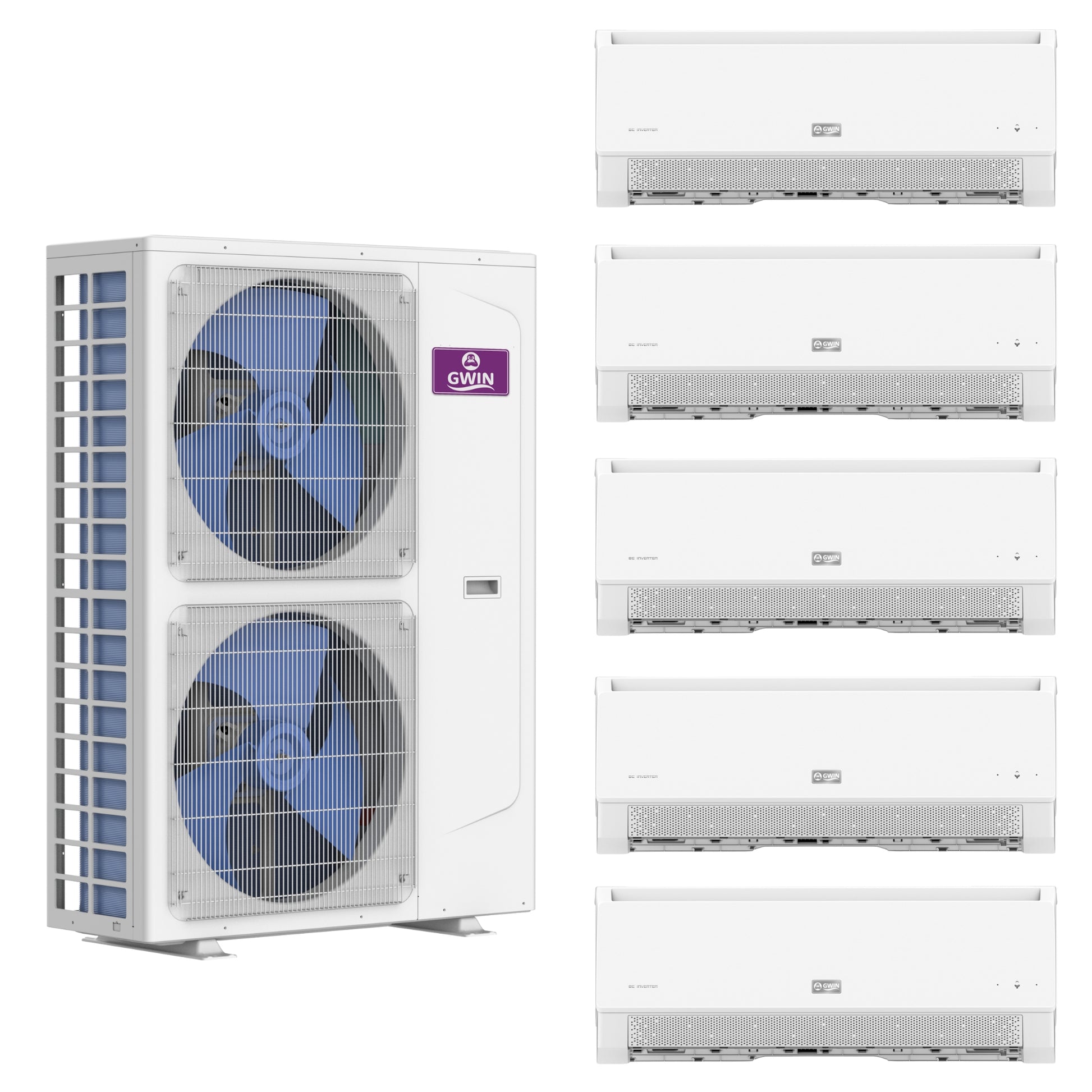

GWIN Assisted DIY 46,000 BTU 22 SEER2 230V Five-Zone Ductless Mini-Split Complete System (42k condenser,7K + 9K + 9K + 9K + 12K Wall Mount) with 15 foot line set and communication wire

Description GMUL5V1X46CS

Experience superior climate control with the GWIN Assisted DIY 46,000 BTU 22 SEER2 Five-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features.

• Five Rooms, Perfect Comfort: Heat or cool five spaces up to 350 sq. ft., 400 sq. ft., 400 sq. ft., 400 sq. ft., and 550 sq. ft. with independent temperature control for personalized comfort in each room.

• Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.

• Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality.

• Exceptional Reliability: Golden Fin Coils resist corrosion; Three-Proof outdoor PCB design reduces failure rates with UV protection.

• All-Season Performance: Reliable operation from -22°F to 125°F with automatic base pan heater to reduce ice buildup.

• Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.

• Premium Warranty: 12-Year Parts and Compressor (registered) protection for long-term peace of mind.

The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.

System Features

• Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
• Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
• Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
• Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
• Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
• Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
• Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
• Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
• ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
• Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.

Built for Reliability

• Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
• Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.

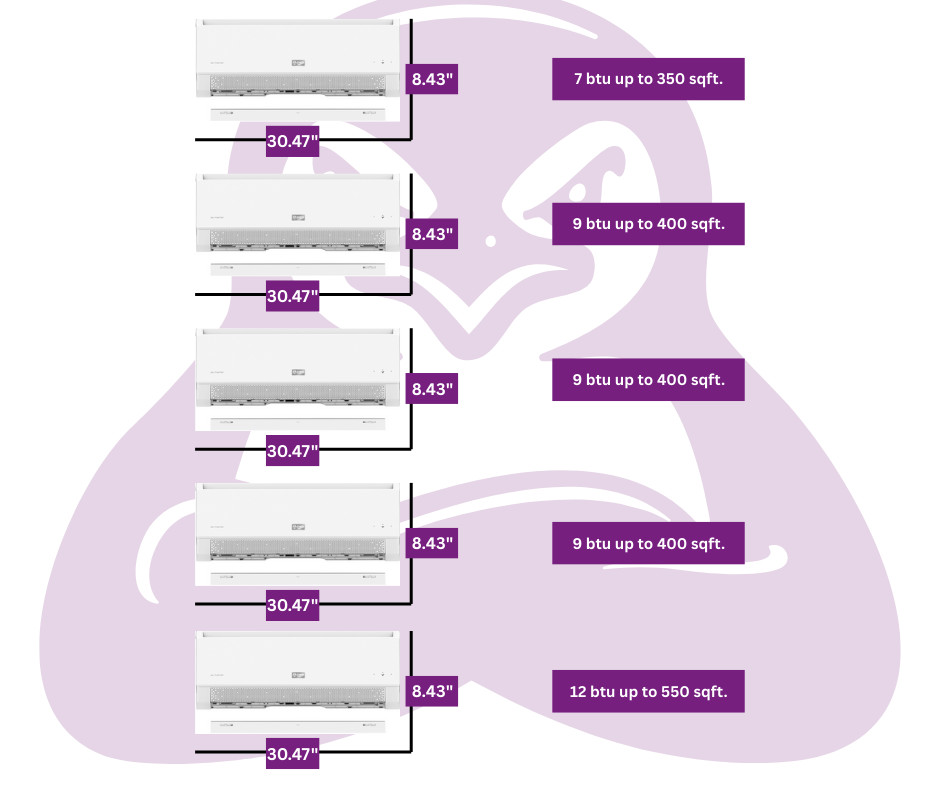

COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation

7K: 350 sq ft | 9K: 400 sq ft | 12K: 550 sq ft | 18K: 800 sq ft | 24K: 1,050 sq ft

SPECIFICATIONS & DIMENSIONS

SYSTEM OVERVIEW

| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 5 | | Capacity | Total: 46,000 BTU; Zone 1: 7,000 BTU; Zone 2: 9,000 BTU; Zone 3: 9,000 BTU; Zone 4: 9,000 BTU; Zone 5: 12,000 BTU | | SEER2 Rating | 22 | | Line Sets Included | 5 x 15ft Line Sets + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |

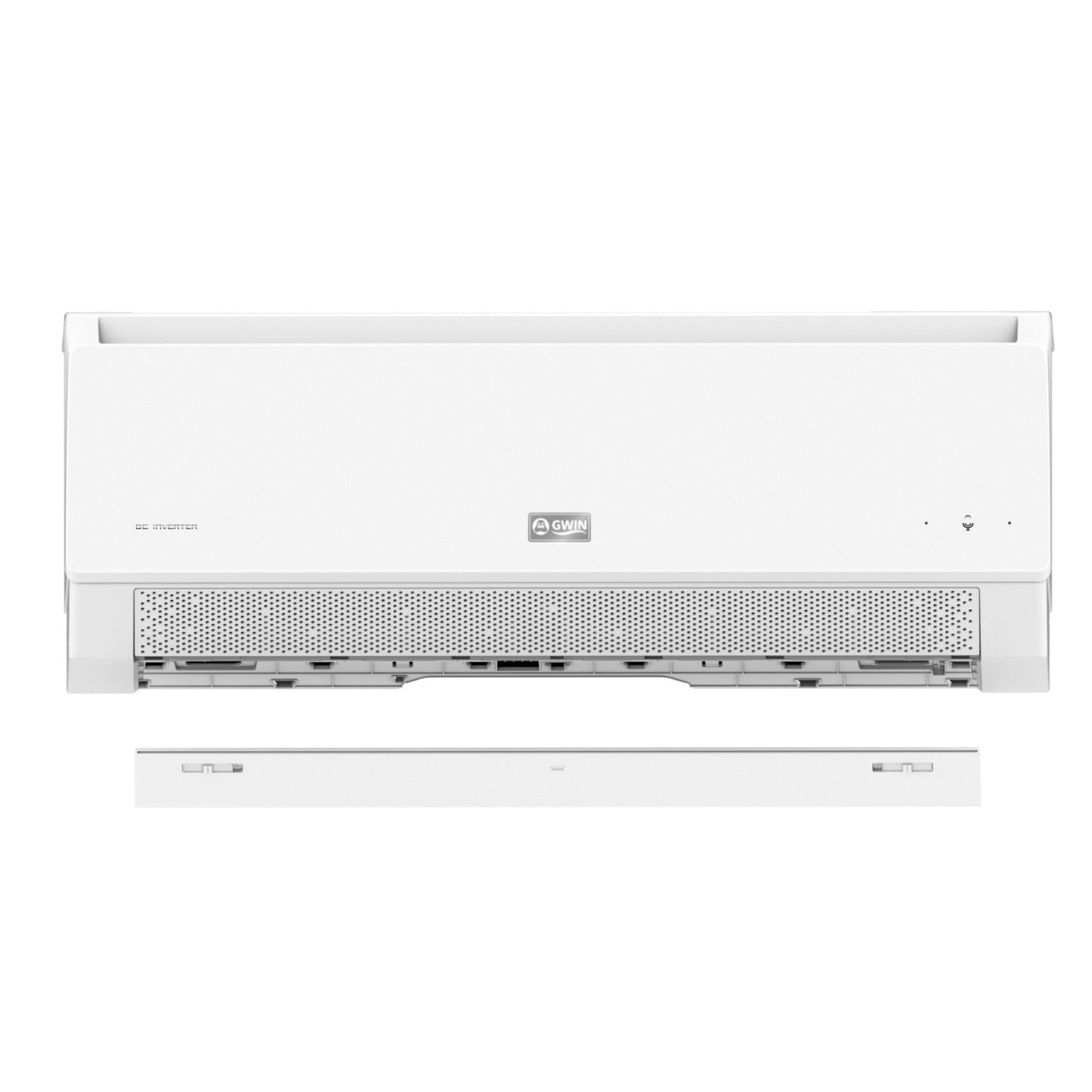

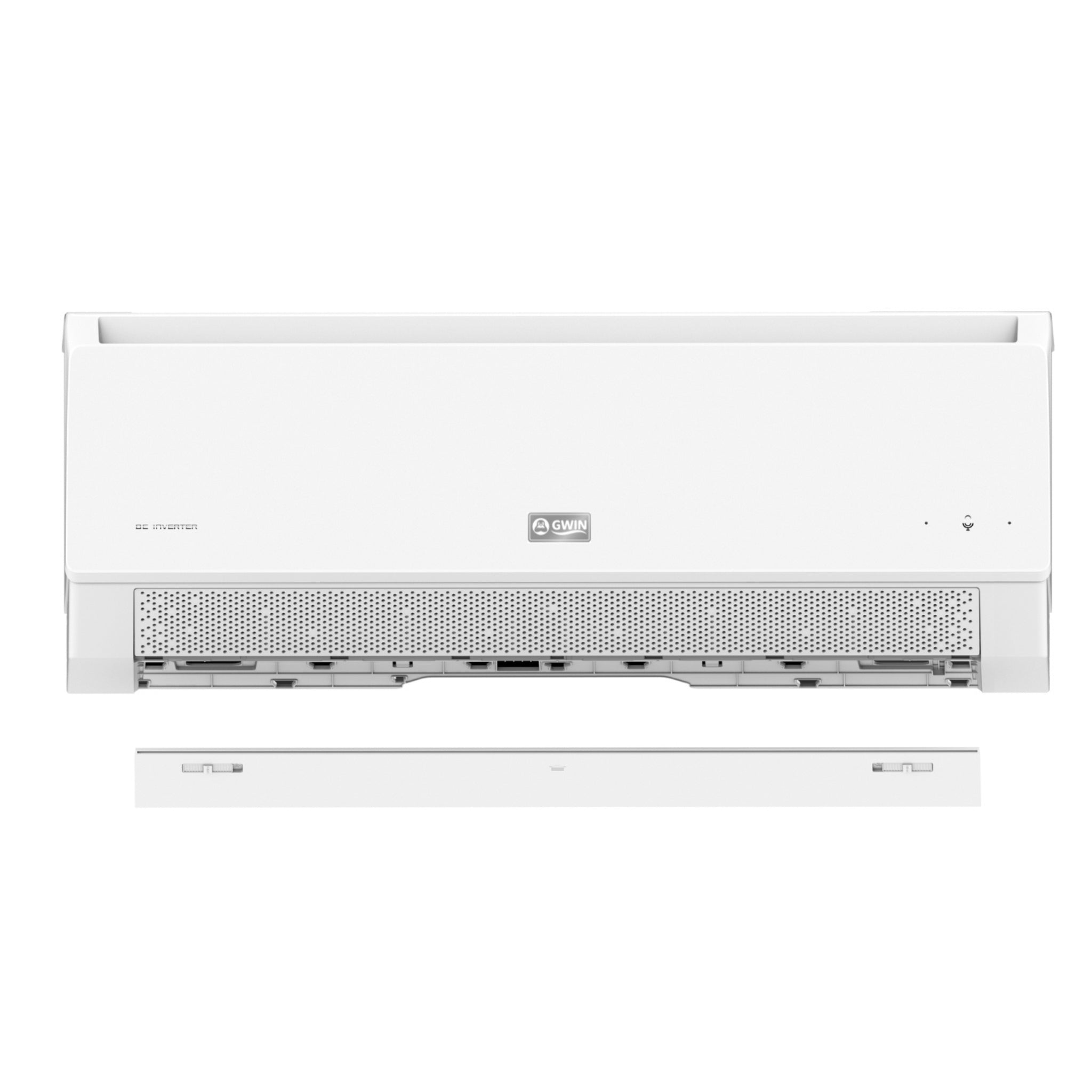

INDOOR UNIT (7K) x 1

| Model | GAFEB07HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 7,000 BTU/h | | Heating Capacity | 7,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 17.64 lbs |

INDOOR UNIT (9K) x 3

| Model | GAFEB09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,100 BTU/h | | Heating Capacity | 10,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |

INDOOR UNIT (12K) x 1

| Model | GAFEB12HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.81"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,000 BTU/h | | Airflow (CFM) | Cool: 353/312/282/253; Heat: 353/324/288/253 | | Sound Level | 41 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8" | | Weight | 20.94 lbs |

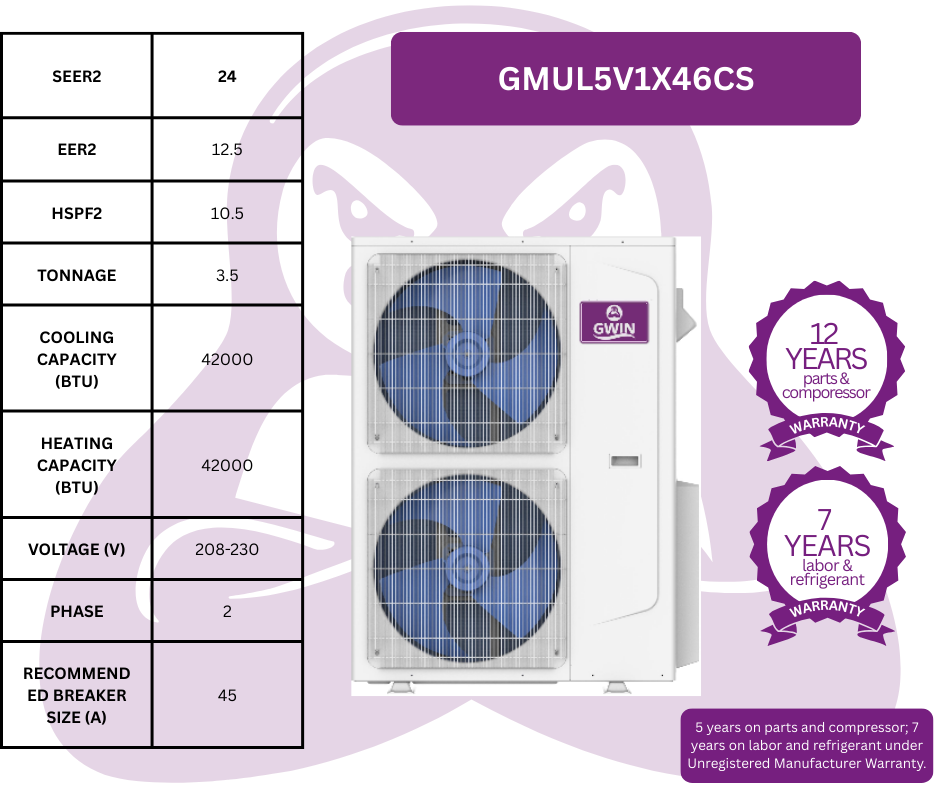

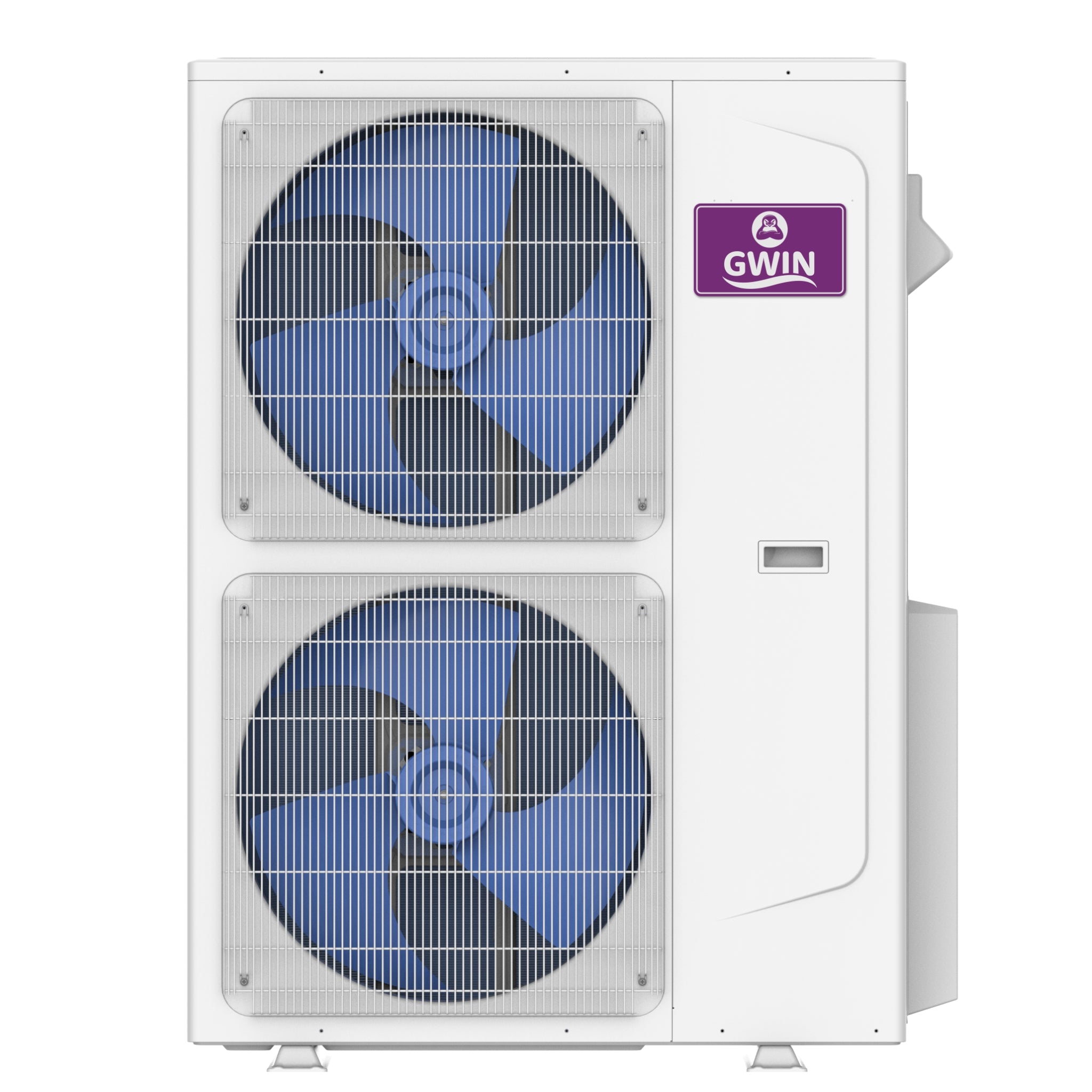

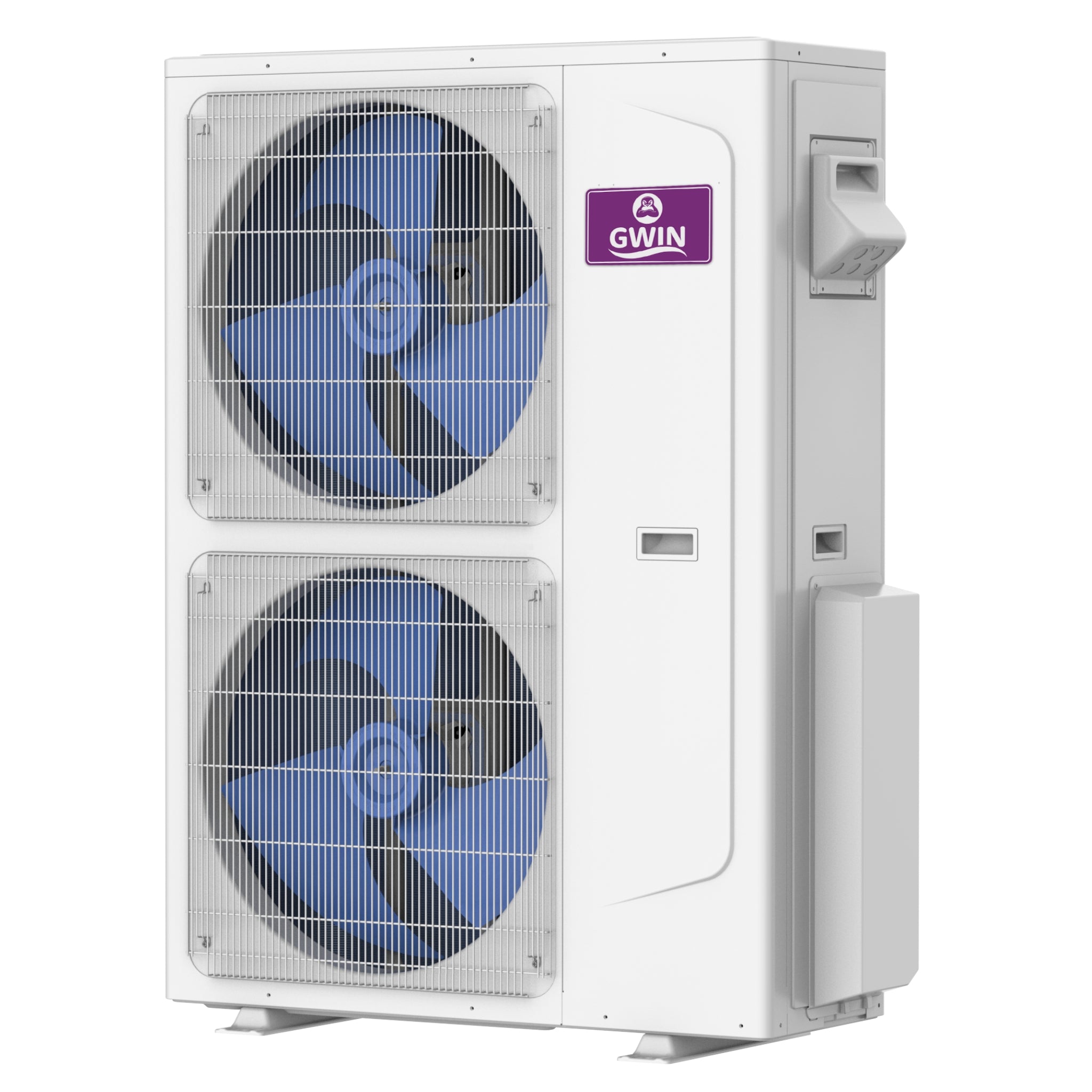

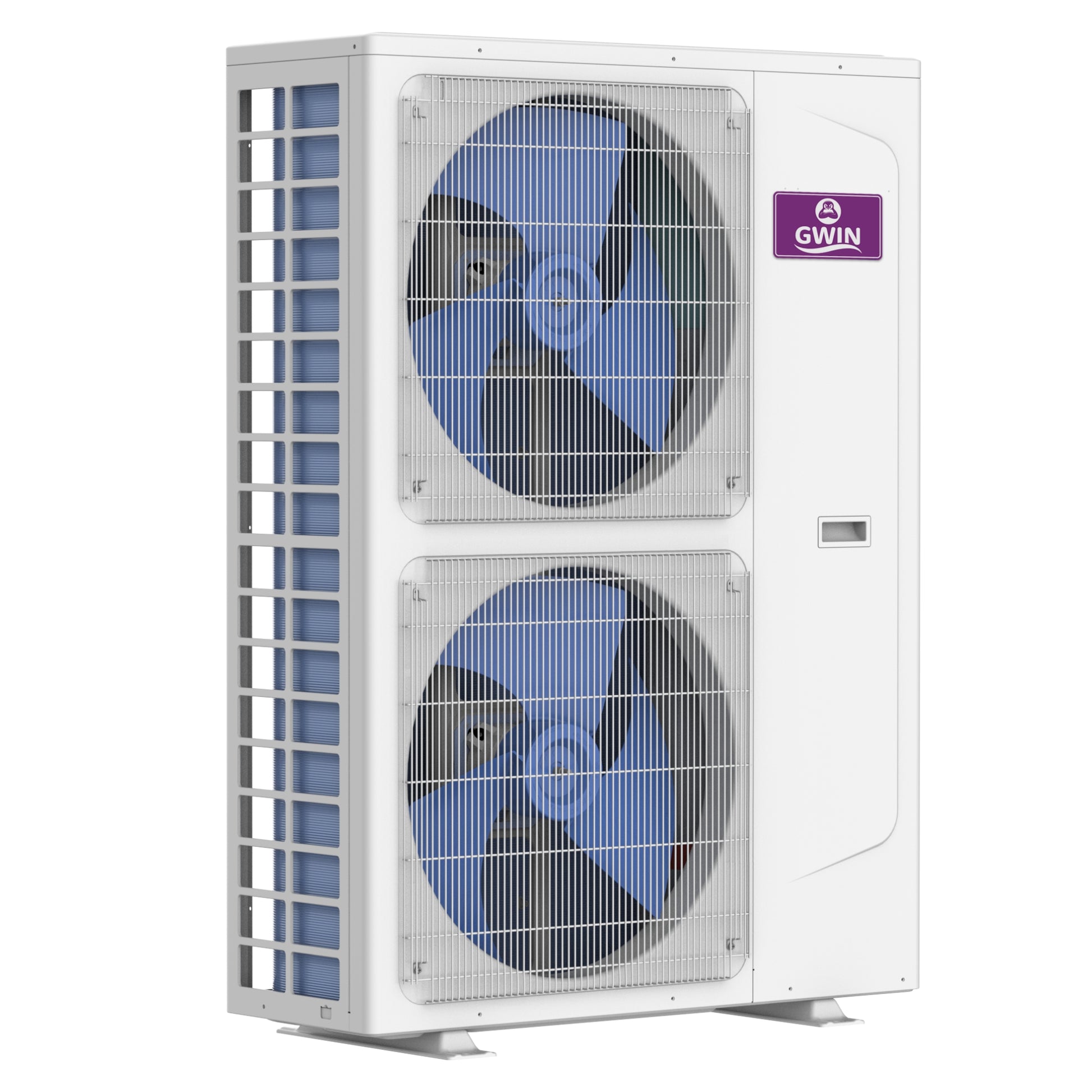

OUTDOOR UNIT (42K) x 1

| Model | GASUM42HPMULO | | Dimensions | 51-31/32"W x 39-51/64"H x 15-3/4"D | | Cooling Capacity | 42,000 BTU/h (SEER2 23 mixed configuration) | | Heating Capacity | 42,000 BTU/h @ 47°F | | Voltage | 208–230V, 1Ph, 60Hz | | Operating Range | Cooling: -13°F to 125°F; Heating: -22°F to 75°F | | Outdoor Noise | 60 dB(A) | | Weight | 104.7 lbs | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
