GWIN 48,000 BTU 22 SEER2 230V Two-Zone Ductless Mini-Split Complete System (42k condenser,24K + 24K Wall Mount) with 15 foot line set and communication wire
System Features:
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization reaches 134°F for clean coils.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
- Outdoor Operation: Reliable performance from -22°F to 125°F.
- Wide Voltage Fluctuation: 165V–265V.
- Base Pan Heater: Reduces ice build-up and improves heating efficiency.
- Wi-Fi Control: Built-in module for remote control.
- Fast Heating and Cooling: Inverter compressor.
- Offline Voice Control: Same-room commands—no app required.
- ECO Energy-Saving Mode
- Easy Installation: Mounting plate and built-in level included.
Built for Reliability
- Golden Fin Coils (indoor/outdoor): Enhanced resistance to corrosion and oxidation.
- Outdoor PCB “Three-Proof” design: UV-adhesive cover and vertical placement help reduce corrosion and deformation.
Warranty
- 12 Year Parts and Compressor (Registered)
- 7 Year Parts and Compressor (Unregistered)
- 7 Year Labor and Refrigerant
Indoor Units
24,000 BTU Wall-Mount Indoor Unit (Model: GAFEB24HP230V1EH)
*Indoor unit output may vary depending on multi-zone configuration. Air handlers and condensers may affect the output of the individual air handlers.
- Cooling: 23,000 BTU/h • Heating: 24,000 BTU/h
- Power Supply: 208–230V 1Ph 60Hz • Input: 0.24A
- Air Flow (CFM) — Cool: 735 / 647 / 588 / 500 • Heat: 735 / 676 / 694 / 518
- Sound: 50 dB(A)

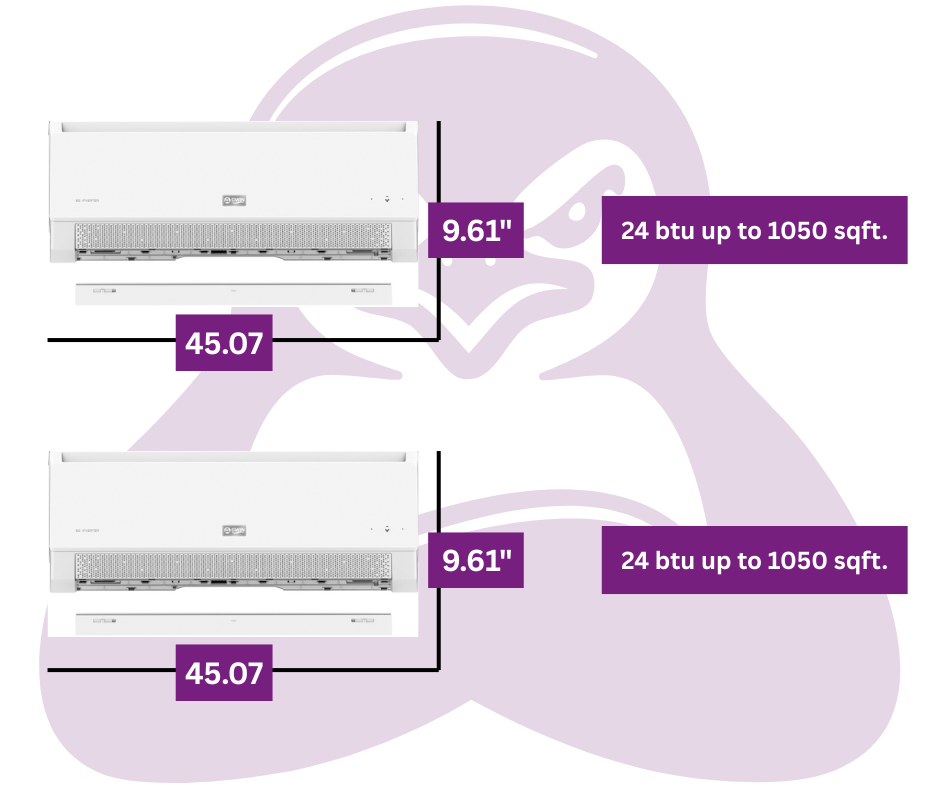

- Net Dimensions (in): 45.07 × 13.03 × 9.61
- Packing Dimensions (Panel) (in): 47.52 × 15.86 × 13.46
- Net/Gross (lbs): 30.86/38.58
- Piping: Liquid 1/4″ • Gas 5/8″ • Drain 0.6654″
Outdoor Condenser
42,000 BTU Outdoor Condenser – GWIN (Model: GASUM142HPMULO)
Cooling Performance (Non-Ducted Indoor Units)
- Rated Capacity: 42,000 BTU/h
- Capacity Range: 8,450 – 48,000 BTU/h
- Rated Power Input: 3,360 W (non-ducted)
- Moisture Removal: 8 kg/h
Cooling Performance (Ducted Indoor Units)
- Rated Capacity: 42,000 BTU/h
- Capacity Range: 8,350 – 46,000 BTU/h
- Rated Power Input: 3,415 W
- Moisture Removal: 8 kg/h
Cooling Performance (Mixed Ducted and Non-Ducted Indoor Units)
- Rated Capacity: 42,000 BTU/h
- Capacity Range: 8,350 – 46,000 BTU/h
- Rated Power Input: 3m,387 W
- Moisture Removal: 8 kg/h
Heating Performance (Non-Ducted Indoor Units)
- Rated Capacity @ 47°F: 42,000 BTU/h)
- Capacity Range: 8,450 – 53,000 BTU/h
- Rated Power Input @ 47°F: 3,160 W
- Capacity at 17°F: 33,000 BTU/h
- Capacity at 5°F: 34,000 BTU/h
Heating Performance (Ducted Indoor Units)
- Rated Capacity @ 47°F: 42,000 BTU/h)
- Capacity Range: 8,450 – 53,000 BTU/h
- Rated Power Input @ 47°F: 3,156 W
- Capacity at 17°F: 35,000 BTU/h
- Capacity at 5°F: 35,000 BTU/h
Heating Performance (Mixed Ducted and Non-Ducted Indoor Units)
- Rated Capacity @ 47°F: 42,000 BTU/h)
- Capacity Range: 8,450 – 53,000 BTU/h
- Rated Power Input @ 47°F: 3,156 W
- Capacity at 17°F: 34,000 BTU/h
- Capacity at 5°F: 34,500 BTU/h
Efficiency
- Non-Ducted: SEER2 24 • HSPF2 10.5 • EER2 12.5 • COP 3.9
- Ducted: SEER2 22 • HSPF2 10 • EER2 12.3 • COP 3.9
- Mixed: SEER2 23 • HSPF2 10.25 • EER2 12.4 • COP 3.9
Electrical & Operating
- Power Supply: 208–230V, 1Ph, 60Hz
- Recommended breaker: 45 A
- Operating Range (Cooling): −13°F to 125°F (−25°C to 52°C)
- Operating Range (Heating): −22°F to 75°F (−30°C to 24°C)
- Airflow: 4,235 CFM
- Sound Pressure: 60 dB(A) (cooling/heating)
Refrigerant Piping
- Liquid Line (O.D.): 1/4″ (6.35 mm)
- Gas Line (O.D.): 3/8″ (9.52 mm)
- Indoor Drain: 5/8″ (15.88 mm)
- Line Lengths: Max 263 ft (40 m) • Min 10 ft (3 m) • Max Height Difference 49 ft (15 m)
Dimensions & Weight
- Net Dimensions (H × W × D): 51-31/32″ × 39-51/64″ × 15-3/4″ (1,320 × 1,011 × 400 mm)
- Package Dimensions (H × W × D): 56-45/64″ × 42-33/64″ × 16-59/64″ (1,440 × 1,080 × 430 mm)
- Net Weight: 104.7 lb (47.5 kg)
Notes: Specifications and data are subject to change without notice. Actual results may vary with installation and ambient conditions.

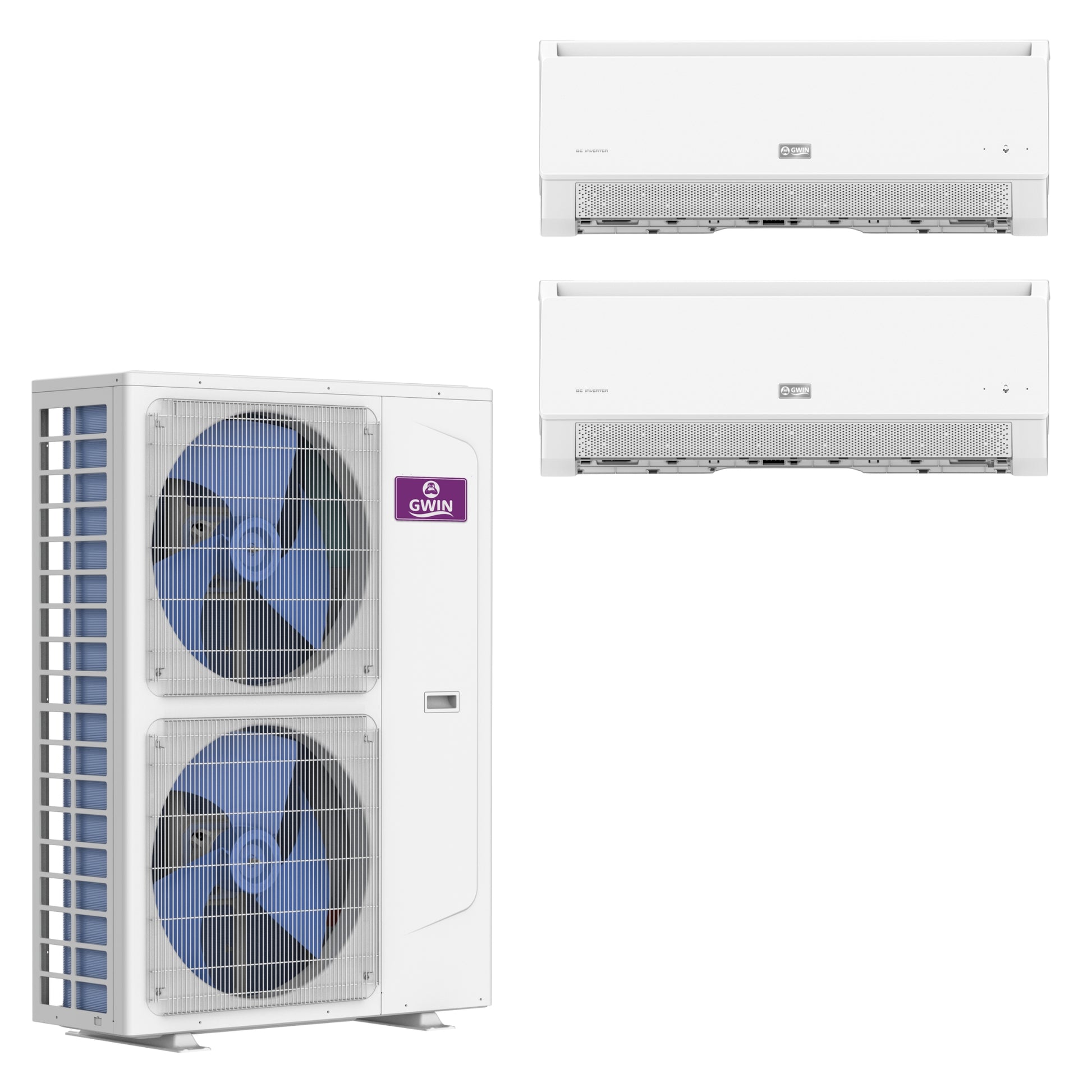

Included in This System
- (1) 42,000 BTU Multi-Zone Outdoor Condenser (GASUM42HPMULO)
- (2) 24,000 BTU Wall-Mount Indoor Air Handler (GAFEB24HP230V1EH)
- (2) Wireless Remote Controller
- (2) Installation and User Manual
- (2) 15’ line set
- (2) 15’ communication wire
Note: Whips, disconnects, pads, and other accessories sold separately. Always follow local codes and unit nameplate. Must be installed by someone over the age of 18 and only to their allowed limit that is determined by the license held by the installer. If no license, you must not attempt to charge or commission system. Only qualified personnel are allowed to charge or commission start up.
