GWIN 60,000 BTU 230V Max Central Ducted Air Handler

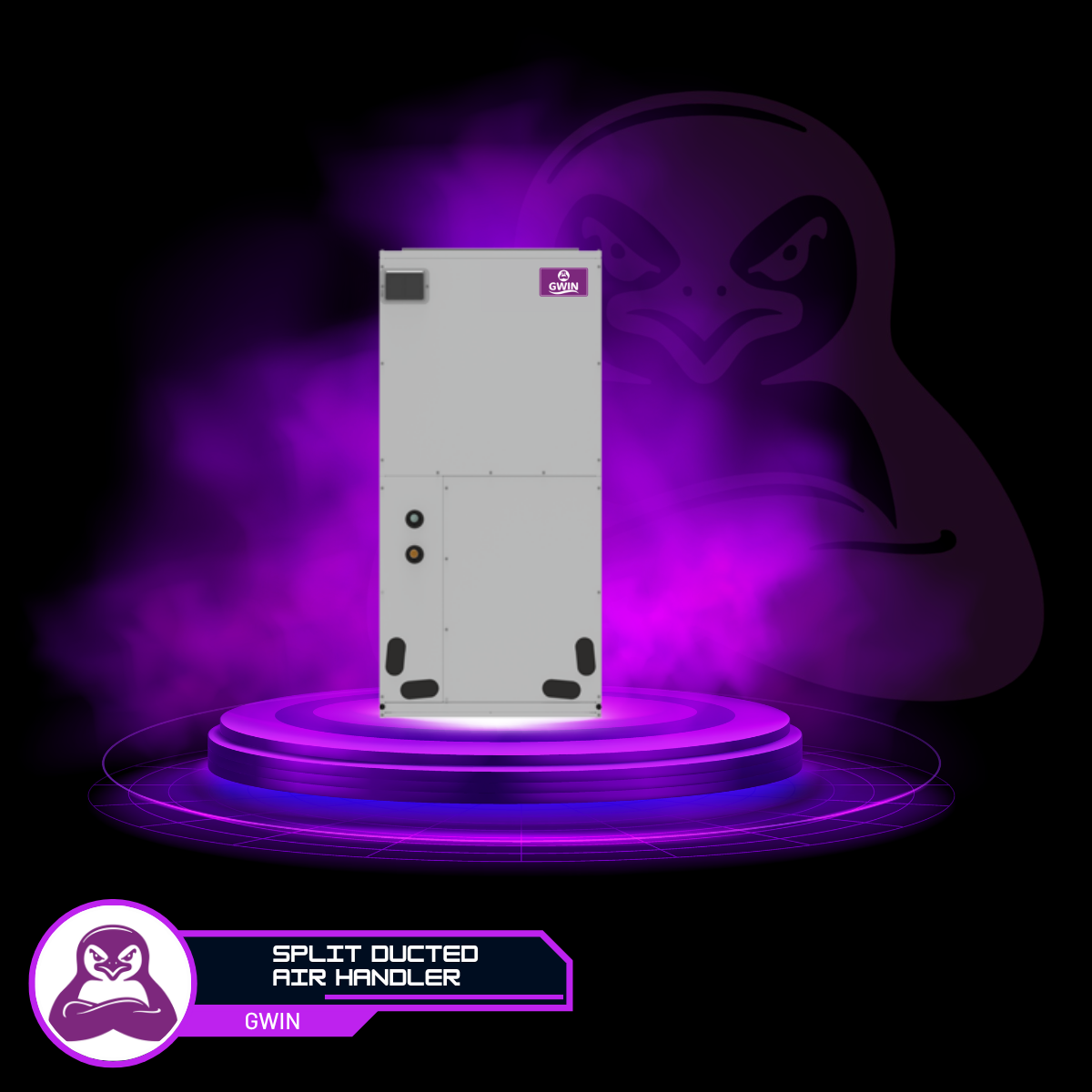

The GWIN 60,000 BTU 230V Max Central Ducted Air Handler is a Max Central Ducted indoor air handler designed for central ducted heating and cooling applications. This individual listing contains indoor-unit information only and does not include outdoor condenser specifications.
Indoor Air Handler Specifications
| Indoor model | GMAX60HP230V1R32AH |
| Power supply voltage | 208-230V |
| Power supply phase | 1Ph |
| Power supply frequency | 60 Hz |
| Control voltage | 24VAC |
| Sound pressure level | 53 dB(A) |
| MOCP | 15 A |
| MCA | 7.7 A |
| Optional electric heat size 1 | 5 kW |
| Optional electric heat size 2 | 6 kW |
| Optional electric heat size 3 | 9 kW |
| Optional electric heat size 4 | 10 kW |
| Optional electric heat size 5 | 12 kW |
| Optional electric heat size 6 | 15 kW |
| Optional electric heat size 7 | 20 kW |
| Rated airflow | 1,500 CFM |
| External static pressure | Up to 1.0 in. w.c. |
| Dehumidification | 9.76 pt/hr |
| External width | 24-13/16 in. |
| External height | 52 in. |
| External depth | 21-1/4 in. |
| Package width | 27-1/4 in. |
| Package height | 54-3/16 in. |
| Package depth | 26 in. |
| Net weight | 199.5 lb |
| Gross weight | 218.3 lb |
Indoor Air Handler Features
- 24VAC thermostat compatible
- G-TMAX001 programmable central ducted thermostat/controller included
- Centrifugal indoor fan
- Five fan speeds
- Indoor TXV control
- Factory-installed indoor A2L leak-detection sensor
- Optional auxiliary electric heat compatibility
- Indoor copper-tube/aluminum-fin coil with blue anti-corrosion coil coating
- Memory / power-failure recovery
- Self-diagnosis
Fan Performance
| Fan speed | 0 in. w.c. | 0.1 in. w.c. | 0.15 in. w.c. | 0.2 in. w.c. | 0.3 in. w.c. | 0.4 in. w.c. | 0.5 in. w.c. | 0.6 in. w.c. | 0.7 in. w.c. | 0.8 in. w.c. | 0.9 in. w.c. | 1.0 in. w.c. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed 1 | 1850 | 1720 | 1650 | 1600 | — | — | — | — | — | — | — | — |
| Speed 2 | 1920 | 1800 | 1730 | 1650 | 1480 | — | — | — | — | — | — | — |
| Speed 3 | 2110 | 2000 | 1950 | 1860 | 1760 | 1640 | 1500 | — | — | — | — | — |
| Speed 4 | 2300 | 2260 | 2230 | 2200 | 2150 | 2115 | 2050 | 1990 | 1920 | 1790 | 1650 | 1470 |
| Speed 5 | 2320 | 2280 | 2250 | 2230 | 2190 | 2140 | 2080 | 2040 | 2000 | 1950 | 1920 | 1890 |
Fan-performance values are CFM and are based on a dry coil with the factory filter installed. For wet-coil airflow, multiply the listed CFM by 0.96.
Indoor Dimension Letter Reference
| Dimension letter | Inches |
|---|---|
| A | 11-5/8 |
| B | 20 |
| H | 52 |
| W | 24-13/16 |
| D | 21-1/4 |
Air Handler Component Breakdown
- Centrifugal fan
- Secondary drain pan
- Refrigerant leakage sensor
- Primary drain pan
- Evaporator assembly
- Fan motor
- Electric box assembly
Compatible Electric Heat Kits
| Part number | Heat-kit model | Electric heat at 208V (kW) | Electric heat at 230V (kW) | Minimum circuit ampacity at 208V (A) | Minimum circuit ampacity at 230V (A) | Maximum fuse or breaker at 208V (A) | Maximum fuse or breaker at 230V (A) |
|---|---|---|---|---|---|---|---|
| 320004060249 | FLEXA2LHTR05KWD | 3.74 | 4.6 | 28 | 29.9 | 30 | 35 |
| 320004060250 | FLEXA2LHTR10KWD | 7.49 | 9.2 | 50 | 55 | 60 | 60 |
| 320004060251 | FLEXA2LHTR15KWD | 11.23 | 13.8 | 74 | 82 | 80 | 90 |
| 320004060252 | FLEXA2LHTR20KWD | 14.98 | 18.4 | 98 | 108 | 100 | 110 |
| 320004060223 | FLEXA2LHTR06 one-mains supply | 3.74 | 4.6 | 31 | 33 | 35 | 35 |
For two-mains-supply heat kits, A / B values correspond to the two separate power circuits.
| Part number | Heat-kit model | Electric heat at 208V (kW) | Electric heat at 230V (kW) | MCA at 208V Power A / Power B (A) | MCA at 230V Power A / Power B (A) | Maximum breaker at 208V Power A / Power B (A) | Maximum breaker at 230V Power A / Power B (A) |
|---|---|---|---|---|---|---|---|
| 320004060224 | FLEXA2LHTR09 | 6.03 | 7.36 | 35 / 13.8 | 36.9 / 15 | 40 / 15 | 40 / 20 |
| 320004060225 | FLEXA2LHTR12 | 7.49 | 9.2 | 35 / 27.5 | 36.9 / 30 | 40 / 30 | 40 / 35 |
Installation Notes
- Indoor unit may be installed vertically or horizontally.
- Horizontal-left configuration requires no drain-pan modification.
- Horizontal-right configuration requires relocation of the drain pan.
- Allow at least 24 inches in front of the air handler for service access.
- When installed above a finished ceiling, place an emergency drain pan directly below the unit as required by local and state codes.
- Elevate the air handler on sturdy, non-porous material where it may become wet.
- Use a protective barrier where the air handler may be exposed to physical damage.
- Designed for a complete supply-and-return ductwork system.
Important: This is an individual indoor air-handler listing. A compatible outdoor condenser, refrigerant piping, electrical work and commissioning are required for a complete system.
