GWIN 9,000 BTU 115V King Single Ductless Wall Mount Air Handler
GWIN 9,000 BTU 115V King Single Ductless Wall Mount Air Handler
Hurry up, only 8 items left in stock.
GWIN 9,000 BTU 115V King Single Ductless Wall Mount Air Handler

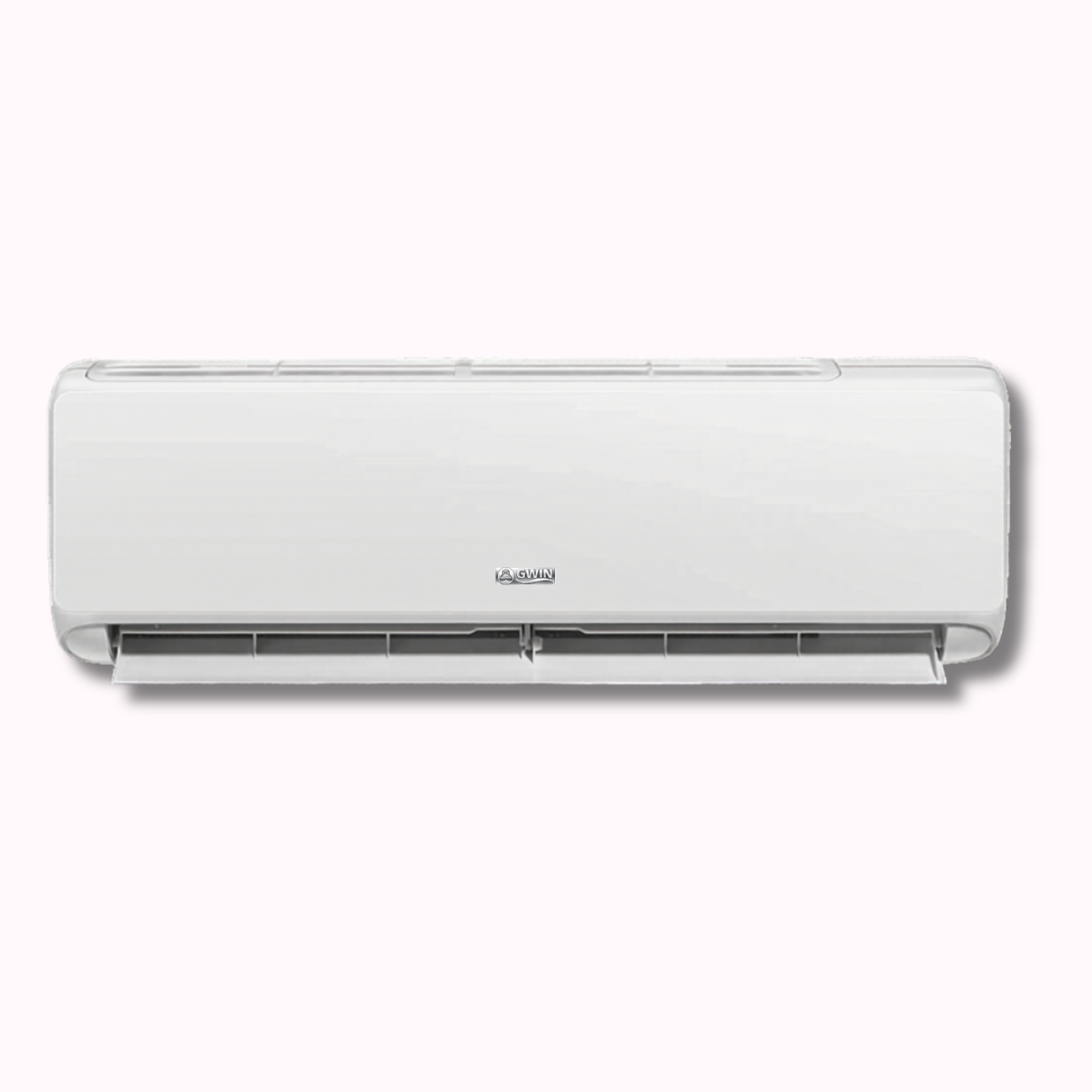

The GWIN 9,000 BTU 115V King Single Ductless Wall Mount Air Handler is a sleek and efficient indoor unit designed to deliver targeted comfort with quiet operation and modern control features. Ideal for bedrooms, offices, and small living spaces, this wall-mounted air handler provides precise temperature control while maintaining energy efficiency.
Built with advanced inverter technology and optimized airflow design, this unit ensures consistent comfort while minimizing energy consumption. Its compact design allows for flexible installation without compromising performance.
Comfort & Control
This indoor unit includes an intuitive remote control system, allowing users to easily adjust temperature, fan speed, and operating modes for personalized comfort.
- Wireless remote control included
- Auto Mode
- Auto Fan
- Horizontal Auto Swing
- Vertical Auto Swing
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Key Features
- 9,000 BTU cooling and heating capacity
- 115V power supply
- Wall-mounted compact design
- Inverter-driven performance
- Whisper-quiet operation
- Energy-efficient operation
Installation & Compatibility
This indoor air handler is designed to pair seamlessly with the GWIN King Single Zone condenser for a complete ductless system solution.
Technical Specifications
| Model Number | KING09HP115V1R32AH |
| Cooling Capacity | 9,000 BTU/h |
| Heating Capacity | 10,000 BTU/h |
| Power Supply | 115V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Electrical Connection | Indoor to Outdoor Communication Wiring Required |
| Voltage Range (Min - Max) | 103 - 126 VAC |
| Rated Current - Cooling | 12.5 A |
| Rated Current - Heating | 15.4 A |
| MOCP | 20 A |
| MCA | 19 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
| Line Set Size (Liquid - Gas) | 1/4" - 3/8" |
| Pipe Length (Min - Max) | 10 - 66 ft. |
| Max Pipe Elevation | 40 ft. |
| Dehumidification | 1.69 pt/hr |
| Air Flow (Min-Max) | 159 - 353 CFM |
| Sound Pressure Level | 24 - 43 dB(A) |
| External Dimensions (W x H x D) | 32-7/8 x 10-53/64 x 7-7/8 in. |
| Package Dimension (W x H x D) | 35-15/64 x 13-37/64 x 10-43/64 in. |
| Net Weight | 19.8 lbs. |
| Gross Weight | 24.3 lbs. |
