Gwin 9,000 BTU 26 SEER2 230V Clean Air Single Zone Ductless Mini Split Complete System with 15 Foot Line Set and Communication Wire
Gwin 9,000 BTU 26 SEER2 230V Clean Air Single Zone Ductless Mini Split Complete System with 15 Foot Line Set and Communication Wire
Hurry up, only 4 items left in stock.
GWIN 9,000 BTU 230V Clean Air Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire

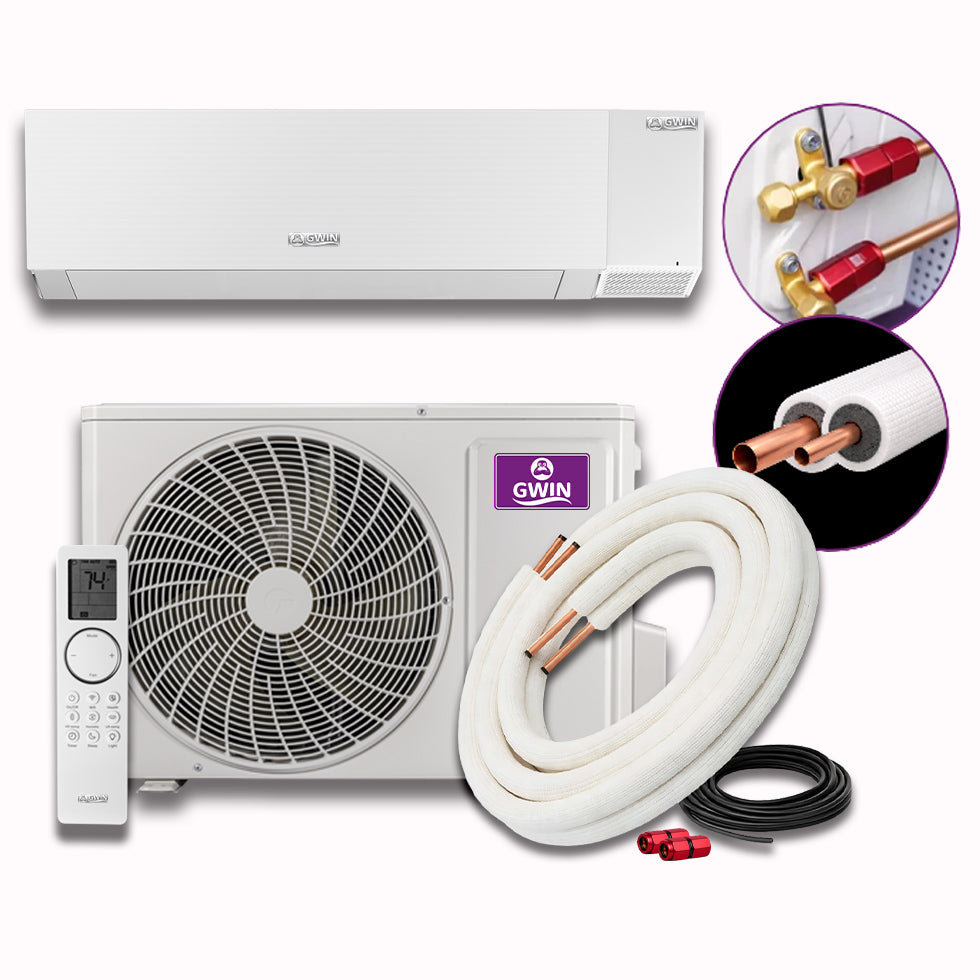

The GWIN 9,000 BTU 230V Clean Air Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire is a high-efficiency wall-mounted heat pump system designed for year-round heating, cooling, humidity control, and improved fresh-air comfort. As part of the GWIN Clean Air lineup, this 26 SEER2 ductless mini-split includes a sleek wall-mounted air handler, matching outdoor condenser, 15 foot line set, communication wire, and a dedicated fresh-air solution for spaces that need more than ordinary temperature control.
This system uses R32 refrigerant, factory-installed Wi-Fi, and high-efficiency DC inverter technology. The wall-mounted indoor unit comes with the GWIN Clean Air Fresh Air Intake Box, which includes 4 filters to cover the first year of filter changes. Filter replacement is recommended every 2-3 months, depending on air quality and use.
Key Features
- 9,000 BTU single zone wall-mounted ductless mini-split
- 26 SEER2 efficiency
- 230V operation
- GWIN Clean Air Fresh Air Intake Box included
- 4 filters included for the first year of filter changes
- 15 foot line set and communication wire included
- Wi-Fi included and factory installed
- Low ambient cooling down to -20°F
- Low ambient heating down to -22°F
- Auto clean, dry mode, humidity control, I-Feel, sleep mode, turbo mode, and freeze guard mode
System Information
| System Type | Heat Pump |
| Complete System Model | CLEAN09HP230V1R32AS |
| Indoor Model | CLEAN09HP230V1R32AH |
| Outdoor Model | CLEAN09HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
| AHRI Certificate | 214779342 |
Performance Specifications
| Cooling Capacity (Min - Max) | 2,730 - 12,966 BTU/h |
| Rated Cooling Capacity @ 95°F | 9,100 BTU/h |
| Heating Capacity (Min - Max) | 2,388 - 15,013 BTU/h |
| Rated Heating Capacity @ 47°F | 10,500 BTU/h |
| Rated Heating Capacity @ 17°F | 8,800 BTU/h |
| Rated Heating Capacity @ 5°F | 9,300 BTU/h |
| SEER2 | 26.0 |
| EER2 | 15.0 |
| HSPF2 | 10.4 |
| COP @ 5°F | 1.96 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Unit Specifications
| Indoor Air Flow | 129 - 353 CFM |
| Indoor Sound Level | 20 - 41 dB(A) |
| Indoor Dimensions | 32 61/64 x 11 17/32 x 7 7/8 in. |
| Outdoor Sound Level | 52 dB(A) |
| Outdoor Dimensions | 31 37/64 x 21 27/32 x 13 25/32 in. |
| Line Set Size | 1/4 - 3/8 in. |
| Pipe Length | 10 - 66 ft |
| Power Supply | 208-230V / 1Ph / 60Hz |
| MOCP / MCA | 15 A / 10 A |
