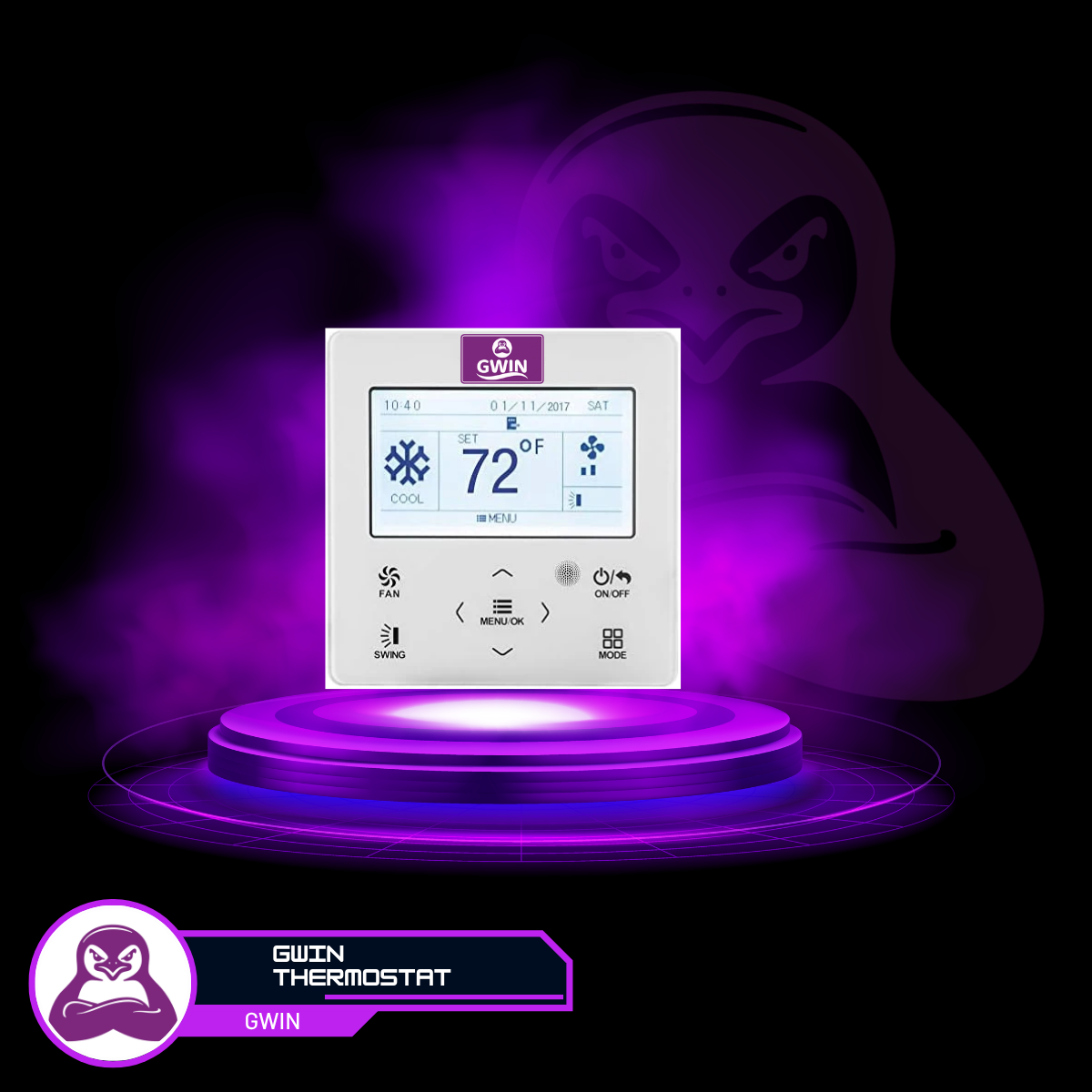

GWIN Wired Thermostat

The GWIN Wired Thermostat  is a programmable wired HVAC controller with built-in Wi‑Fi capability. It provides precise control over temperature, operating mode, fan speed, airflow direction and supported comfort functions from its backlit LCD touch pad.

Wi‑Fi connectivity allows customers to control compatible systems remotely using the supported mobile application. The XE72 works with a broad range of GWIN single-zone, multi-zone and R32 indoor units.

Features

• Built-in Wi‑Fi connectivity

• Remote system control through the supported mobile application

• Backlit LCD display

• Touch-pad controls

• Auto, Cool, Dry, Fan and Heat operating modes

• Adjustable temperature from 61°F to 86°F

• Auto and five manual fan-speed settings

• 0.5- to 24-hour ON/OFF timer

• Up-and-down airflow control

• Left-and-right airflow control

• Sleep mode

• Turbo cooling and heating

• Quiet and Auto Quiet operation

• Energy-saving temperature limits

• X-Fan coil-drying function

• 46°F vacation and freeze-protection mode

• Auxiliary heat control

• Fresh-air control on supported equipment

• Power-loss memory

• Control lock

• Fahrenheit or Celsius display

• Indoor-unit error-code display

• Selectable room-temperature sensing location

Specifications

Compatible Equipment

Compatible with select single-zone and multi-zone systems, including:

• Livo

• Zeno

• Vireo

• Envo

• Sapphire

• 360° cassette

• One-way cassette

• Floor/ceiling air handler

• Slim duct air handler

• R32 mini console

• Compatible A-series, B-series and R32 indoor units

Compatibility depends on the exact indoor-unit model and control board. Verify the indoor-unit model before ordering.

Included Components

• XE72 wired controller

• 26-foot communication harness

• 6.5-inch adapter harness

• Mounting base

• Installation hardware

Installation Information

The XE72 uses a proprietary communicating connection and is not a conventional 24-volt thermostat. Installation should be completed by a qualified HVAC technician.

The controller communication cable should not be cut or spliced. Keep communication wiring separated from line-voltage and indoor-to-outdoor power wiring. Shielded twisted-pair wiring may be required in locations with electromagnetic interference.
