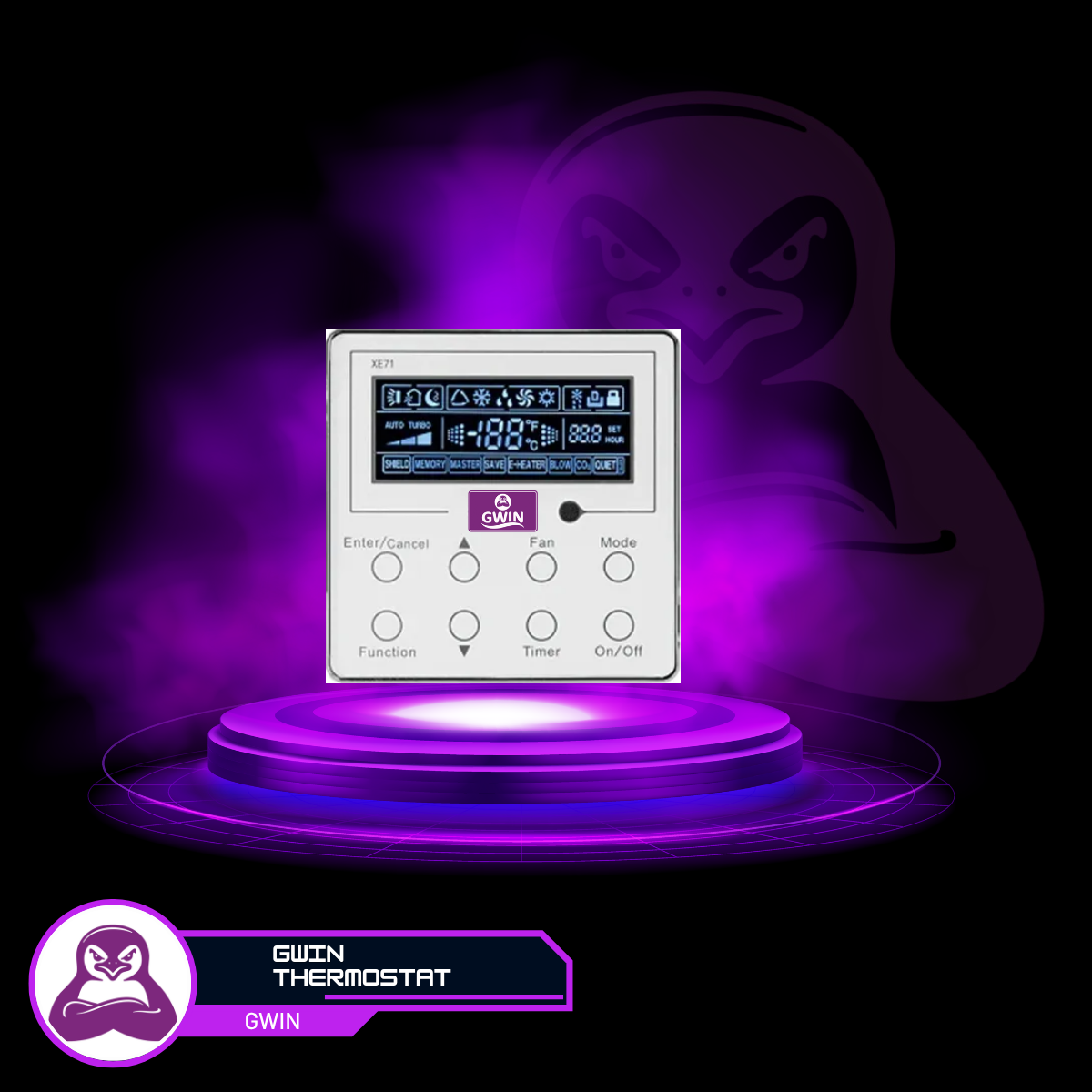

GWIN Wired Thermostat with 7 day programmable feature

The GWIN G76 is a programmable wired command center designed for compatible ductless and multi-zone HVAC systems. Its large backlit display, tactile keypad and advanced scheduling functions make it easy to create a customized comfort schedule.

The G76 supports seven-day programming with up to eight time-and-temperature periods per day. It also provides daily, two-week, one-time and countdown scheduling options.

Features

• Seven-day programmable scheduling

• Up to eight time-and-temperature periods per day

• Daily and two-week scheduling

• One-time ON/OFF timer

• Countdown ON/OFF timer

• Large backlit LCD display

• Tactile-feedback keypad

• Auto, Cool, Dry, Fan and Heat operating modes

• Adjustable temperature from 61°F to 86°F

• Auto, Low, Medium and High fan speeds

• Turbo cooling and heating

• Up-and-down airflow control

• Left-and-right airflow control

• Time-of-day clock

• 12- or 24-hour clock format

• Sleep mode

• 46°F freeze protection

• X-Fan coil-drying function

• Quiet operation

• Energy-saving temperature limits

• Auxiliary heat control

• Power-loss memory

• Fahrenheit or Celsius display

• Indoor and outdoor temperature viewing on supported systems

• Automatic service-code display

• Individual function and keypad locks

• No batteries required

Specifications

Specification	Details
Controller type	Communicating programmable wired controller
Display	Large backlit LCD
Control interface	Tactile keypad
Temperature range	61–86°F / 16–30°C
Scheduled periods	Up to 8 per day
Programming cycle	7-day
Basic timer range	0.5–24 hours
Operating modes	Auto, Cool, Dry, Fan and Heat
Fan speeds	Auto, Low, Medium, High and Turbo
Dimensions	4.375" W × 4.375" H × 1.125" D
Metric dimensions	111 × 111 × 28 mm
Maximum controller-wire length	26 feet / 7.9 meters
Power source	Powered through the indoor-unit connection
System compatibility	Select 115V and 230V systems

Compatible Equipment

Compatible with select single-zone and multi-zone systems, including:

• Wall-mounted air handlers

• Ceiling cassette air handlers

• Universal floor/ceiling air handlers

• Slim duct air handlers

Compatibility depends on the exact indoor-unit model and control board. Verify compatibility before ordering.

Programmable Scheduling

The G76 offers multiple scheduling options:

• Seven-day weekly schedule

• Up to eight scheduled periods each day

• Daily schedule

• Two-week schedule

• One-time timer

• Countdown ON timer

• Countdown OFF timer

Scheduled periods can control time, temperature and supported operating functions.

Control Lock Options

The controller can restrict access to:

• System ON/OFF

• Operating mode

• Temperature adjustment

• Fan-speed adjustment

• Controller keypad

Included Components

• G76 wired controller

• 26-foot ready-to-install communication cable

• Wall-mounting base

• Three mounting screws

Installation Information

The G76 uses a proprietary communicating connection and is not a conventional 24-volt thermostat. Installation should be completed by a qualified HVAC technician.

Do not exceed the 26-foot maximum communication-wire length. Communication wiring should be kept at least eight inches away from power wiring. Shielded twisted-pair wiring may be necessary in locations with electromagnetic interference.
