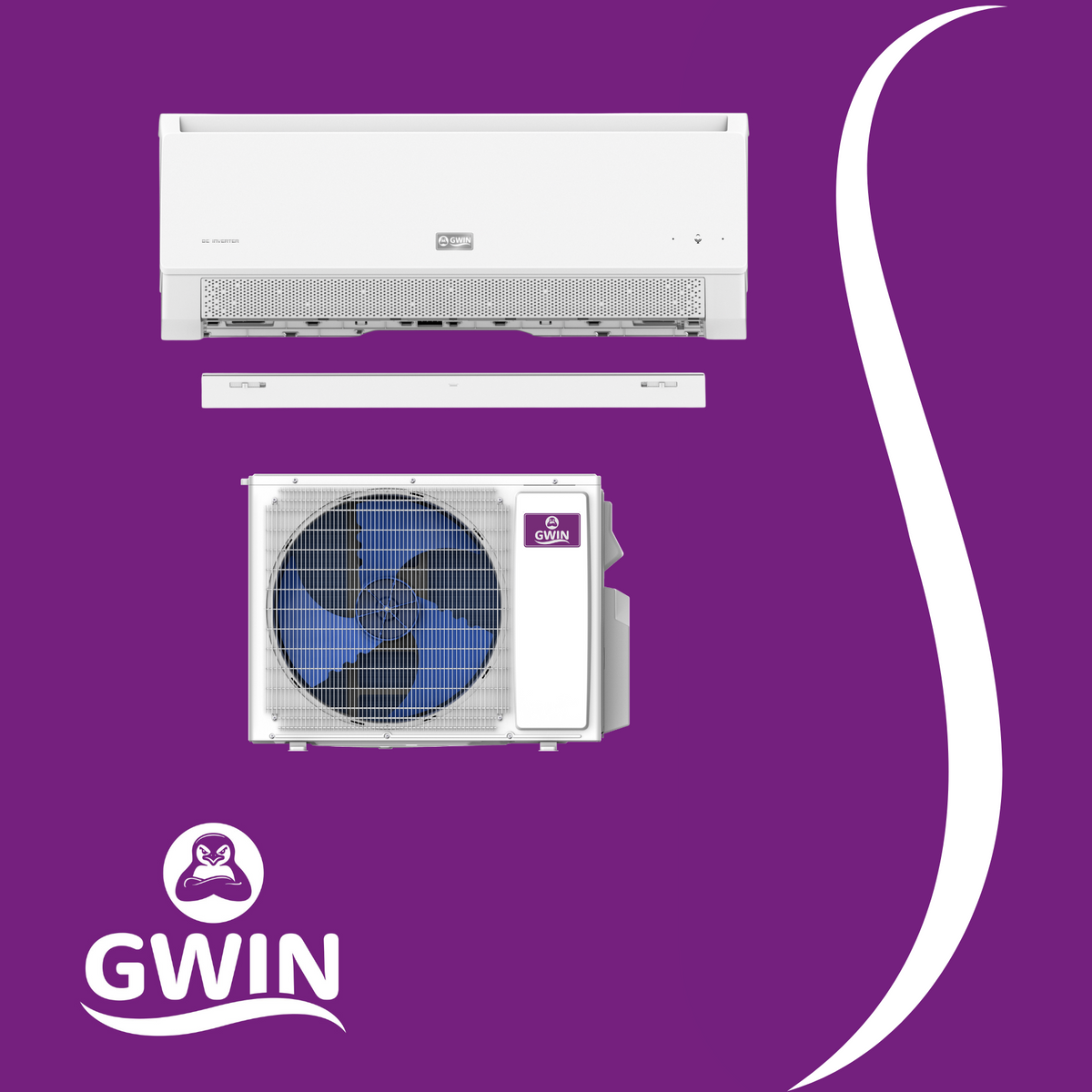

GWIN Assisted DIY 9,000 BTU 20.5 SEER2 115V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 9,000 BTU 20.5 SEER2 115V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 9,000 BTU 20.5 SEER2 115V King Single Zone Ductless Mi...
GWIN Assisted DIY 9,000 BTU 20.5 SEER2 115V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech

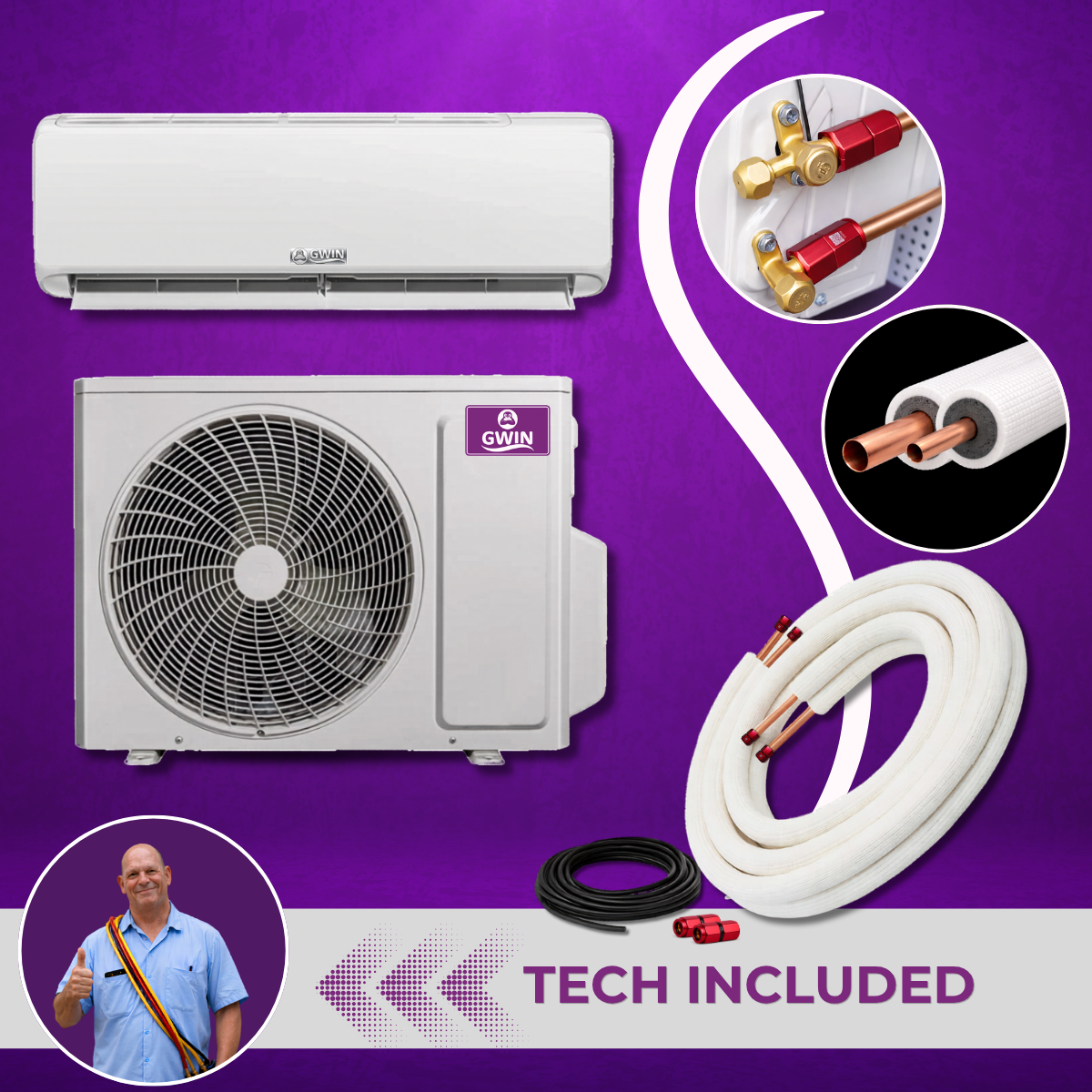

The GWIN 9,000 BTU 20.5 SEER2 115V King Single Zone Ductless Mini-Split Complete System is a compact and efficient heating and cooling solution for bedrooms, offices, studios, and other small spaces. Designed for dependable comfort and easy everyday use, this 115V ductless mini-split system offers efficient inverter-driven performance in a sleek wall-mounted design.
With a 20.5 SEER2 rating, this 9,000 BTU mini-split heat pump helps reduce energy consumption while maintaining more stable temperatures indoors. It uses R32 refrigerant for enhanced energy efficiency and a lower environmental impact, and it includes a 15 foot line set and communication wire for added installation convenience.
Efficient Comfort for Smaller Rooms
This King Series system is a strong option for smaller residential rooms and similar single-zone applications where simple, efficient comfort is the goal. Its inverter-based operation helps reduce cycling and supports a more consistent indoor environment.
Key Features
- 9,000 BTU single zone ductless mini-split for small spaces
- 20.5 SEER2 efficiency for energy-conscious performance
- 115V operation for compatible standard-voltage applications
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Blue colored fin - 500 hours salt spray tested
- Indoor and outdoor coil: Copper tube / aluminum fin
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds (6 speeds)
- I Feel function
- Quiet operation for everyday indoor comfort
Reliable Cold Weather Performance
The King Single Zone series is built for dependable heating operation in colder conditions, with a heating range down to -13°F and up to 75°F. This makes it a practical choice for buyers seeking a 9,000 BTU cold weather mini-split heat pump with efficient year-round operation.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
System Information
| System Type | Heat Pump |
| Indoor Model | KING09HP115V1R32AH |
| Outdoor Model | KING09HP115V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 2,700 - 11,600 BTU/h |
| Rated Cooling Capacity @ 95°F | 9,100 BTU/h |
| Heating Capacity (Min - Max) | 2,400 - 13,300 BTU/h |
| Rated Heating Capacity @ 47°F | 10,000 BTU/h |
| Rated Heating Capacity @ 17°F | 8,100 BTU/h |
| Rated Heating Capacity @ 5°F | 7,600 BTU/h |
| SEER2 | 20.5 |
| EER2 | 11.9 |
| HSPF2 | 8.8 |
| COP @ 5°F | 1.86 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING09HP115V1R32AH |
| Air Flow (Min - Max) | 159 - 353 CFM |
| Sound Pressure Level (Min - Max) | 24 - 43 dB(A) |
| Dehumidification | 1.69 pt/hr |
| Unit Dimensions (W x H x D) | 32-7/8 x 10-53/64 x 7-7/8 in. |
| Package Dimensions (W x H x D) | 35-15/64 x 13-37/64 x 10-43/64 in. |
| Net Weight | 19.8 lbs |
| Gross Weight | 24.3 lbs |
Outdoor Unit Specifications
| Model | KING09HP115V1R32AO |
| Compressor Type | GWIN G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 51 dB(A) |
| Unit Dimensions (W x H x D) | 28-13/16 x 21-7/8 x 12-63/64 in. |
| Package Dimensions (W x H x D) | 31-17/64 x 24-7/32 x 14-51/64 in. |
| Net Weight | 55.1 lbs |
| Gross Weight | 60.6 lbs |
Refrigerant Piping
| Refrigerant Charge | 18.7 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 115V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 103 - 126 VAC |
| Rated Current - Cooling | 12.5 A |
| Rated Current - Heating | 15.4 A |
| MOCP | 20 A |
| MCA | 19 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 32-7/8
- H: 10-53/64
- D: 7-7/8
Package Dimensions
- W: 35-15/64
- H: 13-37/64
- D: 10-43/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 28-13/16
- H: 21-7/8
- D: 12-63/64
Package Dimensions
- W: 31-17/64
- H: 24-7/32
- D: 14-51/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches.
Included in This Complete System
- GWIN 9,000 BTU King indoor air handler
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort functions
Ideal Applications
This 9,000 BTU 115V ductless mini-split complete system is ideal for bedrooms, offices, small dens, guest rooms, workshops, and similar spaces where compact, efficient heating and cooling are needed.
Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 9,000 BTU 20.5 SEER2 115V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 12,000 BTU 19 SEER2 115V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 12,000 BTU 19 SEER2 115V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 12,000 BTU 19 SEER2 115V King Single Zone Ductless Mini...
GWIN Assisted DIY 12,000 BTU 19 SEER2 115V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 12,000 BTU 19 SEER2 115V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a compact and efficient heating and cooling solution for bedrooms, offices, studios, and other small spaces. Designed for dependable comfort and easy everyday use, this 115V ductless mini-split system offers efficient inverter-driven performance in a sleek wall-mounted design.
With a 19 SEER2 rating, this 12,000 BTU mini-split heat pump helps reduce energy consumption while maintaining more stable temperatures indoors. It uses R32 refrigerant for enhanced energy efficiency and a lower environmental impact, and it includes a 15 foot line set and communication wire for added installation convenience.
Efficient Comfort for Smaller Rooms
This King Series system is a strong option for smaller residential rooms and similar single-zone applications where simple, efficient comfort is the goal. Its inverter-based operation helps reduce cycling and supports a more consistent indoor environment.
Key Features
- 12,000 BTU single zone ductless mini-split for small spaces
- 19 SEER2 efficiency for energy-conscious performance
- 115V operation for compatible standard-voltage applications
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue Colored Fin - 500 Hrs Salt Spray Tested
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Force defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds
- Indoor unit display
- A2L leak detection sensor (indoor) factory installed
- Quiet operation for everyday indoor comfort
Reliable Cold Weather Performance
The King Single Zone series is built for dependable heating operation in colder conditions, with a heating range down to -13°F and up to 75°F. This makes it a practical choice for buyers seeking a 12,000 BTU cold weather mini-split heat pump with efficient year-round operation.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 12,000 BTU King indoor air handler
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort functions
Ideal Applications
This 12,000 BTU 115V ductless mini-split complete system is ideal for bedrooms, offices, small dens, guest rooms, workshops, and similar spaces where compact, efficient heating and cooling are needed.
System Information
| System Type | Heat Pump |
| Indoor Model | KING12HP115V1R32AH |
| Outdoor Model | KING12HP115V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 3,070 - 13,300 BTU/h |
| Rated Cooling Capacity @ 95°F | 12,000 BTU/h |
| Heating Capacity (Min - Max) | 3,070 - 14,600 BTU/h |
| Rated Heating Capacity @ 47°F | 12,000 BTU/h |
| Rated Heating Capacity @ 17°F | 9,700 BTU/h |
| Rated Heating Capacity @ 5°F | 8,500 BTU/h |
| SEER2 | 19.0 |
| EER2 | 9.3 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.75 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING12HP115V1R32AH |
| Air Flow (Min - Max) | 182 - 424 CFM |
| Sound Pressure Level (Min - Max) | 27 - 47 dB(A) |
| Dehumidification | 2.96 pt/hr |
| Unit Dimensions (W x H x D) | 32-7/8 x 10-53/64 x 7-7/8 in. |
| Package Dimensions (W x H x D) | 35-15/64 x 13-37/64 x 10-43/64 in. |
| Net Weight | 19.8 lbs |
| Gross Weight | 24.3 lbs |
Outdoor Unit Specifications
| Model | KING12HP115V1R32AO |
| Compressor Type | GWIN G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 28-13/16 x 21-7/8 x 12-63/64 in. |
| Package Dimensions (W x H x D) | 31-17/64 x 24-7/32 x 14-51/64 in. |
| Net Weight | 58.4 lbs |
| Gross Weight | 63.9 lbs |
Refrigerant Piping
| Refrigerant Charge | 17.6 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 115V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 103 - 126 VAC |
| Rated Current - Cooling | 14.34 A |
| Rated Current - Heating | 14.64 A |
| MOCP | 20 A |
| MCA | 19 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 32 7/8
- H: 10 53/64
- D: 7 7/8
Package Dimensions
- W: 35 15/64
- H: 13 37/64
- D: 10 43/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 28 13/16
- H: 21 7/8
- D: 12 63/64
Package Dimensions
- W: 31 17/64
- H: 24 7/32
- D: 14 51/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 12,000 BTU 19 SEER2 115V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.

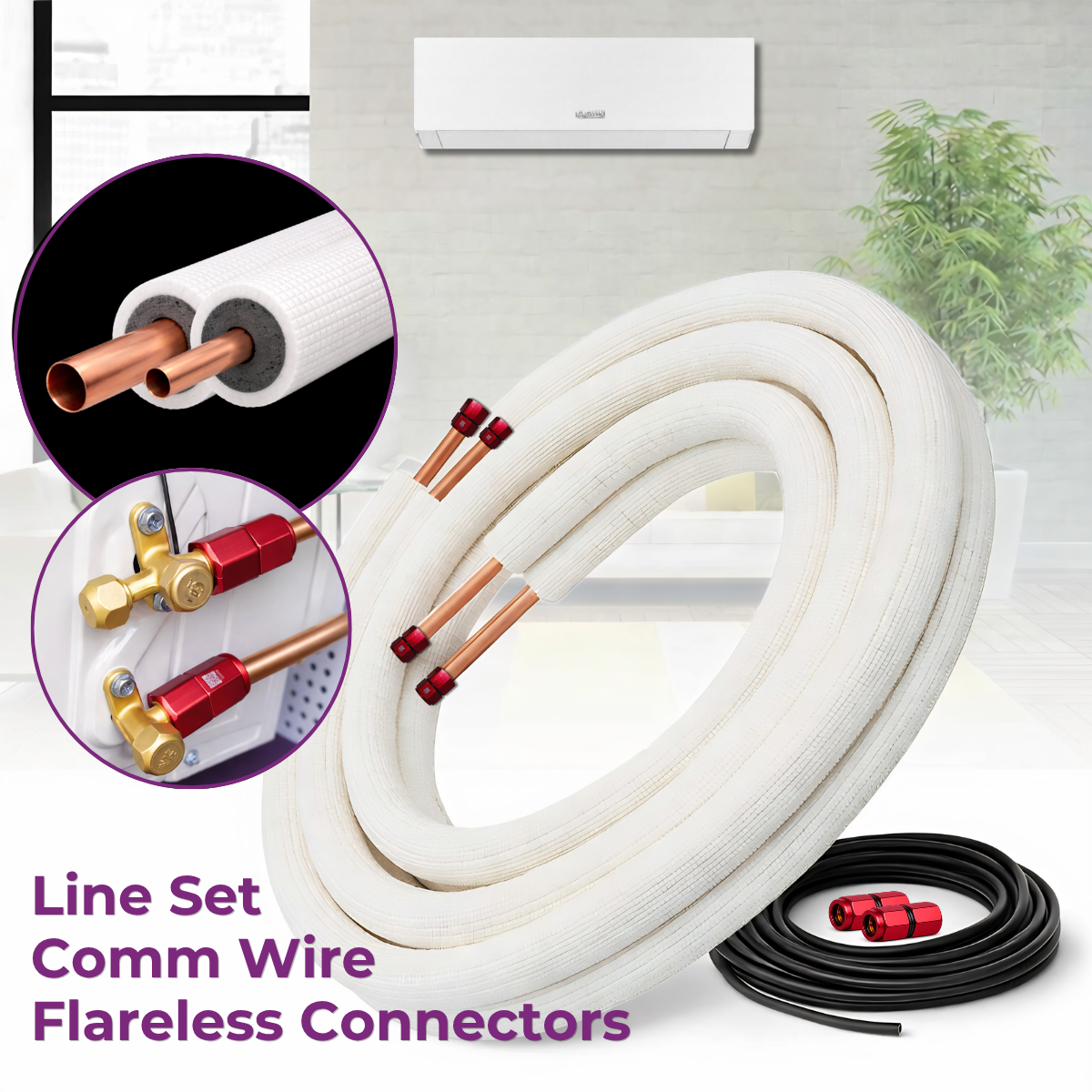

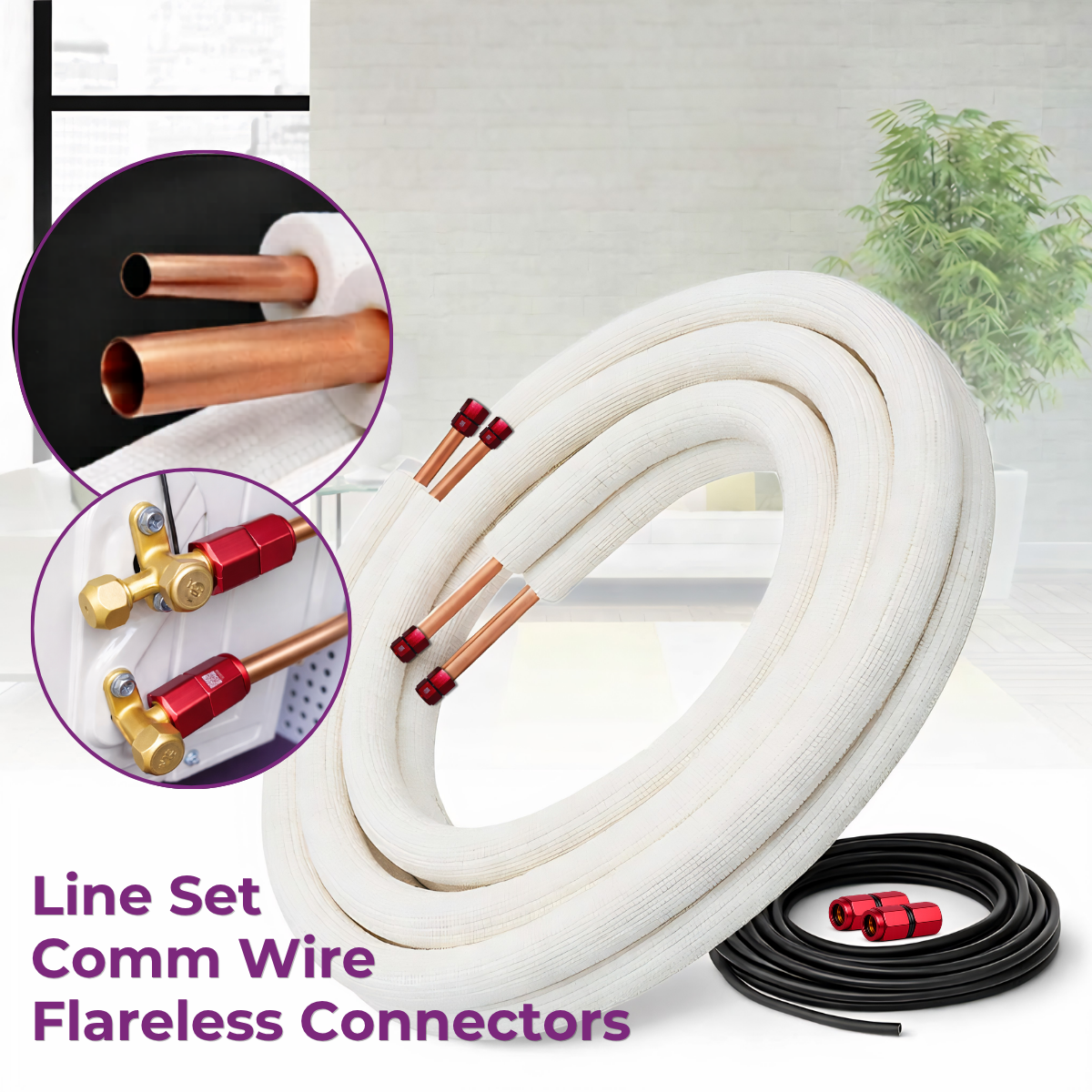

Upgrades for Flareless Line Set (from 15 feet) In Pre Made Bundles
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Flareless Line set upgrade from 15' line set.
Condensers Wall Mounting Bracket 18k-36k
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees

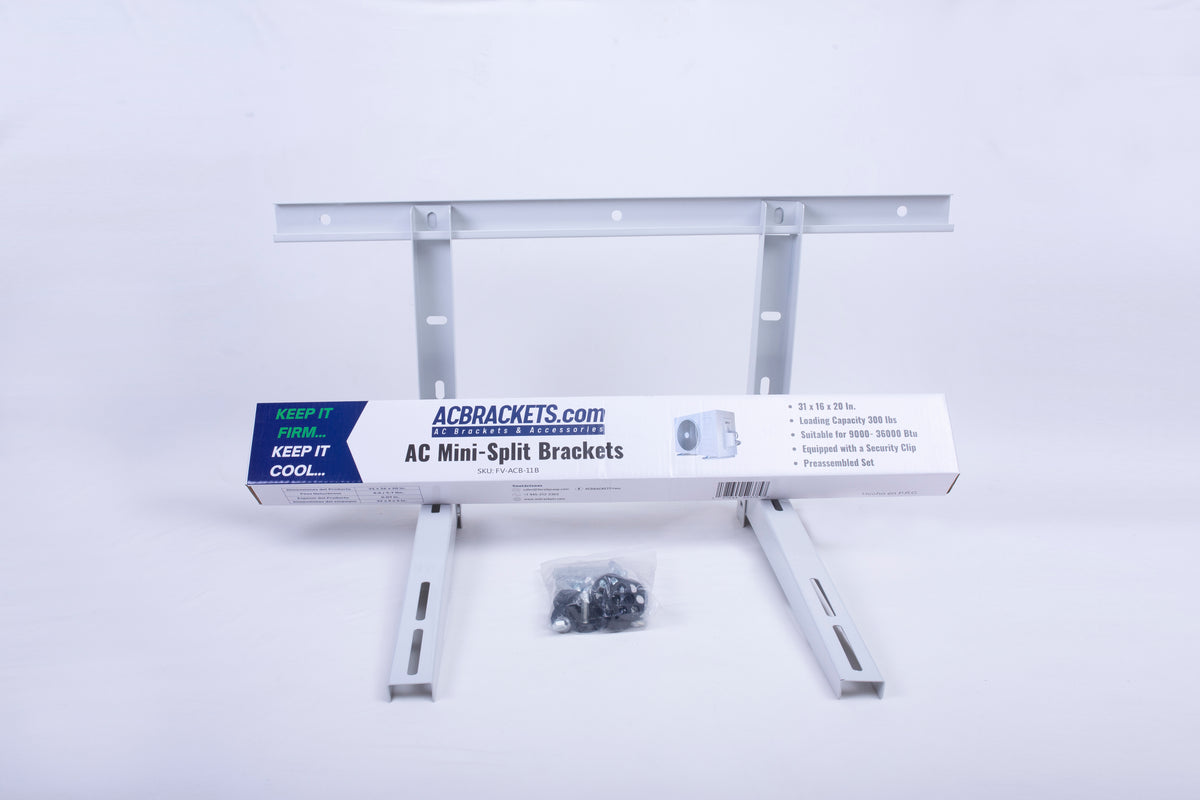

Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers. Specifications and dimensions: 31x16x20 in. 300 lbs loading capacity Suitable for 9,000-36,000 BTU condensers Equipped with security...
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers.
Specifications and dimensions:
- 31x16x20 in.
- 300 lbs loading capacity
- Suitable for 9,000-36,000 BTU condensers
- Equipped with security clip
- Preassembled set
Condenser Pad
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
This condenser pad will fit all of the GWIN Condensers available. Why purchase an Condenser Pad? 1. Protects the unit from pest, insects and critters that may cause damage to the condenser. 2. Reduce vibration from t...
This condenser pad will fit all of the GWIN Condensers available.
Why purchase an Condenser Pad?
1. Protects the unit from pest, insects and critters that may cause damage to the condenser.
2. Reduce vibration from the AC against this pad so it does not hit against the ground. If a condenser is not placed on a support system like a pad, you risk damage being done each time the condenser vibrates against the ground.
Pros
- Unaffected by UV or weather
- Uniform rubbing transfers load evenly
- Lightweight, yet incredibly rugged
Material Type: Polypropylene
Condenser Ground Stand Brackets
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees

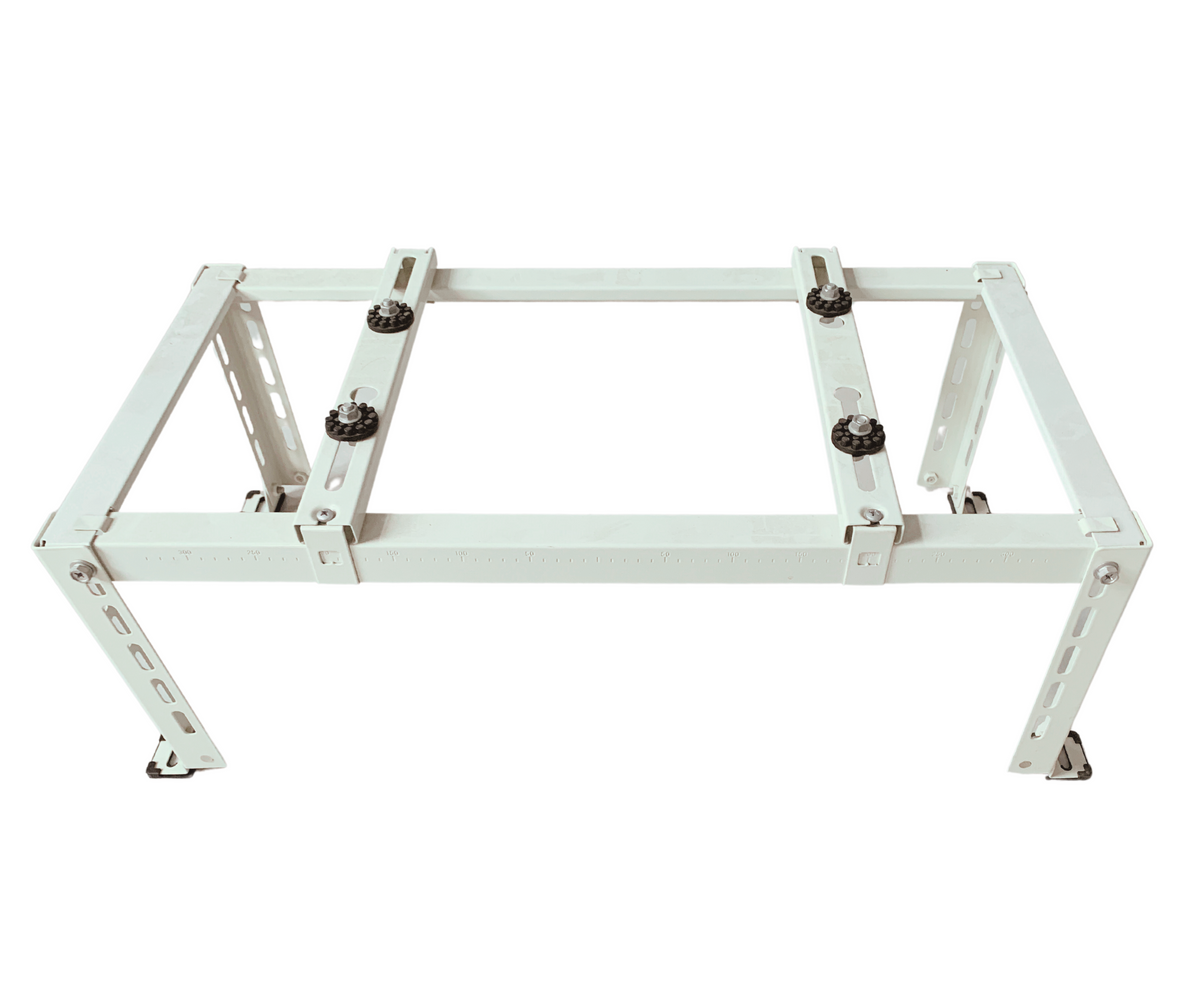

Specifications and dimensions: Length 35" x Width 18" x Height 11" Loading capacity 264 lbs
PVC Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees

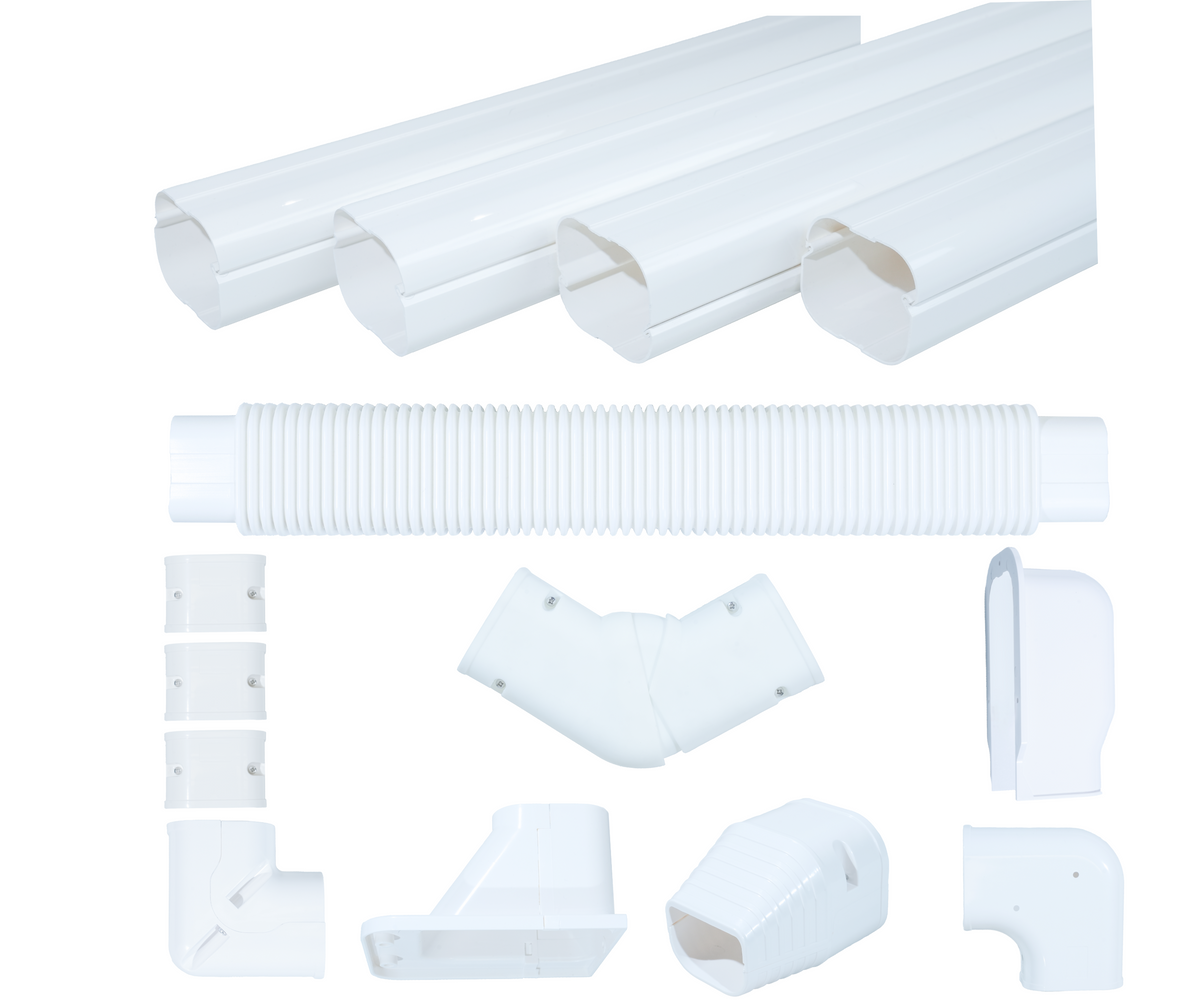

Line set covers Specifications and dimensions: 13 ft length 3 inches width 2 head wall covers Extra white covers Cold resistance: -40°F Heat resistance: 140°F Lifespan exceeding 10 years
GWIN Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees

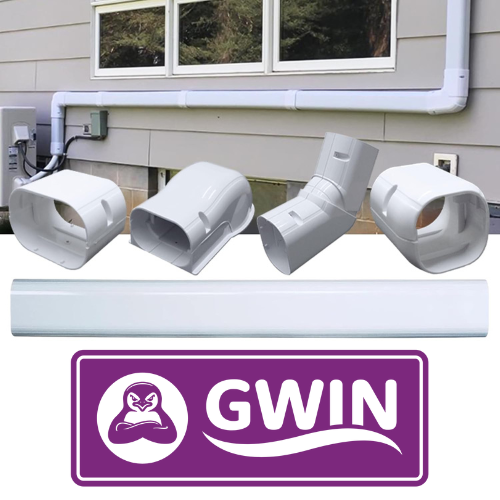

GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Des...
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection
Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Designed to conceal and protect refrigerant tubing, electrical wiring, and drain lines, this durable cover system enhances curb appeal while helping extend the life of your HVAC components. Ideal for residential or light commercial installations, both indoors and outdoors.
Key Features & Benefits
- Complete Installation Kit: Includes straight line-set channels, couplers, wall cover, end cap, and an adjustable elbow for a streamlined, finished look.
- Generous 4" x 14 ft. Coverage: Fits most standard mini-split line sets, electrical cables, and drain hoses with ample interior space for easy routing.
- Durable & Weather-Resistant Construction: Built from high-quality, UV-resistant material to help protect HVAC lines from sun exposure, moisture, debris, and environmental wear.
- Paintable for a Seamless Look: Clean white finish can be painted to match siding, brick, stucco, or interior walls for a custom appearance.
- Easy, Modular Installation: Snap-together design supports quick installation with minimal tools—great for HVAC professionals and DIY homeowners.
Why Choose GWIN?
GWIN accessories are designed to deliver professional-grade performance with clean aesthetics. This line set cover kit not only protects vital HVAC components, but also elevates the overall appearance of your installation so it blends seamlessly into any space.
Product Specifications
- Brand: GWIN
- Application: Mini-split systems, heat pumps, air conditioners
- Coverage Length: 14 ft
- Width: 4 inches
- Color: White (paintable)
- Material: Weather- and UV-resistant PVC
- Indoor / Outdoor Use: Yes
- Installation Type: Surface-mounted, modular snap-fit
Included in This Kit
- Straight line-set cover sections
- Couplers
- Adjustable elbow (90°–120°)
- Wall penetration cover
- End cap
Note: Paint before installation for best results. Verify measurements and routing requirements prior to mounting.

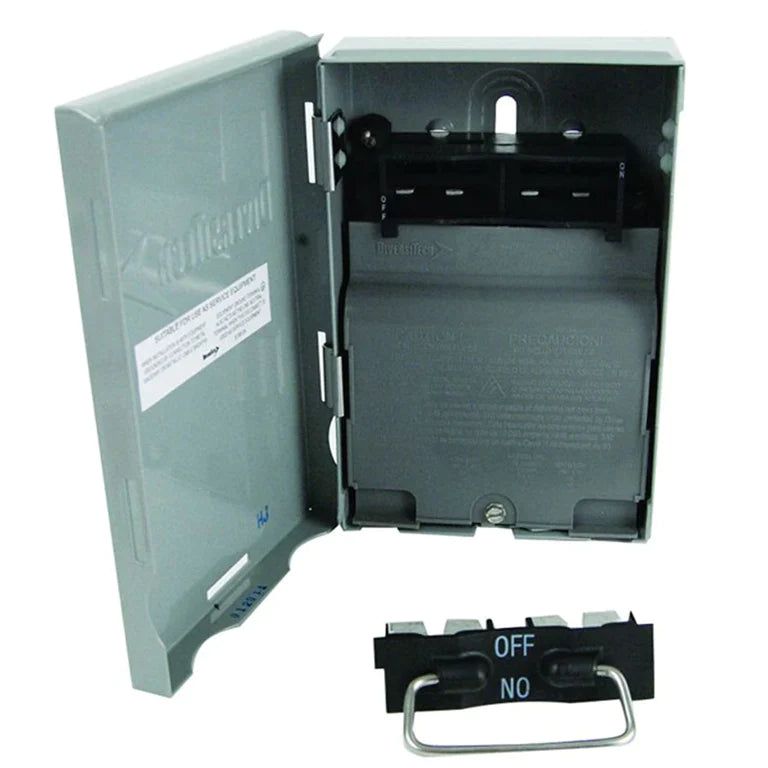

Disconnect Switch and Electrical Whip with #10 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
Disconnect Switch and Electrical Whip with #8 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.

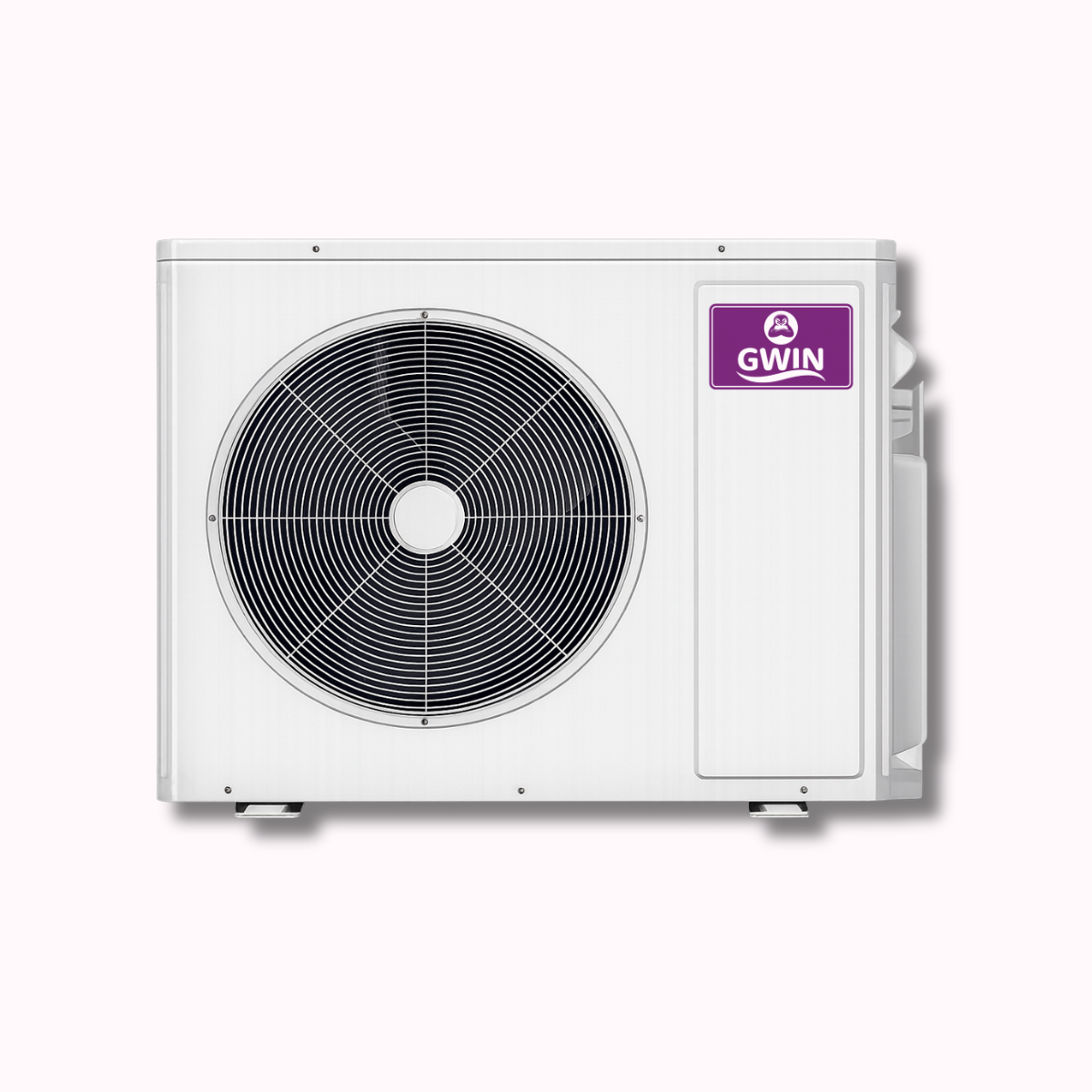

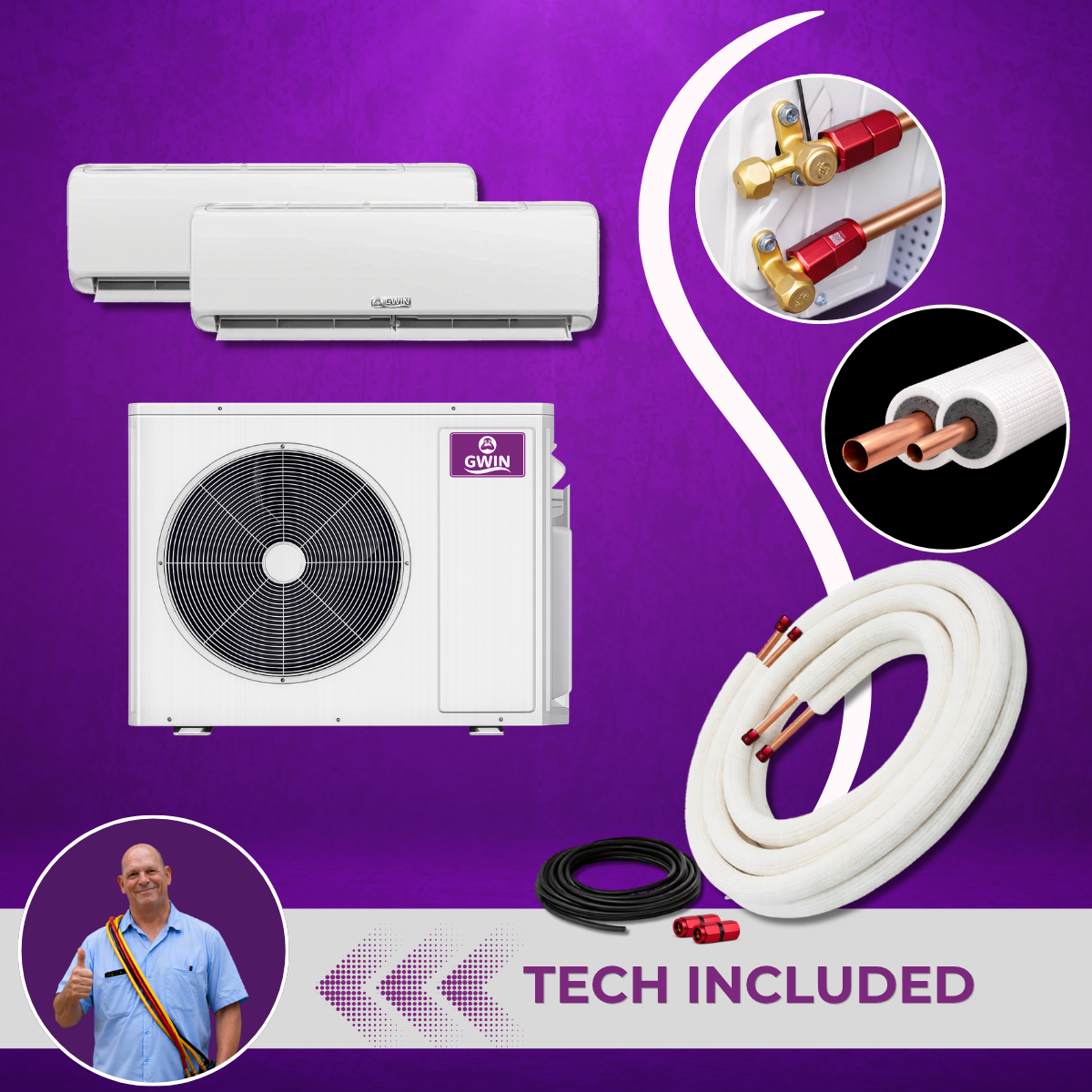

GWIN Assisted DIY 18,000 BTU 230V King (18k condenser 9K+9K Wall Mount) Complete System With 15' Line Set Communication Wire and GWIN Assisted DIY Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees

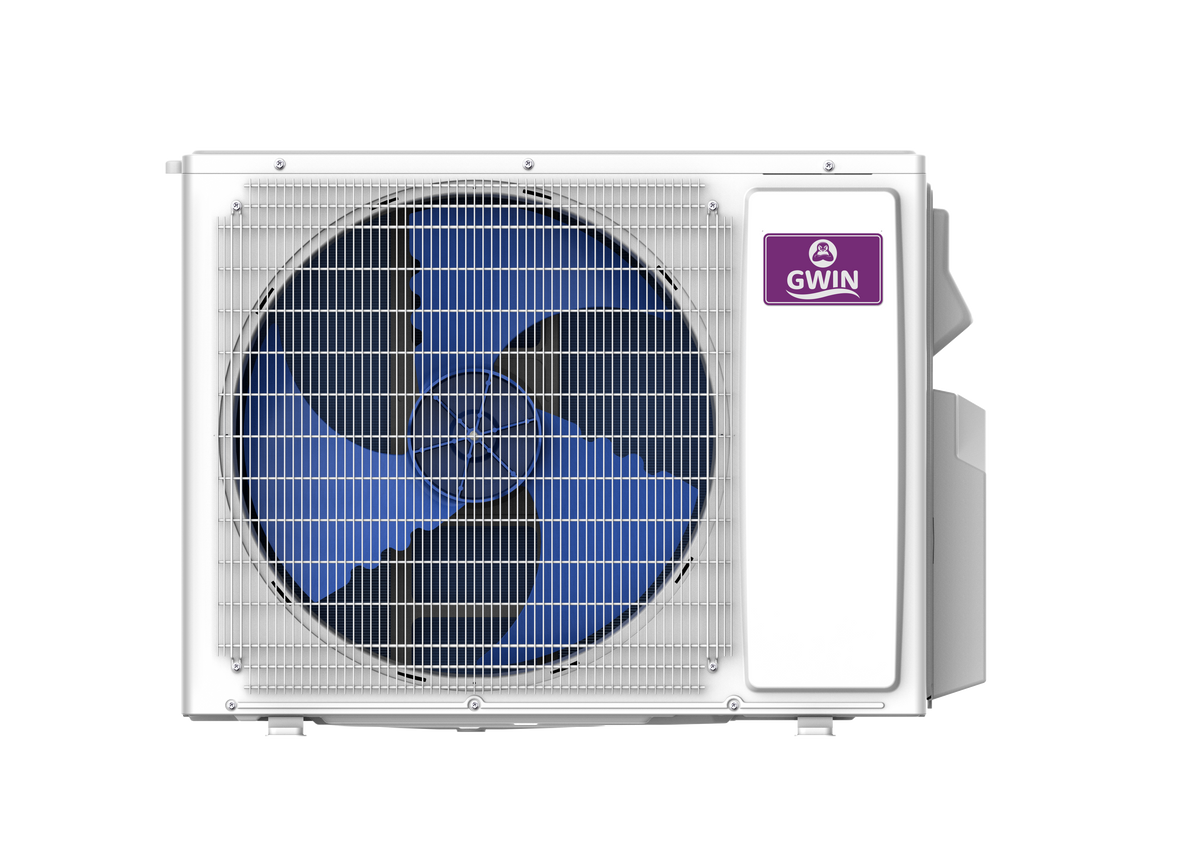

GWIN 18,000 BTU 230V King (18k condenser 9K+9K Wall Mount) Complete System With 15' Line Set, Communication Wire & GWIN Tech Bring efficient multi-room comfort home with this GWIN 230V two-zone complete system. T...
GWIN 18,000 BTU 230V King (18k condenser 9K+9K Wall Mount) Complete System With 15' Line Set, Communication Wire & GWIN Tech
Bring efficient multi-room comfort home with this GWIN 230V two-zone complete system. This package pairs an 18,000 BTU outdoor condenser with two 9,000 BTU wall-mount indoor air handlers, making it a great fit for two separate areas that need individualized comfort control. This combination is perfect if you have two rooms that are ~400 sq ft each.
Designed for flexibility and confidence, this bundle includes two 15-foot line sets, two 15-foot communication wires, two remote controls, and 1x GWIN Tech to commission your system.
The GWIN 18,000 BTU King (9K+9K) Complete System is a two-zone 230V ductless solution built around an 18,000 BTU outdoor heat pump and matched 9k + 9k wall-mount indoor units. With included 15' line sets, communication wire, remotes, Wi-Fi-ready indoor units, and 1x GWIN Tech included for commissioning, this package delivers an Assisted DIY Installation advantage with expert support from day one. System performance is powered by the outdoor unit and depends on connected indoor units.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN Tech included — described as the first system to ever come with a tech, only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
BTU - Square Feet
- 9k Wall Mount Air Handler- capable of cooling and heating up to 400 sq ft
- 9k Wall Mount Air Handler- capable of cooling and heating up to 400 sq ft
What Is Included
- 1x GWIN Tech

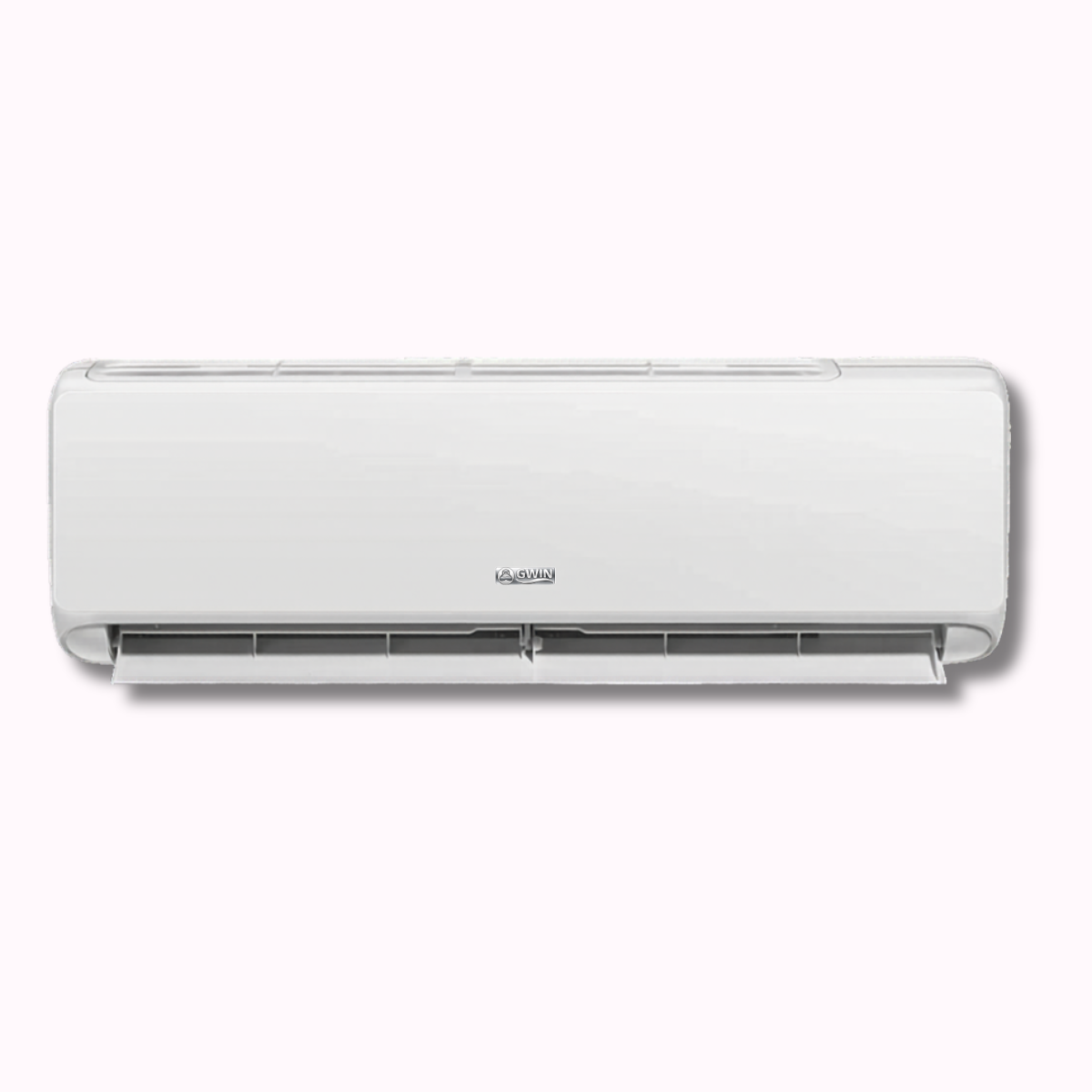

- 2x GWIN 9,000 BTU King wall-mount indoor air handlers
- 1x 18,000 BTU outdoor condenser
- 2x 15 foot line sets
- 2x Communication wires
- 2x Remote controls
Why Buyers Like This Bundle
- Two-zone comfort with separate indoor units for better room-to-room control
- Outdoor condenser supports multi-zone operation
- Wi-Fi included on both indoor units
- 7 indoor fan speeds on each wall-mount unit
- Low ambient operation down to -22°F on the outdoor unit for both cooling and heating ranges
- Base pan heater, intelligent defrosting, intelligent preheating, and low voltage startup built into the outdoor unit
Indoor Unit Specifications – 9,000 BTU Wall Mount
| Indoor Model | KING09HP230V1R32AH |
| System Type | Heat Pump |
| Cooling Capacity | 9,000 Btu/h |
| Heating Capacity | 10,000 Btu/h |
| Refrigerant Type | R32 |
| Air Flow (Min - Max) | 235 - 424 CFM |
| Sound Pressure Level (Min - Max) | 27 - 45 dB(A) |
| Dehumidification | 2.11 pt/hr |
| External Dimensions (W x H x D) | 32-7/8 x 10-53/64 x 7-7/8 in |
| Package Dimensions (W x H x D) | 35-15/64 x 13-37/64 x 10-43/64 in |
| Net Weight | 19.8 lbs |
| Gross Weight | 24.3 lbs |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in |
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
9,000 BTU Indoor Features & Functions
- Wired controller interface: Yes
- WiFi included: Yes
- Indoor fan type: Crossflow
- Multi fan speeds: 7 Speeds
- Indoor unit display: Yes
- Auxiliary electrical heater: No
- Ventilation (Outdoor Air): No
- Remote control functions: Auto Mode, Auto Fan, Horizontal Auto Swing, Vertical Auto Swing, Clock, Dry Mode, Dry Anti-Mildew (X-Fan), Energy Saving, I Feel, Lock, Quiet Mode, Room Temperature Display, Sleep Mode, Timer Mode, Turbo Mode, Display On/Off Control, Freeze Guard Mode (46°F)
Outdoor Condenser Specifications
System Performance (Non-Ducted Indoor Units)
| Outdoor Model | GMUL18HP230V1R32AO |
| Number of Zones | 2 |
| Cooling Capacity (Min - Max) | 7,300 - 19,800 Btu/h |
| Cooling Rated Capacity @95°F | 18,000 Btu/h |
| Heating Capacity (Min - Max) | 7,300 - 18,100 Btu/h |
| Heating Rated Capacity @47°F | 18,000 Btu/h |
| Heating Rated Capacity @17°F | 16,000 Btu/h |
| Heating Rated Capacity @5°F | 13,800 Btu/h |
| SEER2 | 21 |
| EER2 | 12.0 |
| HSPF2 | 10.0 |
| COP @5°F | 2.0 |
Outdoor Unit
| System Type | Heat Pump |
| Cooling Temperature Range | -22 to 118°F |
| Heating Temperature Range | -22 to 75°F |
| Refrigerant Type | R32 |
| Sound Pressure Level | 51 dB(A) |
| External Dimensions (W x H x D) | 32-23/64 × 21-42/64 × 13-55/64 in |
| Package Dimensions (W x H x D) | 34-21/64 × 24-13/32 × 15-43/64 in |
| Net Weight | 78.3 lbs |
| Gross Weight | 84.9 lbs |
Refrigerant Piping
| Refrigerant Charge - R32 | 31.752 oz |
| Additional Charge | 0.2 oz/ft |
| Port A (Liquid - Gas) | 1/4 - 3/8 in |
| Port B (Liquid - Gas) | 1/4 - 3/8 in |
| Pre-Charge Length | 33 ft |
| Pipe Length (Min - Max) | 10 - 131 ft |
| Pipe Length to Furthest Indoor Unit | 66 ft |
| Max Pipe Elevation | 49 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz |
| Voltage Range (Min - Max) | 187 - 253 VAC |
| Rated Current - Cooling | 11 A |
| Rated Current - Heating | 11 A |
| MOCP | 20 A |
| MCA | 14.5 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Features & Functions Summary
- Inverter Type: Inverter Driven
- Ultra Low Frequency Torque Control: Yes
- Compressor Type - Inverter: Yes
- Basepan With Electric Heater: Yes
- Indoor & Outdoor Fin Coating (Blue Fin): Yes
- Intelligent Defrosting: Yes
- Intelligent Preheating: Yes
- Low Voltage Startup: Yes
- Memory/Power Failure Recovery: Yes
- Self Diagnosis: Yes
*GWIN Tech only pays for commissioning of system. Installation and additional refrigerant to the system is not included.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 18,000 BTU 230V King (18k condenser 9K+9K Wall Mount) Complete System With 15' Line Set Communication Wire and GWIN Assisted DIY Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
single zones • Flareless line sets — cut to length • Mix King & Emperor indoor handlers
GWIN Assisted DIY 9,000 BTU 20.5 SEER2 230V King Single 13 Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- Up to 3 independent zones
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 9,000 BTU 20.5 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 9,000 BTU 20.5 SEER2 230V King Single Zone Ductless Mi...
GWIN Assisted DIY 9,000 BTU 20.5 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 9,000 BTU 20.5 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire is a compact and efficient heating and cooling solution for bedrooms, offices, studios, and other small spaces. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system offers efficient inverter-driven performance in a sleek wall-mounted design.
With a 20.5 SEER2 rating, this 9,000 BTU mini-split heat pump helps reduce energy consumption while maintaining more stable temperatures indoors. It uses R32 refrigerant for enhanced energy efficiency and a lower environmental impact, and it includes a 15 foot line set and communication wire for added installation convenience.
Efficient Comfort for Smaller Rooms
This King Series system is a strong option for smaller residential rooms and similar single-zone applications where simple, efficient comfort is the goal. Its inverter-based operation helps reduce cycling and supports a more consistent indoor environment.
Key Features
- 9,000 BTU single zone ductless mini-split for small spaces
- 20.5 SEER2 efficiency for energy-conscious performance
- 230V operation for compatible standard-voltage applications
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue Colored Fin - 500 Hrs Salt Spray Tested
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Force defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds
- Indoor unit display
- A2L leak detection sensor (indoor) factory installed
- Quiet operation for everyday indoor comfort
Reliable Cold Weather Performance
The King Single Zone series is built for dependable heating operation in colder conditions, with a heating range down to -13°F and up to 75°F. This makes it a practical choice for buyers seeking a 9,000 BTU cold weather mini-split heat pump with efficient year-round operation.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 9,000 BTU King indoor air handler
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort functions
Ideal Applications
This 9,000 BTU 230V ductless mini-split complete system is ideal for bedrooms, offices, small dens, guest rooms, workshops, and similar spaces where compact, efficient heating and cooling are needed.
System Information
| System Type | Heat Pump |
| Indoor Model | KING09HP230V1R32AH |
| Outdoor Model | KING09HP230V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 2,388 - 10,300 BTU/h |
| Rated Cooling Capacity @ 95°F | 9,100 BTU/h |
| Heating Capacity (Min - Max) | 2,217 - 13,136 BTU/h |
| Rated Heating Capacity @ 47°F | 10,000 BTU/h |
| Rated Heating Capacity @ 17°F | 8,100 BTU/h |
| Rated Heating Capacity @ 5°F | 7,600 BTU/h |
| SEER2 | 20.5 |
| EER2 | 12.5 |
| HSPF2 | 8.8 |
| COP @ 5°F | 1.94 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING09HP230V1R32AH |
| Air Flow (Min - Max) | 159 - 353 CFM |
| Sound Pressure Level (Min - Max) | 24 - 41 dB(A) |
| Dehumidification | 1.69 pt/hr |
| Unit Dimensions (W x H x D) | 32-7/8 x 10-53/64 x 7-7/8 in. |
| Package Dimensions (W x H x D) | 35-15/64 x 13-37/64 x 10-43/64 in. |
| Net Weight | 19.8 lbs |
| Gross Weight | 24.3 lbs |
Outdoor Unit Specifications
| Model | KING09HP230V1R32AO |
| Compressor Type | GWIN G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 51 dB(A) |
| Unit Dimensions (W x H x D) | 28-13/16 x 21-7/8 x 12-63/64 in. |
| Package Dimensions (W x H x D) | 31-17/64 x 24-7/32 x 14-51/64 in. |
| Net Weight | 52.9 lbs |
| Gross Weight | 58.4 lbs |
Refrigerant Piping
| Refrigerant Charge | 18.7 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 6.5 A |
| Rated Current - Heating | 7 A |
| MOCP | 15 A |
| MCA | 10 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 32 7/8
- H: 10 53/64
- D: 7 7/8
Package Dimensions
- W: 35 15/64
- H: 13 37/64
- D: 10 43/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 28 13/16
- H: 21 7/8
- D: 12 63/64
Package Dimensions
- W: 31 17/64
- H: 24 7/32
- D: 14 51/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 9,000 BTU 20.5 SEER2 230V King Single 13 Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 12,000 BTU 19 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 12,000 BTU 19 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 12,000 BTU 19 SEER2 230V King Single Zone Ductless Mini...
GWIN Assisted DIY 12,000 BTU 19 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 12,000 BTU 19 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a compact and efficient heating and cooling solution for bedrooms, offices, studios, and other small spaces. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system offers efficient inverter-driven performance in a sleek wall-mounted design.
With a 19 SEER2 rating, this 12,000 BTU mini-split heat pump helps reduce energy consumption while maintaining more stable temperatures indoors. It uses R32 refrigerant for enhanced energy efficiency and a lower environmental impact, and it includes a 15 foot line set and communication wire for added installation convenience.
Efficient Comfort for Smaller Rooms
This King Series system is a strong option for smaller residential rooms and similar single-zone applications where simple, efficient comfort is the goal. Its inverter-based operation helps reduce cycling and supports a more consistent indoor environment.
Key Features
- 12,000 BTU single zone ductless mini-split for small spaces
- 19 SEER2 efficiency for energy-conscious performance
- 230V operation for compatible standard-voltage applications
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue Colored Fin - 500 Hrs Salt Spray Tested
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Force defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds
- Indoor unit display
- A2L leak detection sensor (indoor) factory installed
- Quiet operation
Reliable Cold Weather Performance
The King Single Zone series is built for dependable heating operation in colder conditions, with a heating range down to -13°F and up to 75°F. This makes it a practical choice for buyers seeking a 12,000 BTU cold weather mini-split heat pump.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 12,000 BTU King indoor air handler
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort functions
Ideal Applications
This 12,000 BTU 230V ductless mini-split complete system is ideal for bedrooms, offices, small dens, guest rooms, and similar spaces.
System Information
| System Type | Heat Pump |
| Indoor Model | KING12HP230V1R32AH |
| Outdoor Model | KING12HP230V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 3,070 - 13,300 BTU/h |
| Rated Cooling Capacity @ 95°F | 12,000 BTU/h |
| Heating Capacity (Min - Max) | 3,070 - 14,600 BTU/h |
| Rated Heating Capacity @ 47°F | 12,000 BTU/h |
| Rated Heating Capacity @ 17°F | 9,700 BTU/h |
| Rated Heating Capacity @ 5°F | 9,100 BTU/h |
| SEER2 | 19.0 |
| EER2 | 9.75 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.75 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING12HP230V1R32AH |
| Air Flow (Min - Max) | 182 - 424 CFM |
| Sound Pressure Level (Min - Max) | 27 - 47 dB(A) |
| Dehumidification | 2.96 pt/hr |
| Unit Dimensions (W x H x D) | 32-7/8 x 10-53/64 x 7-7/8 in. |
| Package Dimensions (W x H x D) | 35-15/64 x 13-37/64 x 10-43/64 in. |
| Net Weight | 19.8 lbs |
| Gross Weight | 24.3 lbs |
Outdoor Unit Specifications
| Model | KING12HP230V1R32AO |
| Compressor Type | GWIN G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 28-13/16 x 21-7/8 x 12-63/64 in. |
| Package Dimensions (W x H x D) | 31-17/64 x 24-7/32 x 14-51/64 in. |
| Net Weight | 56.2 lbs |
| Gross Weight | 61.7 lbs |
Refrigerant Piping
| Refrigerant Charge | 17.6 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 7.02 A |
| Rated Current - Heating | 7.47 A |
| MOCP | 15 A |
| MCA | 12 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 32 7/8
- H: 10 53/64
- D: 7 7/8
Package Dimensions
- W: 35 15/64
- H: 13 37/64
- D: 10 43/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 28 13/16
- H: 21 7/8
- D: 12 63/64
Package Dimensions
- W: 31 17/64
- H: 24 7/32
- D: 14 51/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions, clearance to the wall on the back can be reduced to 3 inches.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 12,000 BTU 19 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 18,000 BTU 20 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 18,000 BTU 20 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 18,000 BTU 20 SEER2 230V King Single Zone Ductless Mini...
GWIN Assisted DIY 18,000 BTU 20 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 18,000 BTU 20 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a powerful and efficient heating and cooling solution for larger bedrooms, living areas, offices, and open spaces. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system delivers inverter-driven performance in a sleek wall-mounted design.
With a 20 SEER2 rating, this 18,000 BTU mini-split heat pump helps reduce energy consumption while maintaining consistent indoor temperatures. It uses R32 refrigerant for enhanced efficiency and reduced environmental impact, and includes a 15 foot line set and communication wire for installation convenience.
Efficient Comfort for Larger Rooms
This King Series system is ideal for medium-to-large residential spaces and single-zone applications requiring higher capacity. Its inverter technology reduces cycling and maintains a more stable indoor climate.
Key Features
- 18,000 BTU single zone ductless mini-split for larger spaces
- 20 SEER2 efficiency
- 230V operation
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue Colored Fin - 500 Hrs Salt Spray Tested
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Force defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds
- Indoor unit display
- A2L leak detection sensor (indoor) factory installed
- Quiet operation
Reliable Cold Weather Performance
The King Single Zone series is designed for dependable operation in colder climates, with heating performance down to -13°F and up to 75°F.
Assisted DIY Installation Advantage
GWIN provides the flexibility of a full Assisted DIY install with full warranty while including GWIN Tech support for commissioning.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 18,000 BTU King indoor air handler
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort functions
Ideal Applications
This 18,000 BTU 230V ductless mini-split complete system is ideal for living rooms, garages, open spaces, offices, and similar areas.
System Information
| System Type | Heat Pump |
| Indoor Model | KING18HP230V1R32AH |
| Outdoor Model | KING18HP230V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 3,753 - 20,300 BTU/h |
| Rated Cooling Capacity @ 95°F | 18,000 BTU/h |
| Heating Capacity (Min - Max) | 2,730 - 22,500 BTU/h |
| Rated Heating Capacity @ 47°F | 19,100 BTU/h |
| Rated Heating Capacity @ 17°F | 15,300 BTU/h |
| Rated Heating Capacity @ 5°F | 12,100 BTU/h |
| SEER2 | 20.0 |
| EER2 | 12.35 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.75 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING18HP230V1R32AH |
| Air Flow (Min - Max) | 282 - 618 CFM |
| Sound Pressure Level (Min - Max) | 34 - 53 dB(A) |
| Dehumidification | 3.80 pt/hr |
| Unit Dimensions (W x H x D) | 37-1/8 x 13-7/64 x 9-11/16 in. |
| Package Dimensions (W x H x D) | 39-13/32 x 15-15/16 x 12-43/64 in. |
| Net Weight | 28.7 lbs |
| Gross Weight | 34.2 lbs |
Outdoor Unit Specifications
| Model | KING18HP230V1R32AO |
| Compressor Type | GWIN G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 57 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 70.6 lbs |
| Gross Weight | 76.1 lbs |
Refrigerant Piping
| Refrigerant Charge | 32.5 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 1/2 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 82 ft |
| Max Pipe Elevation | 33 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 9.5 A |
| Rated Current - Heating | 9.5 A |
| MOCP | 15 A |
| MCA | 13 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 37 1/8
- H: 13 7/64
- D: 9 11/16
Package Dimensions
- W: 39 13/32
- H: 15 15/16
- D: 12 43/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions, clearance to the wall on the back can be reduced to 3 inches.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 18,000 BTU 20 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 24,000 BTU 19 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 24,000 BTU 19 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 24,000 BTU 19 SEER2 230V King Single Zone Ductless Mini...
GWIN Assisted DIY 24,000 BTU 19 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 24,000 BTU 19 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a powerful and efficient heating and cooling solution for large rooms, open living areas, garages, workshops, and other demanding spaces. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system offers inverter-driven performance in a sleek wall-mounted design.
With a 19 SEER2 rating, this 24,000 BTU mini-split heat pump helps reduce energy consumption while maintaining more stable temperatures indoors. It uses R32 refrigerant for enhanced energy efficiency and a lower environmental impact, and it includes a 15 foot line set and communication wire for added installation convenience.
Efficient Comfort for Larger Rooms
This King Series system is a strong option for larger residential rooms and similar single-zone applications where simple, efficient comfort is the goal. Its inverter-based operation helps reduce cycling and supports a more consistent indoor environment.
Key Features
- 24,000 BTU single zone ductless mini-split for large spaces
- 19 SEER2 efficiency for energy-conscious performance
- 230V operation for compatible standard-voltage applications
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue Colored Fin - 500 Hrs Salt Spray Tested
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Force defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds
- Indoor unit display
- A2L leak detection sensor (indoor) factory installed
- Quiet operation for everyday indoor comfort
Reliable Cold Weather Performance
The King Single Zone series is built for dependable heating operation in colder conditions, with a heating range down to -13°F and up to 75°F. This makes it a practical choice for buyers seeking a 24,000 BTU cold weather mini-split heat pump with efficient year-round operation.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 24,000 BTU King indoor air handler
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort functions
Ideal Applications
This 24,000 BTU 230V ductless mini-split complete system is ideal for living rooms, open-concept spaces, garages, workshops, additions, offices, and similar spaces where efficient heating and cooling are needed.
System Information
| System Type | Heat Pump |
| Indoor Model | KING24HP230V1R32AH |
| Outdoor Model | KING24HP230V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 5,800 - 26,270 BTU/h |
| Rated Cooling Capacity @ 95°F | 24,000 BTU/h |
| Heating Capacity (Min - Max) | 5,400 - 26,600 BTU/h |
| Rated Heating Capacity @ 47°F | 24,000 BTU/h |
| Rated Heating Capacity @ 17°F | 19,200 BTU/h |
| Rated Heating Capacity @ 5°F | 15,700 BTU/h |
| SEER2 | 19.0 |
| EER2 | 11.9 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.75 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING24HP230V1R32AH |
| Air Flow (Min - Max) | 412 - 677 CFM |
| Sound Pressure Level (Min - Max) | 36 - 51 dB(A) |
| Dehumidification | 5.28 pt/hr |
| Unit Dimensions (W x H x D) | 42-7/16 x 13-7/64 x 9-11/16 in. |
| Package Dimensions (W x H x D) | 44-39/64 x 16-19/64 x 13-7/64 in. |
| Net Weight | 33.1 lbs |
| Gross Weight | 39.7 lbs |
Outdoor Unit Specifications
| Model | KING24HP230V1R32AO |
| Compressor Type | GWIN G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 58 dB(A) |
| Unit Dimensions (W x H x D) | 37-23/32 x 25-63/64 x 15-53/64 in. |
| Package Dimensions (W x H x D) | 40-5/8 x 29-1/64 x 17-61/64 in. |
| Net Weight | 93.7 lbs |
| Gross Weight | 103.6 lbs |
Refrigerant Piping
| Refrigerant Charge | 42.3 oz |
| Additional Charge | 0.1 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 1/2 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 131 ft |
| Max Pipe Elevation | 82 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 11 A |
| Rated Current - Heating | 12 A |
| MOCP | 20 A |
| MCA | 15 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 42 7/16
- H: 13 7/64
- D: 9 11/16
Package Dimensions
- W: 44 39/64
- H: 16 19/64
- D: 13 7/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 37 23/32
- H: 25 63/64
- D: 15 53/64
Package Dimensions
- W: 40 5/8
- H: 29 1/64
- D: 17 61/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 24,000 BTU 19 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 30,000 BTU 22 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 30,000 BTU 22 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 30,000 BTU 22 SEER2 230V King Single Zone Ductless Mini...
GWIN Assisted DIY 30,000 BTU 22 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 30,000 BTU 22 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a high-capacity heating and cooling solution for large residential spaces, open living areas, garages, workshops, offices, and other demanding single-zone applications. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system offers powerful inverter-driven performance in a sleek wall-mounted design.
With a 22 SEER2 rating, this 30,000 BTU mini-split heat pump helps reduce energy consumption while maintaining more stable temperatures indoors. It uses R32 refrigerant for enhanced energy efficiency and a lower environmental impact, and it includes a 15 foot line set and communication wire for added installation convenience.
Efficient Comfort for Larger Rooms
This King Series system is a strong option for larger residential rooms and similar single-zone applications where simple, efficient comfort is the goal. Its inverter-based operation helps reduce cycling and supports a more consistent indoor environment.
Key Features
- 30,000 BTU single zone ductless mini-split for large spaces
- 22 SEER2 efficiency for energy-conscious performance
- 230V operation for compatible standard-voltage applications
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue Colored Fin - 500 Hrs Salt Spray Tested
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Force defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds
- Indoor unit display
- A2L leak detection sensor (indoor) factory installed
- Quiet operation for everyday indoor comfort
Reliable Cold Weather Performance
The King Single Zone series is built for dependable heating operation in colder conditions, with a heating range down to -13°F and up to 75°F. This makes it a practical choice for buyers seeking a 30,000 BTU cold weather mini-split heat pump with efficient year-round operation.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 30,000 BTU King indoor air handler
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort functions
Ideal Applications
This 30,000 BTU 230V ductless mini-split complete system is ideal for living rooms, open-concept spaces, garages, workshops, additions, offices, and similar spaces where efficient heating and cooling are needed.
System Information
| System Type | Heat Pump |
| Indoor Model | KING30HP230V1R32AH |
| Outdoor Model | KING30HP230V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 3,000 - 36,000 BTU/h |
| Rated Cooling Capacity @ 95°F | 30,000 BTU/h |
| Heating Capacity (Min - Max) | 5,800 - 35,500 BTU/h |
| Rated Heating Capacity @ 47°F | 30,000 BTU/h |
| Rated Heating Capacity @ 17°F | 24,000 BTU/h |
| Rated Heating Capacity @ 5°F | 23,000 BTU/h |
| SEER2 | 22.0 |
| EER2 | 10.9 |
| HSPF2 | 9.0 |
| COP @ 5°F | 1.8 |
| Cooling Temperature Range | -4°F to 122°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING30HP230V1R32AH |
| Air Flow (Min - Max) | 441 - 794 CFM |
| Sound Pressure Level (Min - Max) | 36 - 52 dB(A) |
| Dehumidification | 7.40 pt/hr |
| Unit Dimensions (W x H x D) | 42-7/16 x 13-7/64 x 9-11/16 in. |
| Package Dimensions (W x H x D) | 44-39/64 x 16-19/64 x 13-7/64 in. |
| Net Weight | 34.2 lbs |
| Gross Weight | 40.8 lbs |
Outdoor Unit Specifications
| Model | KING30HP230V1R32AO |
| Compressor Type | Single Cylinder / 1 - Stage Inverter |
| Sound Pressure Level | 62 dB(A) |
| Unit Dimensions (W x H x D) | 39-3/8 x 29-3/8 x 15-13/16 in. |
| Package Dimensions (W x H x D) | 42-33/64 x 31-57/64 x 19-1/64 in. |
| Net Weight | 116.8 lbs |
| Gross Weight | 127.9 lbs |
Refrigerant Piping
| Refrigerant Charge | 56.4 oz |
| Additional Charge | 0.4 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 5/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 131 ft |
| Max Pipe Elevation | 82 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 20 A |
| Rated Current - Heating | 20 A |
| MOCP | 30 A |
| MCA | 27 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Manual Horizontal Swing
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 42 7/16
- H: 13 7/64
- D: 9 11/16
- W1: 6 15/64
- W2: 22 7/64
- W3: 10 5/32
Package Dimensions
- W: 44 39/64
- H: 16 19/64
- D: 13 7/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 39 3/8
- H: 29 3/8
- D: 15 13/16
- W1: 9 29/64
- W2: 8 7/64
- W3: 1 11/16
- W4: 14 17/32
- W5: 36 11/32
- H1: 16 13/16
- H2: 24 1/64
- D1: 15 35/64
Package Dimensions
- W: 42 33/64
- H: 31 57/64
- D: 19 1/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the wall: at least 2 inches
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 30,000 BTU 22 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 36,000 BTU 21 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 36,000 BTU 21 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 36,000 BTU 21 SEER2 230V King Single Zone Ductless Min...
GWIN Assisted DIY 36,000 BTU 21 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 36,000 BTU 21 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a high-capacity heating and cooling solution for large residential spaces, open living areas, garages, workshops, offices, and other demanding single-zone applications. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system offers powerful inverter-driven performance in a sleek wall-mounted design.
With a 21 SEER2 rating, this 36,000 BTU mini-split heat pump helps reduce energy consumption while maintaining more stable temperatures indoors. It uses R32 refrigerant for enhanced energy efficiency and a lower environmental impact, and it includes a 15 foot line set and communication wire for added installation convenience.
Efficient Comfort for Larger Rooms
This King Series system is a strong option for larger residential rooms and similar single-zone applications where simple, efficient comfort is the goal. Its inverter-based operation helps reduce cycling and supports a more consistent indoor environment.
Key Features
- 36,000 BTU single zone ductless mini-split for large spaces
- 21 SEER2 efficiency for energy-conscious performance
- 230V operation for compatible standard-voltage applications
- Wi-Fi Included
- Low ambient cooling down to 0°F (range: 0°F to 118°F)
- Low ambient heating down to -13°F (range: -13°F to 75°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue Colored Fin - 500 Hrs Salt Spray Tested
- Basepan with electric heater
- Compressor with electric heater
- Intelligent defrosting
- Force defrosting
- Intelligent preheating
- Low voltage startup
- Memory / power failure recovery
- Self diagnosis
- Multiple fan speeds
- Indoor unit display
- A2L leak detection sensor (indoor) factory installed
- Quiet operation for everyday indoor comfort
Reliable Cold Weather Performance
The King Single Zone series is built for dependable heating operation in colder conditions, with a heating range down to -13°F and up to 75°F. This makes it a practical choice for buyers seeking a 36,000 BTU cold weather mini-split heat pump with efficient year-round operation.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 36,000 BTU King indoor air handler
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort functions
Ideal Applications
This 36,000 BTU 230V ductless mini-split complete system is ideal for living rooms, open-concept spaces, garages, workshops, additions, offices, and similar spaces where efficient heating and cooling are needed.
System Information
| System Type | Heat Pump |
| Indoor Model | KING36HP230V1R32AH |
| Outdoor Model | KING36HP230V1R32AO |
| Remote Controller | YBE1FB1F |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 7,850 - 37,500 BTU/h |
| Rated Cooling Capacity @ 95°F | 33,600 BTU/h |
| Heating Capacity (Min - Max) | 10,000 - 37,500 BTU/h |
| Rated Heating Capacity @ 47°F | 34,000 BTU/h |
| Rated Heating Capacity @ 17°F | 27,400 BTU/h |
| Rated Heating Capacity @ 5°F | 24,600 BTU/h |
| SEER2 | 21.0 |
| EER2 | 10.6 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.8 |
| Cooling Temperature Range | -4°F to 122°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | KING36HP230V1R32AH |
| Air Flow (Min - Max) | 441 - 794 CFM |
| Sound Pressure Level (Min - Max) | 36 - 52 dB(A) |
| Dehumidification | 7.40 pt/hr |
| Unit Dimensions (W x H x D) | 42-7/16 x 13-7/64 x 9-11/16 in. |
| Package Dimensions (W x H x D) | 44-39/64 x 16-19/64 x 13-7/64 in. |
| Net Weight | 34.2 lbs |
| Gross Weight | 40.8 lbs |
Outdoor Unit Specifications
| Model | KING36HP230V1R32AO |
| Compressor Type | SINGLE CYLINDER / 1 - STAGE INVERTER |
| Sound Pressure Level | 62 dB(A) |
| Unit Dimensions (W x H x D) | 39-3/8 x 29-3/8 x 15-13/16 in. |
| Package Dimensions (W x H x D) | 42-33/64 x 31-57/64 x 19-1/64 in. |
| Net Weight | 122.4 lbs |
| Gross Weight | 133.4 lbs |
Refrigerant Piping
| Refrigerant Charge | 56.4 oz |
| Additional Charge | 0.4 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 5/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 131 ft |
| Max Pipe Elevation | 82 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 20 A |
| Rated Current - Heating | 20 A |
| MOCP | 35 A |
| MCA | 24 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Mode
- Auto Fan
- Manual Horizontal Swing
- Auto Swing (Vertical Auto Swing)
- Clock on Remote Controller
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- I Feel Function
- Lock on Remote Controller
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode (46°F)
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 42 7/16
- H: 13 7/64
- D: 9 11/16
Package Dimensions
- W: 44 39/64
- H: 16 19/64
- D: 13 7/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 39 3/8
- H: 29 3/8
- D: 15 13/16
Package Dimensions
- W: 42 33/64
- H: 31 57/64
- D: 19 1/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the wall: at least 2 inches
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 36,000 BTU 21 SEER2 230V King 13 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
Upgrades for Flareless Line Set (from 15 feet) In Pre Made Bundles
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Flareless Line set upgrade from 15' line set.
Condensers Wall Mounting Bracket 18k-36k
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers. Specifications and dimensions: 31x16x20 in. 300 lbs loading capacity Suitable for 9,000-36,000 BTU condensers Equipped with security...
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers.
Specifications and dimensions:
- 31x16x20 in.
- 300 lbs loading capacity
- Suitable for 9,000-36,000 BTU condensers
- Equipped with security clip
- Preassembled set
PVC Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Line set covers Specifications and dimensions: 13 ft length 3 inches width 2 head wall covers Extra white covers Cold resistance: -40°F Heat resistance: 140°F Lifespan exceeding 10 years
Condenser Ground Stand Brackets
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Specifications and dimensions: Length 35" x Width 18" x Height 11" Loading capacity 264 lbs
GWIN Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Des...
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection
Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Designed to conceal and protect refrigerant tubing, electrical wiring, and drain lines, this durable cover system enhances curb appeal while helping extend the life of your HVAC components. Ideal for residential or light commercial installations, both indoors and outdoors.
Key Features & Benefits
- Complete Installation Kit: Includes straight line-set channels, couplers, wall cover, end cap, and an adjustable elbow for a streamlined, finished look.
- Generous 4" x 14 ft. Coverage: Fits most standard mini-split line sets, electrical cables, and drain hoses with ample interior space for easy routing.
- Durable & Weather-Resistant Construction: Built from high-quality, UV-resistant material to help protect HVAC lines from sun exposure, moisture, debris, and environmental wear.
- Paintable for a Seamless Look: Clean white finish can be painted to match siding, brick, stucco, or interior walls for a custom appearance.
- Easy, Modular Installation: Snap-together design supports quick installation with minimal tools—great for HVAC professionals and DIY homeowners.
Why Choose GWIN?
GWIN accessories are designed to deliver professional-grade performance with clean aesthetics. This line set cover kit not only protects vital HVAC components, but also elevates the overall appearance of your installation so it blends seamlessly into any space.
Product Specifications
- Brand: GWIN
- Application: Mini-split systems, heat pumps, air conditioners
- Coverage Length: 14 ft
- Width: 4 inches
- Color: White (paintable)
- Material: Weather- and UV-resistant PVC
- Indoor / Outdoor Use: Yes
- Installation Type: Surface-mounted, modular snap-fit
Included in This Kit
- Straight line-set cover sections
- Couplers
- Adjustable elbow (90°–120°)
- Wall penetration cover
- End cap
Note: Paint before installation for best results. Verify measurements and routing requirements prior to mounting.
Condenser Pad
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
This condenser pad will fit all of the GWIN Condensers available. Why purchase an Condenser Pad? 1. Protects the unit from pest, insects and critters that may cause damage to the condenser. 2. Reduce vibration from t...
This condenser pad will fit all of the GWIN Condensers available.
Why purchase an Condenser Pad?
1. Protects the unit from pest, insects and critters that may cause damage to the condenser.
2. Reduce vibration from the AC against this pad so it does not hit against the ground. If a condenser is not placed on a support system like a pad, you risk damage being done each time the condenser vibrates against the ground.
Pros
- Unaffected by UV or weather
- Uniform rubbing transfers load evenly
- Lightweight, yet incredibly rugged
Material Type: Polypropylene
Disconnect Switch and Electrical Whip with #10 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
Disconnect Switch and Electrical Whip with #8 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
Choose your outdoor unit by total capacity and zone count. Every GWIN multi-zone condenser runs down to −22°F.
- Up to 2 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 18k 2 Zone Multi Zone Condenser The GWIN King 22 18k 2 Zone Multi Zone Condenser is a compact and efficient outdoor heat pump designed to power up to 2 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser al...
GWIN 22 Multi 18k 2 Zone Multi Zone Condenser
The GWIN King 22 18k 2 Zone Multi Zone Condenser is a compact and efficient outdoor heat pump designed to power up to 2 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser allows independent temperature control in multiple rooms while reducing installation complexity and equipment footprint.
With up to 22 SEER2 efficiency, this system delivers energy-conscious operation while maintaining consistent comfort across zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to two indoor air handlers to a single outdoor unit, making it ideal for homes, additions, or spaces where ductwork is not practical.
Key Features
- 18,000 BTU multi-zone condenser
- Supports up to 2 indoor units
- Up to 22 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Compact outdoor footprint
- Intelligent defrost
- Self-diagnosis
- Low ambient operation
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in a wide range of climates, supporting heating operation in low outdoor temperatures.
Ideal Applications
This 2-zone ductless mini-split condenser is ideal for homes, apartments, additions, garages, and offices where multiple rooms require independent comfort control.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI18HP230V1R32AO |
| Max Zones | 2 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 18,000 BTU/h |
| Rated Heating Capacity | 18,000 BTU/h |
| SEER2 | Up to 22 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 3 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 24k 3 Zone Multi Zone Condenser The GWIN King 22 24k 3 Zone Multi Zone Condenser is a powerful and efficient outdoor heat pump designed to power up to 3 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser a...
GWIN 22 Multi 24k 3 Zone Multi Zone Condenser
The GWIN King 22 24k 3 Zone Multi Zone Condenser is a powerful and efficient outdoor heat pump designed to power up to 3 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser allows independent temperature control in multiple rooms while reducing installation complexity and equipment footprint.
With up to 22 SEER2 efficiency, this system delivers energy-conscious operation while maintaining consistent comfort across zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to three indoor air handlers to a single outdoor unit, making it ideal for homes, additions, or spaces where ductwork is not practical.
Key Features
- 24,000 BTU multi-zone condenser
- Supports up to 3 indoor units
- Up to 22 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Compact outdoor footprint
- Intelligent defrost
- Self-diagnosis
- Low ambient operation
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in a wide range of climates, supporting heating operation in low outdoor temperatures.
Ideal Applications
This 3-zone ductless mini-split condenser is ideal for homes, apartments, additions, garages, and offices where multiple rooms require independent comfort control.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI24HP230V1R32AO |
| Max Zones | 3 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 24,000 BTU/h |
| Rated Heating Capacity | 24,000 BTU/h |
| SEER2 | Up to 22 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 4 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 30k 4 Zone Multi Zone Condenser The GWIN King 21 30k 4 Zone Multi Zone Condenser is a powerful and efficient outdoor heat pump designed to power up to 4 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser a...
GWIN 22 Multi 30k 4 Zone Multi Zone Condenser
The GWIN King 21 30k 4 Zone Multi Zone Condenser is a powerful and efficient outdoor heat pump designed to power up to 4 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser allows independent temperature control in multiple rooms while reducing installation complexity and equipment footprint.
With up to 21 SEER2 efficiency, this system delivers energy-conscious operation while maintaining consistent comfort across zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to four indoor air handlers to a single outdoor unit, making it ideal for homes, additions, or spaces where ductwork is not practical.
Key Features
- 30,000 BTU multi-zone condenser
- Supports up to 4 indoor units
- Up to 21 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Low ambient cooling down to -22°F
- Low ambient heating down to -22°F
- Blue Fin coated outdoor coil
- Intelligent defrost
- Self-diagnosis
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in a wide range of climates, supporting cooling operation from -22°F to 118°F and heating operation from -22°F to 75°F.
Ideal Applications
This 4-zone ductless mini-split condenser is ideal for homes, apartments, additions, garages, and offices where multiple rooms require independent comfort control.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI30HP230V1R32AO |
| Max Zones | 4 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling, One Way Cassette, Mini-Console |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 28,400 BTU/h |
| Rated Heating Capacity | 30,000 BTU/h |
| SEER2 | Up to 21 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 4 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 36k 4 Zone Multi Zone Condenser The GWIN King 22 36k 4 Zone Multi Zone Condenser is a compact and efficient outdoor heat pump designed to power up to 4 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser al...
GWIN 22 Multi 36k 4 Zone Multi Zone Condenser
The GWIN King 22 36k 4 Zone Multi Zone Condenser is a compact and efficient outdoor heat pump designed to power up to 4 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser allows independent temperature control in multiple rooms while reducing installation complexity and equipment footprint.
With up to 21 SEER2 efficiency, this system delivers energy-conscious operation while maintaining consistent comfort across zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to four indoor air handlers to a single outdoor unit, making it ideal for homes, additions, or spaces where ductwork is not practical.
Key Features
- 36,000 BTU multi-zone condenser
- Supports up to 4 indoor units
- Up to 21 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Compact outdoor footprint
- Intelligent defrost
- Self-diagnosis
- Low ambient operation
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in a wide range of climates, supporting heating operation in low outdoor temperatures.
Ideal Applications
This 4-zone ductless mini-split condenser is ideal for homes, apartments, additions, garages, and offices where multiple rooms require independent comfort control.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | MUL36HP230V1R32AO |
| Max Zones | 4 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 36,000 BTU/h |
| Rated Heating Capacity | 36,000 BTU/h |
| SEER2 | Up to 21 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 5 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 42k 5 Zone Multi Zone Condenser The GWIN King 21 42k 5 Zone Multi Zone Condenser is a high-capacity outdoor heat pump designed to power up to 5 indoor zones from a single system. Built for maximum flexibility and performance, this multi-zone ductless condenser al...
GWIN 22 Multi 42k 5 Zone Multi Zone Condenser
The GWIN King 21 42k 5 Zone Multi Zone Condenser is a high-capacity outdoor heat pump designed to power up to 5 indoor zones from a single system. Built for maximum flexibility and performance, this multi-zone ductless condenser allows independent temperature control across multiple rooms while minimizing installation complexity and outdoor equipment footprint.
With up to 21 SEER2 efficiency, this system delivers strong energy performance while maintaining consistent comfort across all connected zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to five indoor air handlers to a single outdoor unit, making it ideal for whole-home applications, additions, or properties where ductwork is not practical.
Key Features
- 42,000 BTU multi-zone condenser
- Supports up to 5 indoor units
- Up to 21 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Low ambient cooling down to -22°F
- Low ambient heating down to -22°F
- Blue Fin corrosion protection
- Intelligent defrost
- Self-diagnosis
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in extreme climates, operating in cooling from -22°F to 118°F and heating from -22°F to 75°F.
Ideal Applications
This 5-zone ductless mini-split condenser is ideal for whole-home applications, large residences, multi-room additions, offices, and properties requiring independent climate control across multiple spaces.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI42HP230V1R32AO |
| Max Zones | 5 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling, One Way Cassette, Mini-Console |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 42,000 BTU/h |
| Rated Heating Capacity | 42,000 BTU/h |
| SEER2 | Up to 21 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 5 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 48k 5 Zone Multi Zone Condenser The GWIN King 22 48k 5 Zone Multi Zone Condenser is a premium, high-capacity outdoor heat pump designed to power up to 5 indoor zones from a single system. Built for maximum flexibility and performance, this multi-zone ductless con...
GWIN 22 Multi 48k 5 Zone Multi Zone Condenser
The GWIN King 22 48k 5 Zone Multi Zone Condenser is a premium, high-capacity outdoor heat pump designed to power up to 5 indoor zones from a single system. Built for maximum flexibility and performance, this multi-zone ductless condenser delivers independent climate control across multiple rooms while minimizing installation complexity and outdoor equipment footprint.
With up to 21 SEER2 efficiency, this system provides strong energy performance while maintaining consistent comfort across all connected zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Whole-Home Comfort
This system allows you to connect up to five indoor air handlers to a single outdoor unit, making it ideal for whole-home applications, multi-room additions, and properties where ductwork is not practical.
Key Features
- 48,000 BTU multi-zone condenser
- Supports up to 5 indoor units
- Up to 21 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Low ambient cooling down to -22°F
- Low ambient heating down to -22°F
- Blue Fin corrosion protection
- Intelligent defrost
- Self-diagnosis
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is engineered for dependable performance in extreme climates, operating in cooling from -22°F to 118°F and heating from -22°F to 75°F.
Ideal Applications
This 5-zone ductless mini-split condenser is ideal for large homes, whole-home retrofits, multi-room additions, offices, and properties requiring independent climate control across multiple zones.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI48HP230V1R32AO |
| Max Zones | 5 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling, One Way Cassette, Mini-Console |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 48,000 BTU/h |
| Rated Heating Capacity | 48,000 BTU/h |
| SEER2 | Up to 21 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
single zones • Flareless line sets — cut to length • Mix King & Emperor indoor handlers
GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System is a high-efficiency heating a...
GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System
The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System is a high-efficiency heating and cooling solution designed for smaller rooms that demand premium comfort and outstanding energy performance. Ideal for bedrooms, offices, studios, and other compact spaces, this high efficiency ductless mini-split system offers dependable year-round climate control with a sleek wall-mounted design.
With an impressive 26 SEER2 rating, this 230V mini-split heat pump is built for homeowners looking to reduce energy use without giving up comfort. It uses R32 refrigerant for improved efficiency and lower environmental impact, and it includes a 15 foot line set and communication wire for a more complete installation package.
Premium Comfort for Smaller Spaces
This 9,000 BTU inverter mini-split system is engineered to provide precise temperature control while minimizing noise and energy waste. Whether you need cooling during summer heat or dependable heating during colder months, the Emperor Series helps create a more stable and comfortable indoor environment.
Key Features
- 9,000 BTU single zone ductless mini-split for targeted comfort
- 26 SEER2 efficiency for reduced energy consumption
- 230V operation for powerful and consistent performance
- Blue Fin technology on indoor and outdoor coils for improved durability
- Auto Clean function to help maintain cleaner internal components
- Dehumidification mode for enhanced indoor comfort
- I-Feel function for more personalized temperature control
- Self-diagnosis for easier troubleshooting
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for broad air distribution
- Quiet operation for a more comfortable living environment
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Low Voltage Startup
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Reliable Performance in Extreme Conditions
The Emperor Series is designed to perform through demanding weather conditions with a cooling range of 20°F to 122°F and a heating range of -22°F to 86°F. This makes it an excellent option for homeowners looking for a cold climate mini-split heat pump with strong efficiency and everyday comfort features.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 9,000 BTU Emperor indoor unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote-based comfort control features
Best Uses
This 9,000 BTU 230V ductless heating and cooling system is ideal for small bedrooms, office spaces, detached rooms, guest rooms, and similar areas where efficient performance, quiet operation, and modern design are top priorities.
System Information
| System Type | Heat Pump |
| Indoor Model | EMPR09HP230V1R32AH |
| Outdoor Model | EMPR09HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Specification | Value |
|---|---|
| Cooling Capacity (Min - Max) | 2,730 - 12,966 BTU/h |
| Rated Cooling Capacity @ 95°F | 9,100 BTU/h |
| Heating Capacity (Min - Max) | 2,388 - 15,013 BTU/h |
| Rated Heating Capacity @ 47°F | 10,500 BTU/h |
| Rated Heating Capacity @ 17°F | 8,800 BTU/h |
| Rated Heating Capacity @ 5°F | 9,500 BTU/h |
| SEER2 | 26.0 |
| EER2 | 15.0 |
| HSPF2 | 10.4 |
| COP @ 5°F | 1.88 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | EMPR09HP230V1R32AH |
| Air Flow (Min - Max) | 194 - 353 CFM |
| Sound Pressure Level (Min - Max) | 20 - 41 dB(A) |
| Dehumidification | 1.69 pt/hr |
| Unit Dimensions (W x H x D) | 32-31/64 x 11-17/32 x 7-23/32 in. |
| Package Dimensions (W x H x D) | 34-29/64 x 14-3/8 x 10-35/64 in. |
| Net Weight | 20.9 lbs |
| Gross Weight | 25.4 lbs |
Outdoor Unit Specifications
| Model | EMPR09HP230V1R32AO |
| Compressor Type | Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 70.6 lbs |
| Gross Weight | 76.1 lbs |
Refrigerant Piping
| Refrigerant Charge | 30 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 4.73 A |
| Rated Current - Heating | 6 A |
| MOCP | 15 A |
| MCA | 10 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Dimensions
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 32 31/64
- H: 11 17/32
- D: 7 23/32
Package Dimensions
- W: 34 29/64
- H: 14 3/8
- D: 10 35/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zone ...
GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a high-efficiency heating and cooling solution designed for smaller rooms that demand premium comfort and outstanding energy performance. Ideal for bedrooms, offices, studios, and other compact spaces, this high efficiency ductless mini-split system offers dependable year-round climate control with a sleek wall-mounted design.
With an impressive 26 SEER2 rating, this 230V mini-split heat pump is built for homeowners looking to reduce energy use without giving up comfort. It uses R32 refrigerant for improved efficiency and lower environmental impact, and it includes a 15 foot line set and communication wire for a more complete installation package.
Premium Comfort for Smaller Spaces
This 9,000 BTU inverter mini-split system is engineered to provide precise temperature control while minimizing noise and energy waste. Whether you need cooling during summer heat or dependable heating during colder months, the Emperor Series helps create a more stable and comfortable indoor environment.
Key Features
- 9,000 BTU single zone ductless mini-split for targeted comfort
- 26 SEER2 efficiency for reduced energy consumption
- 230V operation for powerful and consistent performance
- Blue Fin technology on indoor and outdoor coils for improved durability
- Dehumidification mode for enhanced indoor comfort
- I-Feel function for more personalized temperature control
- Self-diagnosis for easier troubleshooting
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for broad air distribution
- Quiet operation for a more comfortable living environment
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Reliable Performance in Extreme Conditions
The Emperor Series is designed to perform through demanding weather conditions with a cooling range of 20°F to 122°F and a heating range of -22°F to 86°F. This makes it an excellent option for homeowners looking for a cold climate mini-split heat pump with strong efficiency and everyday comfort features.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 9,000 BTU Emperor indoor unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote-based comfort control features
Best Uses
This 9,000 BTU 230V ductless heating and cooling system is ideal for small bedrooms, office spaces, detached rooms, guest rooms, and similar areas where efficient performance, quiet operation, and modern design are top priorities.
System Information
| System Type | Heat Pump |
| Indoor Model | GWIN09HP230V1R32AHC |
| Outdoor Model | EMPR09HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Specification | Value |
|---|---|
| Cooling Capacity (Min - Max) | 2,730 - 12,966 BTU/h |
| Rated Cooling Capacity @ 95°F | 9,100 BTU/h |
| Heating Capacity (Min - Max) | 2,388 - 15,013 BTU/h |
| Rated Heating Capacity @ 47°F | 10,500 BTU/h |
| Rated Heating Capacity @ 17°F | 8,800 BTU/h |
| Rated Heating Capacity @ 5°F | 9,500 BTU/h |
| SEER2 | 26.0 |
| EER2 | 15.0 |
| HSPF2 | 10.4 |
| COP @ 5°F | 1.88 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | GWIN09HP230V1R32AHC |
| Air Flow (Min - Max) | 200 - 324 CFM |
| Sound Pressure Level (Min - Max) | 31 - 37 dB(A) |
| Dehumidification | 1.69 pt/hr |
| Unit Dimensions (W x H x D) | 38-55/64 x 15-5/32 x 7-1/64 in. |
| Package Dimensions (W x H x D) | 51-29/64 x 19-23/32 x 12-13/64 in. |
| Net Weight | 41.9 lbs |
| Gross Weight | 57.3 lbs |
Cassette Grille (Required)
| Grille Dimensions | 47 1/4 x 18 7/64 x 2 11/64 in. |
|
Package Dimensions |
49 13/16 x 21 1/8 x 4 25/32 in. |
| Weight (Net/Gross) | 9.26 (Net) 13.23 (Gross) |
Outdoor Unit Specifications
| Model | EMPR09HP230V1R32AO |
| Compressor Type | Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 70.6 lbs |
| Gross Weight | 76.1 lbs |
Refrigerant Piping
| Refrigerant Charge | 30 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 4.73 A |
| Rated Current - Heating | 6 A |
| MOCP | 15 A |
| MCA | 10 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Dimensions
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 38-55/64
- H: 15-5/32
- D: 7-1/64
Package Dimensions
- W: 51-29/64
- H: 19-23/32
- D: 12-13/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire The GWIN 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-S...
GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire
The GWIN 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire is a high-efficiency heating and cooling solution designed for medium-sized rooms that demand premium comfort and strong energy performance. Ideal for bedrooms, offices, studios, living rooms, and other everyday spaces, this high efficiency ductless mini-split system offers dependable year-round climate control with a sleek wall-mounted design.
With a strong 24.5 SEER2 rating, this 230V mini-split heat pump is built for homeowners looking to reduce energy use without sacrificing comfort. It uses R32 refrigerant for improved efficiency and lower environmental impact, and it includes a 15 foot line set and communication wire for a more complete installation package.
Premium Comfort for Everyday Spaces
This 12,000 BTU inverter mini-split system is engineered to provide precise temperature control while minimizing noise and energy waste. Whether you need cooling during summer heat or dependable heating during colder months, the Emperor Series helps create a more stable and comfortable indoor environment.
Key Features
- 12,000 BTU single zone ductless mini-split for targeted comfort
- 24.5 SEER2 efficiency for reduced energy consumption
- 230V operation for powerful and consistent performance
- Blue Fin technology on indoor and outdoor coils for improved durability
- Auto Clean function to help maintain cleaner internal components
- Dehumidification mode for enhanced indoor comfort
- I-Feel function for more personalized temperature control
- Self-diagnosis for easier troubleshooting
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for broad air distribution
- Quiet operation for a more comfortable living environment
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Low Voltage Startup
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Reliable Performance in Extreme Conditions
The Emperor Series is designed to perform through demanding weather conditions with a cooling range of -20°F to 122°F and a heating range of -22°F to 86°F. This makes it an excellent option for homeowners looking for a cold climate mini-split heat pump with strong efficiency and everyday comfort features.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 12,000 BTU Emperor indoor unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote-based comfort control features
Best Uses
This 12,000 BTU 230V ductless heating and cooling system is ideal for bedrooms, office spaces, living rooms, additions, enclosed patios, and similar areas where efficient performance, quiet operation, and modern design are top priorities.
System Information
| System Type | Heat Pump |
| Indoor Model | EMPR12HP230V1R32AH |
| Outdoor Model | EMPR12HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Specification | Value |
|---|---|
| Cooling Capacity (Min - Max) | 2,729.6 - 15,012.8 BTU/h |
| Rated Cooling Capacity @ 95°F | 12,000 BTU/h |
| Heating Capacity (Min - Max) | 3,070.8 - 15,695.2 BTU/h |
| Rated Heating Capacity @ 47°F | 12,000 BTU/h |
| Rated Heating Capacity @ 17°F | 10,000 BTU/h |
| Rated Heating Capacity @ 5°F | 11,000 BTU/h |
| SEER2 | 24.5 |
| EER2 | 13.0 |
| HSPF2 | 9.5 |
| COP @ 5°F | 1.95 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | EMPR12HP230V1R32AH |
| Air Flow (Min - Max) | 230 - 400 CFM |
| Sound Pressure Level (Min - Max) | 20 - 43 dB(A) |
| Dehumidification | 2.96 pt/hr |
| Unit Dimensions (W x H x D) | 32-31/64 x 11-17/32 x 7-23/32 in. |
| Package Dimensions (W x H x D) | 34-29/64 x 14-3/8 x 10-35/64 in. |
| Net Weight | 20.9 lbs |
| Gross Weight | 25.4 lbs |
Outdoor Unit Specifications
| Model | EMPR12HP230V1R32AO |
| Compressor Type | Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 67.3 lbs |
| Gross Weight | 72.8 lbs |
Refrigerant Piping
| Refrigerant Charge | 28.2 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 1/2 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 6.64 A |
| Rated Current - Heating | 6.41 A |
| MOCP | 15 A |
| MCA | 10 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 32 31/64
- H: 11 17/32
- D: 7 23/32
Package Dimensions
- W: 34 29/64
- H: 14 3/8
- D: 10 35/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 12,000 BTU 24.5 SEER2 230V Emperor Single...
GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire is a high-efficiency heating and cooling solution designed for medium-sized rooms that demand premium comfort and strong energy performance. Ideal for bedrooms, offices, studios, living rooms, and other everyday spaces, this high efficiency ductless mini-split system offers dependable year-round climate control with a sleek wall-mounted design.
With a strong 24.5 SEER2 rating, this 230V mini-split heat pump is built for homeowners looking to reduce energy use without sacrificing comfort. It uses R32 refrigerant for improved efficiency and lower environmental impact, and it includes a 15 foot line set and communication wire for a more complete installation package.
Premium Comfort for Everyday Spaces
This 12,000 BTU inverter mini-split system is engineered to provide precise temperature control while minimizing noise and energy waste. Whether you need cooling during summer heat or dependable heating during colder months, the Emperor Series helps create a more stable and comfortable indoor environment.
Key Features
- 12,000 BTU single zone ductless mini-split for targeted comfort
- 24.5 SEER2 efficiency for reduced energy consumption
- 230V operation for powerful and consistent performance
- Blue Fin technology on indoor and outdoor coils for improved durability
- Dehumidification mode for enhanced indoor comfort
- I-Feel function for more personalized temperature control
- Self-diagnosis for easier troubleshooting
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for broad air distribution
- Quiet operation for a more comfortable living environment
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Reliable Performance in Extreme Conditions
The Emperor Series is designed to perform through demanding weather conditions with a cooling range of 20°F to 122°F and a heating range of -22°F to 86°F. This makes it an excellent option for homeowners looking for a cold climate mini-split heat pump with strong efficiency and everyday comfort features.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 12,000 BTU indoor unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote-based comfort control features
Best Uses
This 12,000 BTU 230V ductless heating and cooling system is ideal for small bedrooms, office spaces, detached rooms, guest rooms, and similar areas where efficient performance, quiet operation, and modern design are top priorities.
System Information
| System Type | Heat Pump |
| Indoor Model | GWIN12HP230V1R32AC |
| Outdoor Model | EMPR09HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Specification | Value |
|---|---|
| Cooling Capacity (Min - Max) | 2,730 - 12,966 BTU/h |
| Rated Cooling Capacity @ 95°F | 9,100 BTU/h |
| Heating Capacity (Min - Max) | 2,388 - 15,013 BTU/h |
| Rated Heating Capacity @ 47°F | 10,500 BTU/h |
| Rated Heating Capacity @ 17°F | 8,800 BTU/h |
| Rated Heating Capacity @ 5°F | 9,500 BTU/h |
| SEER2 | 26.0 |
| EER2 | 15.0 |
| HSPF2 | 10.4 |
| COP @ 5°F | 1.88 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | GWIN12HP230V1R32AC |
| Air Flow (Min - Max) | 230 - 353 CFM |
| Sound Pressure Level (Min - Max) | 34 - 41 dB(A) |
| Dehumidification | 2.69 pt/hr |
| Unit Dimensions (W x H x D) |
38 55/64 × 15 5/32 × 7 1/64 |
| Package Dimensions (W x H x D) |
51 29/64 × 19 23/32 × 12 13/64 |
| Net Weight | 41.9 lbs |
| Gross Weight | 57.3 lbs |
Cassette Grille (Required)
| Grille Dimensions |
47-1/4 × 18-7/64 × 2-11/64 in. |
|
Package Dimensions |
49-13/16 × 21-1/8 × 4-25/32 in. |
| Weight (Net/Gross) |
9.26 / 13.23 lbs |
Outdoor Unit Specifications
| Model | EMPR09HP230V1R32AO |
| Compressor Type | Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 70.6 lbs |
| Gross Weight | 76.1 lbs |
Refrigerant Piping
| Refrigerant Charge | 30 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 4.73 A |
| Rated Current - Heating | 6 A |
| MOCP | 15 A |
| MCA | 10 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Dimensions
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 38 55/64
- H: 15 5/32
- D: 7 1/64
Package Dimensions
- W: 51 29/64
- H: 19 23/32
- D: 12 13/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire The GWIN 18,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-S...
GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire
The GWIN 18,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire is a high-efficiency heating and cooling solution designed for larger single-zone spaces that demand premium comfort and strong energy performance. Ideal for living rooms, large bedrooms, offices, additions, studios, and other everyday spaces, this high efficiency ductless mini-split system offers dependable year-round climate control with a sleek wall-mounted design.
With a strong 24.5 SEER2 rating, this 230V mini-split heat pump is built for homeowners looking to reduce energy use without sacrificing comfort. It uses R32 refrigerant for improved efficiency and lower environmental impact, and it includes a 15 foot line set and communication wire for a more complete installation package.
Premium Comfort for Larger Spaces
This 18,000 BTU inverter mini-split system is engineered to provide precise temperature control while minimizing noise and energy waste. Whether you need cooling during summer heat or dependable heating during colder months, the Emperor Series helps create a more stable and comfortable indoor environment.
Key Features
- 18,000 BTU single zone ductless mini-split for targeted comfort
- 24.5 SEER2 efficiency for reduced energy consumption
- 230V operation for powerful and consistent performance
- Blue Fin technology on indoor and outdoor coils for improved durability
- Auto Clean function to help maintain cleaner internal components
- Dehumidification mode for enhanced indoor comfort
- I-Feel function for more personalized temperature control
- Self-diagnosis for easier troubleshooting
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for broad air distribution
- Quiet operation for a more comfortable living environment
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Low Voltage Startup
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Reliable Performance in Extreme Conditions
The Emperor Series is designed to perform through demanding weather conditions with a cooling range of -20°F to 122°F and a heating range of -22°F to 86°F. This makes it an excellent option for homeowners looking for a cold climate mini-split heat pump with strong efficiency and everyday comfort features.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 18,000 BTU Emperor indoor unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote-based comfort control features
Best Uses
This 18,000 BTU 230V ductless heating and cooling system is ideal for living rooms, large bedrooms, office spaces, additions, enclosed patios, and similar areas where efficient performance, quiet operation, and modern design are top priorities.
System Information
| System Type | Heat Pump |
| Indoor Model | EMPR18HP230V1R32AH |
| Outdoor Model | EMPR18HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Specification | Value |
|---|---|
| Cooling Capacity (Min - Max) | 5,118 - 22,178 BTU/h |
| Rated Cooling Capacity @ 95°F | 18,000 BTU/h |
| Heating Capacity (Min - Max) | 4,436 - 22,178 BTU/h |
| Rated Heating Capacity @ 47°F | 18,000 BTU/h |
| Rated Heating Capacity @ 17°F | 14,700 BTU/h |
| Rated Heating Capacity @ 5°F | 14,600 BTU/h |
| SEER2 | 24.5 |
| EER2 | 13.65 |
| HSPF2 | 9.0 |
| COP @ 5°F | 1.9 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | EMPR18HP230V1R32AH |
| Air Flow (Min - Max) | 324 - 589 CFM |
| Sound Pressure Level (Min - Max) | 27 - 48 dB(A) |
| Dehumidification | 3.80 pt/hr |
| Unit Dimensions (W x H x D) | 38-21/32 x 12-1/4 x 8-45/64 in. |
| Package Dimensions (W x H x D) | 41-7/64 x 15-5/32 x 11-11/16 in. |
| Net Weight | 28.7 lbs |
| Gross Weight | 34.2 lbs |
Outdoor Unit Specifications
| Model | EMPR18HP230V1R32AO |
| Compressor Type | Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 59 dB(A) |
| Unit Dimensions (W x H x D) | 37-23/32 x 25-63/64 x 15-53/64 in. |
| Package Dimensions (W x H x D) | 40-5/8 x 29-1/64 x 17-61/64 in. |
| Net Weight | 94.8 lbs |
| Gross Weight | 104.7 lbs |
Refrigerant Piping
| Refrigerant Charge | 40.6 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 1/2 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 131 ft |
| Max Pipe Elevation | 82 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 11.5 A |
| Rated Current - Heating | 11.5 A |
| MOCP | 20 A |
| MCA | 16 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 38 21/32
- H: 12 1/4
- D: 8 45/64
Package Dimensions
- W: 41 7/64
- H: 15 5/32
- D: 11 11/16
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 37 23/32
- H: 25 63/64
- D: 15 53/64
Package Dimensions
- W: 40 5/8
- H: 29 1/64
- D: 17 61/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zo...
GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split
The GWIN 18,000 BTU 20 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a powerful and efficient heating and cooling solution for larger bedrooms, living areas, offices, and open spaces. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system delivers inverter-driven performance in a sleek wall-mounted design.
With a 20 SEER2 rating, this 18,000 BTU mini-split heat pump helps reduce energy consumption while maintaining consistent indoor temperatures. It uses R32 refrigerant for enhanced efficiency and reduced environmental impact, and includes a 15 foot line set and communication wire for installation convenience.
Efficient Comfort for Larger Rooms
This King Series system is ideal for medium-to-large residential spaces and single-zone applications requiring higher capacity. Its inverter technology reduces cycling and maintains a more stable indoor climate.
Key Features
- 18,000 BTU single zone ductless mini-split for targeted comfort
- 24.5 SEER2 efficiency for reduced energy consumption
- 230V operation for powerful and consistent performance
- Blue Fin technology on indoor and outdoor coils for improved durability
- Dehumidification mode for enhanced indoor comfort
- I-Feel function for more personalized temperature control
- Self-diagnosis for easier troubleshooting
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for broad air distribution
- Quiet operation for a more comfortable living environment
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
-
Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Reliable Performance in Extreme Conditions
The Emperor Series is designed to perform through demanding weather conditions with a cooling range of 20°F to 122°F and a heating range of -22°F to 86°F. This makes it an excellent option for homeowners looking for a cold climate mini-split heat pump with strong efficiency and everyday comfort features.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 18,000 BTU indoor cassette unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote-based comfort control features
Best Uses
This 18,000 BTU 230V ductless heating and cooling system is ideal for small bedrooms, office spaces, detached rooms, guest rooms, and similar areas where efficient performance, quiet operation, and modern design are top priorities.
System Information
| System Type | Heat Pump |
| Indoor Model | GWIN20HP230V1R32AC |
| Outdoor Model | KING18HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Specification | Value |
|---|---|
| Cooling Capacity (Min - Max) | 3,753 - 20,300 BTU/h |
| Rated Cooling Capacity @ 95°F | 18,000 BTU/h |
| Heating Capacity (Min - Max) | 2,730 - 22,500 BTU/h |
| Rated Heating Capacity @ 47°F | 19,100 BTU/h |
| Rated Heating Capacity @ 17°F | 15,300 BTU/h |
| Rated Heating Capacity @ 5°F | 12,100 BTU/h |
| SEER2 | 20.0 |
| EER2 | 12.35 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.75 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | GWIN09HP230V1R32AHC |
| Air Flow (Min - Max) | 200 - 324 CFM |
| Sound Pressure Level (Min - Max) | 31 - 37 dB(A) |
| Dehumidification | 1.69 pt/hr |
| Unit Dimensions (W x H x D) | 38-55/64 x 15-5/32 x 7-1/64 in. |
| Package Dimensions (W x H x D) | 51-29/64 x 19-23/32 x 12-13/64 in. |
| Net Weight | 41.9 lbs |
| Gross Weight | 57.3 lbs |
Cassette Grille (Required)
| Grille Dimensions | 47 1/4 x 18 7/64 x 2 11/64 in. |
|
Package Dimensions |
49 13/16 x 21 1/8 x 4 25/32 in. |
| Weight (Net/Gross) | 9.26 (Net) 13.23 (Gross) |
Outdoor Unit Specifications
| Model | GWIN20HP230V1R32AC |
| Compressor Type | Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 70.6 lbs |
| Gross Weight | 76.1 lbs |
Refrigerant Piping
| Refrigerant Charge | 30 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 1/2 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 4.73 A |
| Rated Current - Heating | 6 A |
| MOCP | 15 A |
| MCA | 10 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Dimensions
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 38 55/64
- H: 15 5/32
- D: 7 1/64
Package Dimensions
- W: 51 29/64
- H: 19 23/32
- D: 12 13/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 24,000 BTU 26 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 24,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire The GWIN 24,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split...
GWIN Assisted DIY 24,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire
The GWIN 24,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire is a powerful, high-efficiency solution for larger spaces that need premium ductless heating and cooling. Designed for open living areas, large garages, workshops, offices, and other demanding single-zone applications, this 24,000 BTU mini-split heat pump system delivers strong year-round comfort with a sleek, modern appearance.
With an impressive 26 SEER2 rating, this high efficiency 230V ductless mini-split is built to help lower energy consumption while maintaining reliable performance. It uses R32 refrigerant for improved operating efficiency and reduced environmental impact, and it comes with a 15 foot line set and communication wire for a more complete installation package.
High-Capacity Comfort for Large Rooms
The Emperor Series is made for homeowners who want strong output, dependable heating and cooling, and advanced comfort technology. This 24,000 BTU single zone mini-split is ideal for spaces that need more coverage without sacrificing quiet operation or efficiency.
Key Features
- 24,000 BTU ductless mini-split system for large single-zone applications
- 26 SEER2 efficiency for high-performance energy savings
- 230V power for dependable operation
- Blue Fin technology on both indoor and outdoor units
- Auto Clean function for cleaner internal operation
- Dehumidification mode for humidity control
- I-Feel function for more personalized comfort
- Self Diagnosis support for easier maintenance awareness
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for more even air distribution
- Quiet performance for everyday comfort
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Low Voltage Startup
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Built for Year-Round Reliability
This Emperor model operates in a wide range of conditions with a cooling range of -20°F to 122°F and a heating range of -22°F to 86°F. That makes it a strong fit for homeowners looking for a 24,000 BTU cold weather mini-split heat pump with high efficiency and dependable seasonal performance.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 24,000 BTU Emperor indoor unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote comfort control features
Best Applications
This 24,000 BTU 230V single zone ductless mini-split system is ideal for living rooms, open-concept spaces, garages, workshops, additions, offices, and other larger areas where efficient heating and cooling are needed without traditional ductwork.
System Information
| System Type | Heat Pump |
| Indoor Model | EMPR24HP230V1R32AH |
| Outdoor Model | EMPR24HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Cooling Capacity (Min - Max) | 3,340 - 28,660 BTU/h |
| Rated Cooling Capacity @ 95°F | 22,000 BTU/h |
| Heating Capacity (Min - Max) | 3,300 - 31,390 BTU/h |
| Rated Heating Capacity @ 47°F | 24,000 BTU/h |
| Rated Heating Capacity @ 17°F | 20,000 BTU/h |
| Rated Heating Capacity @ 5°F | 16,000 BTU/h |
| SEER2 | 26.0 |
| EER2 | 13.65 |
| HSPF2 | 10.0 |
| COP @ 5°F | 1.8 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | EMPR24HP230V1R32AH |
| Air Flow (Min - Max) | 383 - 736 CFM |
| Sound Pressure Level (Min - Max) | 34 - 52 dB(A) |
| Dehumidification | 4.23 pt/hr |
| Unit Dimensions (W x H x D) | 42-21/64 x 13-7/64 x 9-11/16 in. |
| Package Dimensions (W x H x D) | 44-39/64 x 16-19/64 x 13-7/64 in. |
| Net Weight | 35.3 lbs |
| Gross Weight | 41.9 lbs |
Outdoor Unit Specifications
| Model | EMPR24HP230V1R32AO |
| Compressor Type | GREE G20 / Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 58 dB(A) |
| Unit Dimensions (W x H x D) | 37-23/32 x 25-63/64 x 15-53/64 in. |
| Package Dimensions (W x H x D) | 40-5/8 x 29-1/64 x 17-61/64 in. |
| Net Weight | 92.6 lbs |
| Gross Weight | 102.5 lbs |
Refrigerant Piping
| Refrigerant Charge | 42.3 oz |
| Additional Charge | 0.4 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 5/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 131 ft |
| Max Pipe Elevation | 82 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 13 A |
| Rated Current - Heating | 15.5 A |
| MOCP | 30 A |
| MCA | 22 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 42 21/64
- H: 13 7/64
- D: 9 11/16
Package Dimensions
- W: 44 39/64
- H: 16 19/64
- D: 13 7/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 37 23/32
- H: 25 63/64
- D: 15 53/64
Package Dimensions
- W: 40 5/8
- H: 29 1/64
- D: 17 61/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 24,000 BTU 26 SEER2 230V Emperor 22 Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
Upgrades for Flareless Line Set (from 15 feet) In Pre Made Bundles
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Flareless Line set upgrade from 15' line set.
Condensers Wall Mounting Bracket 18k-36k
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers. Specifications and dimensions: 31x16x20 in. 300 lbs loading capacity Suitable for 9,000-36,000 BTU condensers Equipped with security...
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers.
Specifications and dimensions:
- 31x16x20 in.
- 300 lbs loading capacity
- Suitable for 9,000-36,000 BTU condensers
- Equipped with security clip
- Preassembled set
PVC Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Line set covers Specifications and dimensions: 13 ft length 3 inches width 2 head wall covers Extra white covers Cold resistance: -40°F Heat resistance: 140°F Lifespan exceeding 10 years
Condenser Ground Stand Brackets
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Specifications and dimensions: Length 35" x Width 18" x Height 11" Loading capacity 264 lbs
GWIN Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Des...
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection
Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Designed to conceal and protect refrigerant tubing, electrical wiring, and drain lines, this durable cover system enhances curb appeal while helping extend the life of your HVAC components. Ideal for residential or light commercial installations, both indoors and outdoors.
Key Features & Benefits
- Complete Installation Kit: Includes straight line-set channels, couplers, wall cover, end cap, and an adjustable elbow for a streamlined, finished look.
- Generous 4" x 14 ft. Coverage: Fits most standard mini-split line sets, electrical cables, and drain hoses with ample interior space for easy routing.
- Durable & Weather-Resistant Construction: Built from high-quality, UV-resistant material to help protect HVAC lines from sun exposure, moisture, debris, and environmental wear.
- Paintable for a Seamless Look: Clean white finish can be painted to match siding, brick, stucco, or interior walls for a custom appearance.
- Easy, Modular Installation: Snap-together design supports quick installation with minimal tools—great for HVAC professionals and DIY homeowners.
Why Choose GWIN?
GWIN accessories are designed to deliver professional-grade performance with clean aesthetics. This line set cover kit not only protects vital HVAC components, but also elevates the overall appearance of your installation so it blends seamlessly into any space.
Product Specifications
- Brand: GWIN
- Application: Mini-split systems, heat pumps, air conditioners
- Coverage Length: 14 ft
- Width: 4 inches
- Color: White (paintable)
- Material: Weather- and UV-resistant PVC
- Indoor / Outdoor Use: Yes
- Installation Type: Surface-mounted, modular snap-fit
Included in This Kit
- Straight line-set cover sections
- Couplers
- Adjustable elbow (90°–120°)
- Wall penetration cover
- End cap
Note: Paint before installation for best results. Verify measurements and routing requirements prior to mounting.
Condenser Pad
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
This condenser pad will fit all of the GWIN Condensers available. Why purchase an Condenser Pad? 1. Protects the unit from pest, insects and critters that may cause damage to the condenser. 2. Reduce vibration from t...
This condenser pad will fit all of the GWIN Condensers available.
Why purchase an Condenser Pad?
1. Protects the unit from pest, insects and critters that may cause damage to the condenser.
2. Reduce vibration from the AC against this pad so it does not hit against the ground. If a condenser is not placed on a support system like a pad, you risk damage being done each time the condenser vibrates against the ground.
Pros
- Unaffected by UV or weather
- Uniform rubbing transfers load evenly
- Lightweight, yet incredibly rugged
Material Type: Polypropylene
Disconnect Switch and Electrical Whip with #10 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
Disconnect Switch and Electrical Whip with #8 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
single zones • Flareless line sets — cut to length • Mix King & Emperor indoor handlers
GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zone ...
GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a high-efficiency heating and cooling solution designed for smaller rooms that demand premium comfort and outstanding energy performance. Ideal for bedrooms, offices, studios, and other compact spaces, this high efficiency ductless mini-split system offers dependable year-round climate control with a sleek wall-mounted design.
With an impressive 26 SEER2 rating, this 230V mini-split heat pump is built for homeowners looking to reduce energy use without giving up comfort. It uses R32 refrigerant for improved efficiency and lower environmental impact, and it includes a 15 foot line set and communication wire for a more complete installation package.
Premium Comfort for Smaller Spaces
This 9,000 BTU inverter mini-split system is engineered to provide precise temperature control while minimizing noise and energy waste. Whether you need cooling during summer heat or dependable heating during colder months, the Emperor Series helps create a more stable and comfortable indoor environment.
Key Features
- 9,000 BTU single zone ductless mini-split for targeted comfort
- 26 SEER2 efficiency for reduced energy consumption
- 230V operation for powerful and consistent performance
- Blue Fin technology on indoor and outdoor coils for improved durability
- Dehumidification mode for enhanced indoor comfort
- I-Feel function for more personalized temperature control
- Self-diagnosis for easier troubleshooting
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for broad air distribution
- Quiet operation for a more comfortable living environment
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Reliable Performance in Extreme Conditions
The Emperor Series is designed to perform through demanding weather conditions with a cooling range of 20°F to 122°F and a heating range of -22°F to 86°F. This makes it an excellent option for homeowners looking for a cold climate mini-split heat pump with strong efficiency and everyday comfort features.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 9,000 BTU Emperor indoor unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote-based comfort control features
Best Uses
This 9,000 BTU 230V ductless heating and cooling system is ideal for small bedrooms, office spaces, detached rooms, guest rooms, and similar areas where efficient performance, quiet operation, and modern design are top priorities.
System Information
| System Type | Heat Pump |
| Indoor Model | GWIN09HP230V1R32AHC |
| Outdoor Model | EMPR09HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Specification | Value |
|---|---|
| Cooling Capacity (Min - Max) | 2,730 - 12,966 BTU/h |
| Rated Cooling Capacity @ 95°F | 9,100 BTU/h |
| Heating Capacity (Min - Max) | 2,388 - 15,013 BTU/h |
| Rated Heating Capacity @ 47°F | 10,500 BTU/h |
| Rated Heating Capacity @ 17°F | 8,800 BTU/h |
| Rated Heating Capacity @ 5°F | 9,500 BTU/h |
| SEER2 | 26.0 |
| EER2 | 15.0 |
| HSPF2 | 10.4 |
| COP @ 5°F | 1.88 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | GWIN09HP230V1R32AHC |
| Air Flow (Min - Max) | 200 - 324 CFM |
| Sound Pressure Level (Min - Max) | 31 - 37 dB(A) |
| Dehumidification | 1.69 pt/hr |
| Unit Dimensions (W x H x D) | 38-55/64 x 15-5/32 x 7-1/64 in. |
| Package Dimensions (W x H x D) | 51-29/64 x 19-23/32 x 12-13/64 in. |
| Net Weight | 41.9 lbs |
| Gross Weight | 57.3 lbs |
Cassette Grille (Required)
| Grille Dimensions | 47 1/4 x 18 7/64 x 2 11/64 in. |
|
Package Dimensions |
49 13/16 x 21 1/8 x 4 25/32 in. |
| Weight (Net/Gross) | 9.26 (Net) 13.23 (Gross) |
Outdoor Unit Specifications
| Model | EMPR09HP230V1R32AO |
| Compressor Type | Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 70.6 lbs |
| Gross Weight | 76.1 lbs |
Refrigerant Piping
| Refrigerant Charge | 30 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 4.73 A |
| Rated Current - Heating | 6 A |
| MOCP | 15 A |
| MCA | 10 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Dimensions
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 38-55/64
- H: 15-5/32
- D: 7-1/64
Package Dimensions
- W: 51-29/64
- H: 19-23/32
- D: 12-13/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 9,000 BTU 26 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 12,000 BTU 24.5 SEER2 230V Emperor Single...
GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 12,000 BTU 24.5 SEER2 230V Emperor Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set And Communication Wire is a high-efficiency heating and cooling solution designed for medium-sized rooms that demand premium comfort and strong energy performance. Ideal for bedrooms, offices, studios, living rooms, and other everyday spaces, this high efficiency ductless mini-split system offers dependable year-round climate control with a sleek wall-mounted design.
With a strong 24.5 SEER2 rating, this 230V mini-split heat pump is built for homeowners looking to reduce energy use without sacrificing comfort. It uses R32 refrigerant for improved efficiency and lower environmental impact, and it includes a 15 foot line set and communication wire for a more complete installation package.
Premium Comfort for Everyday Spaces
This 12,000 BTU inverter mini-split system is engineered to provide precise temperature control while minimizing noise and energy waste. Whether you need cooling during summer heat or dependable heating during colder months, the Emperor Series helps create a more stable and comfortable indoor environment.
Key Features
- 12,000 BTU single zone ductless mini-split for targeted comfort
- 24.5 SEER2 efficiency for reduced energy consumption
- 230V operation for powerful and consistent performance
- Blue Fin technology on indoor and outdoor coils for improved durability
- Dehumidification mode for enhanced indoor comfort
- I-Feel function for more personalized temperature control
- Self-diagnosis for easier troubleshooting
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for broad air distribution
- Quiet operation for a more comfortable living environment
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
- Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Reliable Performance in Extreme Conditions
The Emperor Series is designed to perform through demanding weather conditions with a cooling range of 20°F to 122°F and a heating range of -22°F to 86°F. This makes it an excellent option for homeowners looking for a cold climate mini-split heat pump with strong efficiency and everyday comfort features.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 12,000 BTU indoor unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote-based comfort control features
Best Uses
This 12,000 BTU 230V ductless heating and cooling system is ideal for small bedrooms, office spaces, detached rooms, guest rooms, and similar areas where efficient performance, quiet operation, and modern design are top priorities.
System Information
| System Type | Heat Pump |
| Indoor Model | GWIN12HP230V1R32AC |
| Outdoor Model | EMPR09HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Specification | Value |
|---|---|
| Cooling Capacity (Min - Max) | 2,730 - 12,966 BTU/h |
| Rated Cooling Capacity @ 95°F | 9,100 BTU/h |
| Heating Capacity (Min - Max) | 2,388 - 15,013 BTU/h |
| Rated Heating Capacity @ 47°F | 10,500 BTU/h |
| Rated Heating Capacity @ 17°F | 8,800 BTU/h |
| Rated Heating Capacity @ 5°F | 9,500 BTU/h |
| SEER2 | 26.0 |
| EER2 | 15.0 |
| HSPF2 | 10.4 |
| COP @ 5°F | 1.88 |
| Cooling Temperature Range | -20°F to 122°F |
| Heating Temperature Range | -22°F to 86°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | GWIN12HP230V1R32AC |
| Air Flow (Min - Max) | 230 - 353 CFM |
| Sound Pressure Level (Min - Max) | 34 - 41 dB(A) |
| Dehumidification | 2.69 pt/hr |
| Unit Dimensions (W x H x D) |
38 55/64 × 15 5/32 × 7 1/64 |
| Package Dimensions (W x H x D) |
51 29/64 × 19 23/32 × 12 13/64 |
| Net Weight | 41.9 lbs |
| Gross Weight | 57.3 lbs |
Cassette Grille (Required)
| Grille Dimensions |
47-1/4 × 18-7/64 × 2-11/64 in. |
|
Package Dimensions |
49-13/16 × 21-1/8 × 4-25/32 in. |
| Weight (Net/Gross) |
9.26 / 13.23 lbs |
Outdoor Unit Specifications
| Model | EMPR09HP230V1R32AO |
| Compressor Type | Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 70.6 lbs |
| Gross Weight | 76.1 lbs |
Refrigerant Piping
| Refrigerant Charge | 30 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 3/8 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 4.73 A |
| Rated Current - Heating | 6 A |
| MOCP | 15 A |
| MCA | 10 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Dimensions
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 38 55/64
- H: 15 5/32
- D: 7 1/64
Package Dimensions
- W: 51 29/64
- H: 19 23/32
- D: 12 13/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 12,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zo...
GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech
The GWIN 9,000 BTU 26 SEER2 230V Emperor Single Zone Ductless Mini-Split
The GWIN 18,000 BTU 20 SEER2 230V King Single Zone Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech is a powerful and efficient heating and cooling solution for larger bedrooms, living areas, offices, and open spaces. Designed for dependable comfort and easy everyday use, this 230V ductless mini-split system delivers inverter-driven performance in a sleek wall-mounted design.
With a 20 SEER2 rating, this 18,000 BTU mini-split heat pump helps reduce energy consumption while maintaining consistent indoor temperatures. It uses R32 refrigerant for enhanced efficiency and reduced environmental impact, and includes a 15 foot line set and communication wire for installation convenience.
Efficient Comfort for Larger Rooms
This King Series system is ideal for medium-to-large residential spaces and single-zone applications requiring higher capacity. Its inverter technology reduces cycling and maintains a more stable indoor climate.
Key Features
- 18,000 BTU single zone ductless mini-split for targeted comfort
- 24.5 SEER2 efficiency for reduced energy consumption
- 230V operation for powerful and consistent performance
- Blue Fin technology on indoor and outdoor coils for improved durability
- Dehumidification mode for enhanced indoor comfort
- I-Feel function for more personalized temperature control
- Self-diagnosis for easier troubleshooting
- Multiple fan speeds for customized airflow
- Automatic voltage adaptation and low voltage startup
- Swing louver control for broad air distribution
- Quiet operation for a more comfortable living environment
- Wi-Fi Included (Factory Installed)
- Low ambient cooling down to -20°F (range: -20°F to 122°F)
- Low ambient heating down to -22°F (range: -22°F to 86°F)
- Indoor and outdoor coil: Copper tube / aluminum fin
-
Blue fin - 500 hours salt spray tested
Other Features
- Basepan with Electric Heater
- Intelligent Defrosting
- Intelligent Preheating
- Memory / Power Failure Recovery
- Self Diagnosis
- No Auxiliary Electrical Heater
- No Ventilation (Outdoor Air)
Reliable Performance in Extreme Conditions
The Emperor Series is designed to perform through demanding weather conditions with a cooling range of 20°F to 122°F and a heating range of -22°F to 86°F. This makes it an excellent option for homeowners looking for a cold climate mini-split heat pump with strong efficiency and everyday comfort features.
Assisted DIY Installation Advantage
GWIN is built for homeowners and installers who want the freedom of a full Assisted DIY install with full warranty while still having expert support available from day one. This system is positioned as the first Assisted DIY system to come with a tech, giving buyers added confidence during installation and startup.
- Professional commercial grade compressors and control boards
- Flareless brassless connection approach
- Cut-to-length line set installation flexibility
- Comes with GWIN tech included — described as the first system to ever come with a tech *only to commission system
- No worries in your install with a GWIN Tech included
- Full Assisted DIY install with full warranty
Included in This Complete System
- GWIN 18,000 BTU indoor cassette unit
- Matching outdoor condenser
- 15 foot line set
- Communication wire
- Remote-based comfort control features
Best Uses
This 18,000 BTU 230V ductless heating and cooling system is ideal for small bedrooms, office spaces, detached rooms, guest rooms, and similar areas where efficient performance, quiet operation, and modern design are top priorities.
System Information
| System Type | Heat Pump |
| Indoor Model | GWIN20HP230V1R32AC |
| Outdoor Model | KING18HP230V1R32AO |
| Remote Controller | YBE1FBF |
| Optional Wired Controller | XE71 |
Performance Specifications
| Specification | Value |
|---|---|
| Cooling Capacity (Min - Max) | 3,753 - 20,300 BTU/h |
| Rated Cooling Capacity @ 95°F | 18,000 BTU/h |
| Heating Capacity (Min - Max) | 2,730 - 22,500 BTU/h |
| Rated Heating Capacity @ 47°F | 19,100 BTU/h |
| Rated Heating Capacity @ 17°F | 15,300 BTU/h |
| Rated Heating Capacity @ 5°F | 12,100 BTU/h |
| SEER2 | 20.0 |
| EER2 | 12.35 |
| HSPF2 | 8.5 |
| COP @ 5°F | 1.75 |
| Cooling Temperature Range | 0°F to 118°F |
| Heating Temperature Range | -13°F to 75°F |
| Refrigerant Type | R32 |
Indoor Unit Specifications
| Model | GWIN09HP230V1R32AHC |
| Air Flow (Min - Max) | 200 - 324 CFM |
| Sound Pressure Level (Min - Max) | 31 - 37 dB(A) |
| Dehumidification | 1.69 pt/hr |
| Unit Dimensions (W x H x D) | 38-55/64 x 15-5/32 x 7-1/64 in. |
| Package Dimensions (W x H x D) | 51-29/64 x 19-23/32 x 12-13/64 in. |
| Net Weight | 41.9 lbs |
| Gross Weight | 57.3 lbs |

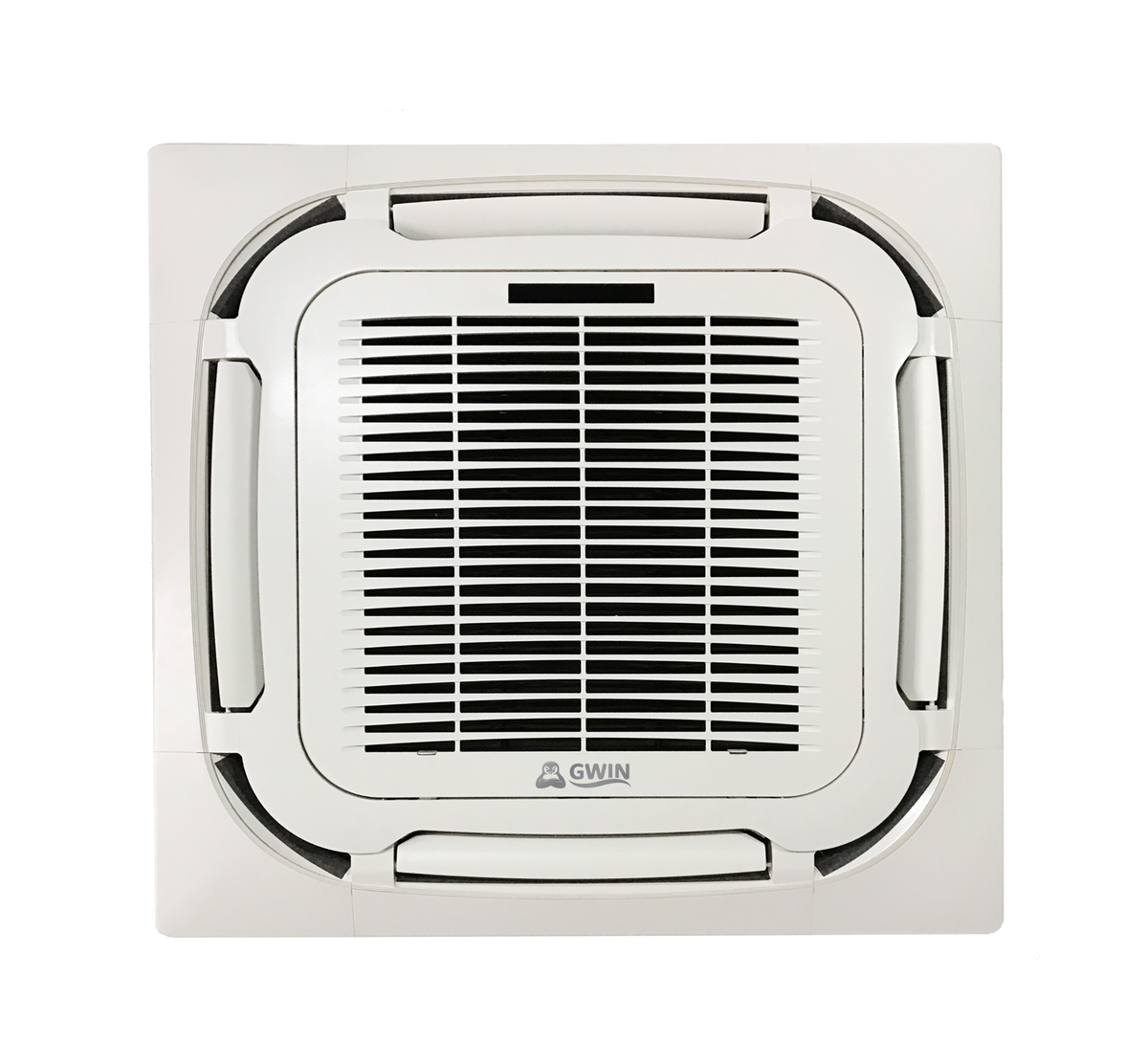

Cassette Grille (Required)
| Grille Dimensions | 47 1/4 x 18 7/64 x 2 11/64 in. |
|
Package Dimensions |
49 13/16 x 21 1/8 x 4 25/32 in. |
| Weight (Net/Gross) | 9.26 (Net) 13.23 (Gross) |
Outdoor Unit Specifications
| Model | GWIN20HP230V1R32AC |
| Compressor Type | Single Cylinder / 1-Stage Inverter |
| Sound Pressure Level | 52 dB(A) |
| Unit Dimensions (W x H x D) | 31-37/64 x 21-27/32 x 13-25/32 in. |
| Package Dimensions (W x H x D) | 34-21/64 x 24-13/32 x 15-43/64 in. |
| Net Weight | 70.6 lbs |
| Gross Weight | 76.1 lbs |
Refrigerant Piping
| Refrigerant Charge | 30 oz |
| Additional Charge | 0.2 oz/ft |
| Line Set Size (Liquid - Gas) | 1/4 - 1/2 in. |
| Pre-Charge Length | 25 ft |
| Pipe Length (Min - Max) | 10 - 66 ft |
| Max Pipe Elevation | 40 ft |
Electrical
| Power Supply | 208-230V / 1Ph / 60Hz (Powered by the Outdoor Unit) |
| Voltage Range | 187 - 253 VAC |
| Rated Current - Cooling | 4.73 A |
| Rated Current - Heating | 6 A |
| MOCP | 15 A |
| MCA | 10 A |
| Main Power Wire Size | Per Local Code |
| Interconnecting Wire Size | 14 / 4 AWG |
Remote Controller Functions
- Auto Clean
- Auto Mode
- Auto Fan
- Auto Swing (Horizontal Auto Swing)
- Auto Swing - 180° (Vertical Auto Swing)
- Clock
- Dry Mode
- Dry Anti-Mildew (X-Fan) Mode
- Energy Saving Mode
- Dirty Filter Alert
- Fan Speed Control
- I Feel Function
- Privacy Lock
- Quiet Mode
- Room Temperature Display
- Sleep Mode
- 3 Sleep Mode Options
- Timer Mode
- Turbo Mode
- Display On/Off Control
- Freeze Guard Mode
- Power Failure Mode
- Humidity Control
Dimensions
Indoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 38 55/64
- H: 15 5/32
- D: 7 1/64
Package Dimensions
- W: 51 29/64
- H: 19 23/32
- D: 12 13/64
Outdoor Unit Dimensions (Unit: inch)
External Dimensions
- W: 31 37/64
- H: 21 27/32
- D: 13 25/32
Package Dimensions
- W: 34 21/64
- H: 24 13/32
- D: 15 43/64
Minimum Clearance Requirements
Indoor Unit
- Space to the ceiling: at least 3 inches
- Space to the wall: at least 2 inches
- Space to the floor: at least 48 inches
- Space to the obstruction: at least 48 inches
Outdoor Unit
- Space to the obstruction (top): at least 12 inches
- Space to the obstruction (side): at least 6 inches
- Space to the wall: at least 6 inches
- Space to the obstruction (front): at least 24 inches
- Space to the obstruction (other side): at least 6 inches
Note: If the bottom of the unit is free of airflow obstructions similar to the mounting bracket figure, the clearance to the wall on the back can be reduced to 3 inches. Please consult submittal for image.
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 18,000 BTU 24.5 SEER2 230V Emperor 22 Single Zone Cassette Ductless Mini-Split Complete System with 15 Foot Line Set, Communication Wire, and GWIN Tech with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
Upgrades for Flareless Line Set (from 15 feet) In Pre Made Bundles
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Flareless Line set upgrade from 15' line set.
Condenser Pad
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
This condenser pad will fit all of the GWIN Condensers available. Why purchase an Condenser Pad? 1. Protects the unit from pest, insects and critters that may cause damage to the condenser. 2. Reduce vibration from t...
This condenser pad will fit all of the GWIN Condensers available.
Why purchase an Condenser Pad?
1. Protects the unit from pest, insects and critters that may cause damage to the condenser.
2. Reduce vibration from the AC against this pad so it does not hit against the ground. If a condenser is not placed on a support system like a pad, you risk damage being done each time the condenser vibrates against the ground.
Pros
- Unaffected by UV or weather
- Uniform rubbing transfers load evenly
- Lightweight, yet incredibly rugged
Material Type: Polypropylene
Condenser Ground Stand Brackets
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Specifications and dimensions: Length 35" x Width 18" x Height 11" Loading capacity 264 lbs
Condensers Wall Mounting Bracket 18k-36k
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers. Specifications and dimensions: 31x16x20 in. 300 lbs loading capacity Suitable for 9,000-36,000 BTU condensers Equipped with security...
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers.
Specifications and dimensions:
- 31x16x20 in.
- 300 lbs loading capacity
- Suitable for 9,000-36,000 BTU condensers
- Equipped with security clip
- Preassembled set
GWIN Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Des...
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection
Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Designed to conceal and protect refrigerant tubing, electrical wiring, and drain lines, this durable cover system enhances curb appeal while helping extend the life of your HVAC components. Ideal for residential or light commercial installations, both indoors and outdoors.
Key Features & Benefits
- Complete Installation Kit: Includes straight line-set channels, couplers, wall cover, end cap, and an adjustable elbow for a streamlined, finished look.
- Generous 4" x 14 ft. Coverage: Fits most standard mini-split line sets, electrical cables, and drain hoses with ample interior space for easy routing.
- Durable & Weather-Resistant Construction: Built from high-quality, UV-resistant material to help protect HVAC lines from sun exposure, moisture, debris, and environmental wear.
- Paintable for a Seamless Look: Clean white finish can be painted to match siding, brick, stucco, or interior walls for a custom appearance.
- Easy, Modular Installation: Snap-together design supports quick installation with minimal tools—great for HVAC professionals and DIY homeowners.
Why Choose GWIN?
GWIN accessories are designed to deliver professional-grade performance with clean aesthetics. This line set cover kit not only protects vital HVAC components, but also elevates the overall appearance of your installation so it blends seamlessly into any space.
Product Specifications
- Brand: GWIN
- Application: Mini-split systems, heat pumps, air conditioners
- Coverage Length: 14 ft
- Width: 4 inches
- Color: White (paintable)
- Material: Weather- and UV-resistant PVC
- Indoor / Outdoor Use: Yes
- Installation Type: Surface-mounted, modular snap-fit
Included in This Kit
- Straight line-set cover sections
- Couplers
- Adjustable elbow (90°–120°)
- Wall penetration cover
- End cap
Note: Paint before installation for best results. Verify measurements and routing requirements prior to mounting.
Disconnect Switch and Electrical Whip with #10 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
Disconnect Switch and Electrical Whip with #8 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
PVC Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Line set covers Specifications and dimensions: 13 ft length 3 inches width 2 head wall covers Extra white covers Cold resistance: -40°F Heat resistance: 140°F Lifespan exceeding 10 years
Choose your outdoor unit by total capacity and zone count. Every GWIN multi-zone condenser runs down to −22°F.
- Up to 2 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 18k 2 Zone Multi Zone Condenser The GWIN King 22 18k 2 Zone Multi Zone Condenser is a compact and efficient outdoor heat pump designed to power up to 2 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser al...
GWIN 22 Multi 18k 2 Zone Multi Zone Condenser
The GWIN King 22 18k 2 Zone Multi Zone Condenser is a compact and efficient outdoor heat pump designed to power up to 2 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser allows independent temperature control in multiple rooms while reducing installation complexity and equipment footprint.
With up to 22 SEER2 efficiency, this system delivers energy-conscious operation while maintaining consistent comfort across zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to two indoor air handlers to a single outdoor unit, making it ideal for homes, additions, or spaces where ductwork is not practical.
Key Features
- 18,000 BTU multi-zone condenser
- Supports up to 2 indoor units
- Up to 22 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Compact outdoor footprint
- Intelligent defrost
- Self-diagnosis
- Low ambient operation
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in a wide range of climates, supporting heating operation in low outdoor temperatures.
Ideal Applications
This 2-zone ductless mini-split condenser is ideal for homes, apartments, additions, garages, and offices where multiple rooms require independent comfort control.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI18HP230V1R32AO |
| Max Zones | 2 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 18,000 BTU/h |
| Rated Heating Capacity | 18,000 BTU/h |
| SEER2 | Up to 22 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 3 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 24k 3 Zone Multi Zone Condenser The GWIN King 22 24k 3 Zone Multi Zone Condenser is a powerful and efficient outdoor heat pump designed to power up to 3 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser a...
GWIN 22 Multi 24k 3 Zone Multi Zone Condenser
The GWIN King 22 24k 3 Zone Multi Zone Condenser is a powerful and efficient outdoor heat pump designed to power up to 3 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser allows independent temperature control in multiple rooms while reducing installation complexity and equipment footprint.
With up to 22 SEER2 efficiency, this system delivers energy-conscious operation while maintaining consistent comfort across zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to three indoor air handlers to a single outdoor unit, making it ideal for homes, additions, or spaces where ductwork is not practical.
Key Features
- 24,000 BTU multi-zone condenser
- Supports up to 3 indoor units
- Up to 22 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Compact outdoor footprint
- Intelligent defrost
- Self-diagnosis
- Low ambient operation
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in a wide range of climates, supporting heating operation in low outdoor temperatures.
Ideal Applications
This 3-zone ductless mini-split condenser is ideal for homes, apartments, additions, garages, and offices where multiple rooms require independent comfort control.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI24HP230V1R32AO |
| Max Zones | 3 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 24,000 BTU/h |
| Rated Heating Capacity | 24,000 BTU/h |
| SEER2 | Up to 22 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 4 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 30k 4 Zone Multi Zone Condenser The GWIN King 21 30k 4 Zone Multi Zone Condenser is a powerful and efficient outdoor heat pump designed to power up to 4 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser a...
GWIN 22 Multi 30k 4 Zone Multi Zone Condenser
The GWIN King 21 30k 4 Zone Multi Zone Condenser is a powerful and efficient outdoor heat pump designed to power up to 4 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser allows independent temperature control in multiple rooms while reducing installation complexity and equipment footprint.
With up to 21 SEER2 efficiency, this system delivers energy-conscious operation while maintaining consistent comfort across zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to four indoor air handlers to a single outdoor unit, making it ideal for homes, additions, or spaces where ductwork is not practical.
Key Features
- 30,000 BTU multi-zone condenser
- Supports up to 4 indoor units
- Up to 21 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Low ambient cooling down to -22°F
- Low ambient heating down to -22°F
- Blue Fin coated outdoor coil
- Intelligent defrost
- Self-diagnosis
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in a wide range of climates, supporting cooling operation from -22°F to 118°F and heating operation from -22°F to 75°F.
Ideal Applications
This 4-zone ductless mini-split condenser is ideal for homes, apartments, additions, garages, and offices where multiple rooms require independent comfort control.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI30HP230V1R32AO |
| Max Zones | 4 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling, One Way Cassette, Mini-Console |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 28,400 BTU/h |
| Rated Heating Capacity | 30,000 BTU/h |
| SEER2 | Up to 21 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 4 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 36k 4 Zone Multi Zone Condenser The GWIN King 22 36k 4 Zone Multi Zone Condenser is a compact and efficient outdoor heat pump designed to power up to 4 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser al...
GWIN 22 Multi 36k 4 Zone Multi Zone Condenser
The GWIN King 22 36k 4 Zone Multi Zone Condenser is a compact and efficient outdoor heat pump designed to power up to 4 indoor zones from a single system. Built for flexibility and performance, this multi-zone ductless condenser allows independent temperature control in multiple rooms while reducing installation complexity and equipment footprint.
With up to 21 SEER2 efficiency, this system delivers energy-conscious operation while maintaining consistent comfort across zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to four indoor air handlers to a single outdoor unit, making it ideal for homes, additions, or spaces where ductwork is not practical.
Key Features
- 36,000 BTU multi-zone condenser
- Supports up to 4 indoor units
- Up to 21 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Compact outdoor footprint
- Intelligent defrost
- Self-diagnosis
- Low ambient operation
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in a wide range of climates, supporting heating operation in low outdoor temperatures.
Ideal Applications
This 4-zone ductless mini-split condenser is ideal for homes, apartments, additions, garages, and offices where multiple rooms require independent comfort control.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | MUL36HP230V1R32AO |
| Max Zones | 4 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 36,000 BTU/h |
| Rated Heating Capacity | 36,000 BTU/h |
| SEER2 | Up to 21 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 5 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 42k 5 Zone Multi Zone Condenser The GWIN King 21 42k 5 Zone Multi Zone Condenser is a high-capacity outdoor heat pump designed to power up to 5 indoor zones from a single system. Built for maximum flexibility and performance, this multi-zone ductless condenser al...
GWIN 22 Multi 42k 5 Zone Multi Zone Condenser
The GWIN King 21 42k 5 Zone Multi Zone Condenser is a high-capacity outdoor heat pump designed to power up to 5 indoor zones from a single system. Built for maximum flexibility and performance, this multi-zone ductless condenser allows independent temperature control across multiple rooms while minimizing installation complexity and outdoor equipment footprint.
With up to 21 SEER2 efficiency, this system delivers strong energy performance while maintaining consistent comfort across all connected zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Multi-Zone Comfort
This system allows you to connect up to five indoor air handlers to a single outdoor unit, making it ideal for whole-home applications, additions, or properties where ductwork is not practical.
Key Features
- 42,000 BTU multi-zone condenser
- Supports up to 5 indoor units
- Up to 21 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Low ambient cooling down to -22°F
- Low ambient heating down to -22°F
- Blue Fin corrosion protection
- Intelligent defrost
- Self-diagnosis
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is designed for dependable performance in extreme climates, operating in cooling from -22°F to 118°F and heating from -22°F to 75°F.
Ideal Applications
This 5-zone ductless mini-split condenser is ideal for whole-home applications, large residences, multi-room additions, offices, and properties requiring independent climate control across multiple spaces.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI42HP230V1R32AO |
| Max Zones | 5 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling, One Way Cassette, Mini-Console |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 42,000 BTU/h |
| Rated Heating Capacity | 42,000 BTU/h |
| SEER2 | Up to 21 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
- Up to 5 independent zones
- 230V single phase
- Heating to −22°F
- 22 SEER2 efficiency
- Outdoor condenser only
- All GWIN™ guarantees
GWIN 22 Multi 48k 5 Zone Multi Zone Condenser The GWIN King 22 48k 5 Zone Multi Zone Condenser is a premium, high-capacity outdoor heat pump designed to power up to 5 indoor zones from a single system. Built for maximum flexibility and performance, this multi-zone ductless con...
GWIN 22 Multi 48k 5 Zone Multi Zone Condenser
The GWIN King 22 48k 5 Zone Multi Zone Condenser is a premium, high-capacity outdoor heat pump designed to power up to 5 indoor zones from a single system. Built for maximum flexibility and performance, this multi-zone ductless condenser delivers independent climate control across multiple rooms while minimizing installation complexity and outdoor equipment footprint.
With up to 21 SEER2 efficiency, this system provides strong energy performance while maintaining consistent comfort across all connected zones. It utilizes R32 refrigerant for improved efficiency and reduced environmental impact.
GWIN Tech Included — Installation with Confidence Built in
Unlike traditional systems, this condenser includes GWIN Tech - first of its kind, giving you access to expert assistance during commission start up. This means you’re not commissioning blindly — you have professional-level reviewal available to help ensure your system is configured correctly and running at peak performance.
- Expert commissioning included
- Confidence for Assisted DIY install and professional commission
- Reduces installation errors and callbacks
- Helps ensure optimal system performance from day one
Flexible Whole-Home Comfort
This system allows you to connect up to five indoor air handlers to a single outdoor unit, making it ideal for whole-home applications, multi-room additions, and properties where ductwork is not practical.
Key Features
- 48,000 BTU multi-zone condenser
- Supports up to 5 indoor units
- Up to 21 SEER2 efficiency
- R32 refrigerant
- Independent zone temperature control
- Inverter-driven compressor
- Low ambient cooling down to -22°F
- Low ambient heating down to -22°F
- Blue Fin corrosion protection
- Intelligent defrost
- Self-diagnosis
- Quiet operation
- GWIN Tech included for commissioning and support
Reliable Cold Weather Performance
This system is engineered for dependable performance in extreme climates, operating in cooling from -22°F to 118°F and heating from -22°F to 75°F.
Ideal Applications
This 5-zone ductless mini-split condenser is ideal for large homes, whole-home retrofits, multi-room additions, offices, and properties requiring independent climate control across multiple zones.
System Information
| System Type | Multi-Zone Heat Pump |
| Outdoor Model | GMULTI48HP230V1R32AO |
| Max Zones | 5 Zones |
| Compatible Indoor Units | Wall Mount, Cassette, Ducted, Floor/Ceiling, One Way Cassette, Mini-Console |
| Installation Support | GWIN Tech Included |
Performance Specifications
| Rated Cooling Capacity | 48,000 BTU/h |
| Rated Heating Capacity | 48,000 BTU/h |
| SEER2 | Up to 21 |
*GWIN Tech only covers commissioning of system, not install or incorrectly installed systems.
single zones • Flareless line sets — cut to length • Mix King & Emperor indoor handlers
GWIN Assisted DIY 9,000 BTU 25 SEER2 115V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAMAR09HP115V1ECS Experience superior climate control with the GWIN Assisted DIY 9,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort feature...
Description GAMAR09HP115V1ECS
Experience superior climate control with the GWIN Assisted DIY 9,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features on standard 115V power.
-
One Room, Perfect Comfort: Heat or cool spaces up to 400 sq. ft. with independent temperature control and micro-vent soft airflow for personalized comfort in bedrooms, home offices, and small living spaces.
-
Assisted DIY Done Right: Until GWIN came along, DIY was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality. Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
-
Exceptional Reliability: Golden Fin Coils resist corrosion and oxidation; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -13°F to 125°F with automatic base pan heater to reduce ice buildup. Tolerates wide voltage fluctuation (80V–140V) for unstable grid conditions.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills—all on standard 115V household power with no special electrical work required.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 80-140V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
9K: 400 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 1 | | Capacity | 9,200 BTU (Rated); Range: 1,700–13,000 BTU | | SEER2 Rating | 25 | | HSPF2 Rating | 10.5 | | Voltage | 115V, 1-Phase, 60Hz | | Line Sets Included | 1 x 15 ft Line Set + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (9K) x 1
| Model | GAMAR09HP115V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,200 BTU/h | | Heating Capacity | 11,900 BTU/h @ 17°F | | Airflow (CFM) | Cool: 355/315/282/255/180; Heat: 355/315/282/255/180 | | Sound Level | Cool: 41/36/34/31/26 dB(A); Heat: 41/36/33/29 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8"; Drain: 5/8" | | Weight | 26.45 lbs |
OUTDOOR UNIT (9K) x 1
| Model | GAMAR09HP115V1EO | | Dimensions | 28.35"W x 24.41"H x 9.45"D | | Cooling Capacity | 9,200 BTU/h | | Heating Capacity | 11,900 BTU/h @ 47°F | | Voltage | 115V, 1-Phase, 60Hz | | Power Input | 750 W @ 47°F | | Breaker/MCA/MOCP | 25A / 20A / 25A | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Outdoor Noise | 53 dB(A) | | Certifications | Tested for wide voltage fluctuation (80V–140V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 9,000 BTU 25 SEER2 115V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 9,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAMAR09HP230V1ECS Experience superior climate control with the GWIN Assisted DIY 9,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort feature...
Description GAMAR09HP230V1ECS
Experience superior climate control with the GWIN Assisted DIY 9,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features on standard 230V power.
-
One Room, Perfect Comfort: Heat or cool spaces up to 400 sq. ft. with independent temperature control and micro-vent soft airflow for personalized comfort in bedrooms, offices, and small living spaces.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality. Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
-
Exceptional Reliability: Golden Fin Coils resist corrosion and oxidation; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -13°F to 125°F with automatic base pan heater to reduce ice buildup. Tolerates wide voltage fluctuation (165V–265V) for unstable grid conditions.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
9K: 400 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 1 | | Capacity | 9,200 BTU (Rated); Range: 1,700–13,000 BTU | | SEER2 Rating | 25 | | HSPF2 Rating | 10.5 | | Voltage | 208–230V, 1-Phase, 60 Hz | | Line Sets Included | 1 x 15 ft Line Set + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (9K) x 1
| Model | GAMAR09HP230V1EH | | Dimensions | 30.47"W x 8.43"H x 11.48"D | | Mounting Type | Wall | | Cooling Capacity | 9,200 BTU/h | | Heating Capacity | 10,000 BTU/h @ 47°F; 11,900 BTU/h @ 17°F | | Airflow (CFM) | Cool: 355/315/282/255/180; Heat: 355/315/282/255/180 | | Sound Level | Cool: 41/36/34/31/26 dB(A); Heat: 41/36/33/29 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8"; Drain: 5/8" | | Weight | 26.45 lbs |
OUTDOOR UNIT (9K) x 1
| Model | GAMAR09HP230V1EO | | Cooling Capacity | 9,200 BTU/h | | Heating Capacity | 10,000 BTU/h @ 47°F; 11,900 BTU/h @ 17°F; 9,500 BTU/h @ 5°F; 7,000 BTU/h @ -5°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Power Input | 675 W (Cooling); 750 W (Heating @ 47°F) | | Breaker/MCA/MOCP | 15A / 15A / 15A | | Outdoor Sound | 53 dB(A) | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 9,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 12,000 BTU 25 SEER2 115V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAMAR12HP115V1ECS Experience superior climate control with the GWIN Assisted DIY 12,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort featur...
Description GAMAR12HP115V1ECS
Experience superior climate control with the GWIN Assisted DIY 12,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features on standard 115V power.
-
One Room, Perfect Comfort: Heat or cool spaces up to 550 sq. ft. with independent temperature control and micro-vent soft airflow for personalized comfort in bedrooms, offices, studios, and small living spaces.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality. Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
-
Exceptional Reliability: Golden Fin Coils resist corrosion and oxidation; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -13°F to 125°F with automatic base pan heater to reduce ice buildup. Tolerates wide voltage fluctuation (80V–140V) for unstable grid conditions.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills—all on standard 115V household power with no special electrical work required.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 80–140V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
12K: 550 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 1 | | Capacity | 12,000 BTU (Rated); Range: 1,700–13,400 BTU (Cooling); 1,700–16,000 BTU (Heating) | | SEER2 Rating | 25 | | HSPF2 Rating | 10.5 | | Voltage | 115V, 1-Phase, 60 Hz | | Line Sets Included | 1 x 15 ft Line Set + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (12K) x 1
| Model | GAMAR12HP115V1EH | | Dimensions | 32.8"W x 8.4"H x 11.8"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,300 BTU/h @ 47°F; 12,400 BTU/h @ 17°F | | Airflow (CFM) | Cool: 380/330/302/273/193; Heat: 380/330/302/273/193 | | Sound Level | Cool: 43/40/36/33/27 dB(A); Heat: 43/40/36/33 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8"; Drain: 5/8" | | Weight | 18.8 lbs |
OUTDOOR UNIT (12K) x 1
| Model | GAMAR12HP115V1EO | | Dimensions | 34.6"W x 21.9"H x 13.9"D | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,300 BTU/h @ 47°F; 12,400 BTU/h @ 17°F; 9,600 BTU/h @ 5°F; 7,200 BTU/h @ -5°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 115V, 1-Phase, 60 Hz | | Power Input | 1,000 W (Cooling); 900 W (Heating @ 47°F) | | Breaker/MCA/MOCP | 25A / 20A / 25A | | Outdoor Sound | 53 dB(A) | | Certifications | Tested for wide voltage fluctuation (80V–140V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 12,000 BTU 25 SEER2 115V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 12,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAMAR12HP230V1ECS Experience superior climate control with the GWIN Assisted DIY 12,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort featur...
Description GAMAR12HP230V1ECS
Experience superior climate control with the GWIN Assisted DIY 12,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features on standard 230V power.
-
One Room, Perfect Comfort: Heat or cool spaces up to 550 sq. ft. with independent temperature control and micro-vent soft airflow for personalized comfort in bedrooms, offices, studios, and small living spaces.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality. Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
-
Exceptional Reliability: Golden Fin Coils resist corrosion and oxidation; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -13°F to 125°F with automatic base pan heater to reduce ice buildup. Tolerates wide voltage fluctuation (165V–265V) for unstable grid conditions.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
12K: 550 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 1 | | Capacity | 12,000 BTU (Rated); Range: 1,700–13,400 BTU (Cooling); 1,700–16,000 BTU (Heating) | | SEER2 Rating | 25 | | HSPF2 Rating | 10.5 | | Voltage | 208–230V, 1-Phase, 60 Hz | | Line Sets Included | 1 x 15 ft Line Set + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (12K) x 1
| Model | GAMAR12HP230V1EH | | Dimensions | 32.8"W x 8.4"H x 11.8"D | | Mounting Type | Wall | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,300 BTU/h @ 47°F; 12,400 BTU/h @ 17°F | | Airflow (CFM) | Cool: 380/330/302/273/193; Heat: 380/330/302/273/193 | | Sound Level | Cool: 43/40/36/33/27 dB(A); Heat: 43/40/36/33 dB(A) | | Liquid Line | 1/4"; Gas Line: 3/8"; Drain: 5/8" | | Weight | 18.8 lbs |
OUTDOOR UNIT (12K) x 1
| Model | GAMAR12HP230V1EO | | Dimensions | 34.6"W x 21.9"H x 13.9"D | | Cooling Capacity | 12,000 BTU/h | | Heating Capacity | 12,300 BTU/h @ 47°F; 12,400 BTU/h @ 17°F; 9,700 BTU/h @ 5°F; 7,200 BTU/h @ -5°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Power Input | 990 W (Cooling); 936 W (Heating @ 47°F) | | Breaker/MCA/MOCP | 15A / 9A / 15A | | Outdoor Sound | 53 dB(A) | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 12,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 18,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAMAR18HP230V1ECS Experience superior climate control with the GWIN Assisted DIY 18,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort featur...
Description GAMAR18HP230V1ECS
Experience superior climate control with the GWIN Assisted DIY 18,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features for medium-size rooms.
-
One Room, Perfect Comfort: Heat or cool spaces up to 800 sq. ft. with independent temperature control and micro-vent soft airflow for personalized comfort in larger bedrooms, living rooms, and open spaces.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality. Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
-
Exceptional Reliability: Golden Fin Coils resist corrosion and oxidation; Three-Proof outdoor PCB design reduces failure rates with UV protection.
-
All-Season Performance: Reliable operation from -13°F to 125°F with automatic base pan heater to reduce ice buildup. Tolerates wide voltage fluctuation (165V–265V) for unstable grid conditions.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort. *depending on system
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
18K: 800 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 1 | | Capacity | 18,000 BTU (Rated); Range: 2,900–22,000 BTU (Cooling); 4,400–24,500 BTU (Heating) | | SEER2 Rating | 25 | | HSPF2 Rating | 10.5 | | Voltage | 208–230V, 1-Phase, 60 Hz | | Line Sets Included | 1 x 15 ft Line Set + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (18K) x 1
| Model | GAMAR18HP230V1CE | | Dimensions | 45.1"W x 9.6"H x 13.2"D | | Mounting Type | Wall | | Cooling Capacity | 18,000 BTU/h | | Heating Capacity | 18,200 BTU/h @ 47°F; 17,800 BTU/h @ 17°F | | Airflow (CFM) | Cool: 735/652/574/497/331; Heat: 735/652/574/497/331 | | Sound Level | Cool: 50/46/43/38/31 dB(A); Heat: 49/45/42/37 dB(A) | | Liquid Line | 1/4"; Gas Line: 1/2"; Drain: 5/8" | | Weight | 28.7 lbs |
OUTDOOR UNIT (18K) x 1
| Model | GAMAR18HP230V1EO | | Dimensions | 38.6"W x 27.6"H x 15.3"D | | Cooling Capacity | 18,000 BTU/h | | Heating Capacity | 18,200 BTU/h @ 47°F; 17,800 BTU/h @ 17°F; 15,500 BTU/h @ 5°F; 12,000 BTU/h @ -5°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Power Input | 1,286 W (Cooling); 1,270 W (Heating @ 47°F) | | Breaker/MCA/MOCP | 20A / 15A / 20A | | Outdoor Sound | 55 dB(A) (Cooling); 57 dB(A) (Heating) | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 18,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 24,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAMAR24HP230V1ECS Experience superior climate control with the GWIN Assisted DIY 24,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort featur...
Description GAMAR24HP230V1ECS
Experience superior climate control with the GWIN Assisted DIY 24,000 BTU 25 SEER2 Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features for larger spaces.
-
One Room, Perfect Comfort: Heat or cool spaces up to 1,050 sq. ft. with independent temperature control and micro-vent soft airflow for personalized comfort in large bedrooms, living rooms, studios, and offices.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality. Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
-
Exceptional Reliability: Golden Fin Coils resist corrosion and oxidation; Three-Proof outdoor PCB design with UV-adhesive cover reduces failure rates and maintenance needs.
-
All-Season Performance: Reliable operation from -13°F to 125°F with automatic base pan heater to reduce ice buildup. Tolerates wide voltage fluctuation (165V–265V) for unstable grid conditions.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills—engineered for demanding applications with generous line-set allowances for complex installations.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
24K: 1,050 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 1 | | Capacity | 22,500 BTU (Rated); Range: 4,300–28,500 BTU (Cooling); 5,300–31,000 BTU (Heating) | | SEER2 Rating | 25 | | HSPF2 Rating | 10.5 | | Voltage | 208–230V, 1-Phase, 60 Hz | | Line Sets Included | 1 x 15 ft Line Set + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (24K) x 1
| Model | GAMAR24HP230V1EH | | Dimensions | 48.7"W x 10.1"H x 14.1"D | | Mounting Type | Wall | | Cooling Capacity | 22,500 BTU/h | | Heating Capacity | 24,000 BTU/h @ 47°F; 22,400 BTU/h @ 17°F | | Airflow (CFM) | Cool: 940/833/742/636; Heat: 940/833/742/636 | | Sound Level | Cool: 51/48/44/39/34 dB(A); Heat: 50/48/43/39 dB(A) | | Liquid Line | 1/4"; Gas Line: 5/8"; Drain: 5/8" | | Weight | 35.3 lbs |
OUTDOOR UNIT (24K) x 1
| Model | GAMAR24HP230V1EO | | Dimensions | 38.6"W x 27.6"H x 15.3"D | | Cooling Capacity | 22,500 BTU/h | | Heating Capacity | 24,000 BTU/h @ 47°F; 22,400 BTU/h @ 17°F; 21,500 BTU/h @ 5°F; 14,300 BTU/h @ -5°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Power Input | 1,610 W (Cooling); 1,750 W (Heating @ 47°F) | | Breaker/MCA/MOCP | 25A / 15A / 25A | | Outdoor Sound | 59 dB(A) | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 24,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
GWIN Assisted DIY 36,000 BTU 20 SEER 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAJAN36HP230V1ECS Experience superior climate control with the GWIN Assisted DIY 36,000 BTU 20 SEER Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort feature...
Description GAJAN36HP230V1ECS
Experience superior climate control with the GWIN Assisted DIY 36,000 BTU 20 SEER Single-Zone Ductless Mini-Split System - engineered for reliable performance and advanced comfort features for large spaces and demanding applications.
-
One Room, Perfect Comfort: Heat or cool spaces up to 1,400 sq. ft. with independent temperature control and precision airflow for personalized comfort in master bedrooms, large living rooms, studios, and commercial offices.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Self-Cleaning Technology: Advanced sterilization system reaches 134°F to eliminate bacteria, viruses, dust mites, and pollen for superior air quality. Precision airflow delivery ensures consistent comfort throughout large spaces.
-
Exceptional Reliability: Golden Fin Coils resist corrosion and oxidation; Three-Proof outdoor PCB design with UV-adhesive cover reduces failure rates and maintenance needs.
-
All-Season Performance: Reliable operation from -13°F to 125°F with automatic base pan heater to reduce ice buildup. Tolerates wide voltage fluctuation (165V–265V) for unstable grid conditions.
-
Smart Connectivity: Built-in Wi-Fi control and offline voice commands for convenient operation from anywhere.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, Golden Fin durability, and intelligent features for year-round comfort and lower energy bills—engineered for demanding applications with generous line-set allowances and single-technician installation support.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Outdoor Unit Operation: Reliable performance from -13°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 125–265V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: 8-foot ceilings and good insulation
36K: 1,400 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ductless Mini Split Air Conditioner & Heat Pump | | Zones | 1 | | Capacity | 33,600 BTU (Rated); Range: 7,500–35,500 BTU (Cooling); 8,300–42,000 BTU (Heating) | | SEER2 Rating | 20 | | HSPF2 Rating | 8.5 (Region IV) | | Voltage | 208–230V, 1-Phase, 60 Hz | | Line Sets Included | 1 x 15 ft Line Set + Communication Wire | | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (36K) x 1
| Model | GAJAN36HP230V1EH | | Dimensions | 48.7"W x 13.9"H x 14.1"D | | Mounting Type | Wall | | Cooling Capacity | 33,600 BTU/h | | Heating Capacity | 34,000 BTU/h @ 47°F; 24,400 BTU/h @ 17°F | | Airflow (CFM) | Cool: 940/833/742/636; Heat: 940/833/742/636 | | Sound Level | Cool: 51/48/44/39/34 dB(A); Heat: 50/48/43/39 dB(A) | | Liquid Line | 1/4"; Gas Line: 5/8"; Drain: 5/8" | | Weight | 35.3 lbs |
OUTDOOR UNIT (36K) x 1
| Model | GAJAN36HP230V1EO | | Dimensions | 38.6"W x 30"H x 15.3"D | | Cooling Capacity | 33,600 BTU/h | | Heating Capacity | 34,000 BTU/h @ 47°F; 24,400 BTU/h @ 17°F; 23,800 BTU/h @ 5°F; 17,000 BTU/h @ -5°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Power Input | 3,320 W (Cooling); 3,000 W (Heating @ 47°F) | | Breaker/MCA/MOCP | 35A / 20A / 35A | | Outdoor Sound | 59 dB(A) | | Certifications | Tested for wide voltage fluctuation (165V–265V) |
The Evolution of DIY Mini Splits
GWIN™ Assisted DIY™
Most DIY mini splits still leave the hardest parts up to you — pressure testing, vacuuming the system, handling refrigerant, or finding your own tech, and even dealing with bulky pre-charged line sets. GWIN™ HVAC changes all of that with Assisted DIY™. The GWIN Assisted DIY 36,000 BTU 20 SEER 230V Single Zone Ductless Mini-Split Complete System With 15 Foot Line Set And Communication Wire with Assisted DIY™ is an evolution over DIY alone and makes GWIN™ a complete DIY mini split system that includes free expert tech support, with a tech included, so you never need special tools, never touch refrigerant, never run a vacuum pump, and never perform a pressure test. Our line sets with our easy connect flare-less fittings, allow for a professional operating system, with a professional look. Which also means no coiled mess and no guesswork — just a straightforward self-install ductless system that goes in like a true DIY HVACproject, backed by professionals every step of the way. Whether you're cooling or heating a garage, basement, bedroom, sunroom, home addition, tiny home, or cabin — GWIN™ HVAC is the ultimate DIY ductless solution with our Assisted DIY™ for homeowners who want to do it themselves, but done right." GWIN™ HVAC is the advanced version of DIY mini splits.
Upgrades for Flareless Line Set (from 15 feet) In Pre Made Bundles
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Flareless Line set upgrade from 15' line set.
Condenser Ground Stand Brackets
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Specifications and dimensions: Length 35" x Width 18" x Height 11" Loading capacity 264 lbs
Condensers Wall Mounting Bracket 18k-36k
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers. Specifications and dimensions: 31x16x20 in. 300 lbs loading capacity Suitable for 9,000-36,000 BTU condensers Equipped with security...
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers.
Specifications and dimensions:
- 31x16x20 in.
- 300 lbs loading capacity
- Suitable for 9,000-36,000 BTU condensers
- Equipped with security clip
- Preassembled set
PVC Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Line set covers Specifications and dimensions: 13 ft length 3 inches width 2 head wall covers Extra white covers Cold resistance: -40°F Heat resistance: 140°F Lifespan exceeding 10 years
GWIN Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Des...
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection
Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Designed to conceal and protect refrigerant tubing, electrical wiring, and drain lines, this durable cover system enhances curb appeal while helping extend the life of your HVAC components. Ideal for residential or light commercial installations, both indoors and outdoors.
Key Features & Benefits
- Complete Installation Kit: Includes straight line-set channels, couplers, wall cover, end cap, and an adjustable elbow for a streamlined, finished look.
- Generous 4" x 14 ft. Coverage: Fits most standard mini-split line sets, electrical cables, and drain hoses with ample interior space for easy routing.
- Durable & Weather-Resistant Construction: Built from high-quality, UV-resistant material to help protect HVAC lines from sun exposure, moisture, debris, and environmental wear.
- Paintable for a Seamless Look: Clean white finish can be painted to match siding, brick, stucco, or interior walls for a custom appearance.
- Easy, Modular Installation: Snap-together design supports quick installation with minimal tools—great for HVAC professionals and DIY homeowners.
Why Choose GWIN?
GWIN accessories are designed to deliver professional-grade performance with clean aesthetics. This line set cover kit not only protects vital HVAC components, but also elevates the overall appearance of your installation so it blends seamlessly into any space.
Product Specifications
- Brand: GWIN
- Application: Mini-split systems, heat pumps, air conditioners
- Coverage Length: 14 ft
- Width: 4 inches
- Color: White (paintable)
- Material: Weather- and UV-resistant PVC
- Indoor / Outdoor Use: Yes
- Installation Type: Surface-mounted, modular snap-fit
Included in This Kit
- Straight line-set cover sections
- Couplers
- Adjustable elbow (90°–120°)
- Wall penetration cover
- End cap
Note: Paint before installation for best results. Verify measurements and routing requirements prior to mounting.
Condenser Pad
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
This condenser pad will fit all of the GWIN Condensers available. Why purchase an Condenser Pad? 1. Protects the unit from pest, insects and critters that may cause damage to the condenser. 2. Reduce vibration from t...
This condenser pad will fit all of the GWIN Condensers available.
Why purchase an Condenser Pad?
1. Protects the unit from pest, insects and critters that may cause damage to the condenser.
2. Reduce vibration from the AC against this pad so it does not hit against the ground. If a condenser is not placed on a support system like a pad, you risk damage being done each time the condenser vibrates against the ground.
Pros
- Unaffected by UV or weather
- Uniform rubbing transfers load evenly
- Lightweight, yet incredibly rugged
Material Type: Polypropylene
Disconnect Switch and Electrical Whip with #10 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
Disconnect Switch and Electrical Whip with #8 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
single zones • Flareless line sets — cut to length • Mix King & Emperor indoor handlers
GWIN Multi-Zone Condensers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
18k-42k BTU Condensers
GWIN Multi-Zone Wall Mount Air Handlers SEER22
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN Air Handlers 7-24k BTU 230 Voltage
GWIN Multi-Zone Cassette
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.

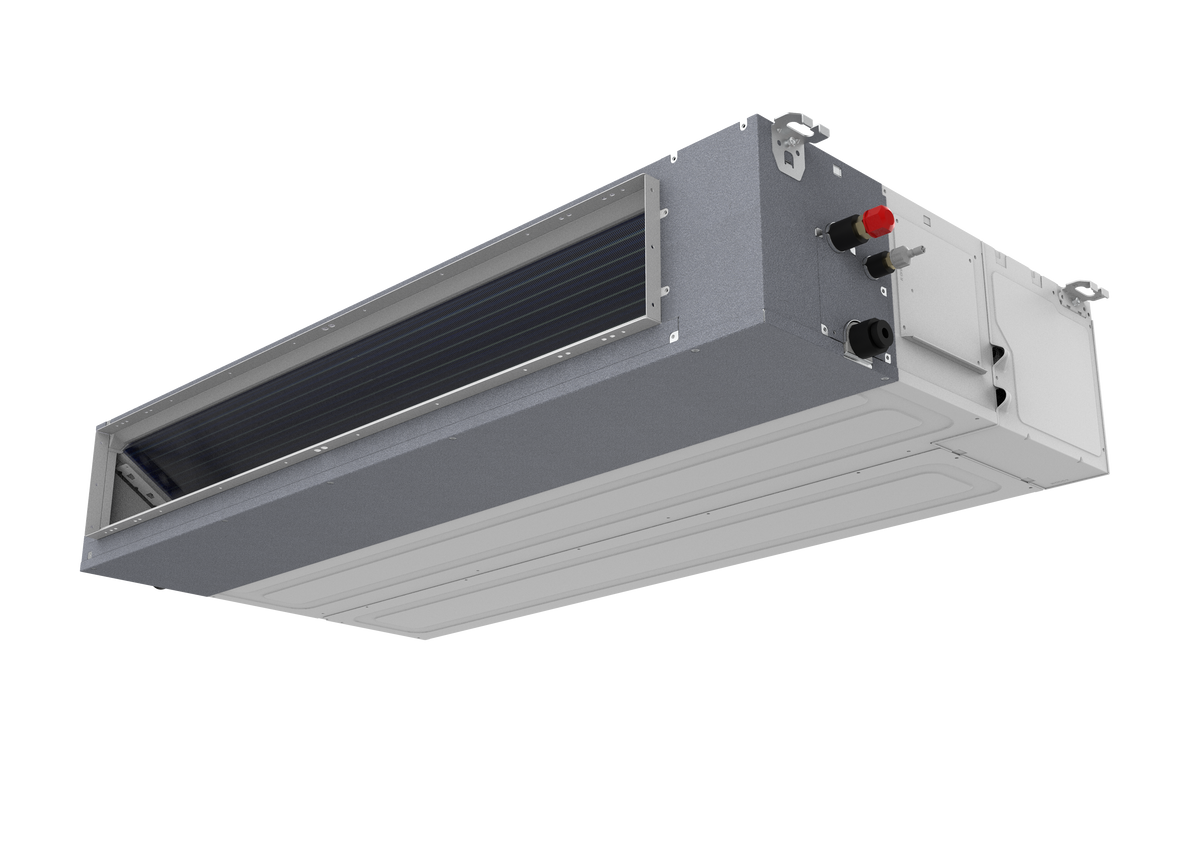

GWIN Multi-Zone Slim Ducted Air Handler Unit
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
GWIN Multi-Zone Floor/Ceiling Console
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
Flareless 1/4 x 3/8 GWIN Line Set for 7k, 9k, & 12k BTU Ductless Mini Split Air Handlers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Flareless 1/4 x 3/8 GWIN Line Set for 7k, 9k, & 12k BTU Air Handlers **Will not work on the ducted mini splits** **FOR CUSTOMERS DOING A SELF INSTALL** For contractors the Flared line set click this link: FLARED...
Flareless 1/4 x 3/8 GWIN Line Set for 7k, 9k, & 12k BTU Air Handlers
**Will not work on the ducted mini splits**
**FOR CUSTOMERS DOING A SELF INSTALL**
For contractors the Flared line set click this link: FLARED LINE SET
Flareless 1/4 x 1/2 GWIN Line Set for 18k & 20k BTU Ductless Mini Split Air Handlers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Flareless 1/4 x 1/2 GWIN Line Set for 18k BTU Ductless Mini Split Air Handlers **Will not work on the ducted mini splits** **FOR CUSTOMERS DOING A SELF INSTALL** For contractors the Flared line set click this link: F...
Flareless 1/4 x 1/2 GWIN Line Set for 18k BTU Ductless Mini Split Air Handlers
**Will not work on the ducted mini splits**
**FOR CUSTOMERS DOING A SELF INSTALL**
For contractors the Flared line set click this link: FLARED LINE SET
Flareless 1/4 x 5/8 GWIN Line Set for 24k, 30k, & 36k BTU Ductless Mini Split Air Handlers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Flareless 1/4 x 5/8 GWIN Line Set for 24k & 36k BTU Ductless Mini Split Air Handlers **Will not work on the ducted mini splits** **FOR CUSTOMERS DOING A SELF INSTALL** For contractors the Flared line set click th...
Flareless 1/4 x 5/8 GWIN Line Set for 24k & 36k BTU Ductless Mini Split Air Handlers
**Will not work on the ducted mini splits**
**FOR CUSTOMERS DOING A SELF INSTALL**
For contractors the Flared line set click this link: FLARED LINE SET
Condenser Pad
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
This condenser pad will fit all of the GWIN Condensers available. Why purchase an Condenser Pad? 1. Protects the unit from pest, insects and critters that may cause damage to the condenser. 2. Reduce vibration from t...
This condenser pad will fit all of the GWIN Condensers available.
Why purchase an Condenser Pad?
1. Protects the unit from pest, insects and critters that may cause damage to the condenser.
2. Reduce vibration from the AC against this pad so it does not hit against the ground. If a condenser is not placed on a support system like a pad, you risk damage being done each time the condenser vibrates against the ground.
Pros
- Unaffected by UV or weather
- Uniform rubbing transfers load evenly
- Lightweight, yet incredibly rugged
Material Type: Polypropylene
Condenser Ground Stand Brackets
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Specifications and dimensions: Length 35" x Width 18" x Height 11" Loading capacity 264 lbs
Condensers Wall Mounting Bracket 18k-36k
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers. Specifications and dimensions: 31x16x20 in. 300 lbs loading capacity Suitable for 9,000-36,000 BTU condensers Equipped with security...
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers.
Specifications and dimensions:
- 31x16x20 in.
- 300 lbs loading capacity
- Suitable for 9,000-36,000 BTU condensers
- Equipped with security clip
- Preassembled set
PVC Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Line set covers Specifications and dimensions: 13 ft length 3 inches width 2 head wall covers Extra white covers Cold resistance: -40°F Heat resistance: 140°F Lifespan exceeding 10 years
GWIN Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Des...
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection
Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Designed to conceal and protect refrigerant tubing, electrical wiring, and drain lines, this durable cover system enhances curb appeal while helping extend the life of your HVAC components. Ideal for residential or light commercial installations, both indoors and outdoors.
Key Features & Benefits
- Complete Installation Kit: Includes straight line-set channels, couplers, wall cover, end cap, and an adjustable elbow for a streamlined, finished look.
- Generous 4" x 14 ft. Coverage: Fits most standard mini-split line sets, electrical cables, and drain hoses with ample interior space for easy routing.
- Durable & Weather-Resistant Construction: Built from high-quality, UV-resistant material to help protect HVAC lines from sun exposure, moisture, debris, and environmental wear.
- Paintable for a Seamless Look: Clean white finish can be painted to match siding, brick, stucco, or interior walls for a custom appearance.
- Easy, Modular Installation: Snap-together design supports quick installation with minimal tools—great for HVAC professionals and DIY homeowners.
Why Choose GWIN?
GWIN accessories are designed to deliver professional-grade performance with clean aesthetics. This line set cover kit not only protects vital HVAC components, but also elevates the overall appearance of your installation so it blends seamlessly into any space.
Product Specifications
- Brand: GWIN
- Application: Mini-split systems, heat pumps, air conditioners
- Coverage Length: 14 ft
- Width: 4 inches
- Color: White (paintable)
- Material: Weather- and UV-resistant PVC
- Indoor / Outdoor Use: Yes
- Installation Type: Surface-mounted, modular snap-fit
Included in This Kit
- Straight line-set cover sections
- Couplers
- Adjustable elbow (90°–120°)
- Wall penetration cover
- End cap
Note: Paint before installation for best results. Verify measurements and routing requirements prior to mounting.
Disconnect Switch and Electrical Whip with #10 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
Disconnect Switch and Electrical Whip with #8 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
single zones • Flareless line sets — cut to length • Mix King & Emperor indoor handlers
GWIN Assisted DIY 1.5 Ton - 18,000 BTU - 19.20 SEER2 - Ducted Complete System
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAHU18HPV1ACS Experience superior climate control with the GWIN Assisted DIY 18,000 BTU 19.20 SEER2 1.5 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with f...
Description GAHU18HPV1ACS
Experience superior climate control with the GWIN Assisted DIY 18,000 BTU 19.20 SEER2 1.5 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flexible installation for whole-home conditioning.
-
Whole Home Comfort: Heat or cool your entire home up to 1,800 sq. ft. with centralized temperature control and consistent comfort throughout all ducted spaces, supported by long piping design for flexible layouts.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Inverter Technology: Inverter compressor automatically adjusts output to match demand, delivering consistent comfort while minimizing energy consumption and reducing utility bills.
-
Exceptional Reliability: Advanced refrigerant cooling technology prevents PCB overheating to extend system lifespan. Wide voltage range (170V–253V) protects against power fluctuations and grid instability.
-
All-Season Performance: Reliable operation from -13°F to 125°F for year-round comfort in extreme climates. Auto-restart function automatically resumes previous settings after power outages for uninterrupted service.
-
Smart Connectivity: Dual communication compatibility with 24V and 485 control systems for easy integration with smart home platforms and building management systems.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, advanced PCB protection, and intelligent features for consistent whole-home comfort and lower energy bills. Flexible mounting options and generous piping allowances simplify professional installation.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 170–253V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: proper ductwork design and balanced airflow distribution
18K Ducted: 1,800 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ducted Air Conditioner & Heat Pump | | Zones | Whole Home | | Capacity | 18,000 BTU (Rated); Range: 6,000–23,000 BTU (Cooling); 4,600–24,000 BTU (Heating) | | SEER2 Rating | 19.20 | | EER2 Rating | 11.60 | | HSPF2 Rating | 9.00 | | Voltage | 208–230V, 1-Phase, 60 Hz | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (18K) x 1
| Model | GAHU18HPV1BI | | Dimensions | 17.5"W x 21"D x 51.56"H | | Type | Ducted Air Handler | | Cooling Capacity | 18,000 BTU/h | | Heating Capacity | 22,000 BTU/h @ 47°F | | Airflow (CFM) | 600 / 530 / 440 | | Sound Level | 47 / 45 / 43 dB(A) | | ESP Range | 0–1.0 in.w.g (Rated at 0.5) | | Liquid Line | 3/8"; Gas Line: 5/8" | | Max Piping | 98 ft (Length); 49 ft (Height) |
OUTDOOR UNIT (18K) x 1
| Model | GAHU18HPV1BO | | Dimensions | 38.56"W x 30.31"H x 15.25"D | | Cooling Capacity | 18,000 BTU/h | | Heating Capacity | 22,000 BTU/h @ 47°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Air Flow Volume | 2,059 CFM | | Power Input | 2,900 W (Max) | | Breaker/MCA/Max Fuse | 25A / 18A / 30A | | Refrigerant | R32 (Pre-charge 52.91 oz) | | Liquid Line | 3/8"; Gas Line: 5/8" | | Max Piping | 98 ft (Length); 49 ft (Height) | | Outdoor Sound | 56 dB(A) | | Certifications | AHRI #216032392; Tested for voltage range 170V–253V |
GWIN Assisted DIY 2 Ton - 24,000 BTU - 19 SEER2 - Ducted Complete System
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAHU24HPV1ACS Experience superior climate control with the GWIN Assisted DIY 24,000 BTU 19 SEER2 2 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flexib...
Description GAHU24HPV1ACS
Experience superior climate control with the GWIN Assisted DIY 24,000 BTU 19 SEER2 2 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flexible installation for whole-home conditioning.
-
Whole Home Comfort: Heat or cool your entire home up to 2,400 sq. ft. with centralized temperature control and consistent comfort throughout all ducted spaces, supported by extended piping design for flexible layouts and challenging installations.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Inverter Technology: Inverter compressor automatically adjusts output to match demand, delivering consistent comfort while minimizing energy consumption and reducing utility bills. Quiet operation with multiple fan speeds for optimized comfort levels.
-
Exceptional Reliability: Advanced refrigerant cooling technology prevents PCB overheating to extend system lifespan. Wide voltage range (170V–253V) protects against power fluctuations and grid instability for dependable operation.
-
All-Season Performance: Reliable operation from -13°F to 125°F for year-round comfort in extreme climates. Auto-restart function automatically resumes previous settings after power outages for uninterrupted service.
-
Smart Connectivity: Dual communication compatibility with 24V and 485 control systems for easy integration with smart home platforms and building management systems.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, advanced PCB protection, and intelligent features for consistent whole-home comfort and lower energy bills. Extended piping allowances and flexible mounting options simplify professional installation in residential and commercial applications.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 170–253V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: proper ductwork design and balanced airflow distribution
24K Ducted: 2,400 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ducted Air Conditioner & Heat Pump | | Zones | Whole Home | | Capacity | 24,000 BTU (Rated); Range: 7,000–26,000 BTU (Cooling); 5,000–30,000 BTU (Heating) | | SEER2 Rating | 19.00 | | EER2 Rating | 11.00 | | HSPF2 Rating | 9.50 (Region IV) | | Voltage | 208–230V, 1-Phase, 60 Hz | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (24K) x 1
| Model | GAHU24HPV1BI | | Dimensions | 17.5"W x 21"D x 51.56"H | | Type | Ducted Air Handler | | Cooling Capacity | 24,000 BTU/h | | Heating Capacity | 26,000 BTU/h @ 47°F | | Airflow (CFM) | 800 / 680 / 560 | | Sound Level | 49 / 47 / 45 dB(A) | | ESP Range | 0–1.0 in.w.g (Rated at 0.5) | | Operating Temperature | 61–90°F | | Liquid Line | 3/8"; Gas Line: 5/8" | | Max Piping | 164 ft (Length); 98 ft (Height) |
OUTDOOR UNIT (24K) x 1
| Model | GAHU24HPV1BO | | Dimensions | 41.19"W x 31.81"H x 17.94"D | | Cooling Capacity | 24,000 BTU/h | | Heating Capacity | 26,000 BTU/h @ 47°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Air Flow Volume | 2,471 CFM | | Power Input | 3,900 W (Max) | | Breaker/MCA/Max Fuse | 25A / 21A / 30A | | Refrigerant | R32 (Pre-charge 81.13 oz) | | Liquid Line | 3/8"; Gas Line: 5/8" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Outdoor Sound | 57 dB(A) | | Certifications | AHRI #216032393; Tested for voltage range 170V–253V |
GWIN Assisted DIY 2.5 Ton - 30,000 BTU - 18 SEER2 - Ducted Complete System
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAHU30HPV1ACS Experience superior climate control with the GWIN Assisted DIY 30,000 BTU 18 SEER2 2.5 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flex...
Description GAHU30HPV1ACS
Experience superior climate control with the GWIN Assisted DIY 30,000 BTU 18 SEER2 2.5 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flexible installation for whole-home conditioning.
-
Whole Home Comfort: Heat or cool your entire home up to 3,000 sq. ft. with centralized temperature control and consistent comfort throughout all ducted spaces, supported by extended piping design for flexible layouts and complex duct configurations.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Inverter Technology: Inverter compressor automatically adjusts output to match demand, delivering consistent comfort while minimizing energy consumption and reducing utility bills. Multiple fan speeds provide quiet, optimized operation for every season.
-
Exceptional Reliability: Advanced refrigerant cooling technology prevents PCB overheating to extend system lifespan. Wide voltage range (170V–253V) protects against power fluctuations and grid instability for dependable operation in challenging environments.
-
All-Season Performance: Reliable operation from -13°F to 125°F for year-round comfort in extreme climates. Auto-restart function automatically resumes previous settings after power outages for uninterrupted service and minimal downtime.
-
Smart Connectivity: Dual communication compatibility with 24V and 485 control systems for seamless integration with smart home platforms and commercial building management systems.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, advanced PCB protection, and intelligent features for consistent whole-home comfort and lower energy bills. Extended piping allowances, flexible mounting options, and generous ESP capability simplify professional installation in residential and commercial applications.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 170–253V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: proper ductwork design and balanced airflow distribution
30K Ducted: 3,000 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ducted Air Conditioner & Heat Pump | | Zones | Whole Home | | Capacity | 30,000 BTU (Rated); Range: 8,000–34,000 BTU (Cooling); 5,500–36,000 BTU (Heating) | | SEER2 Rating | 18.00 | | EER2 Rating | 11.60 | | HSPF2 Rating | 9.00 (Region IV) | | Voltage | 208–230V, 1-Phase, 60 Hz | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (30K) x 1
| Model | GAHU30HPV1BI | | Dimensions | 21"W x 21"D x 49"H | | Type | Ducted Air Handler | | Cooling Capacity | 30,000 BTU/h | | Heating Capacity | 33,000 BTU/h @ 47°F | | Airflow (CFM) | 1,000 / 820 / 650 | | Sound Level | 50 / 48 / 46 dB(A) | | ESP Range | 0–1.0 in.w.g (Rated at 0.5) | | Operating Temperature | 61–90°F | | Power Input | 2,586 W (Cooling); 2,931 W (Heating @ 47°F) | | Rated Current | 11.47 A (Cooling); 13.00 A (Heating) | | Liquid Line | 3/8"; Gas Line: 5/8" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Weight | 132.9 lbs |
OUTDOOR UNIT (30K) x 1
| Model | GAHU30HPV1BO | | Dimensions | 39.81"W x 51.94"H x 15.75"D | | Cooling Capacity | 30,000 BTU/h | | Heating Capacity | 33,000 BTU/h @ 47°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Air Flow Volume | 4,000 CFM | | Power Input | 4,700 W (Max) | | Breaker/MCA/Max Fuse | 30A / 24A / 35A | | Refrigerant | R32 (Pre-charge 116.40 oz) | | Liquid Line | 3/8"; Gas Line: 5/8" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Outdoor Sound | 58 dB(A) | | Weight | 196.16 lbs | | Certifications | AHRI #216032394; Tested for voltage range 170V–253V |
GWIN Assisted DIY 3 Ton - 36,000 BTU - 18.2 SEER2 - Ducted Complete System
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAHU36HPV1ACS Experience superior climate control with the GWIN Assisted DIY 36,000 BTU 18.2 SEER2 3 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flex...
Description GAHU36HPV1ACS
Experience superior climate control with the GWIN Assisted DIY 36,000 BTU 18.2 SEER2 3 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flexible installation for whole-home conditioning.
-
Whole Home Comfort: Heat or cool your entire home up to 3,600 sq. ft. with centralized temperature control and consistent comfort throughout all ducted spaces, supported by extended piping design for flexible layouts and complex duct configurations in new construction or retrofit projects.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Inverter Technology: Inverter compressor automatically adjusts output to match demand, delivering consistent comfort while minimizing energy consumption and reducing utility bills. Multiple fan speeds provide quiet, optimized operation with airflow up to 1,200 CFM for even distribution throughout larger homes.
-
Exceptional Reliability: Advanced refrigerant cooling technology prevents PCB overheating to extend system lifespan. Wide voltage range (170V–253V) protects against power fluctuations and grid instability for dependable operation in challenging environments.
-
All-Season Performance: Reliable operation from -13°F to 125°F for year-round comfort in extreme climates. Auto-restart function automatically resumes previous settings after power outages for uninterrupted service and minimal downtime.
-
Smart Connectivity: Dual communication compatibility with 24V and 485 control systems for seamless integration with smart home platforms and commercial building management systems.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, advanced PCB protection, and intelligent features for consistent whole-home comfort and lower energy bills. Extended piping allowances, flexible mounting options, and generous ESP capability simplify professional installation in residential and commercial applications.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 170–253V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: proper ductwork design and balanced airflow distribution
36K Ducted: 3,600 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ducted Air Conditioner & Heat Pump | | Zones | Whole Home | | Capacity | 36,000 BTU (Rated); Range: 8,500–39,500 BTU (Cooling); 7,600–39,500 BTU (Heating) | | SEER2 Rating | 18.20 | | EER2 Rating | 10.00 | | HSPF2 Rating | 10.00 (Region IV) | | Voltage | 208–230V, 1-Phase, 60 Hz | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (36K) x 1
| Model | GAHU36HPV1BI | | Dimensions | 21"W x 21"D x 49"H | | Type | Ducted Air Handler | | Cooling Capacity | 36,000 BTU/h | | Heating Capacity | 38,000 BTU/h @ 47°F | | Airflow (CFM) | 1,200 / 950 / 790 | | Sound Level | 53 / 51 / 49 dB(A) | | ESP Range | 0–1.0 in.w.g (Rated at 0.5) | | Operating Temperature | 61–90°F | | Power Input | 3,600 W (Cooling); 3,375 W (Heating @ 47°F) | | Rated Current | 15.97 A (Cooling); 14.97 A (Heating) | | Liquid Line | 3/8"; Gas Line: 5/8" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Weight | 132.9 lbs |
OUTDOOR UNIT (36K) x 1
| Model | GAHU36HPV1BO | | Dimensions | 39.81"W x 51.94"H x 15.75"D | | Cooling Capacity | 36,000 BTU/h | | Heating Capacity | 38,000 BTU/h @ 47°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Air Flow Volume | 4,000 CFM | | Power Input | 5,900 W (Max) | | Breaker/MCA/Max Fuse | 35A / 28A / 40A | | Refrigerant | R32 (Pre-charge 119.93 oz) | | Liquid Line | 3/8"; Gas Line: 5/8" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Outdoor Sound | 58 dB(A) | | Weight | 196.16 lbs | | Certifications | AHRI #216032395; Tested for voltage range 170V–253V |

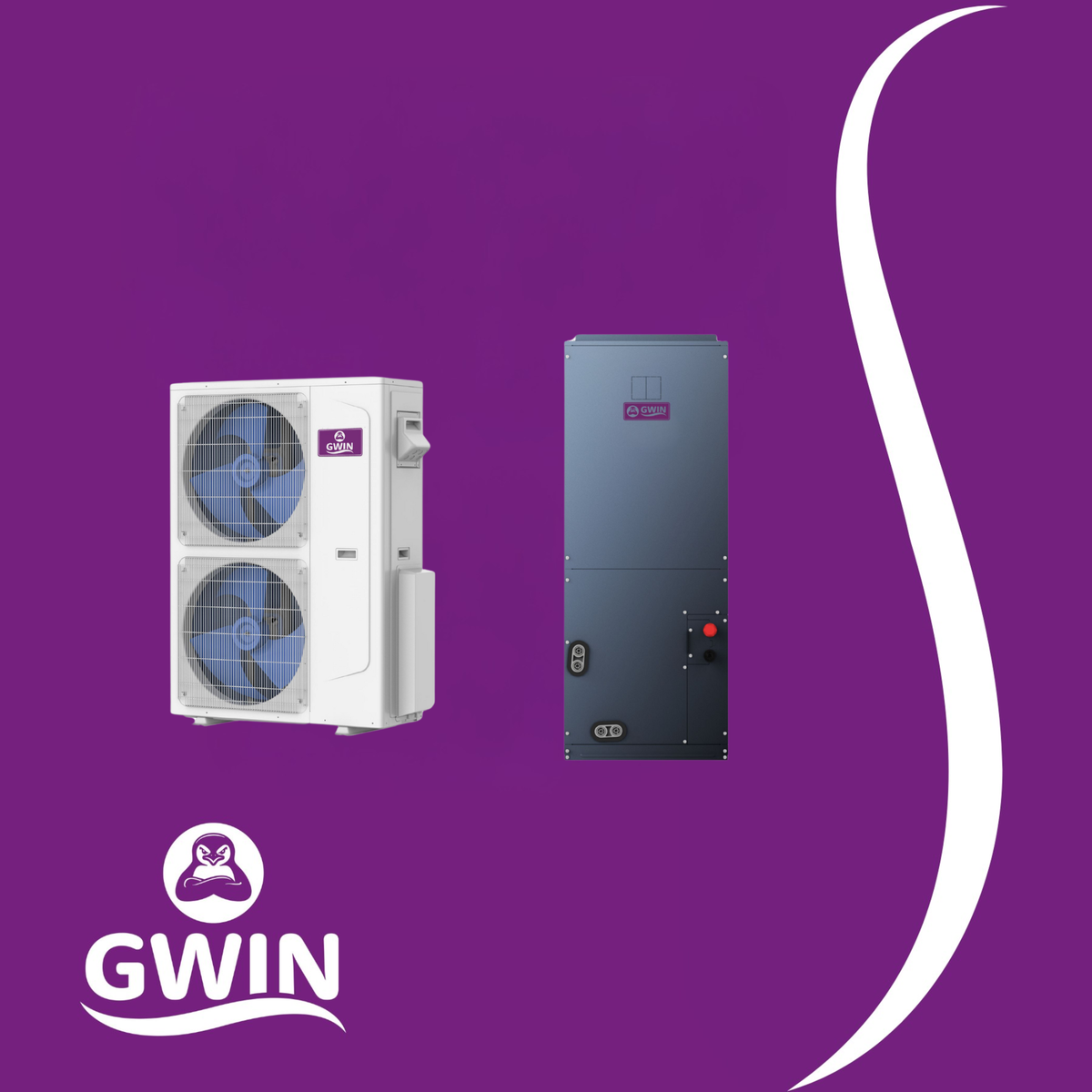

GWIN Assisted DIY 4 Ton - 48,000 BTU - 17 SEER2 - Ducted Complete System
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAHU48HPV1ACS Experience superior climate control with the GWIN Assisted DIY 48,000 BTU 17 SEER2 4 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flexib...
Description GAHU48HPV1ACS
Experience superior climate control with the GWIN Assisted DIY 48,000 BTU 17 SEER2 4 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flexible installation for whole-home conditioning in residential and light commercial applications.
-
Whole Home Comfort: Heat or cool your entire home up to 4,800 sq. ft. with centralized temperature control and consistent comfort throughout all ducted spaces, supported by extended piping design for flexible layouts and complex duct configurations in new construction or retrofit projects.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Inverter Technology: Inverter compressor automatically adjusts output to match demand, delivering consistent comfort while minimizing energy consumption and reducing utility bills. High-capacity airflow up to 1,550 CFM provides even distribution throughout larger homes and commercial spaces.
-
Exceptional Reliability: Advanced refrigerant cooling technology prevents PCB overheating to extend system lifespan. Wide voltage range (170V–253V) protects against power fluctuations and grid instability for dependable operation in challenging environments.
-
All-Season Performance: Reliable operation from -13°F to 125°F for year-round comfort in extreme climates. Auto-restart function automatically resumes previous settings after power outages for uninterrupted service and minimal downtime.
-
Smart Connectivity: Dual communication compatibility with 24V and 485 control systems for seamless integration with smart home platforms and commercial building management systems.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, advanced PCB protection, and intelligent features for consistent whole-home comfort and lower energy bills. Extended piping allowances, flexible mounting options, and generous ESP capability simplify professional installation in residential and light commercial applications.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 170–253V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: proper ductwork design and balanced airflow distribution
48K Ducted: 4,800 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ducted Air Conditioner & Heat Pump | | Zones | Whole Home | | Capacity | 48,000 BTU (Rated); Range: 9,000–55,000 BTU (Cooling); 8,000–56,000 BTU (Heating) | | SEER2 Rating | 17.00 | | EER2 Rating | 10.00 | | HSPF2 Rating | 9.50 (Region IV) | | Voltage | 208–230V, 1-Phase, 60 Hz | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (48K) x 1
| Model | GAHU48HPV1BI | | Dimensions | 24.5"W x 21"D x 53"H | | Type | Ducted Air Handler | | Cooling Capacity | 48,000 BTU/h | | Heating Capacity | 49,000 BTU/h @ 47°F | | Airflow (CFM) | 1,550 / 1,300 / 1,050 | | Sound Level | 53 / 51 / 49 dB(A) | | ESP Range | 0–1.0 in.w.g (Rated at 0.5) | | Operating Temperature | 61–90°F | | Power Input | 4,800 W (Cooling); 4,224 W (Heating @ 47°F) | | Rated Current | 21.30 A (Cooling); 18.74 A (Heating) | | Liquid Line | 3/8"; Gas Line: 3/4" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Weight | 154.3 lbs |
OUTDOOR UNIT (48K) x 1
| Model | GAHU48HPV1BO | | Dimensions | 39.81"W x 51.94"H x 15.75"D | | Cooling Capacity | 48,000 BTU/h | | Heating Capacity | 49,000 BTU/h @ 47°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Air Flow Volume | 4,000 CFM | | Power Input | 6,500 W (Max) | | Breaker/MCA/Max Fuse | 45A / 34A / 50A | | Refrigerant | R32 (Pre-charge 144.62 oz) | | Liquid Line | 3/8"; Gas Line: 3/4" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Outdoor Sound | 60 dB(A) | | Weight | 209.38 lbs | | Certifications | AHRI #216032396; Tested for voltage range 170V–253V |
GWIN Assisted DIY 5 Ton - 60,000 BTU - 16.5 SEER2 - Ducted Complete System
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Description GAHU60HPV1ACS Experience superior climate control with the GWIN Assisted DIY 60,000 BTU 16.5 SEER2 5 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flex...
Description GAHU60HPV1ACS
Experience superior climate control with the GWIN Assisted DIY 60,000 BTU 16.5 SEER2 5 Ton Inverter Ducted System - engineered for reliable performance and advanced comfort features with flexible installation for large whole-home conditioning in residential and light commercial applications.
-
Whole Home Comfort: Heat or cool your entire home up to 6,000 sq. ft. with centralized temperature control and consistent comfort throughout all ducted spaces, supported by extended piping design for flexible layouts and complex duct configurations in new construction or retrofit projects.
-
Assisted HVAC Done Right: Until GWIN came along, Assisted HVAC was easy to get wrong—small mistakes could create expensive problems. You also used to have to sacrifice quality for affordability. GWIN Assisted DIY fixes all of that with easier installation, better coverage, and top-quality systems without the expensive pro installation costs.
-
Advanced Inverter Technology: Inverter compressor automatically adjusts output to match demand, delivering consistent comfort while minimizing energy consumption and reducing utility bills. High-capacity airflow up to 1,800 CFM provides even distribution throughout large homes and commercial spaces with multiple zones and long duct runs.
-
Exceptional Reliability: Advanced refrigerant cooling technology prevents PCB overheating to extend system lifespan. Wide voltage range (170V–253V) protects against power fluctuations and grid instability for dependable operation in challenging environments.
-
All-Season Performance: Reliable operation from -13°F to 125°F for year-round comfort in extreme climates. Auto-restart function automatically resumes previous settings after power outages for uninterrupted service and minimal downtime.
-
Smart Connectivity: Dual communication compatibility with 24V and 485 control systems for seamless integration with smart home platforms and commercial building management systems.
-
Premium Warranty: 12-Year Compressor (registered) protection for long-term peace of mind.
The GWIN system delivers powerful, efficient heating and cooling with inverter compressor technology, advanced PCB protection, and intelligent features for consistent whole-home comfort and lower energy bills. Extended piping allowances, flexible mounting options, and generous ESP capability simplify professional installation in large residential and light commercial applications.
System Features
- Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
- Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
- Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 170–253V.
- Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.
- Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
- Fast Heating and Cooling: Inverter compressor rapidly achieves your desired room temperature.
- ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
- Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.
Built for Reliability
- Golden Fin Coils (indoor and outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
- Outdoor PCB "Three-Proof" design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
COVERAGE & CAPACITY GUIDE Optimal conditions: proper ductwork design and balanced airflow distribution
60K Ducted: 6,000 sq ft
SPECIFICATIONS & DIMENSIONS
SYSTEM OVERVIEW
| System Type | Ducted Air Conditioner & Heat Pump | | Zones | Whole Home | | Capacity | 55,000 BTU (Rated); Range: 9,500–57,000 BTU (Cooling); 9,000–58,000 BTU (Heating) | | SEER2 Rating | 16.50 | | EER2 Rating | 9.50 | | HSPF2 Rating | 9.50 (Region IV) | | Voltage | 208–230V, 1-Phase, 60 Hz | Warranty | 12 Years Compressor (registered); 7 Years Parts & Labor |
INDOOR UNIT (60K) x 1
| Model | GAHU60HPV1BI | | Dimensions | 24.5"W x 21"D x 53"H | | Type | Ducted Air Handler | | Cooling Capacity | 55,000 BTU/h | | Heating Capacity | 55,000 BTU/h @ 47°F | | Airflow (CFM) | 1,800 / 1,490 / 1,180 | | Sound Level | 54 / 52 / 50 dB(A) | | ESP Range | 0–1.0 in.w.g (Rated at 0.5) | | Operating Temperature | 61–90°F | | Power Input | 5,789 W (Cooling); 4,885 W (Heating @ 47°F) | | Rated Current | 25.69 A (Cooling); 21.67 A (Heating) | | Liquid Line | 3/8"; Gas Line: 3/4" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Weight | 154.3 lbs |
OUTDOOR UNIT (60K) x 1
| Model | GAHU60HPV1BO | | Dimensions | 39.81"W x 51.94"H x 15.75"D | | Cooling Capacity | 55,000 BTU/h | | Heating Capacity | 55,000 BTU/h @ 47°F | | Operating Range | Cooling: 5–125°F; Heating: -13–75°F | | Voltage | 208–230V, 1-Phase, 60 Hz | | Air Flow Volume | 4,000 CFM | | Power Input | 7,000 W (Max) | | Breaker/MCA/Max Fuse | 45A / 36A / 50A | | Refrigerant | R32 (Pre-charge 144.62 oz) | | Liquid Line | 3/8"; Gas Line: 3/4" | | Max Piping | 164 ft (Length); 98 ft (Height) | | Outdoor Sound | 60 dB(A) | | Weight | 209.38 lbs | | Certifications | AHRI #216032397; Tested for voltage range 170V–253V |
Upgrades for Flareless Line Set (from 15 feet) In Pre Made Bundles
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Flareless Line set upgrade from 15' line set.

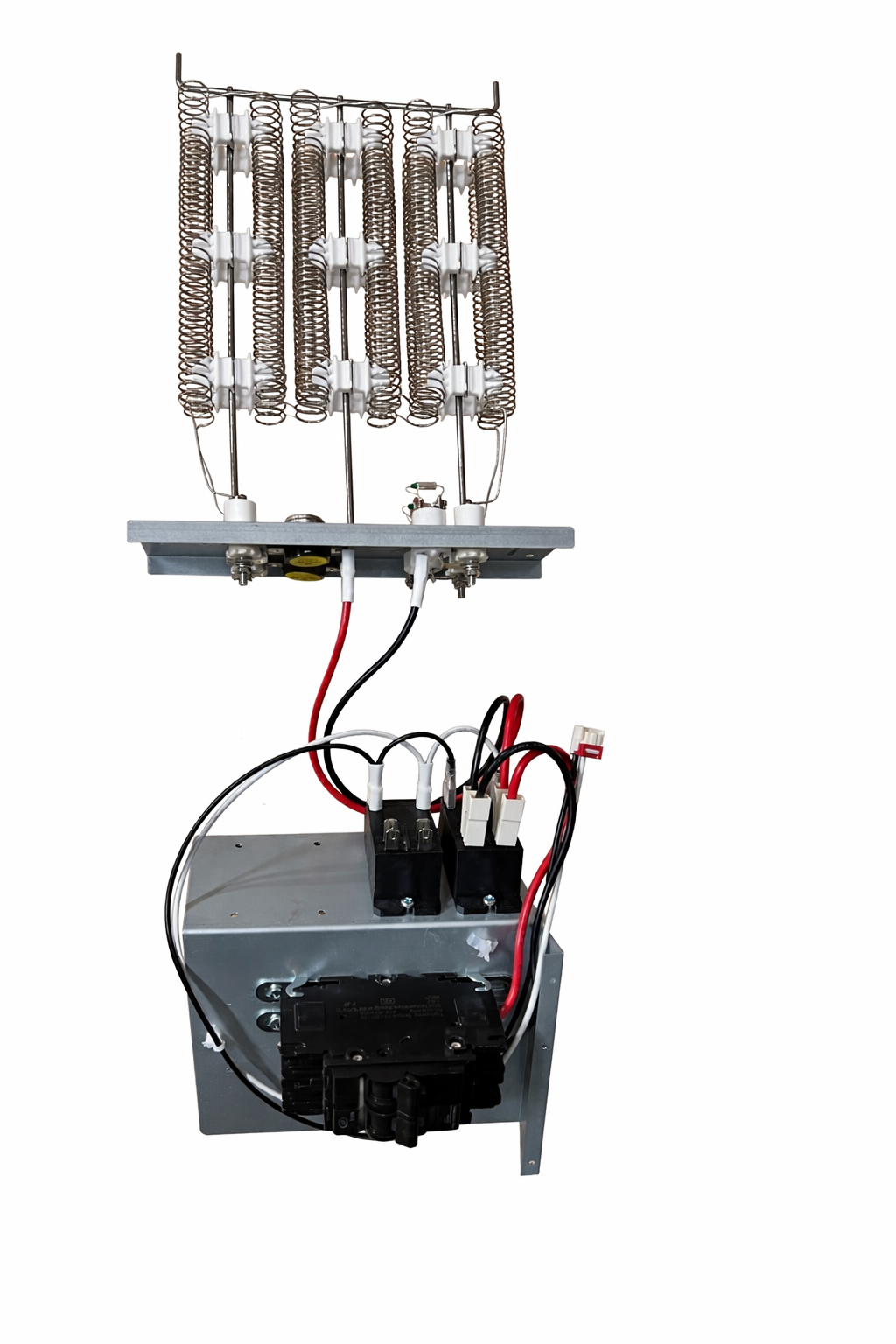

GWIN 10 kW Heat Kits for Ducted Systems
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Need an emergency heat? Introducing our 10 kW Heat Kit for our GWIN Ducted systems!
GWIN 15 kW Heat Kits for Ducted Systems
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Need an emergency heat? Introducing our 15 kW Heat Kit for our GWIN Ducted systems!

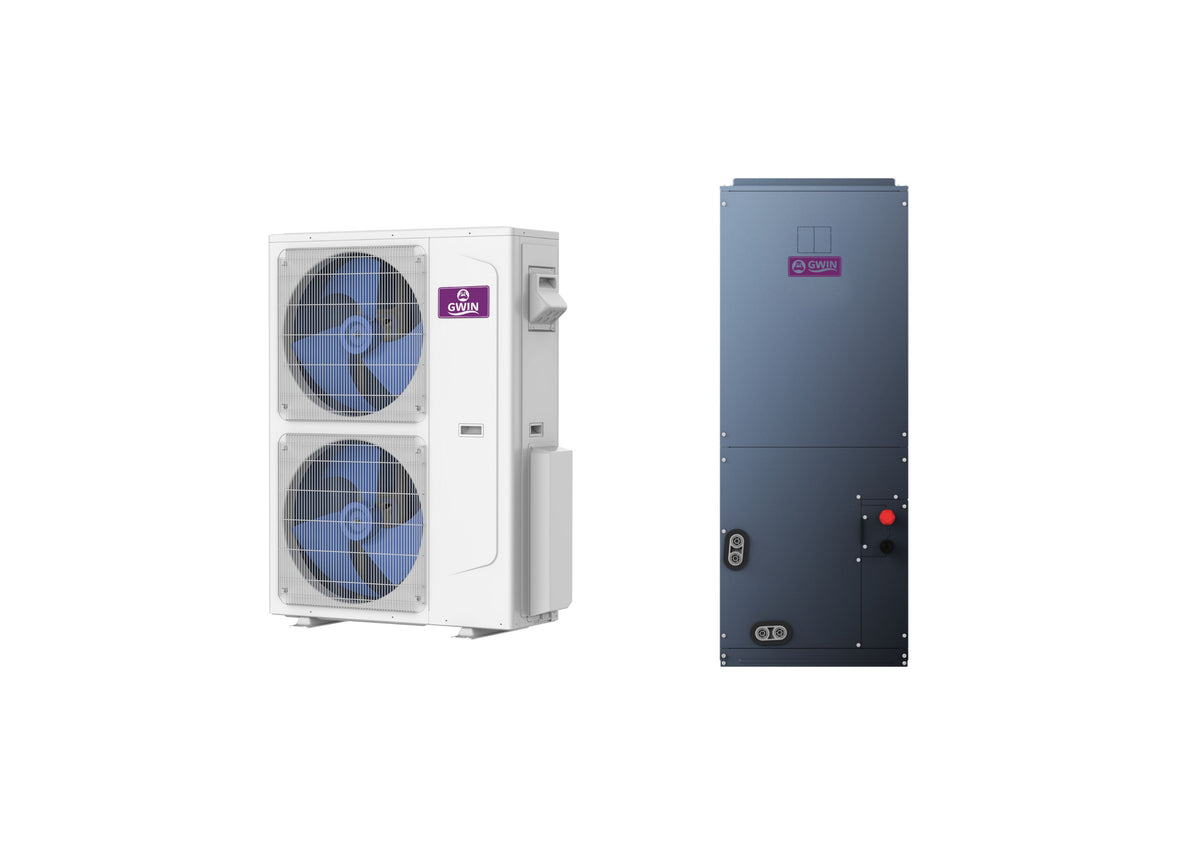

GWIN Ducted Complete System
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
18k BTU-60K BTU Ducted Complete System
Condensers Wall Mounting Bracket 18k-36k
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers. Specifications and dimensions: 31x16x20 in. 300 lbs loading capacity Suitable for 9,000-36,000 BTU condensers Equipped with security...
Wall mounting brackets for condensers. Can hold up to 3 tons (36k) condensers.
Specifications and dimensions:
- 31x16x20 in.
- 300 lbs loading capacity
- Suitable for 9,000-36,000 BTU condensers
- Equipped with security clip
- Preassembled set
PVC Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
Line set covers Specifications and dimensions: 13 ft length 3 inches width 2 head wall covers Extra white covers Cold resistance: -40°F Heat resistance: 140°F Lifespan exceeding 10 years
GWIN Line Covers
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Des...
GWIN 4" x 14 ft. Mini-Split Line Set Cover Kit – Paintable, Weather-Resistant HVAC Protection
Give your mini-split installation a clean, professional finish with the GWIN Mini-Split Line Set Cover Kit. Designed to conceal and protect refrigerant tubing, electrical wiring, and drain lines, this durable cover system enhances curb appeal while helping extend the life of your HVAC components. Ideal for residential or light commercial installations, both indoors and outdoors.
Key Features & Benefits
- Complete Installation Kit: Includes straight line-set channels, couplers, wall cover, end cap, and an adjustable elbow for a streamlined, finished look.
- Generous 4" x 14 ft. Coverage: Fits most standard mini-split line sets, electrical cables, and drain hoses with ample interior space for easy routing.
- Durable & Weather-Resistant Construction: Built from high-quality, UV-resistant material to help protect HVAC lines from sun exposure, moisture, debris, and environmental wear.
- Paintable for a Seamless Look: Clean white finish can be painted to match siding, brick, stucco, or interior walls for a custom appearance.
- Easy, Modular Installation: Snap-together design supports quick installation with minimal tools—great for HVAC professionals and DIY homeowners.
Why Choose GWIN?
GWIN accessories are designed to deliver professional-grade performance with clean aesthetics. This line set cover kit not only protects vital HVAC components, but also elevates the overall appearance of your installation so it blends seamlessly into any space.
Product Specifications
- Brand: GWIN
- Application: Mini-split systems, heat pumps, air conditioners
- Coverage Length: 14 ft
- Width: 4 inches
- Color: White (paintable)
- Material: Weather- and UV-resistant PVC
- Indoor / Outdoor Use: Yes
- Installation Type: Surface-mounted, modular snap-fit
Included in This Kit
- Straight line-set cover sections
- Couplers
- Adjustable elbow (90°–120°)
- Wall penetration cover
- End cap
Note: Paint before installation for best results. Verify measurements and routing requirements prior to mounting.
Condenser Pad
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
This condenser pad will fit all of the GWIN Condensers available. Why purchase an Condenser Pad? 1. Protects the unit from pest, insects and critters that may cause damage to the condenser. 2. Reduce vibration from t...
This condenser pad will fit all of the GWIN Condensers available.
Why purchase an Condenser Pad?
1. Protects the unit from pest, insects and critters that may cause damage to the condenser.
2. Reduce vibration from the AC against this pad so it does not hit against the ground. If a condenser is not placed on a support system like a pad, you risk damage being done each time the condenser vibrates against the ground.
Pros
- Unaffected by UV or weather
- Uniform rubbing transfers load evenly
- Lightweight, yet incredibly rugged
Material Type: Polypropylene
Disconnect Switch and Electrical Whip with #10 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
Disconnect Switch and Electrical Whip with #8 AWG
- 230V single phase
- Heating to −22°F
- Complete bundle system
- All GWIN™ guarantees
No description available.
